Category

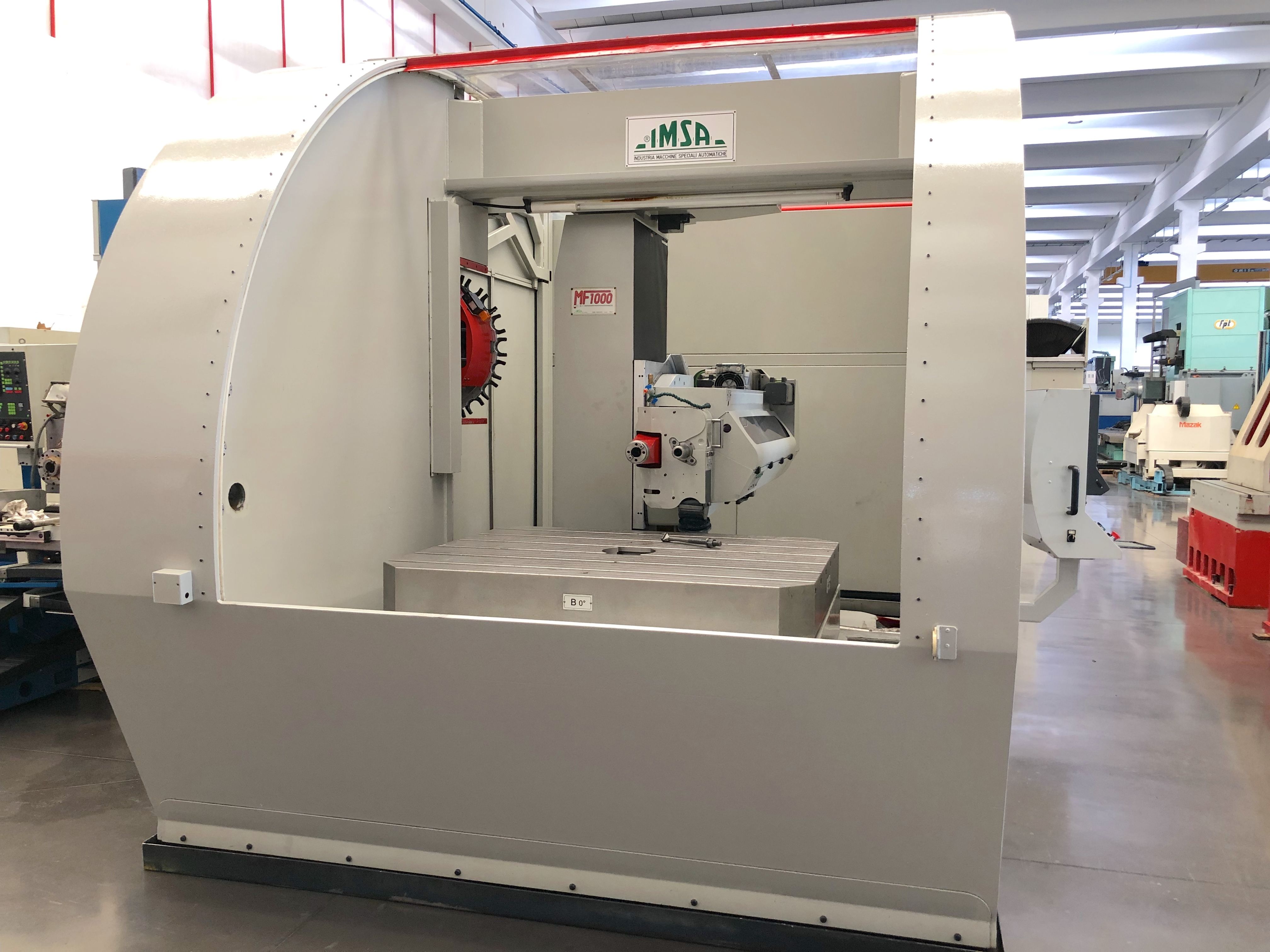

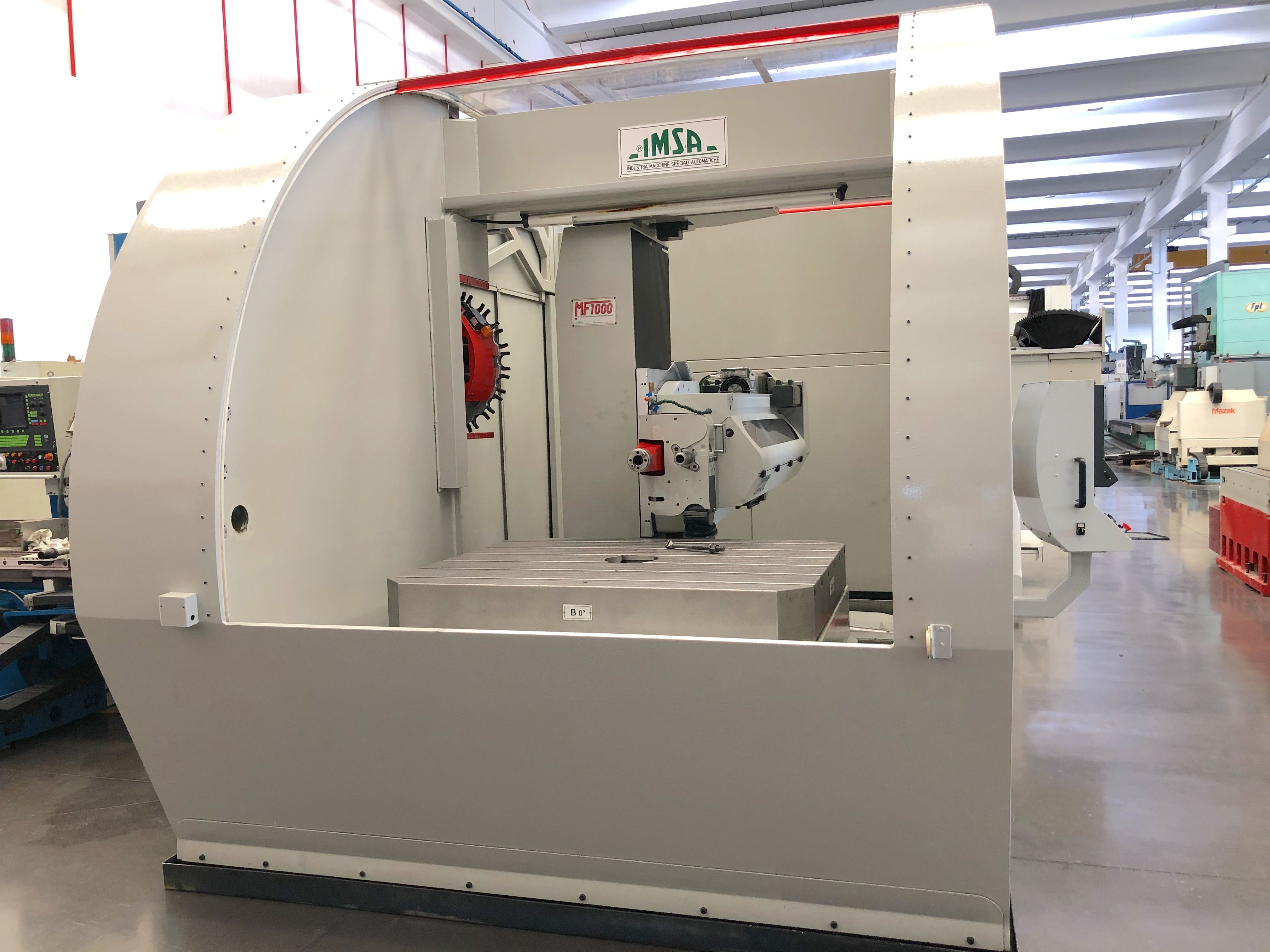

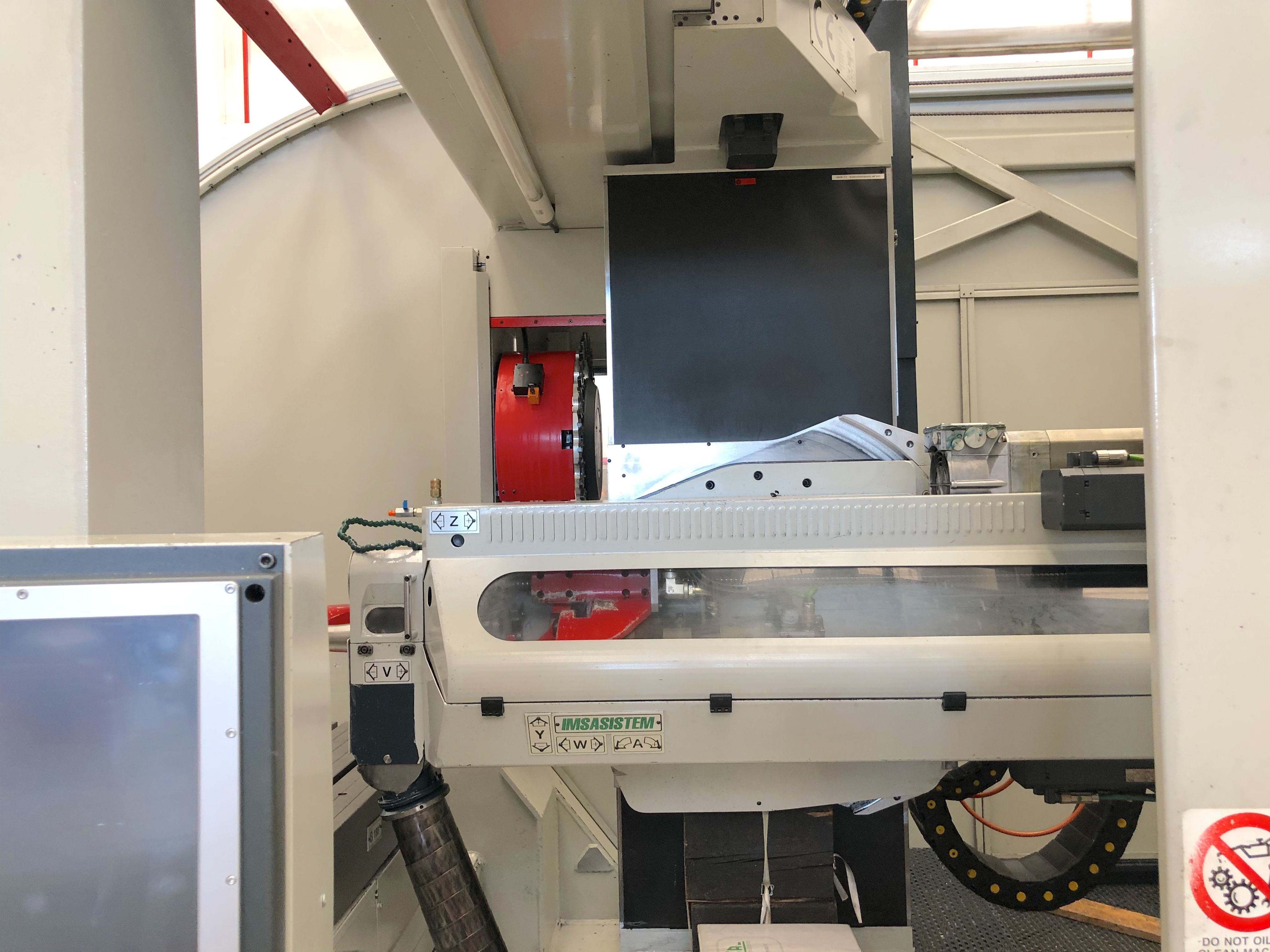

Drilling machine
Type
for deep holes for moulds
Made
Model

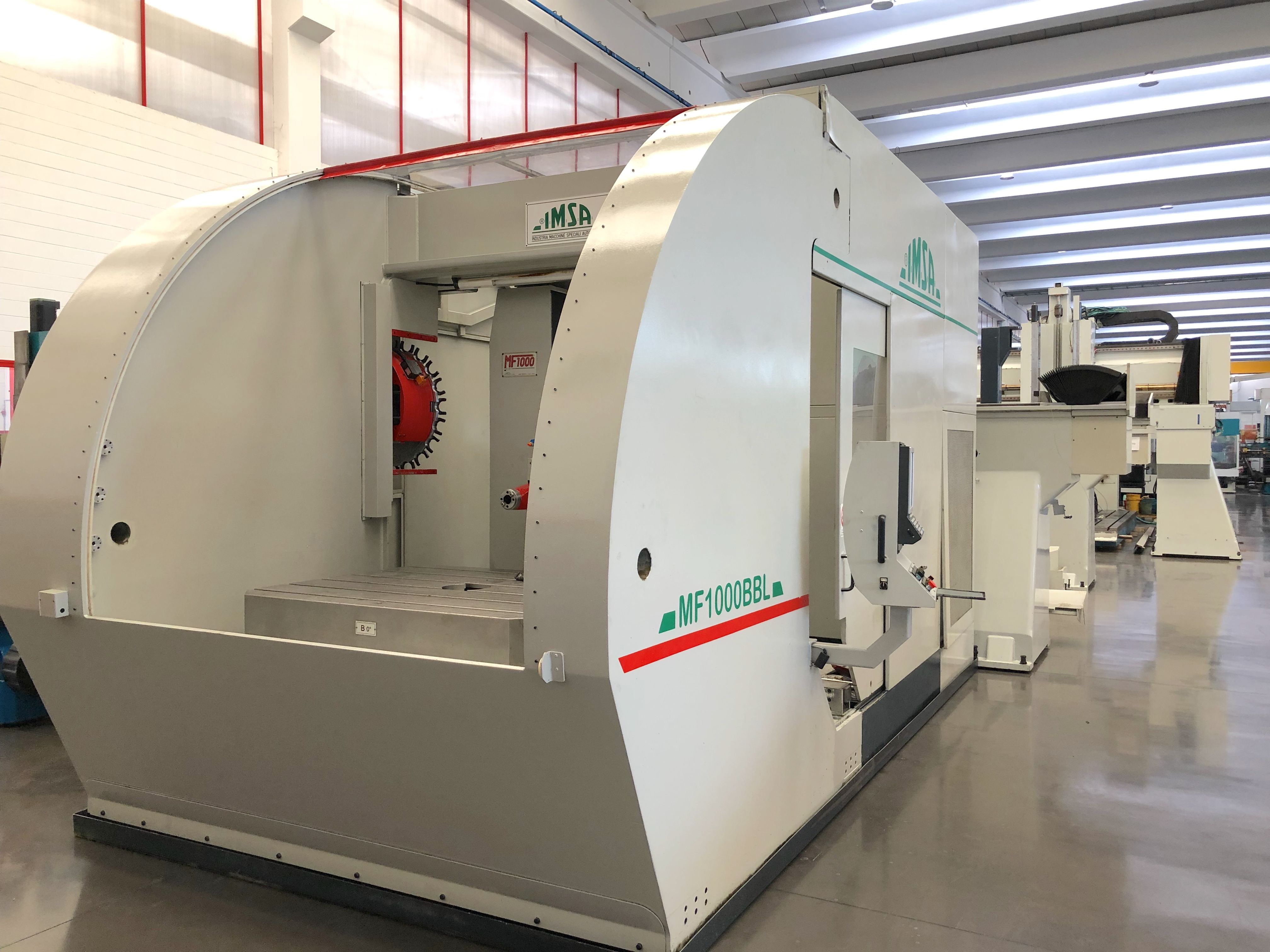

MF1000BBL
Capacity
ø5-40x1000mm (1650x1000x500+380(milling)/1000(drilling) mmø0,20-1,57x39,37mm (64,96x39,37x19,69+14,96(milling)/39,37(drilling) in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Longitudinal (X)
1650 mm64,96 in
Vertical (Y)
1000 mm39,37 in
Cross (Z)
380 mm14,96 in
Profondità di foratura (V)
1000 mm39,37 in
Piece approchement (W)
500 mm19,69 in
Inclinazione Testa di foratura ( C)
+/- 20 °
Table rotation (B)
360.000x0,001 °

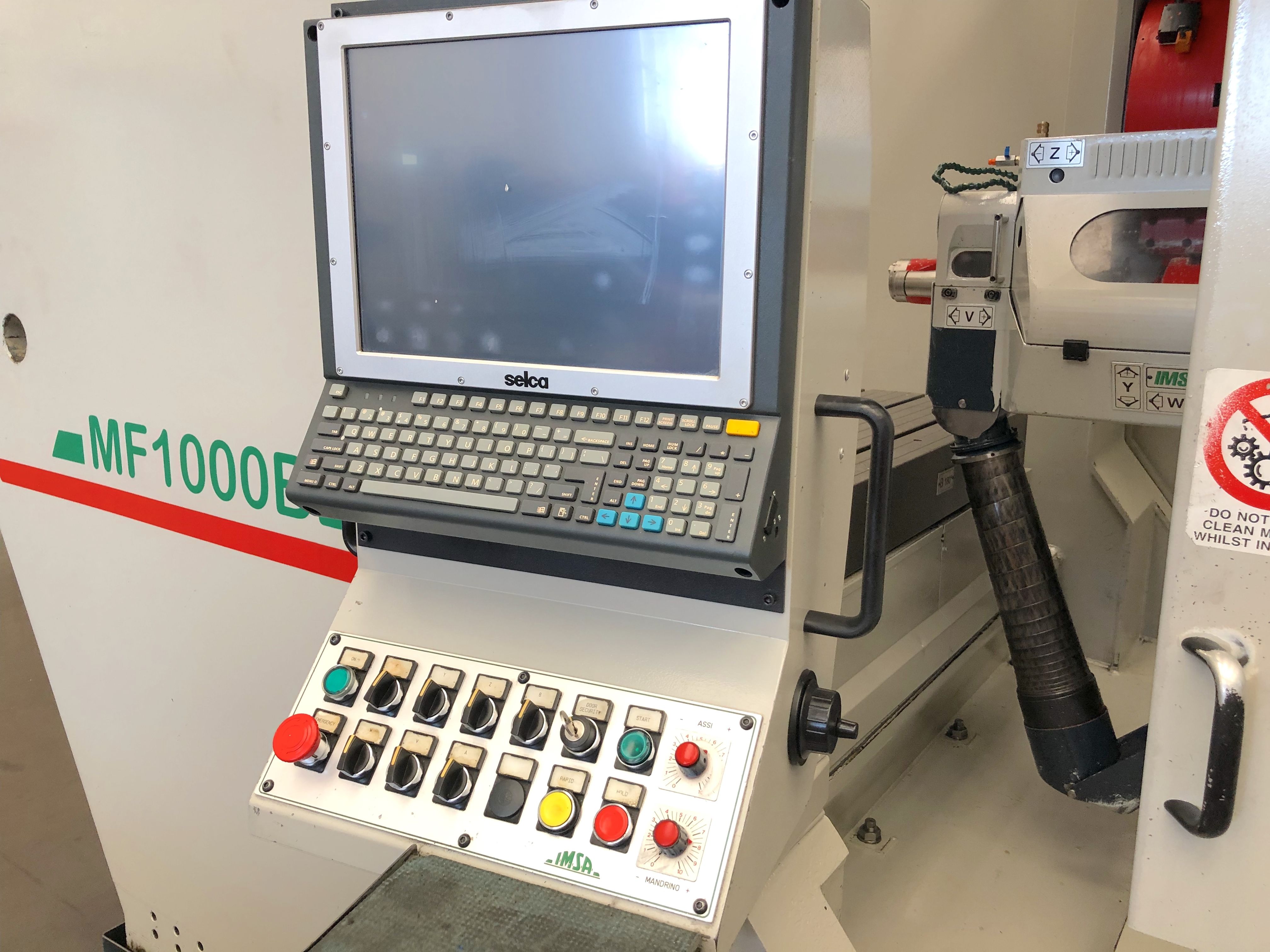

CNC
CNC
SELCA 4045PD
Drives
SIEMENS SINUMERIK

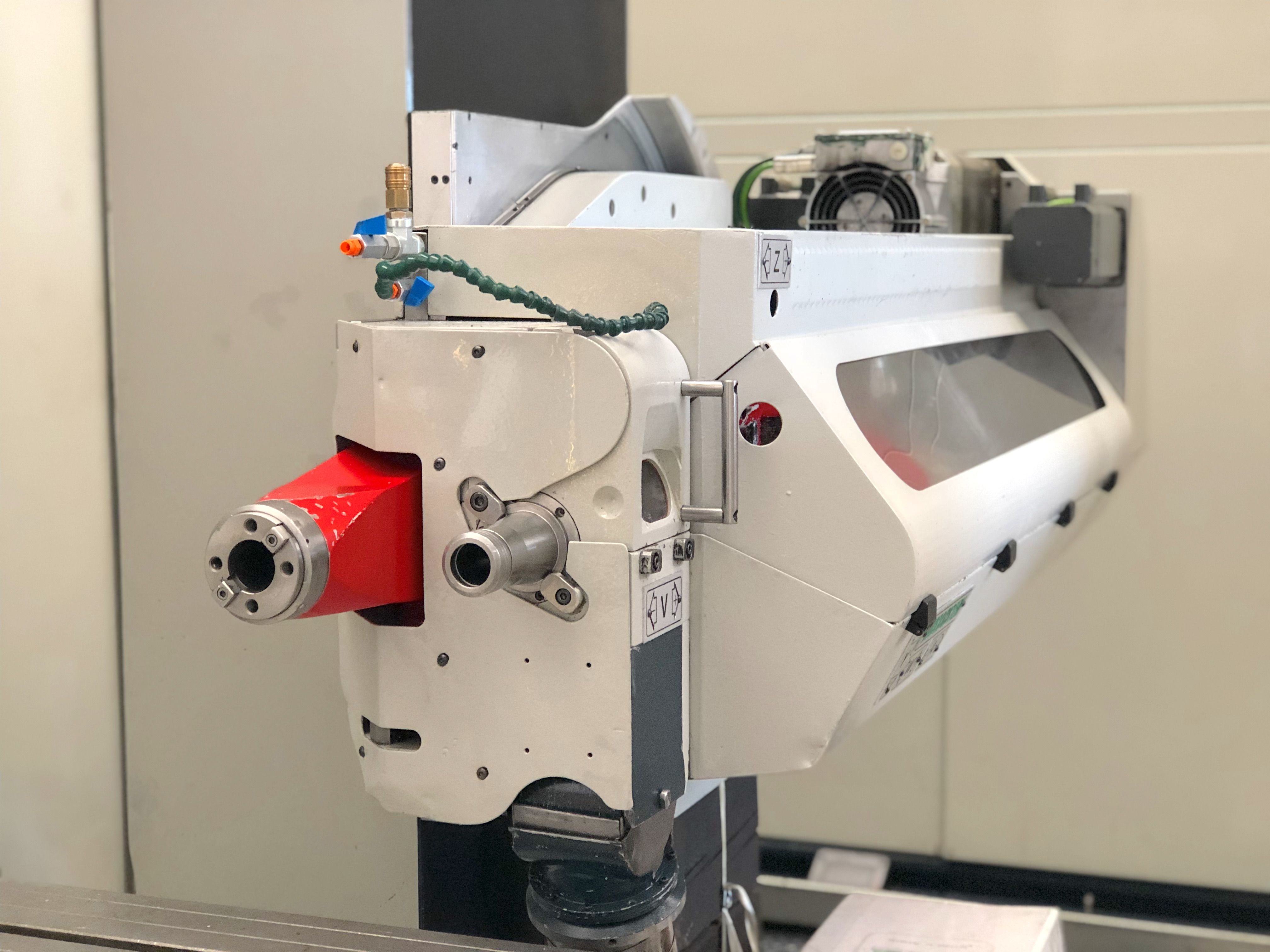

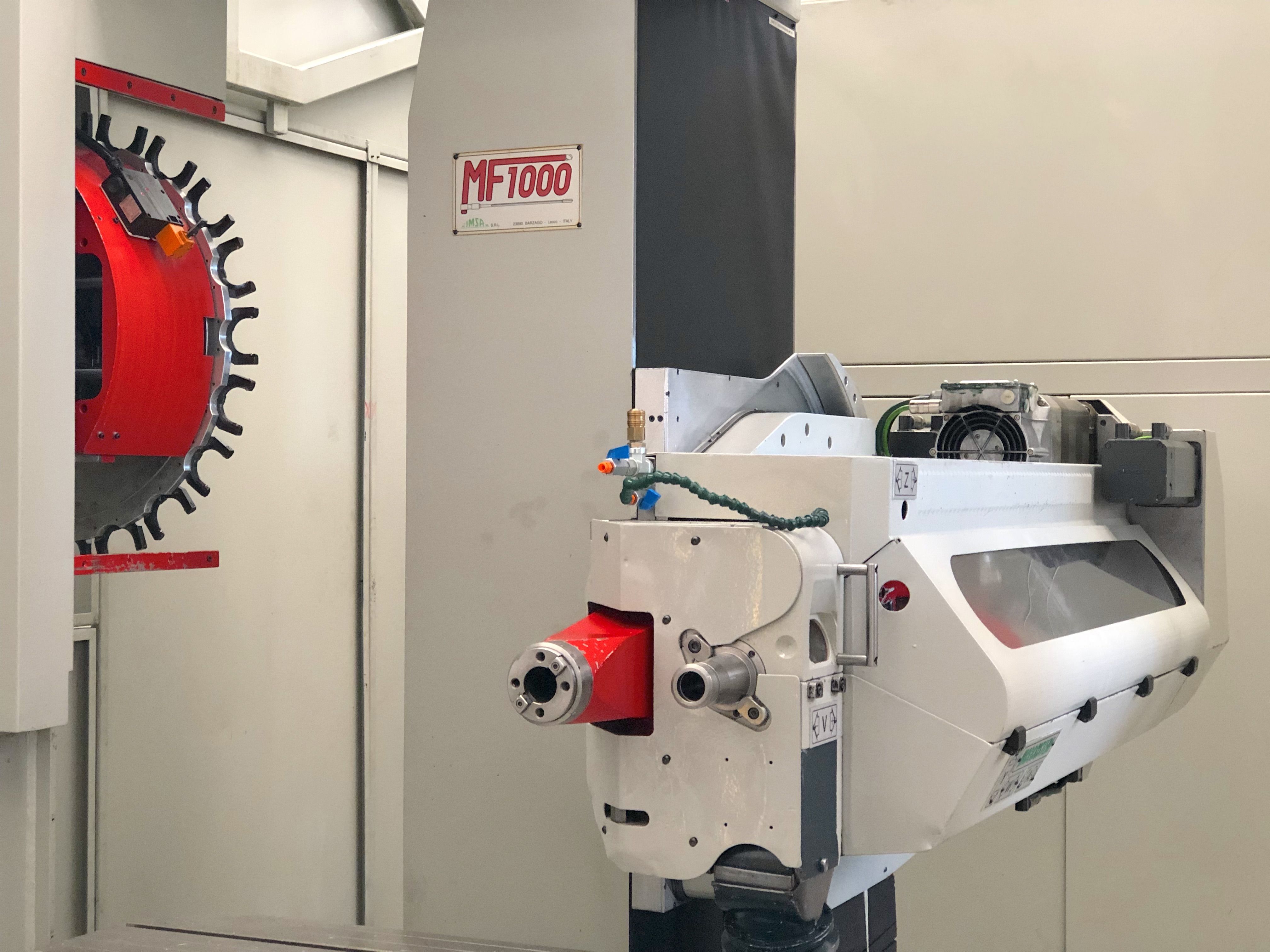

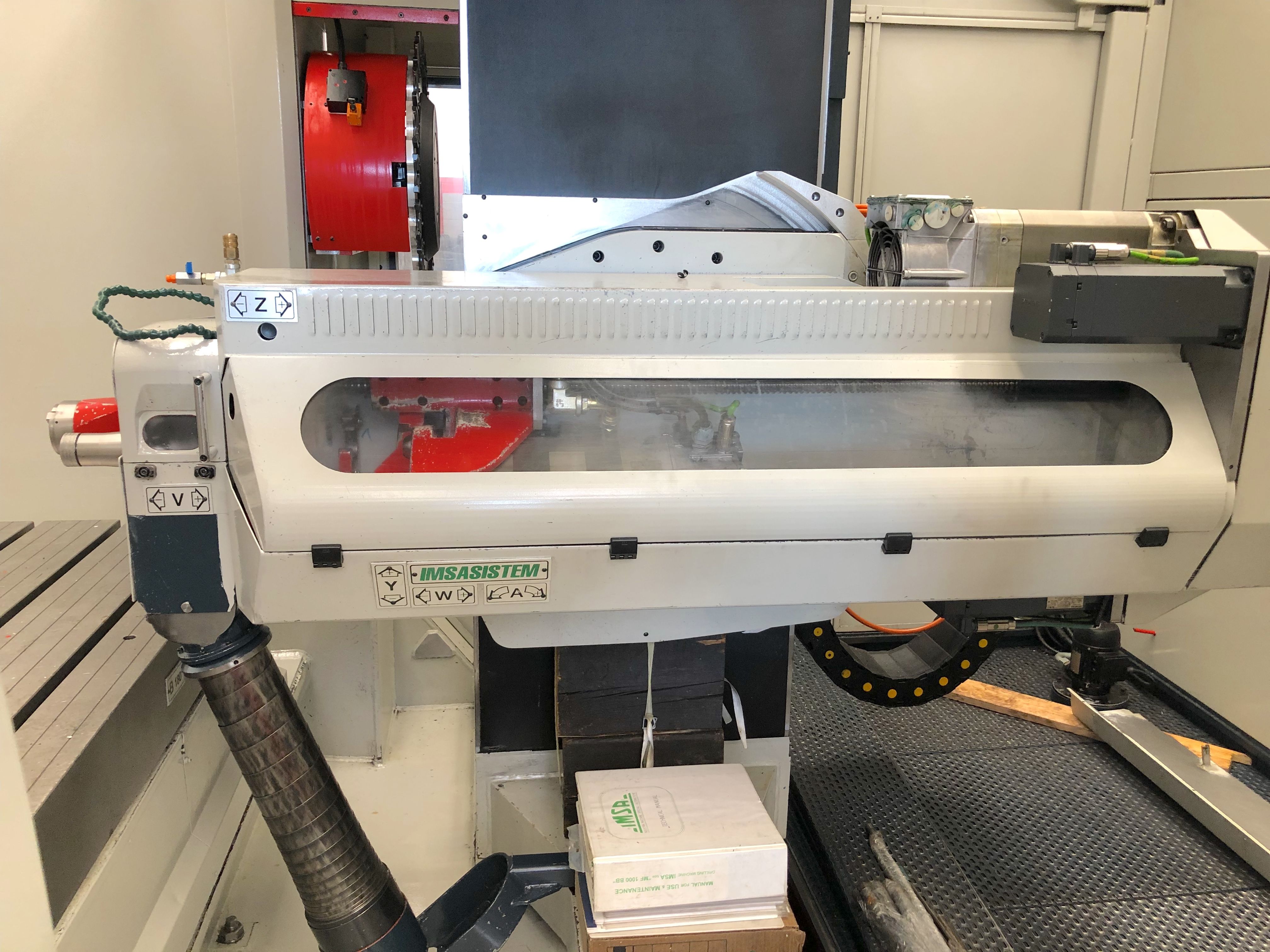

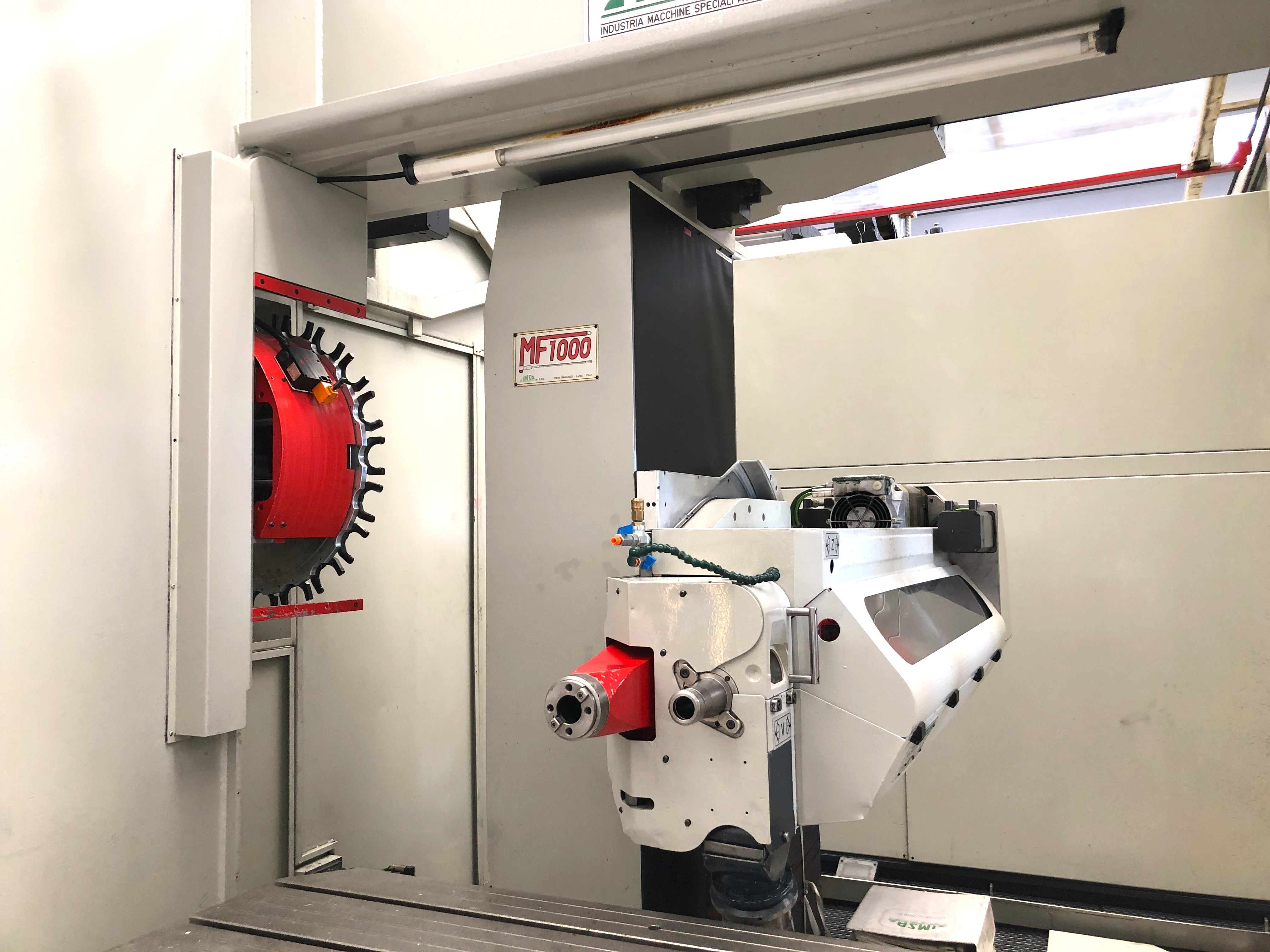

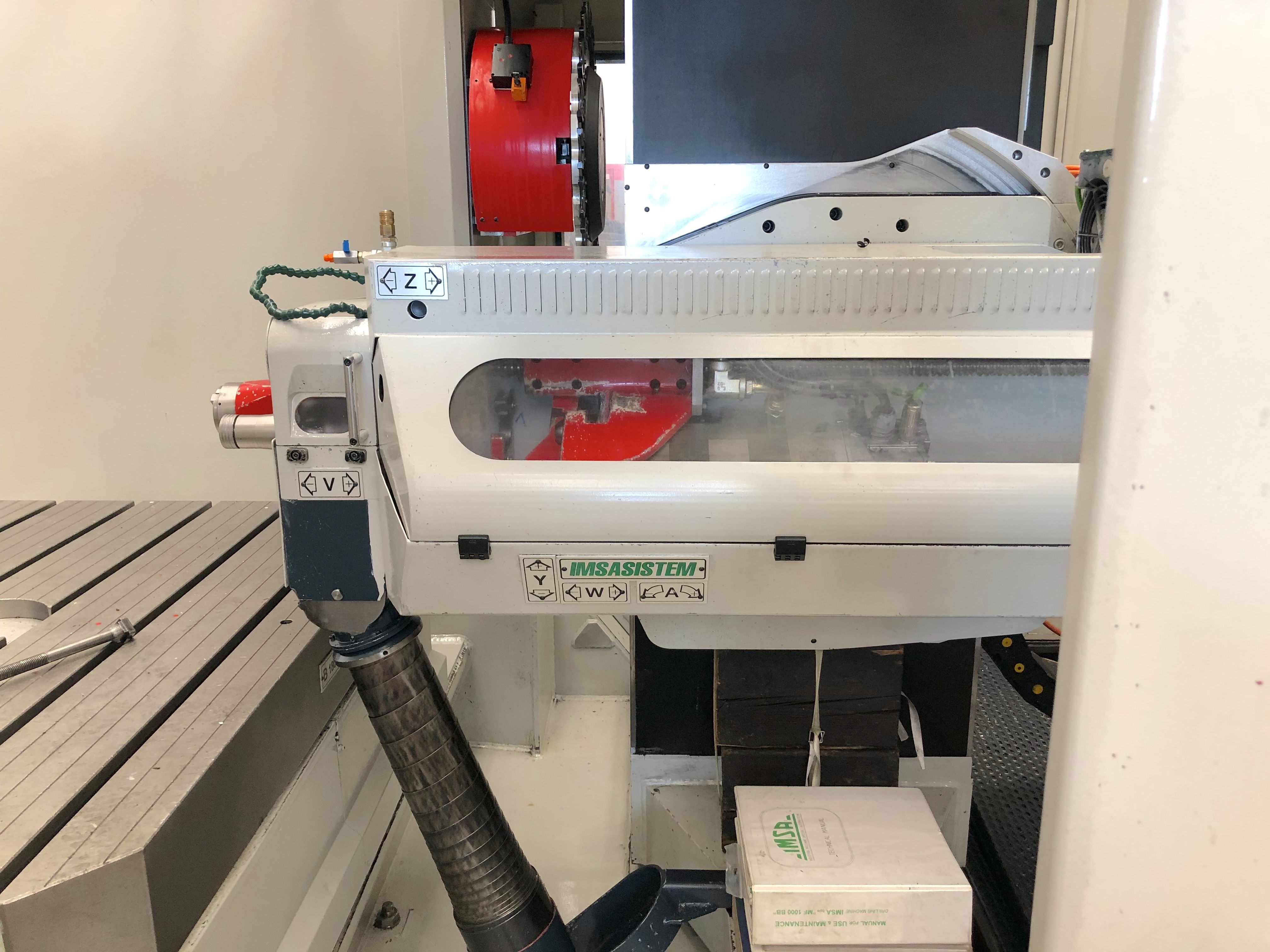

UNITÃ DI FORATURA
Diametro min-max dal pieno
5-40 mm0,20-1,57 in
Rotating speed
4200 Rpm
Spindle power
9 Kw
Inclinazione Testa di foratura ( C)
+/-20 °
Notes
50 Bar CTS
Spindle power
9 Kw
Rotating speed
2000 Rpm
Inclinazione Testa di fresatura ( C)
+/-20 °
FEEDS
Rapid X
10 m/min393,70 ipm
Rapid Y
10 m/min393,70 ipm
Rapid Z
10 m/min393,70 ipm
Rapid V
10 m/min393,70 ipm

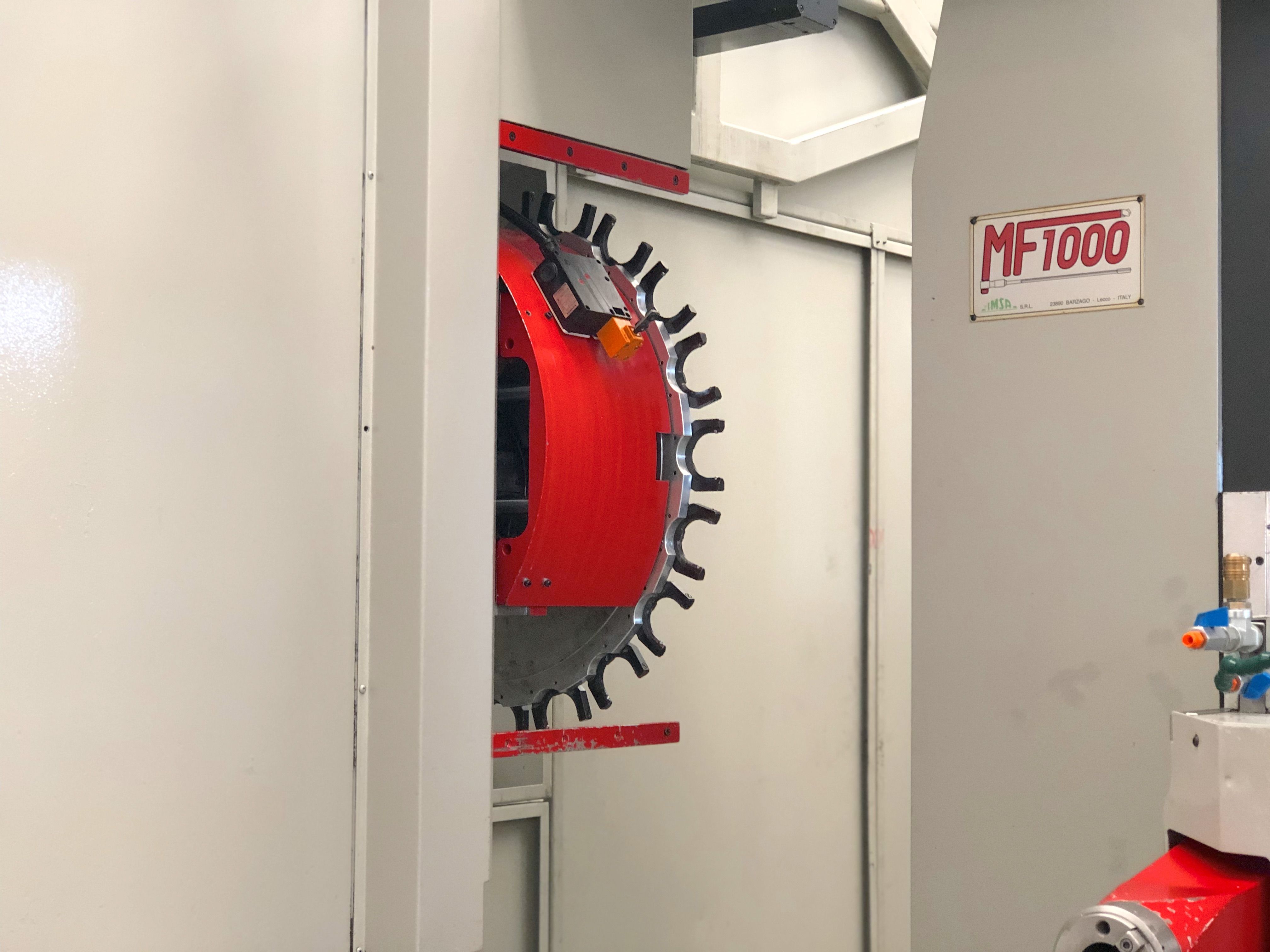

ATC FRESATURA
Positions
20
Tool taper
ISO40

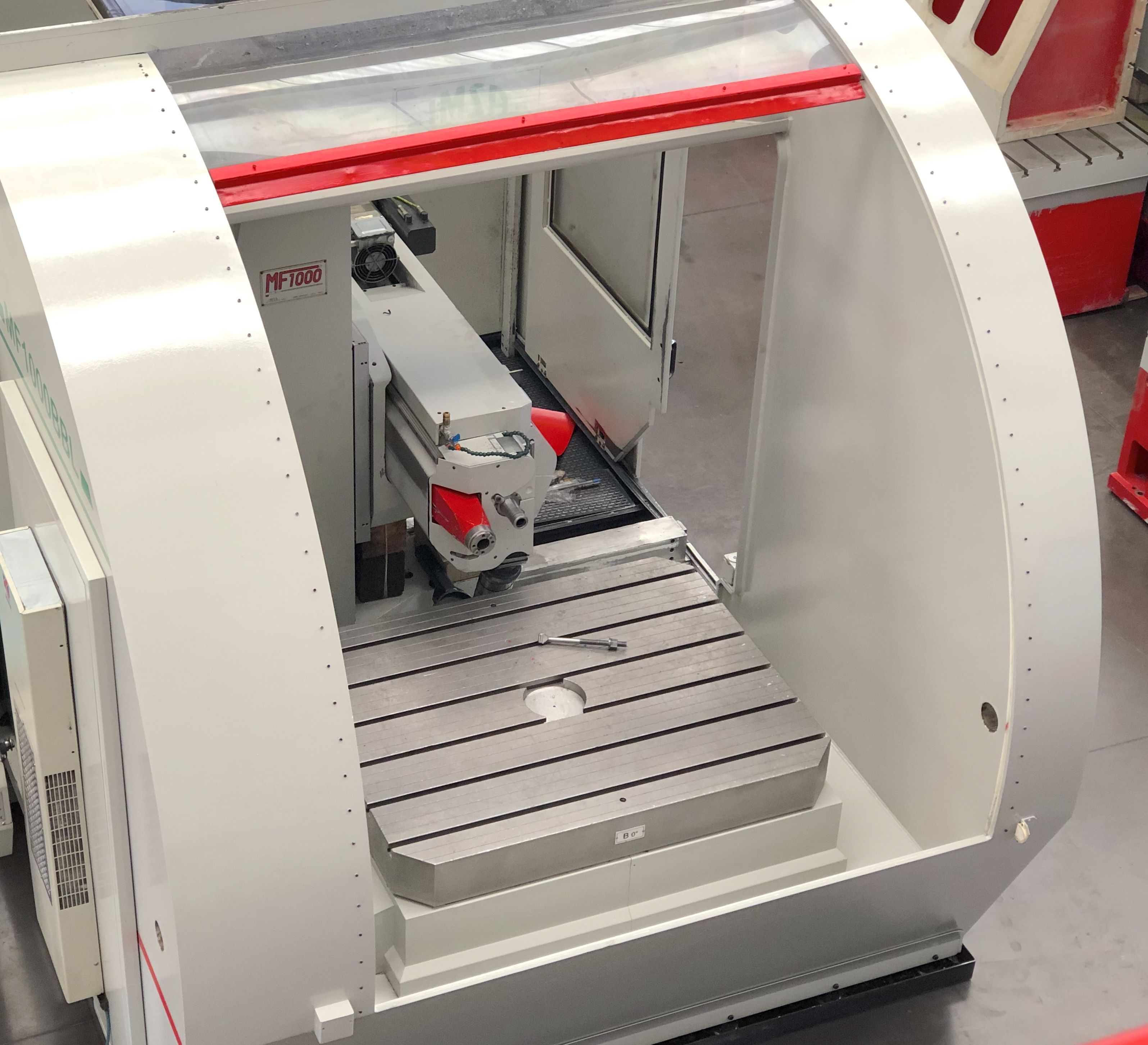

TABLE
Surface
1500x1200 mm59,06x47,24 in
Accuracy (B axis)
0,001 °
Capacity
12.000 (18.000 statici) Kg
SISTEMA REFRIGERANTE
Pressione
40 Bar
EXTRA
Machine weight
≈20.000 kg
Floor space
4100x5800x3300 mm161,42x228,35x129,92 in
Chiller
si
Chip conveyor
si

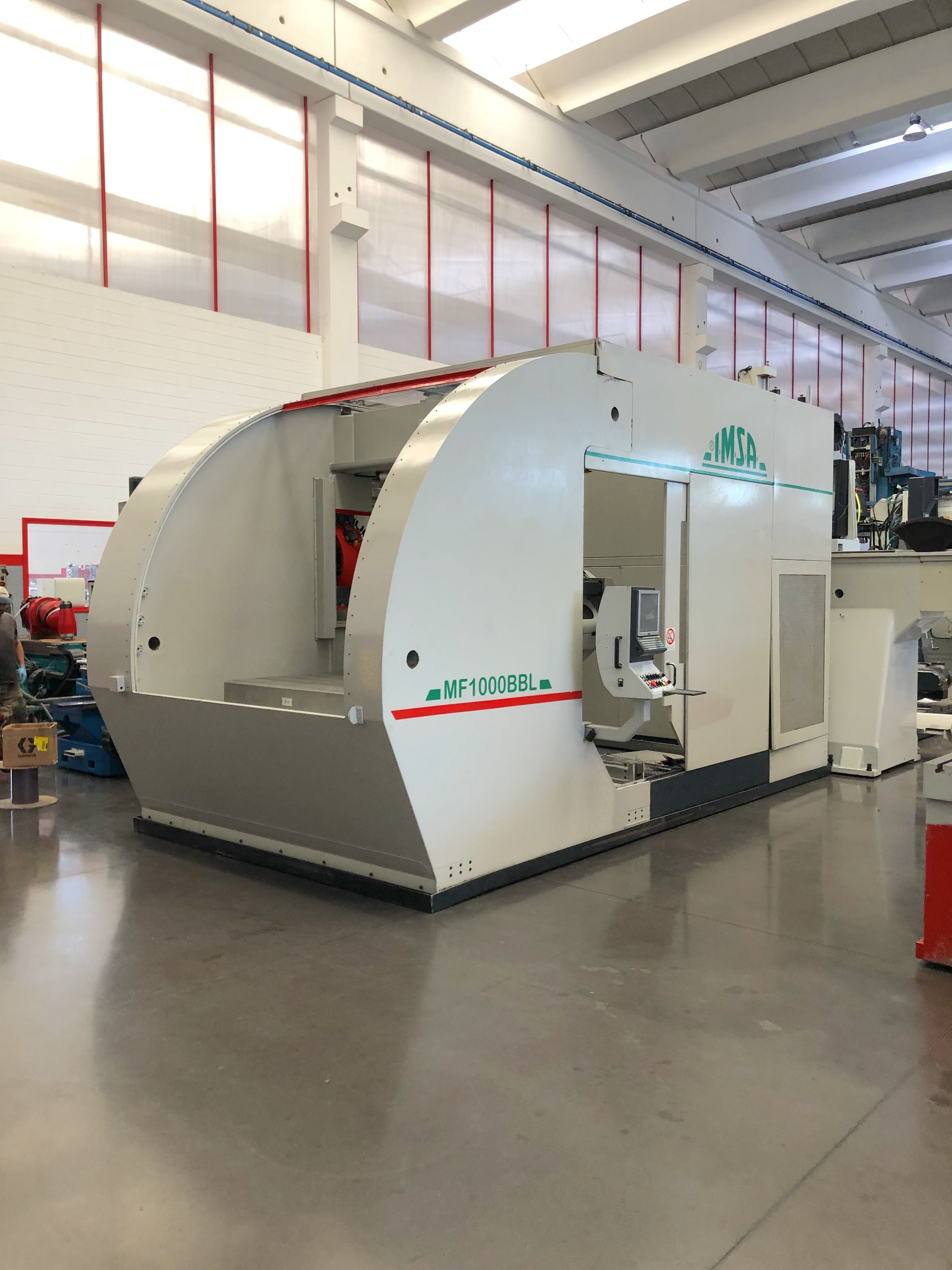

Housing
completa con portellone frontale e laterale apribile
