Category
Drilling machine
Type
for deep holes for moulds
Made
Model
Fcf 1024ft
Capacity
ø 5-30 mm - 1000x700x300 mm mmø 0,20-1,18 mm - 39,37x27,56x11,81 mm in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Longitudinal (X)
1000 mm39,37 in
Vertical (Y)
700 mm27,56 in
Cross (Z)
300 mm11,81 in
Profondità di foratura (V)
1150 mm45,28 in
UNITà DI FORATURA
Diametro min-max dal pieno
ø 5 - 30 mmø 0,20 - 1,18 in
Rotating speed
7000 Rpm
TABLE
Surface
1200x1000 mm47,24x39,37 in
Capacity
5500 Kg
ATC FRESATURA
Tool taper
ISO40
SISTEMA REFRIGERANTE
Filtration unit
SI
Pressione
100 Bar
CNC

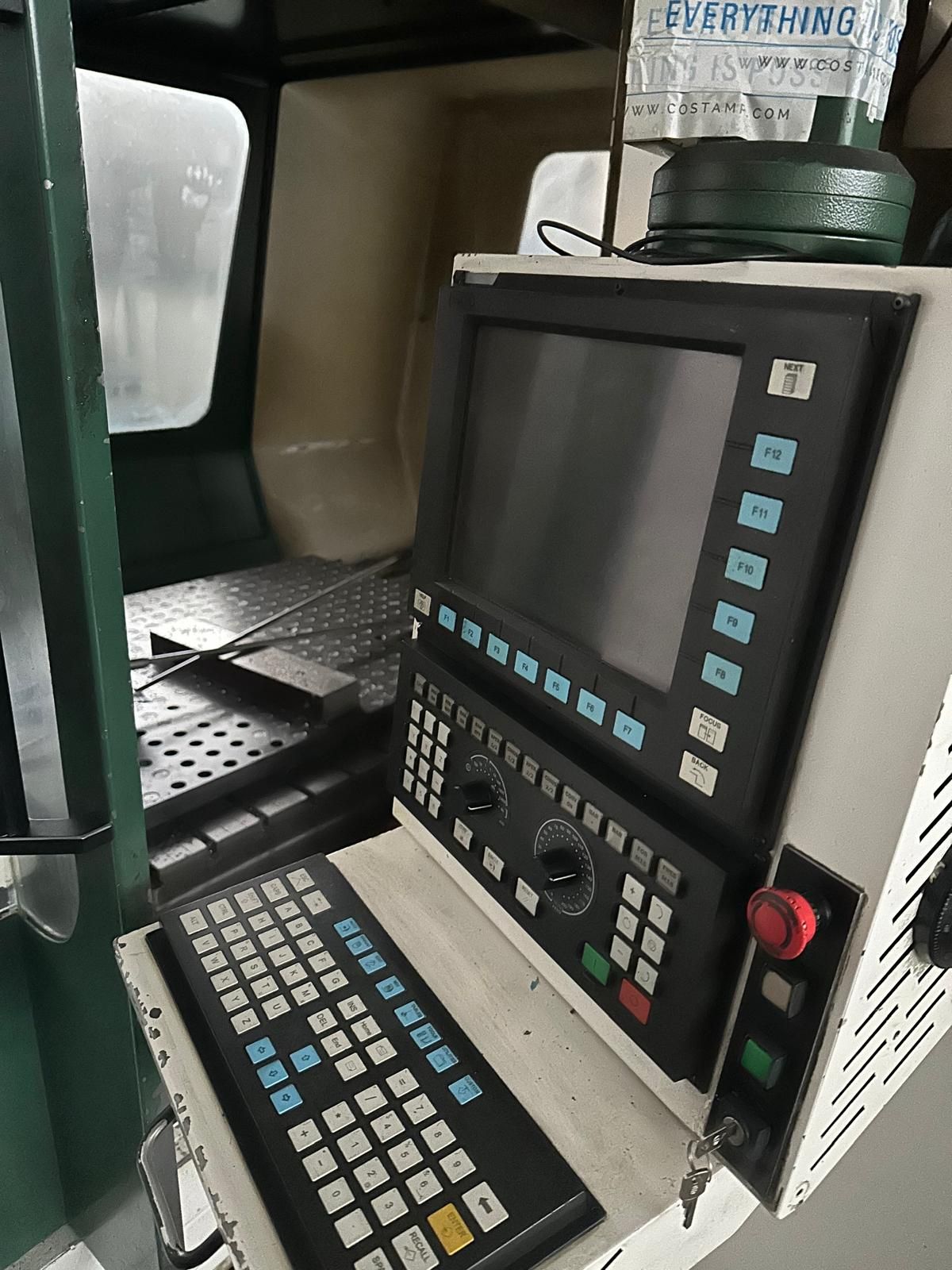

CNC
FAGOR 8070
EXTRA
Floor space
3620x4520x2500 mm142,52x177,95x98,43 in
