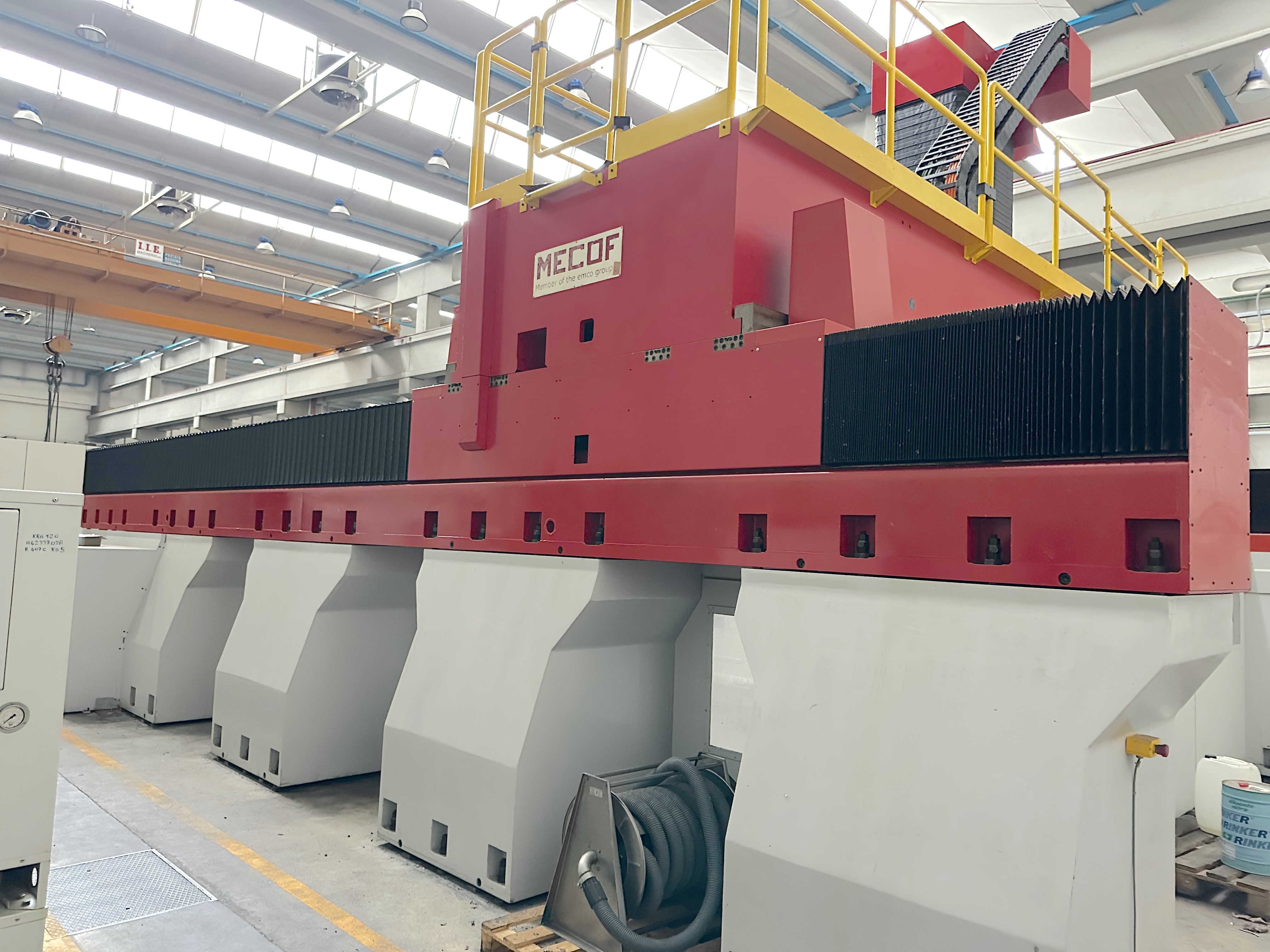

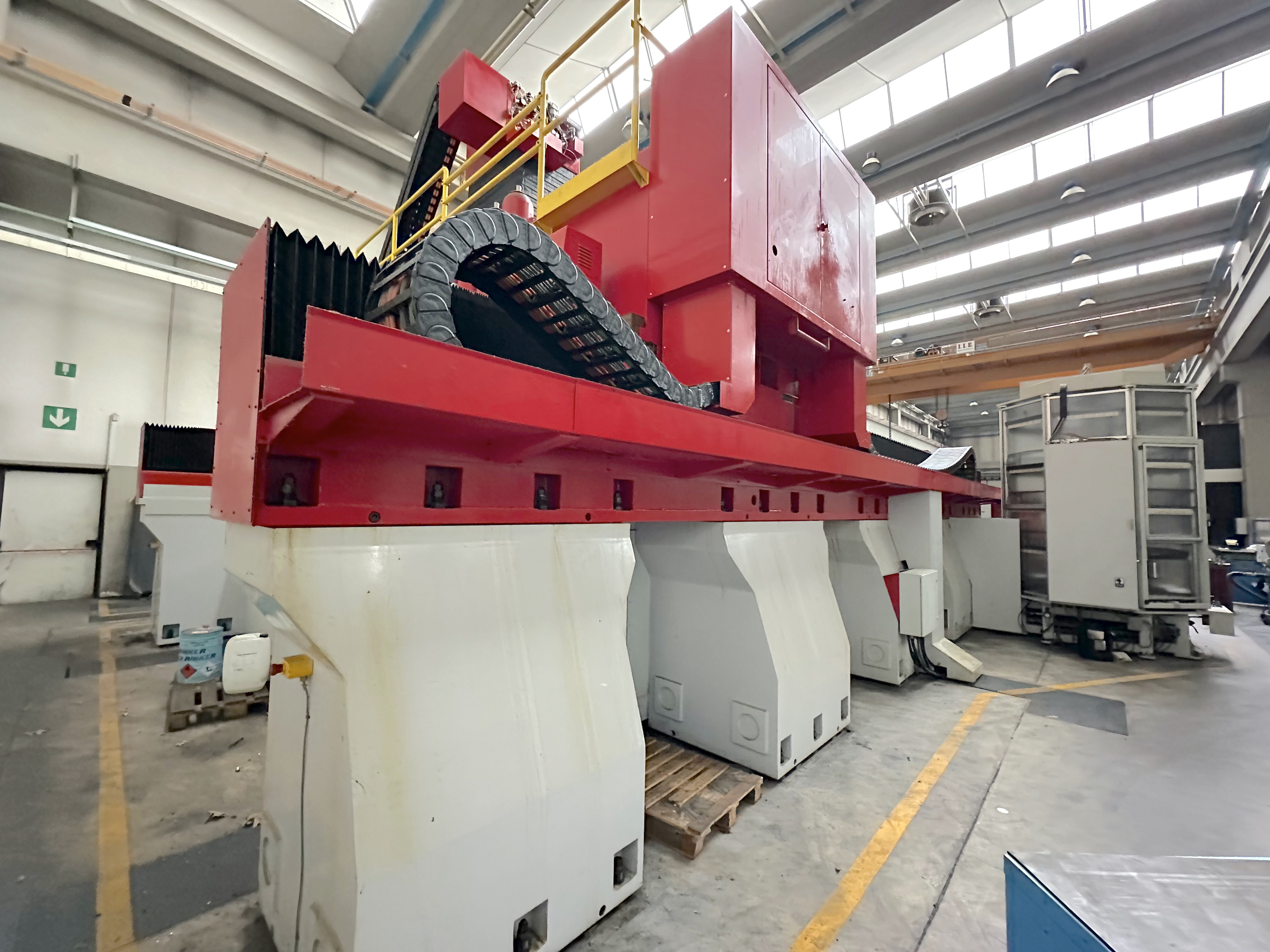

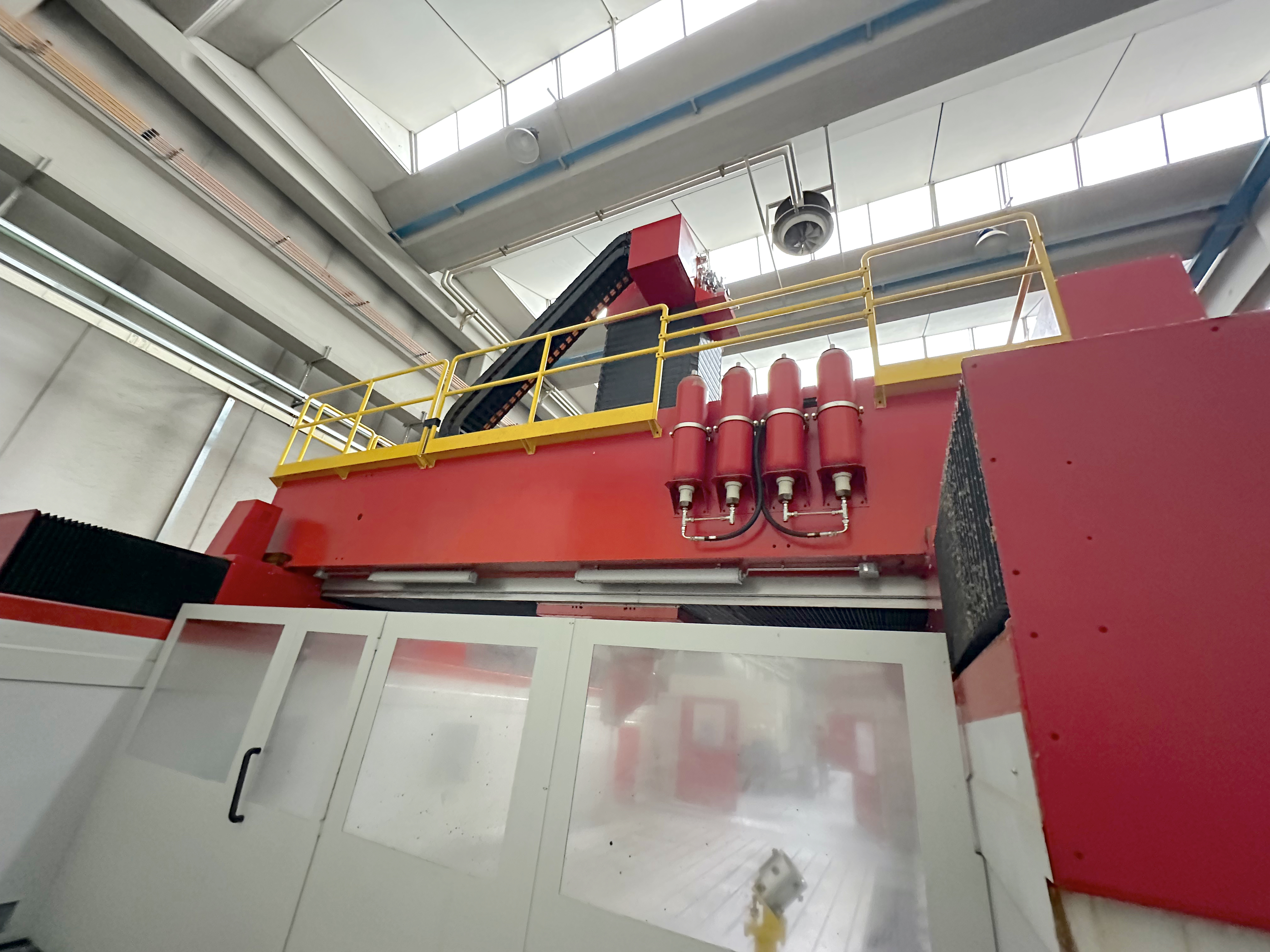

Milling machine
Type
Portal, Gantry
Made
Model

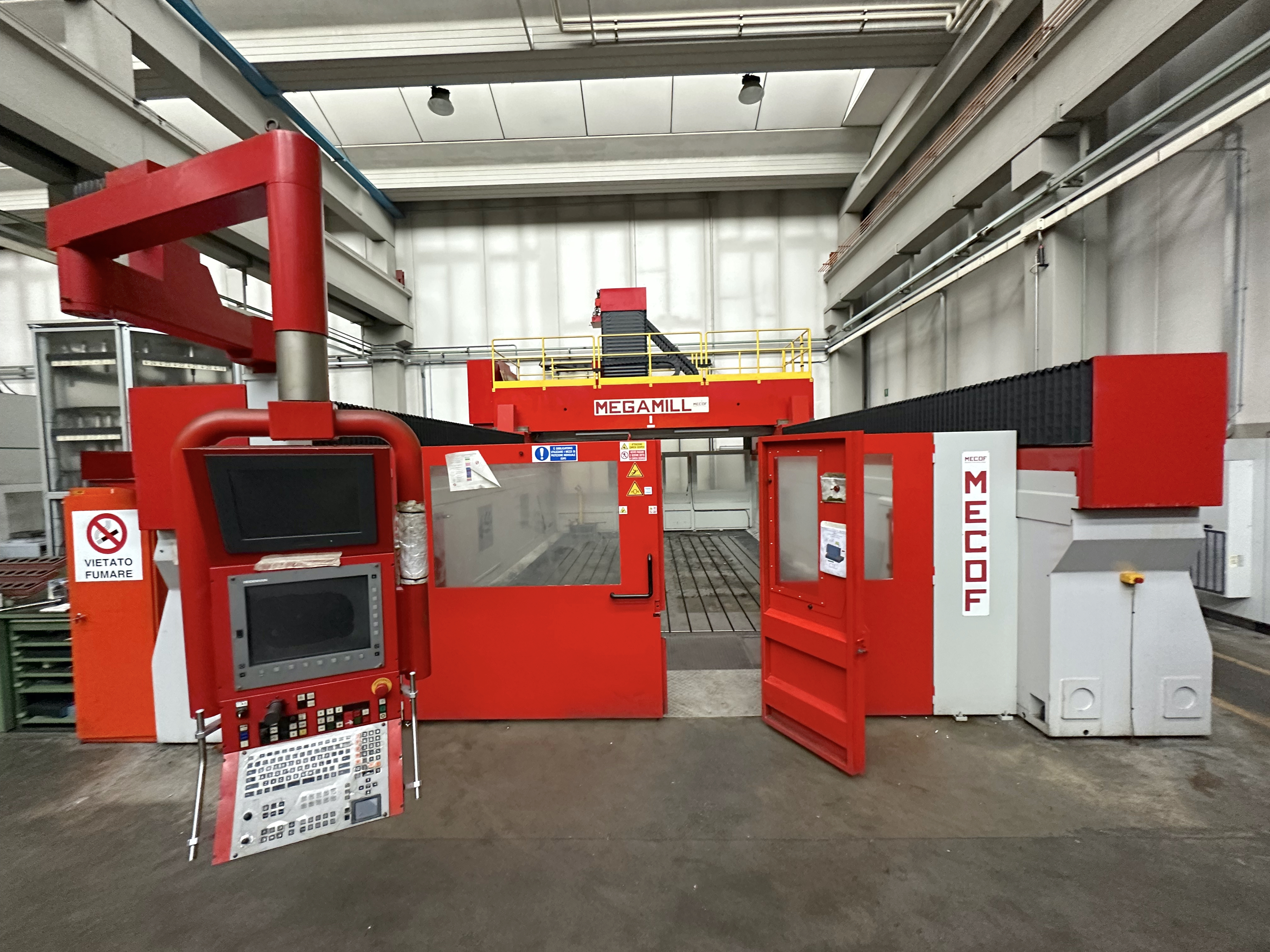

MEGAMILL HP5
Capacity
7500x4000x1500 mm295,28x157,48x59,06 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Longitudinal (X)
7500 mm295,28 in
Vertical RAM (Y)
1500 mm59,06 in
Cross Crossrail (Z)
4000 mm157,48 in
Column distance
5400 mm212,60 in
Spindle nose - table distance
1700 mm66,93 in
CNC
CNC

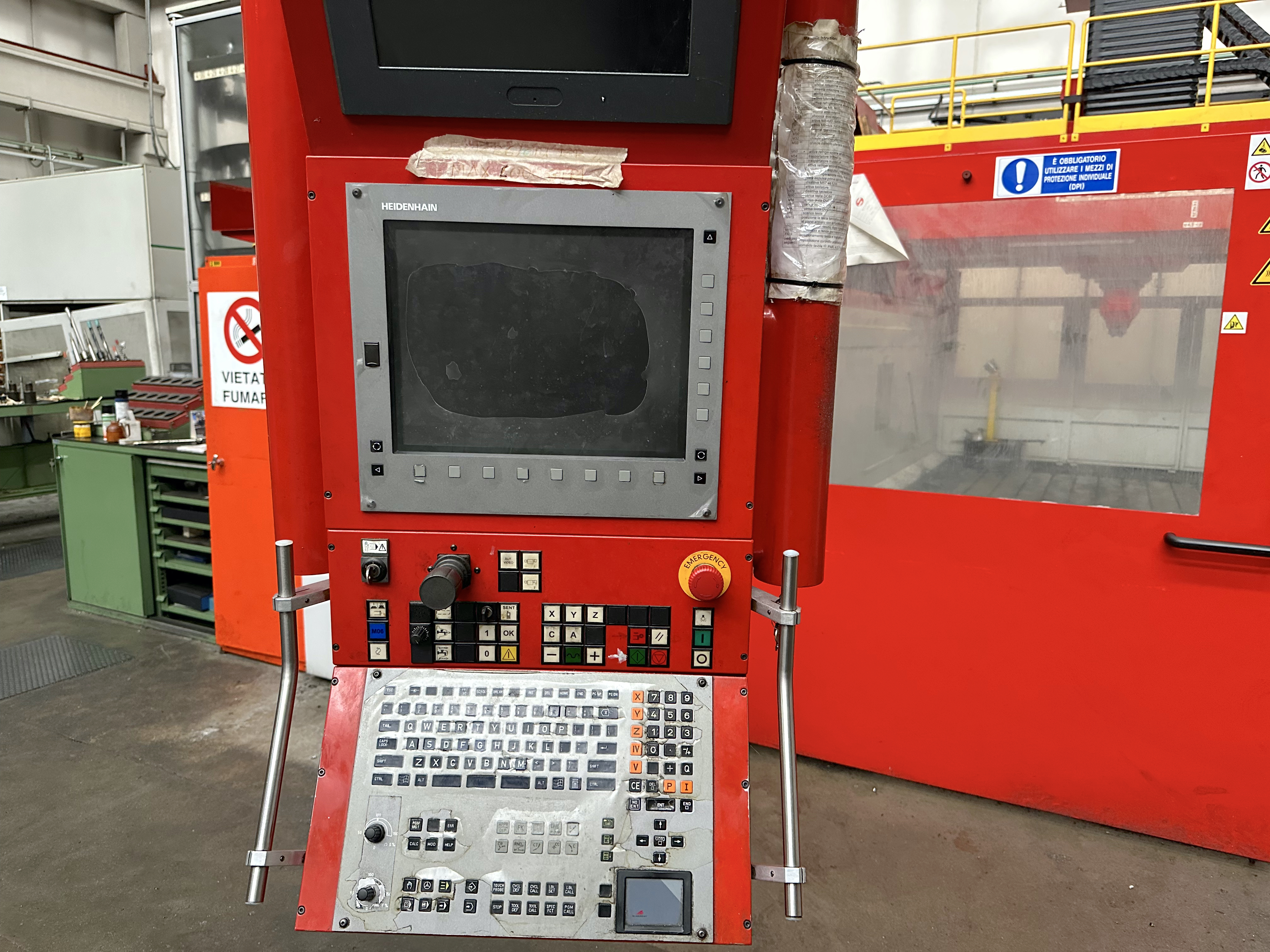

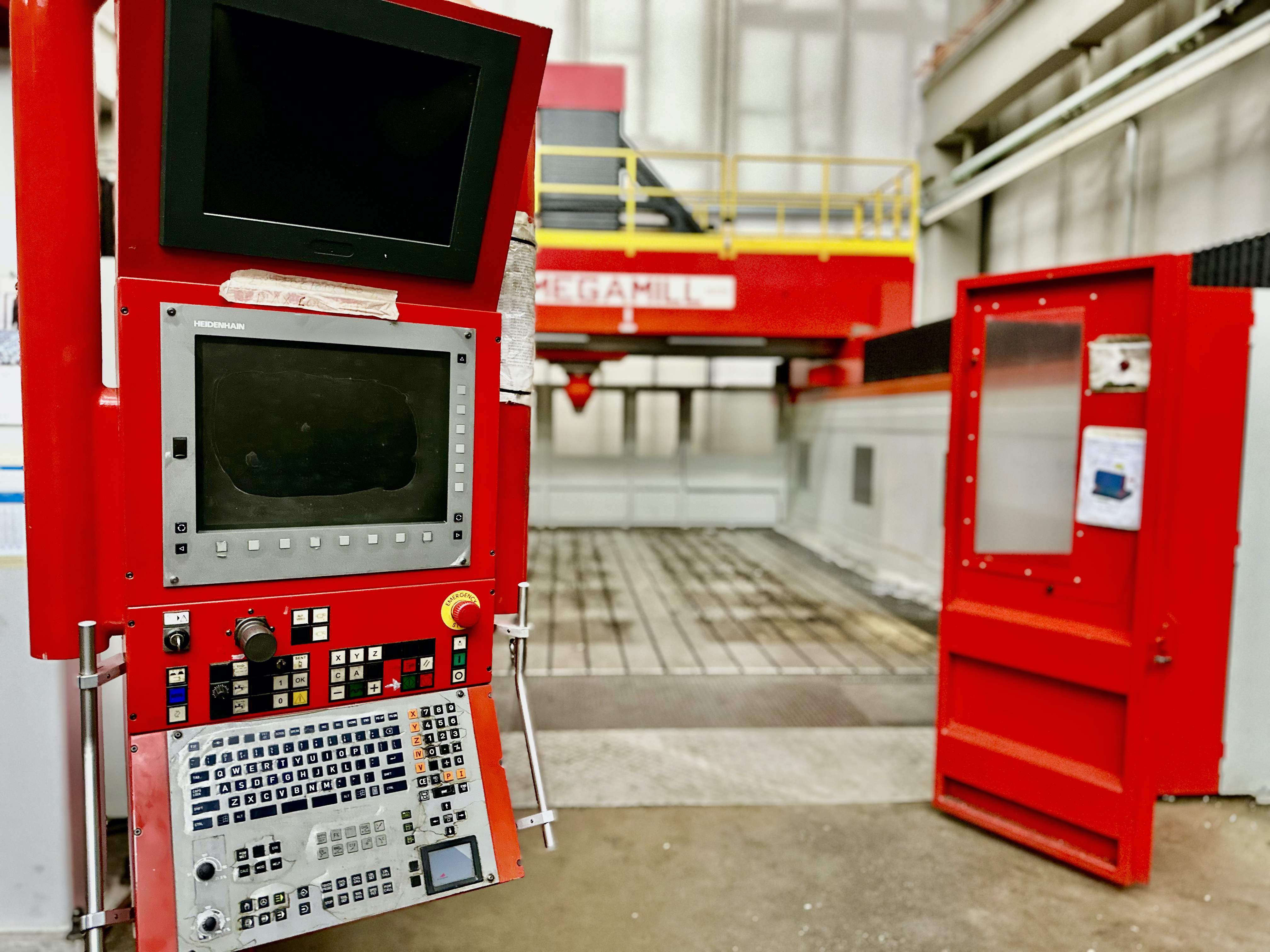

Heidenhain iTNC530
SPINDLE
RAM section
600x550 mm23,62x21,65 in
Spindle power
52 Kw
Torque
1000/1500 Nm
Support
4 guide integrali temprate con 24 pattini
FEEDS
Rapid X
30 m/min1.181,10 ipm
Rapid Y
30 m/min1.181,10 ipm
Rapid Z
30 m/min1.181,10 ipm

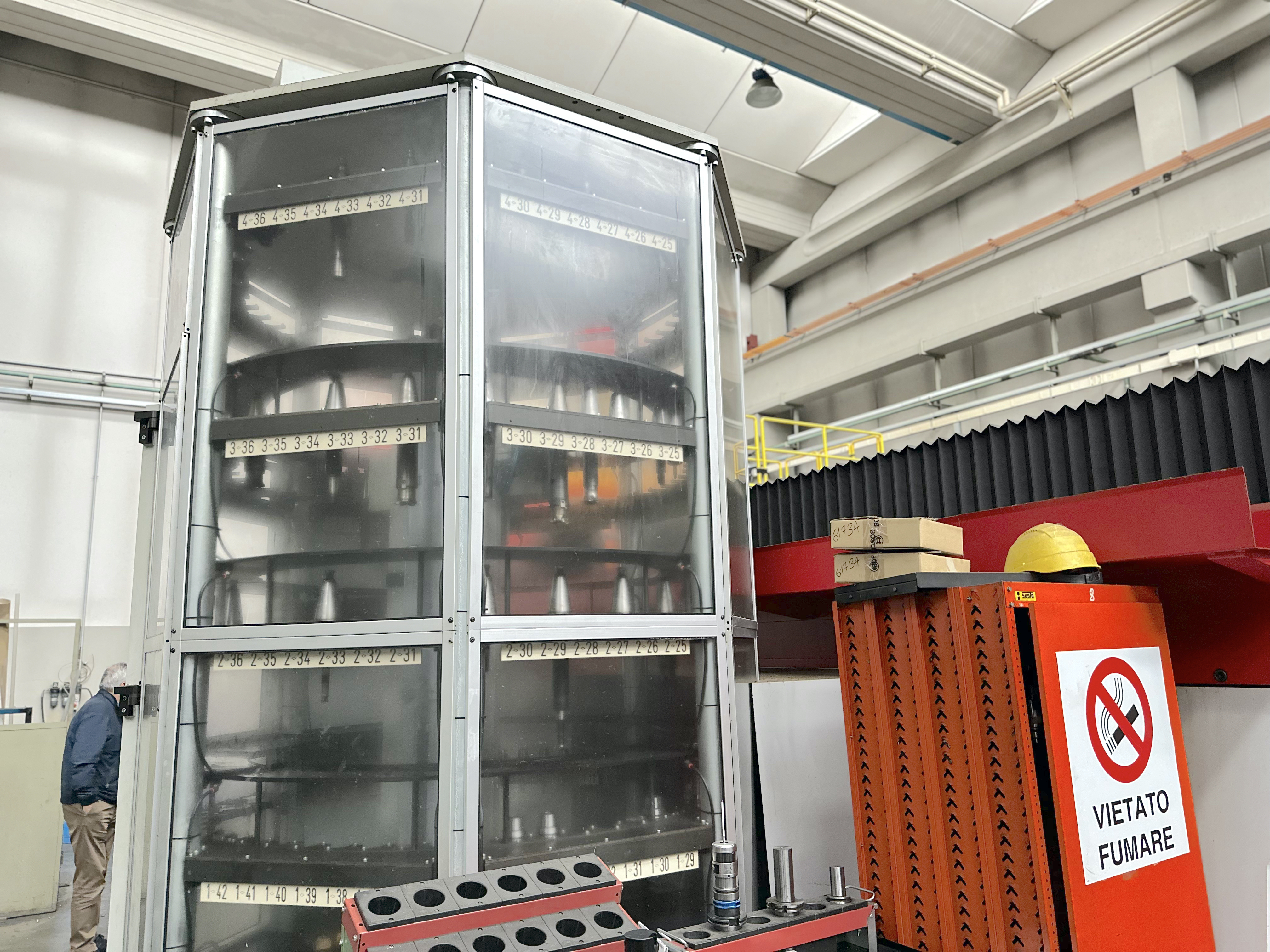

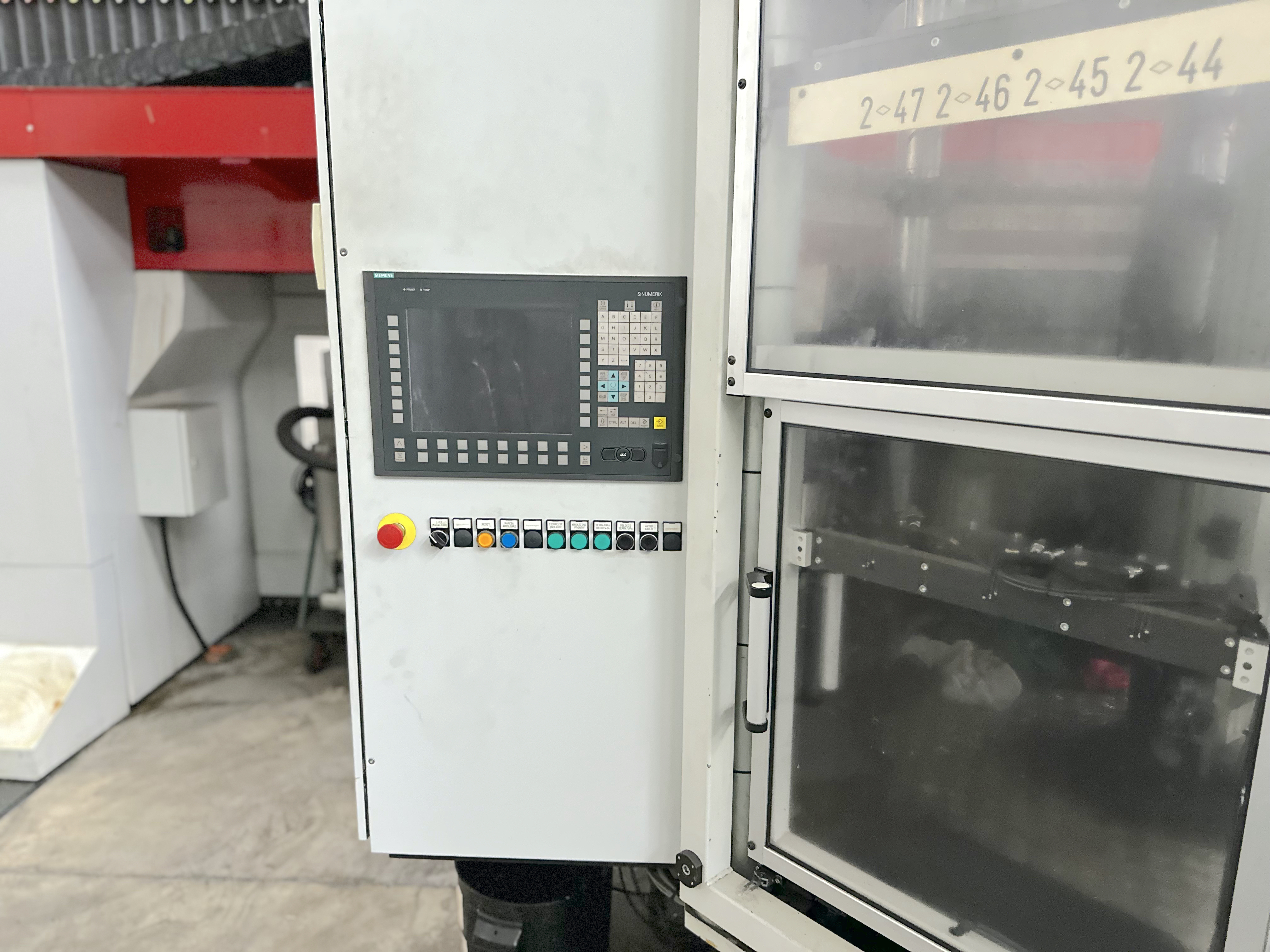

ATC
Positions
180
Max tool diameter
100 mm3,94 in
Max diam with free adiacent space
240 mm9,45 in
Max tool lenght
400 mm15,75 in
Max tool weight
35 Kg
Tool taper
ISO50 /HSK63E

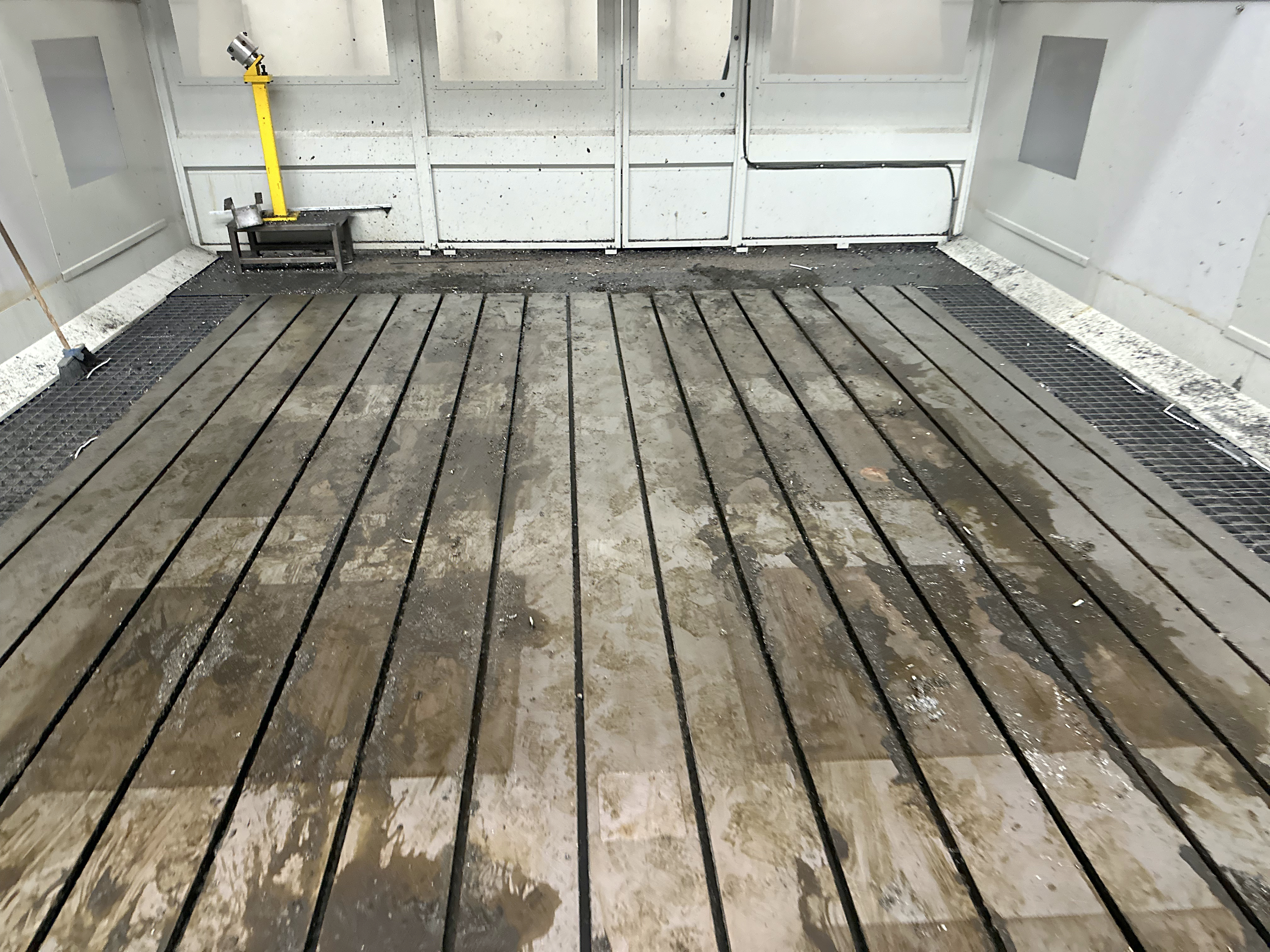

WARKING TABLE
Floorspace (LxWxH)
7000x4000 mm275,59x157,48 in
Capacity
15.000 Kg/mq

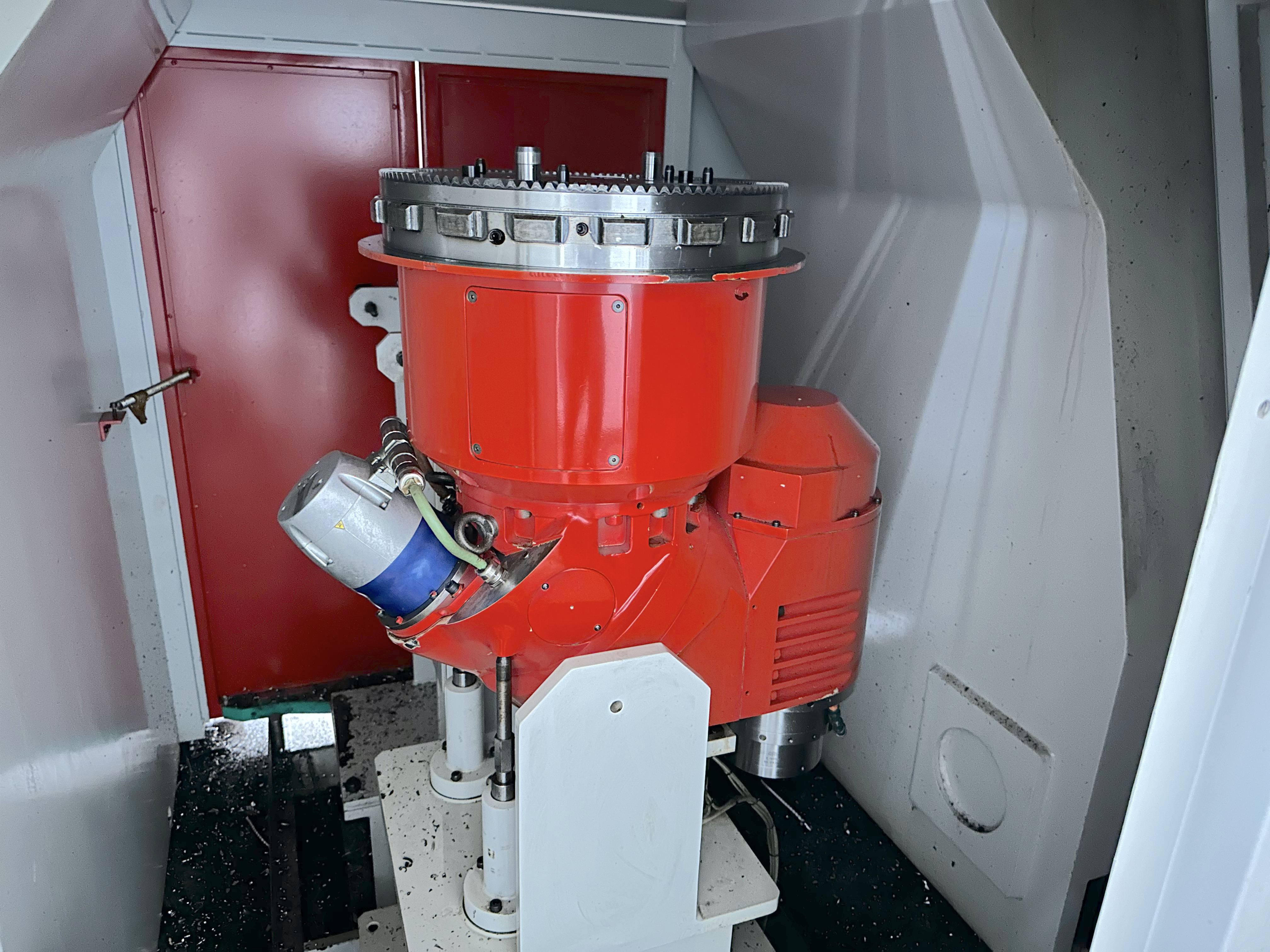

PICK UP STATION FOR HEADS
Positions
2

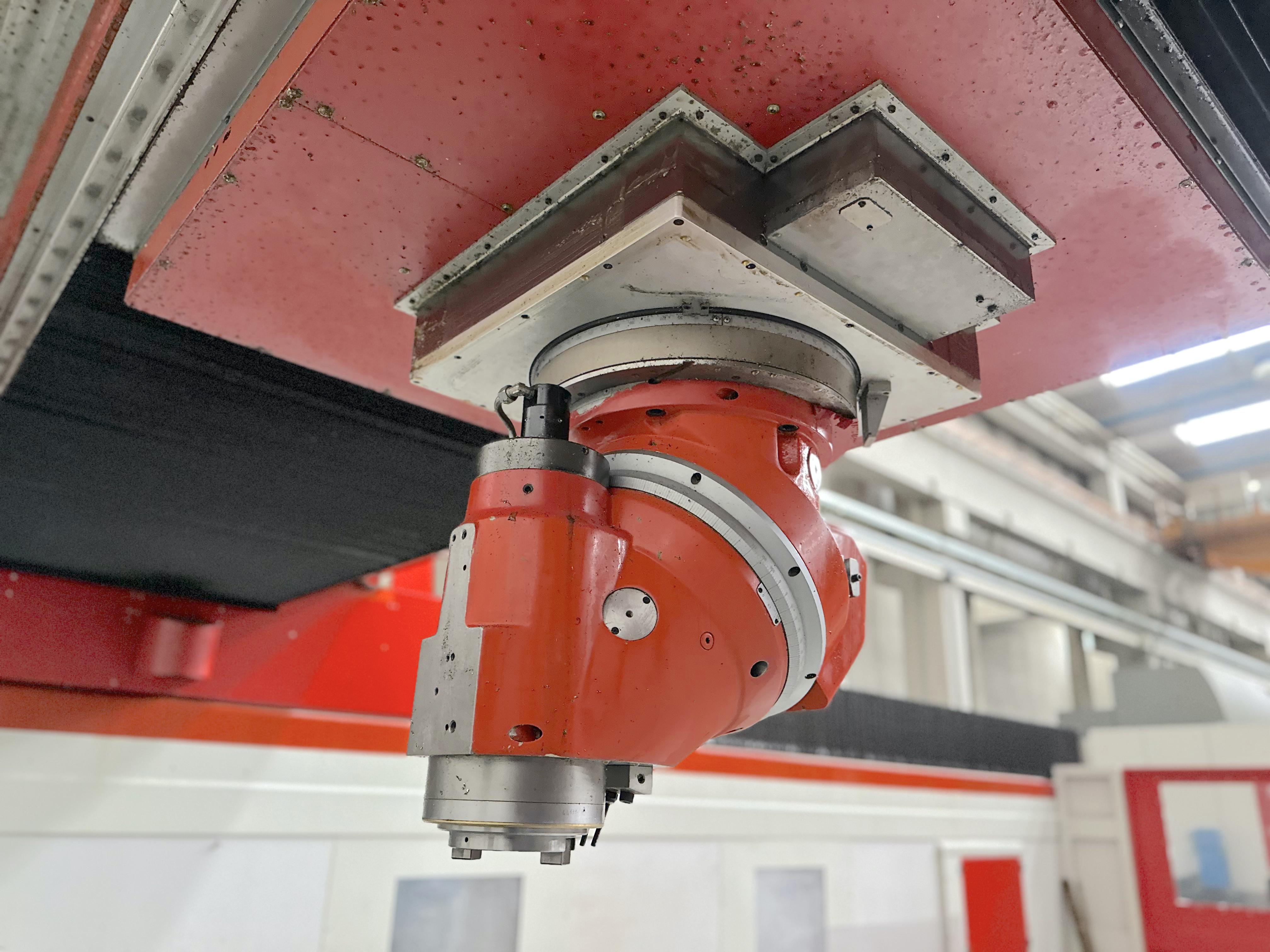

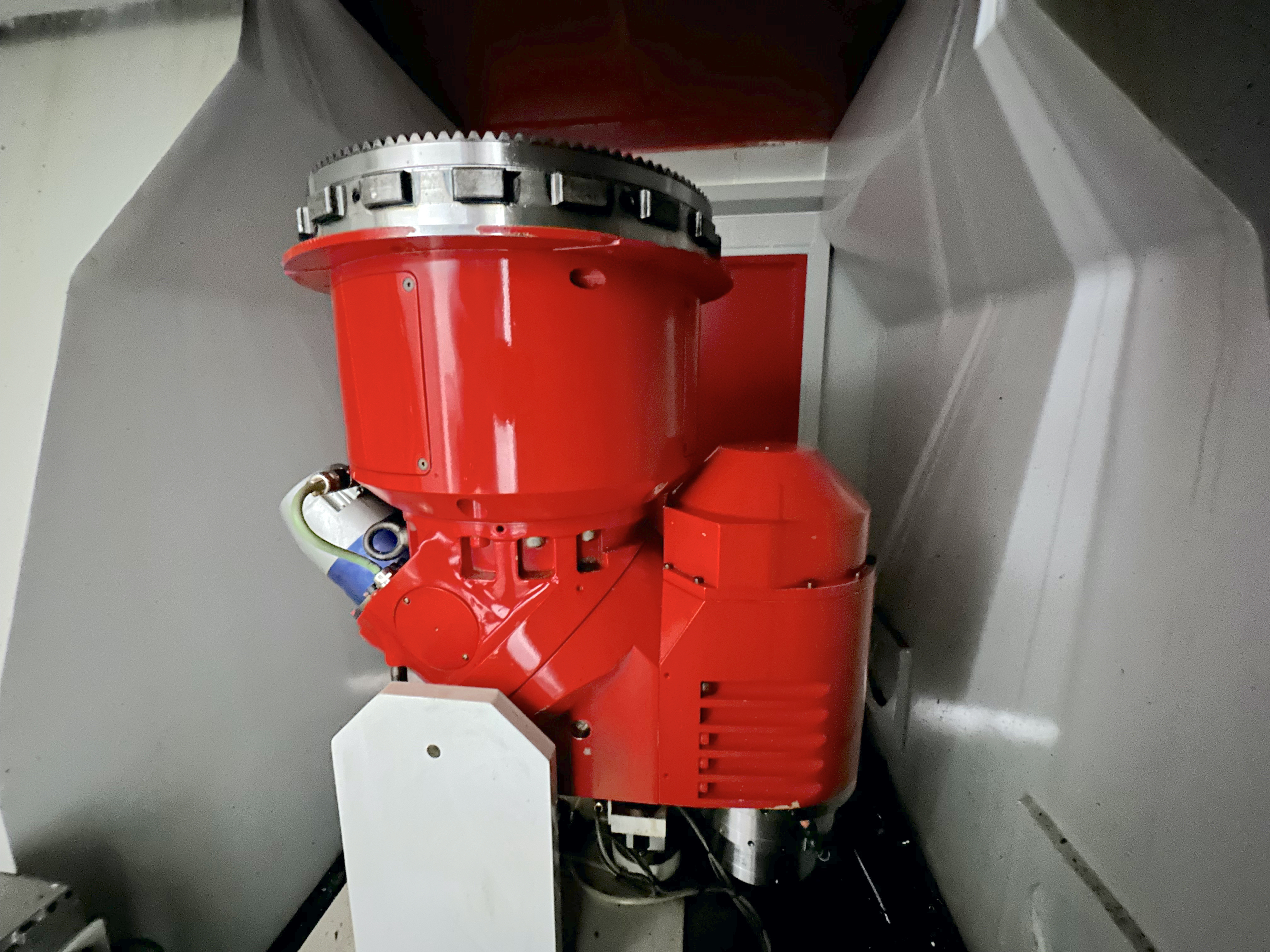

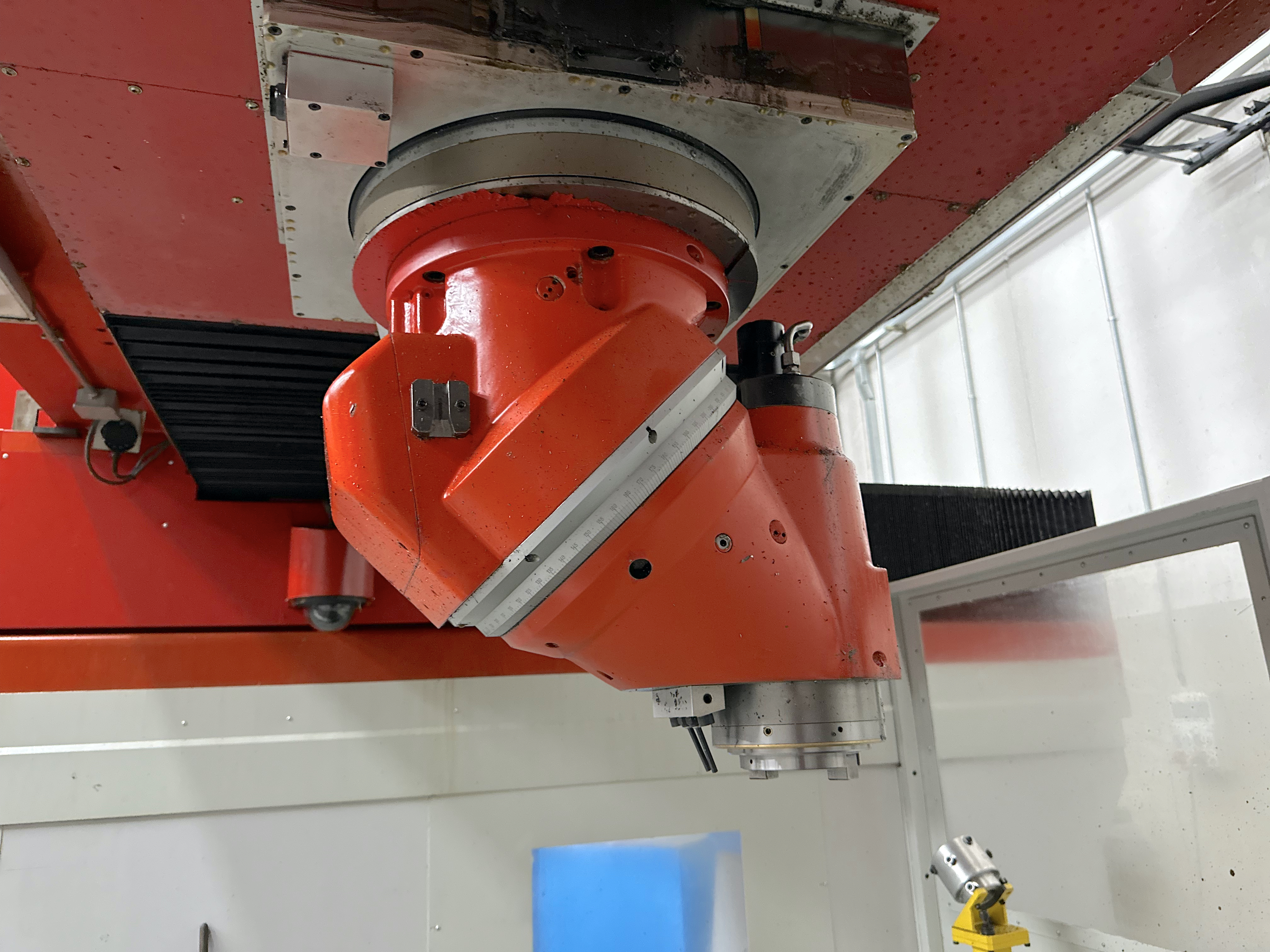

HEAD 1
Type
DCB6 a posizionamento millesimale automatico
Spindle taper
ISO50
A axis
360.000x0,001 °
C axis
360.000x0,001 °
Max torque
1000/1500 Nm
Max speed
6000 Rpm
Max power
38/57 Kw
Coolant
Est 6 Bar - Int 40 Bar
No
HEAD 1
Type
DW54 - Testa Twin elettromandrino E54
Spindle taper
HSK63E
A axis
∞x0,001 °
C axis
∞x0,001 °
Max torque
35,4 Nm
Max speed
26000 Rpm
Max power
38/57 Kw
Coolant
Est 6 Bar - Int 40 Bar
No
EXTRA
Aggiungi Testa n
Yes
Floor space
12500x8200x6050 mm492,13x322,83x238,19 in
High Pressure
40Bar 1000lt.
Filtration unit
30/60µm

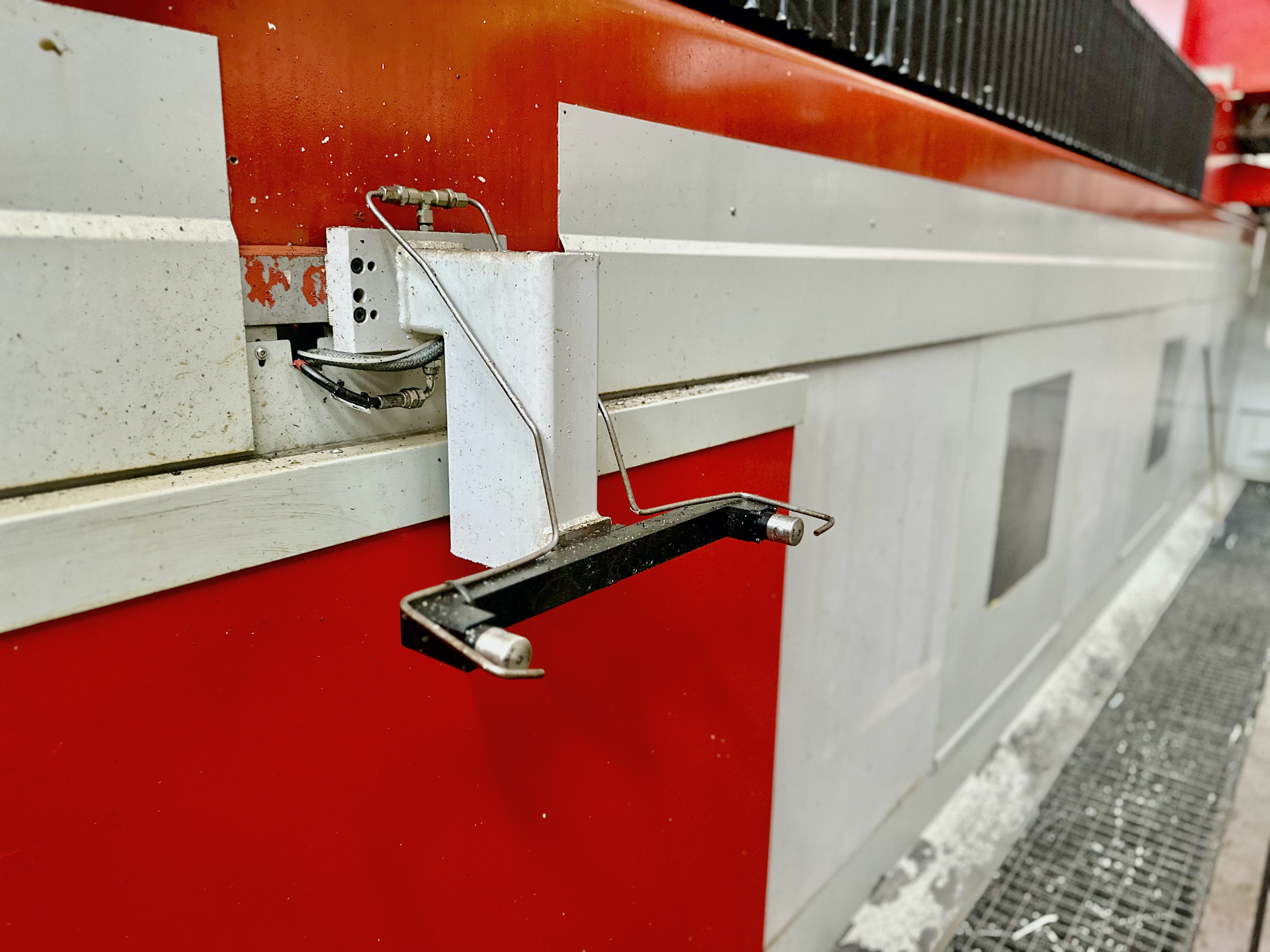

Workpiece touch probe
Si
Tool presetter
Si
Maintenance & Use books
Yes
Electrical drawings
Yes
CE Certification
Yes
