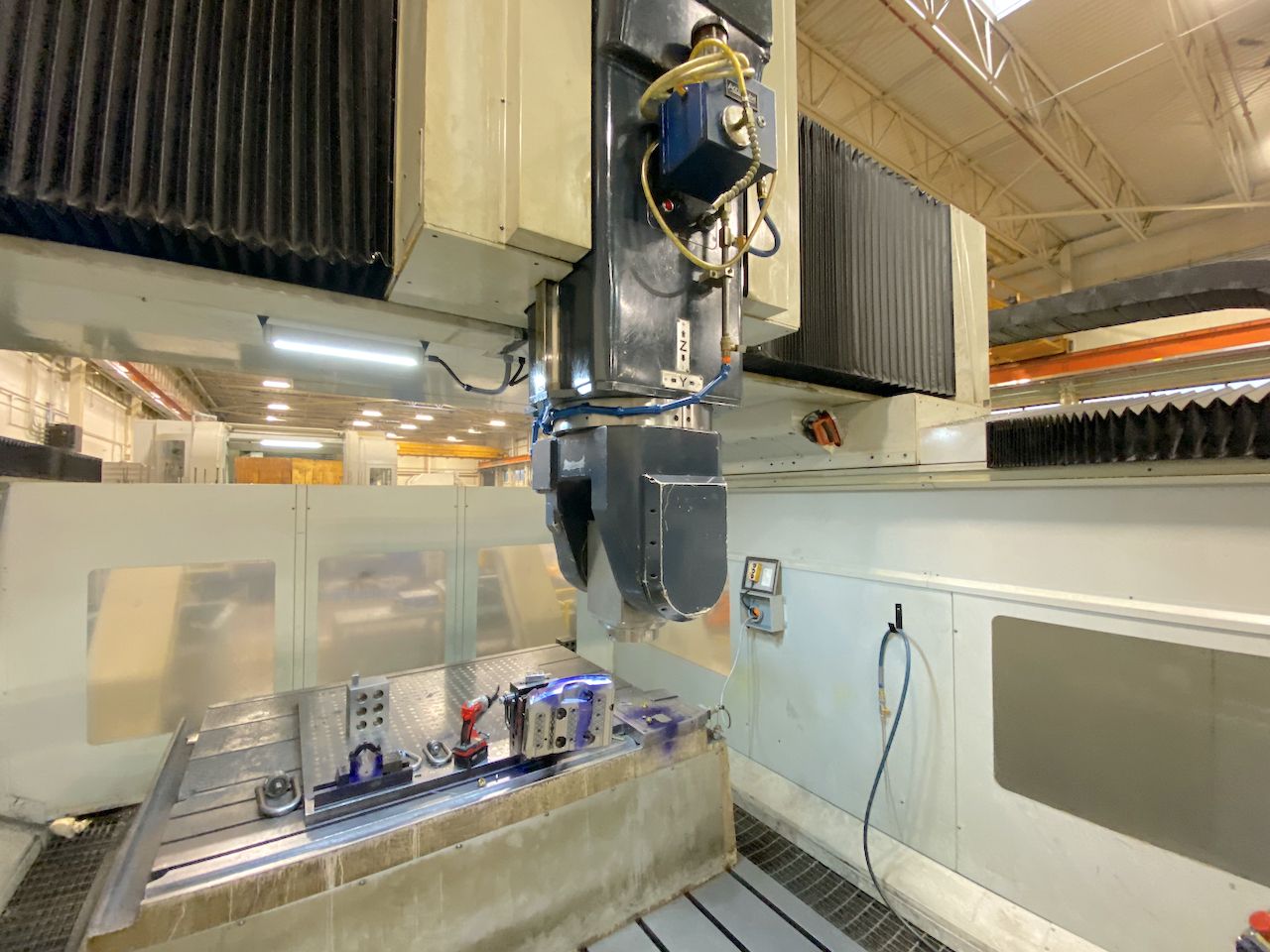

Category
Milling machine
Type
Gantry
Made
Model
OMNIA 53
Capacity
5000x3000x1500 mm196,85x118,11x59,06 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Longitudinal (X)
5000 mm196,85 in
Vertical RAM (Y)
1500 mm59,06 in
Cross Crossrail (Z)
3000 mm118,11 in
Column distance
3700 mm145,67 in
Spindle nose - table distance
1650 mm64,96 in

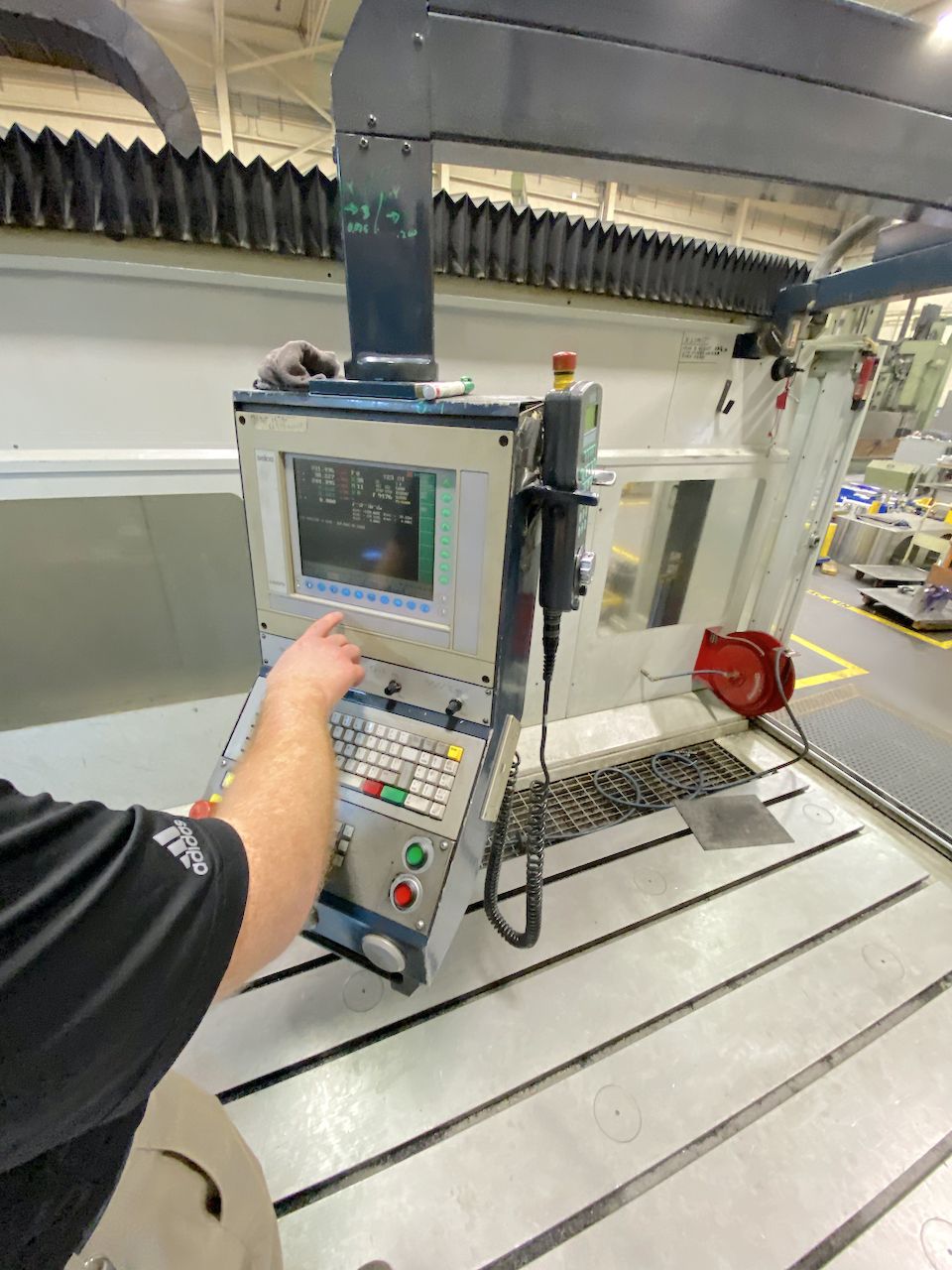

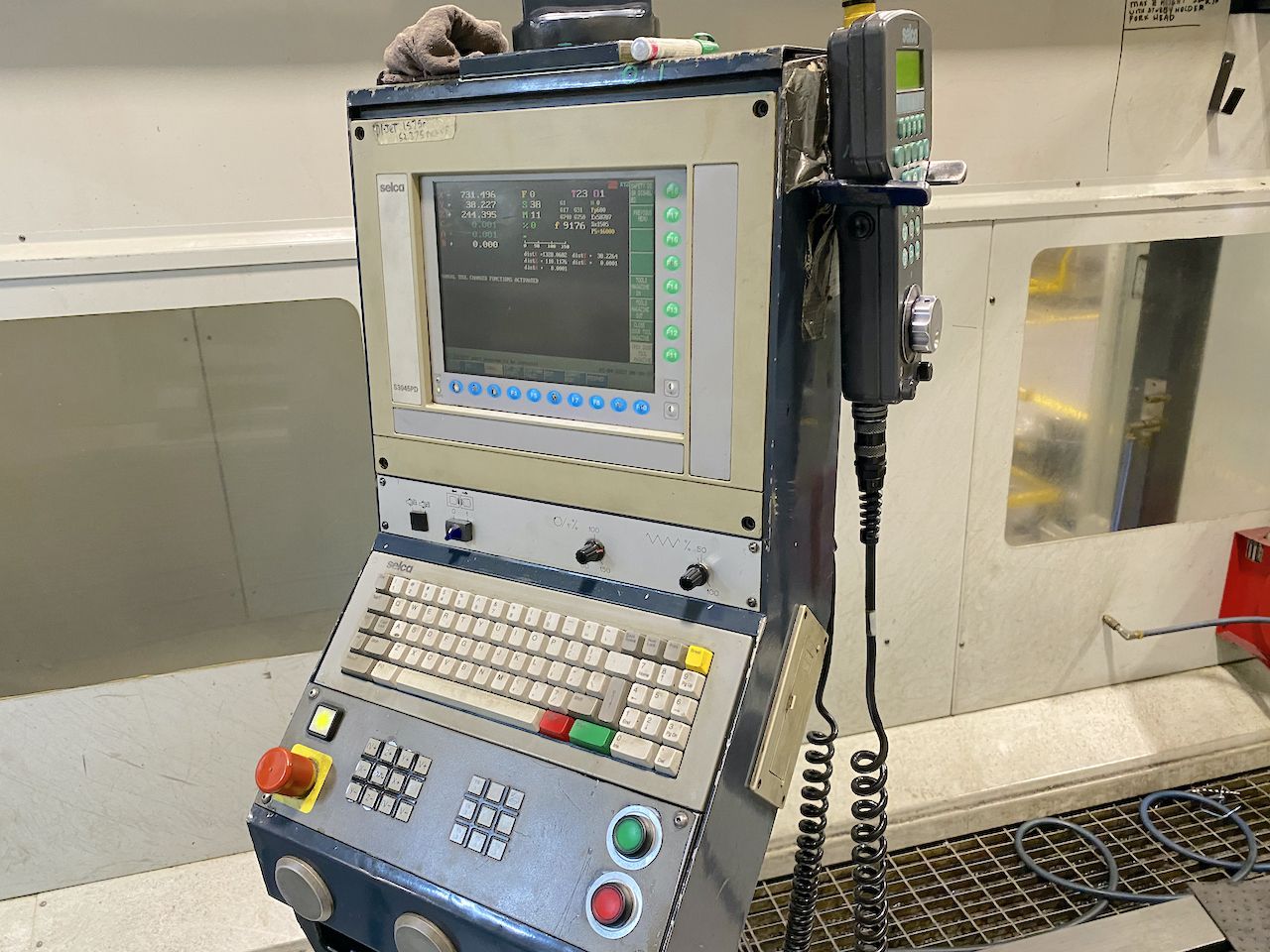

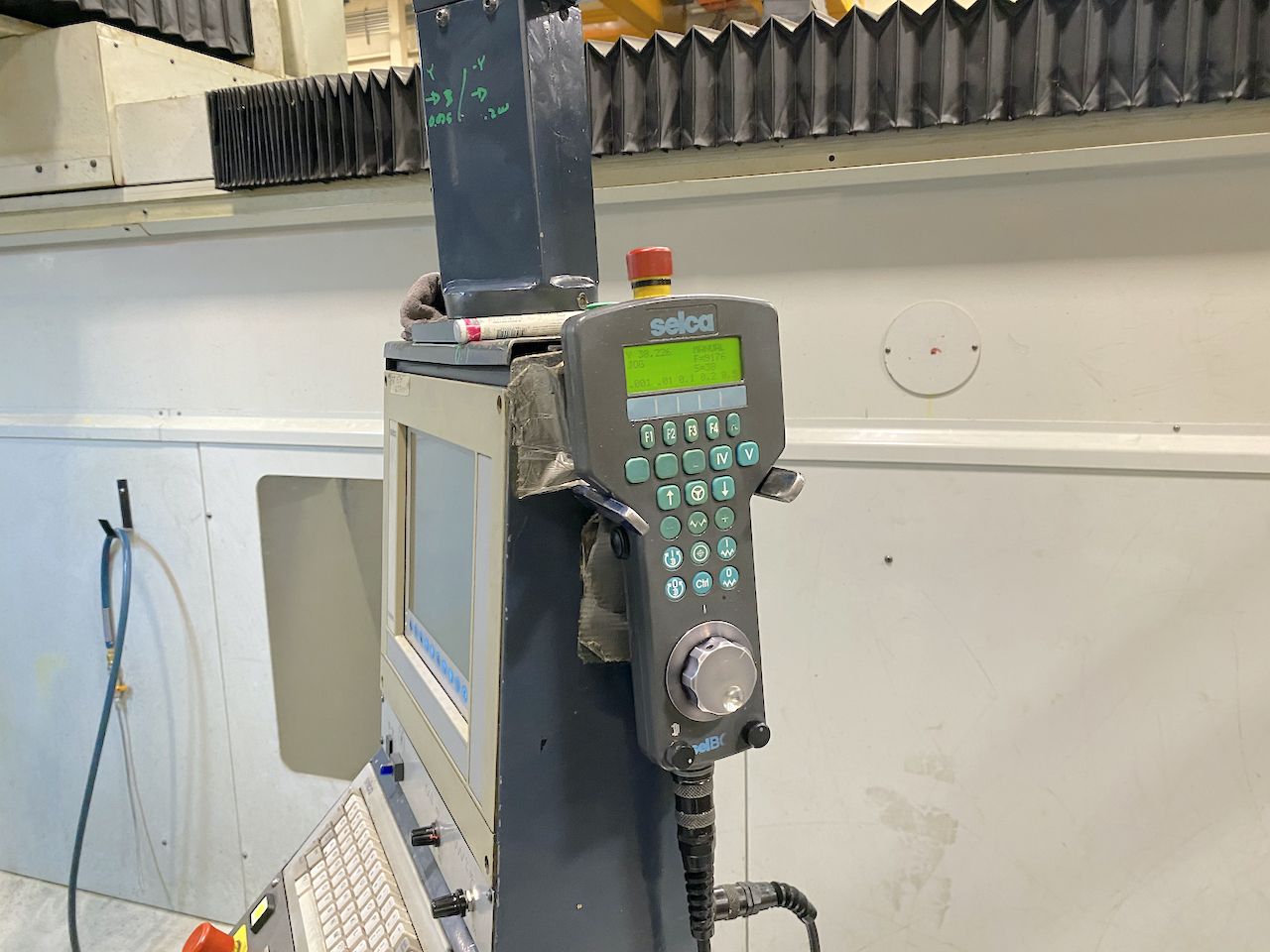

CNC
CNC
SELCA 3045PD
SPINDLE
Rotating speed
6000 Rpm
Spindle power
22 Kw
Notes
Asse C per movimento in continuo delle teste 10rpm continui
FEEDS
X
20 m/min787,40 ipm
Y
20 m/min787,40 ipm
Z
20 m/min787,40 ipm
WARKING TABLE
Floorspace (LxWxH)
6000x2500 mm236,22x98,43 in
T slots number
8 22x250

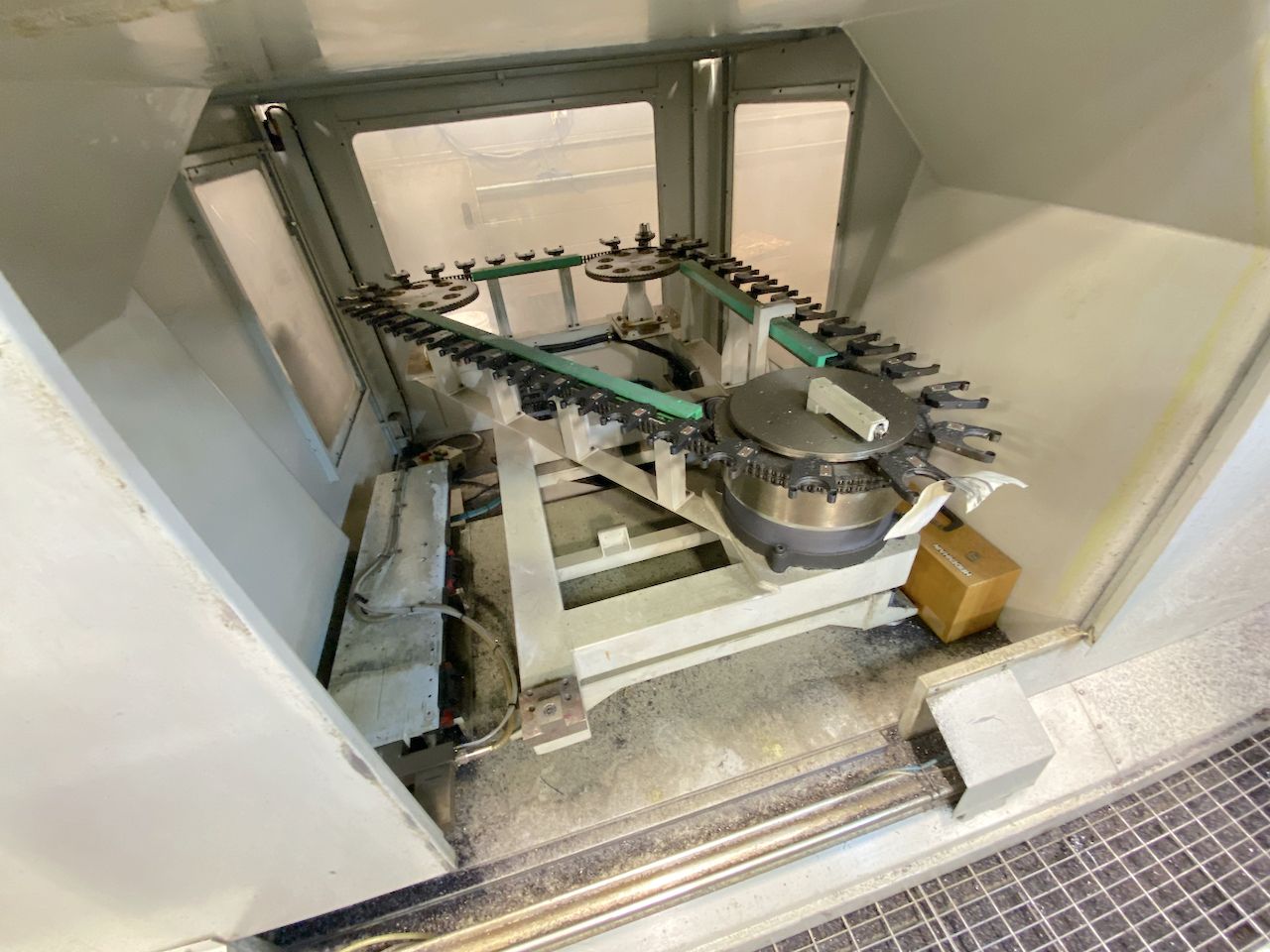

ATC
Positions
40
Max tool diameter
125 mm4,92 in
Max tool lenght
250 mm9,84 in
Max tool weight
12 Kg
HEAD 1
Type
Prolunga 400mm
Spindle taper
HSK63A
Max speed
1500-6000 Rpm
Max power
22 Kw
HEAD 2
Available upon request
No
A axis
+/-105 °
C axis
continuo °
Max speed
6000-16000 Rpm
Max power
16 Kw
HEAD 3
Available upon request
No
A axis
144x2,5 °
C axis
continuo °
Max speed
24000 Rpm
Max power
22 Kw
EXTRA
Floor space
6200x6000x5100 mm244,09x236,22x200,79 in

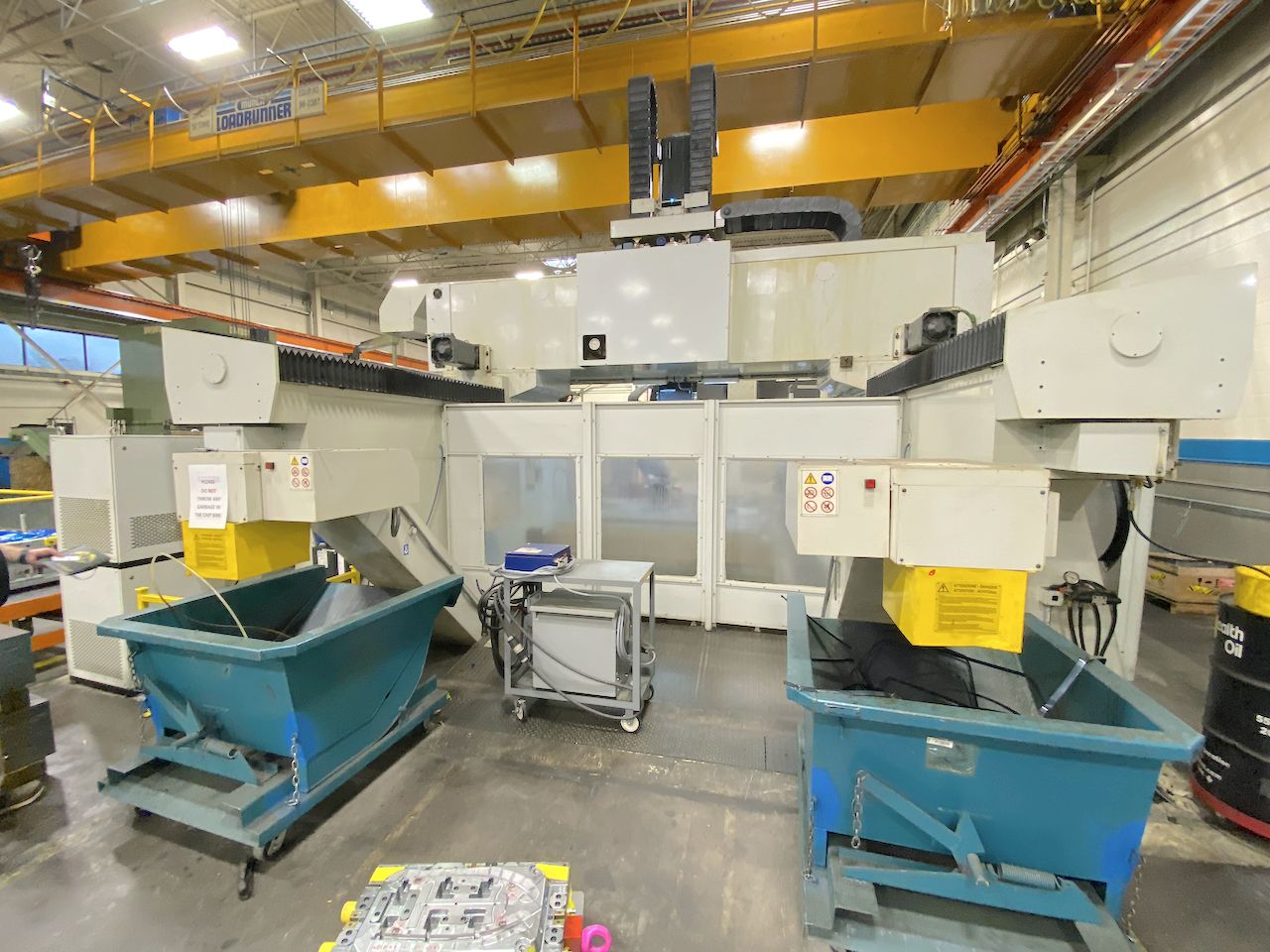

Chip conveyor
Yes
Tool presetter
SI
Workpiece touch probe
si
