Category
Milling machine
Type
Portal
Made
Model
HYOP 750
Capacity
7500x3200x1350+400 mm295,28x125,98x53,15+15,75 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Longitudinal (X)
7500 mm295,28 in
Vertical RAM (Y)
1350 mm53,15 in
Cross (Z)
4000 mm157,48 in
Column distance
3200 mm125,98 in
Spindle nose - table distance
1450 mm57,09 in
Quill (W)
400 (4x100) mm15,75 (0,16x3,94) in
Axes support
Turcite

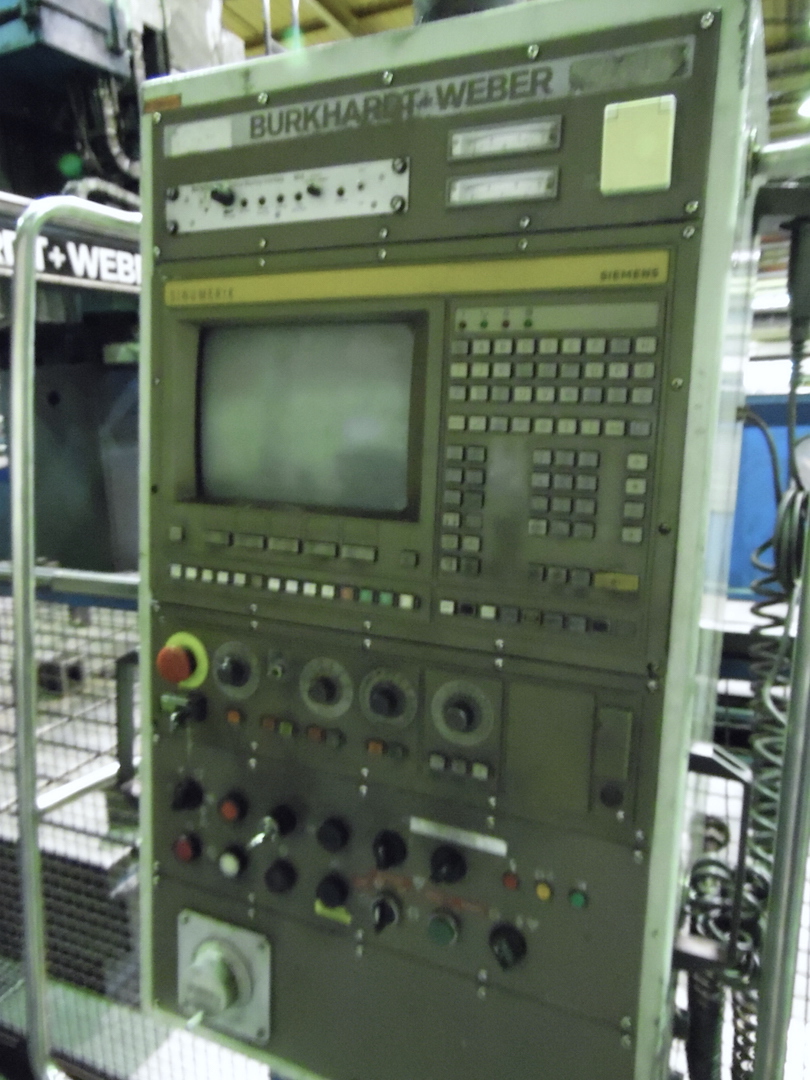

CNC
CNC
SIEMENS SINUMERIK
SPINDLE
Quill diameter
130 mm5,12 in
Spindle power
45 Kw
Rotating speed
30-3000 Rpm
Taper
ISO50
Gearbox
4 gears
FEEDS
Rapid X
10 m/min393,70 ipm
Rapid Y
10 m/min393,70 ipm
Rapid Z
10 m/min393,70 ipm
ATC
Positions
173

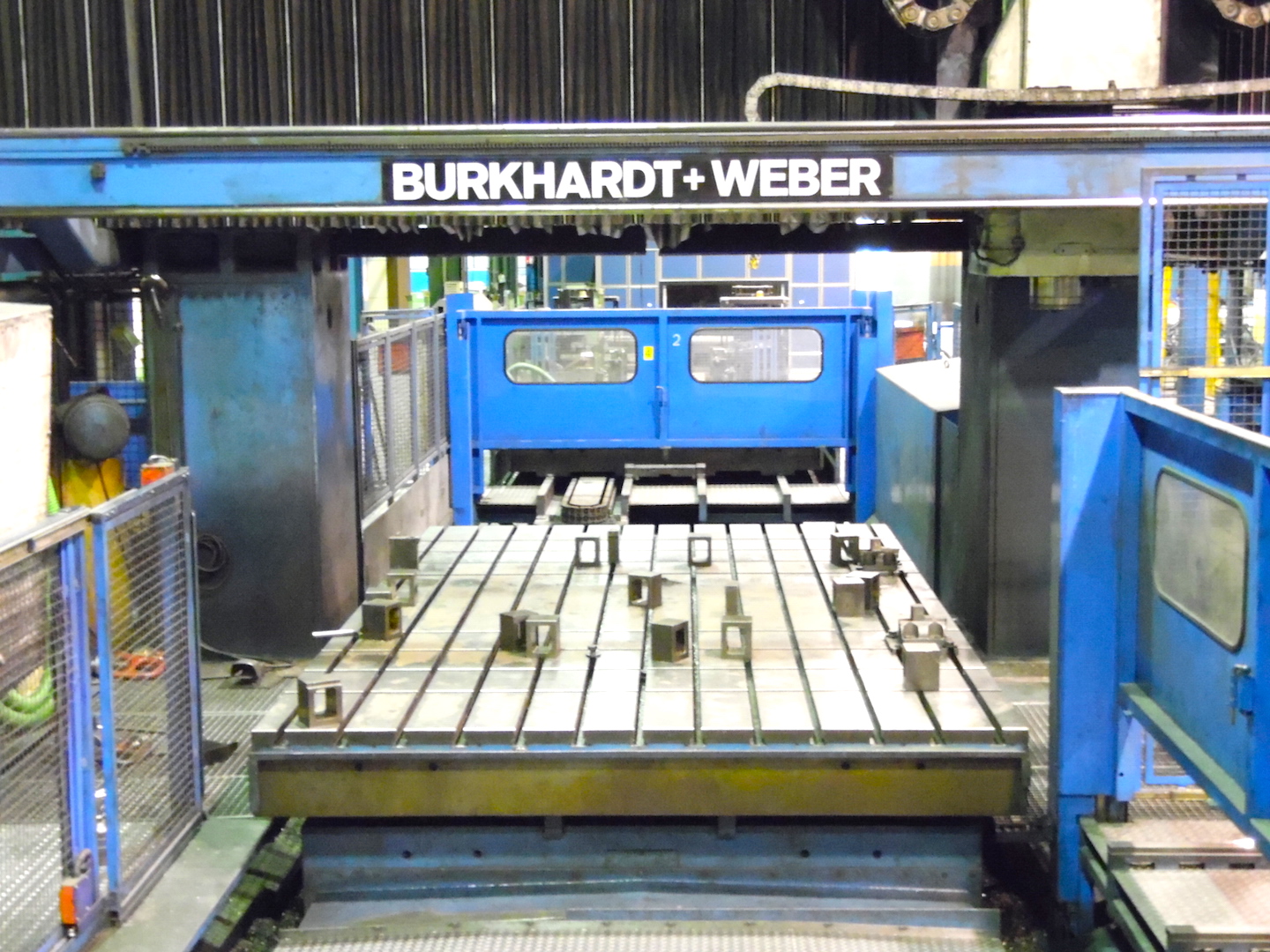

TABLE 1
Surface
4500x2600 mm177,17x102,36 in
Capacity
31000 Kg
Support
turcite
TABLE 2
Surface
4500x2600 mm177,17x102,36 in
Capacity
31000 Kg
TABLE 3
Surface
4500x2600 mm177,17x102,36 in
Capacity
31000 Kg

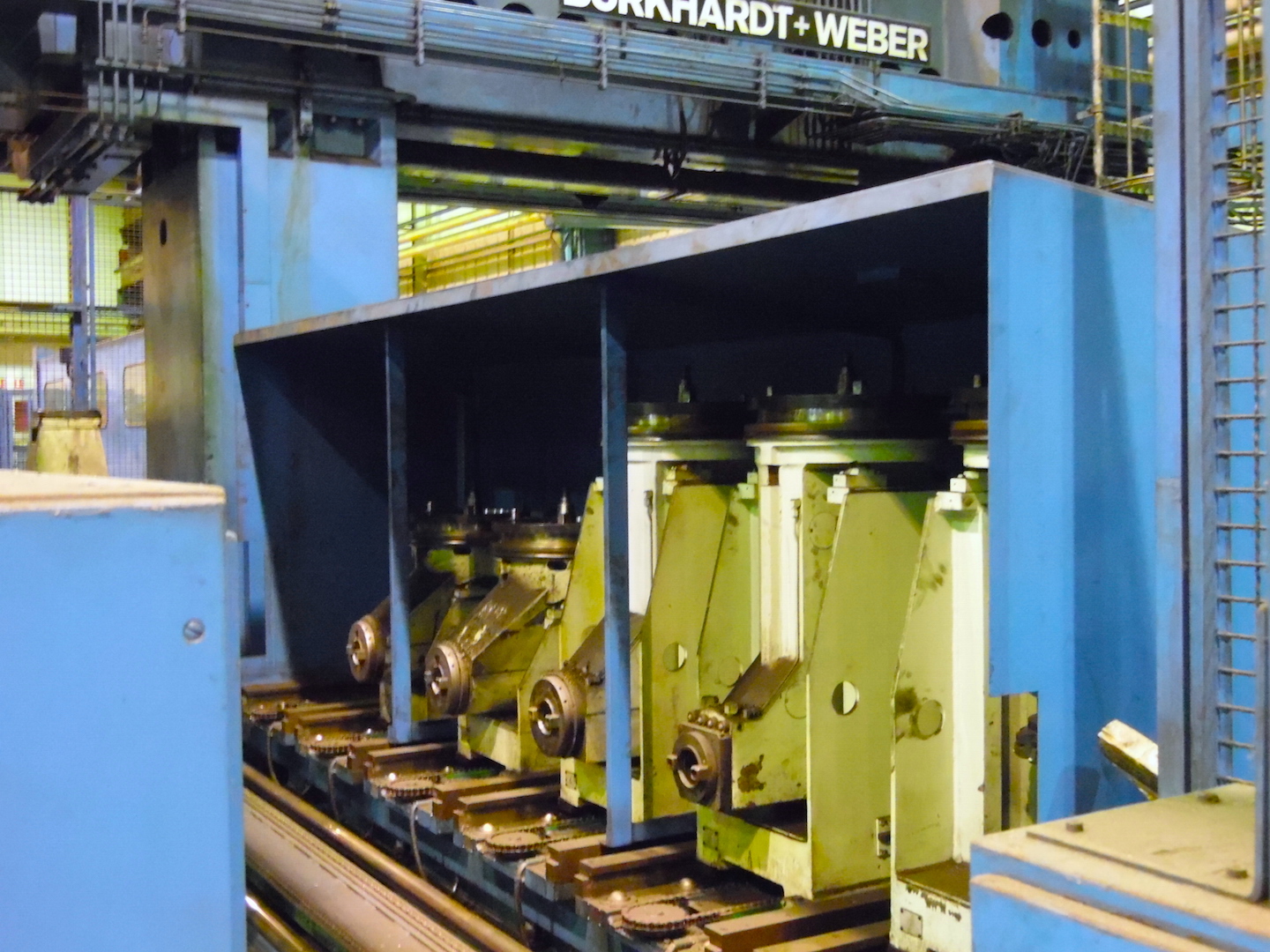

PICK UP STATION FOR HEADS
Positions
6
HEAD 2
Available upon request
No
HEAD 3
Available upon request
No
HEAD 4
Available upon request
No
HEAD 5
Available upon request
No
HEAD 6
Available upon request
No
HEAD 1
Type
verticale
Spindle taper
ISO50
Max speed
3000 Rpm
EXTRA
Machine total weight
160.000 Kg
Floor space
27.000x8.000x6.000 mm1,06x0,31x0,24 in

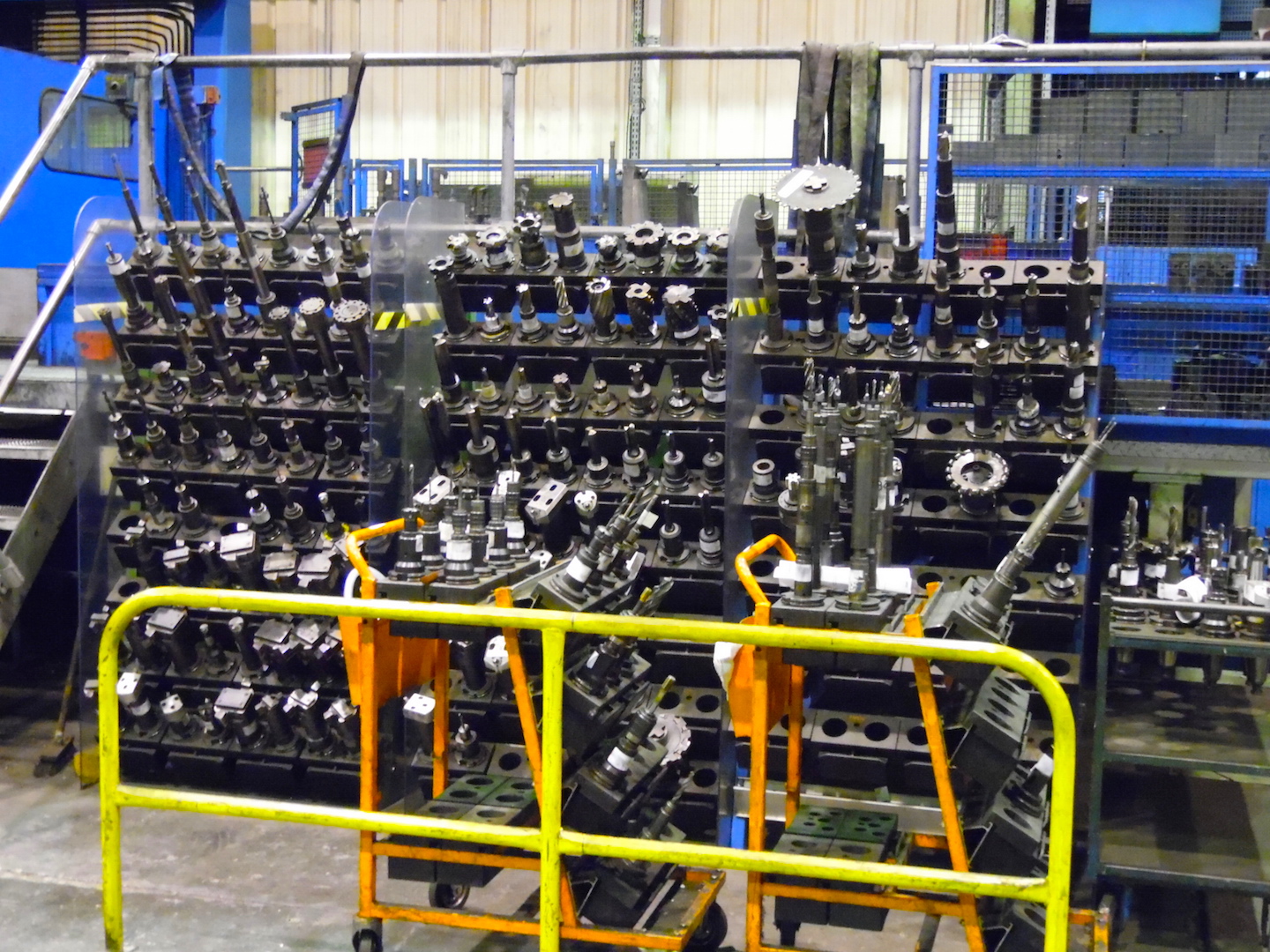

Tooling included
+/- 250 ISO50 cones, 3 tavole, pick-up cambio teste, doppio cnc, 6 teste
Chip conveyor
3
Availability
pronta
Available in stock
si
