Category
Drilling machine
Type
for deep holes for moulds
Made

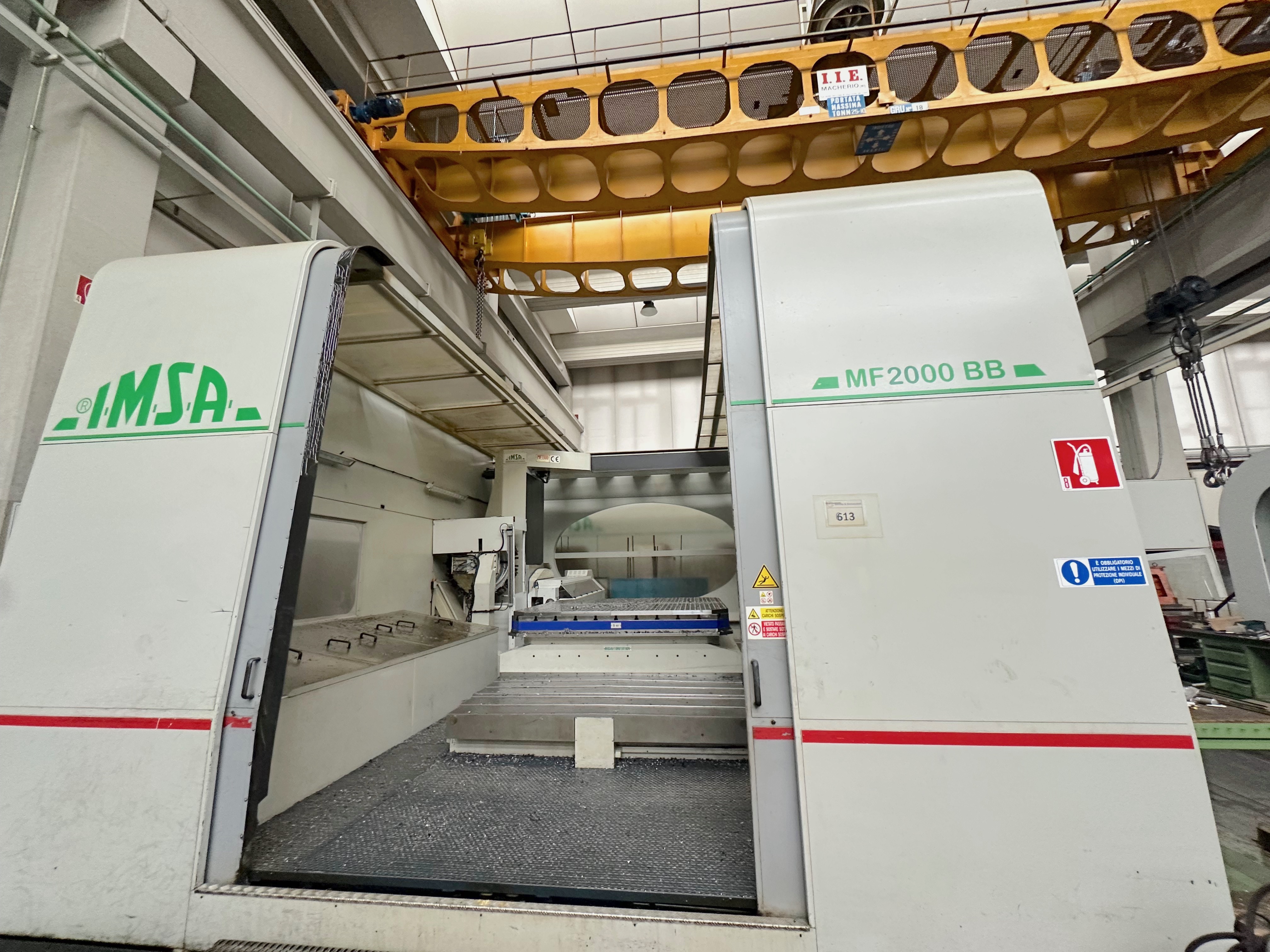

Model

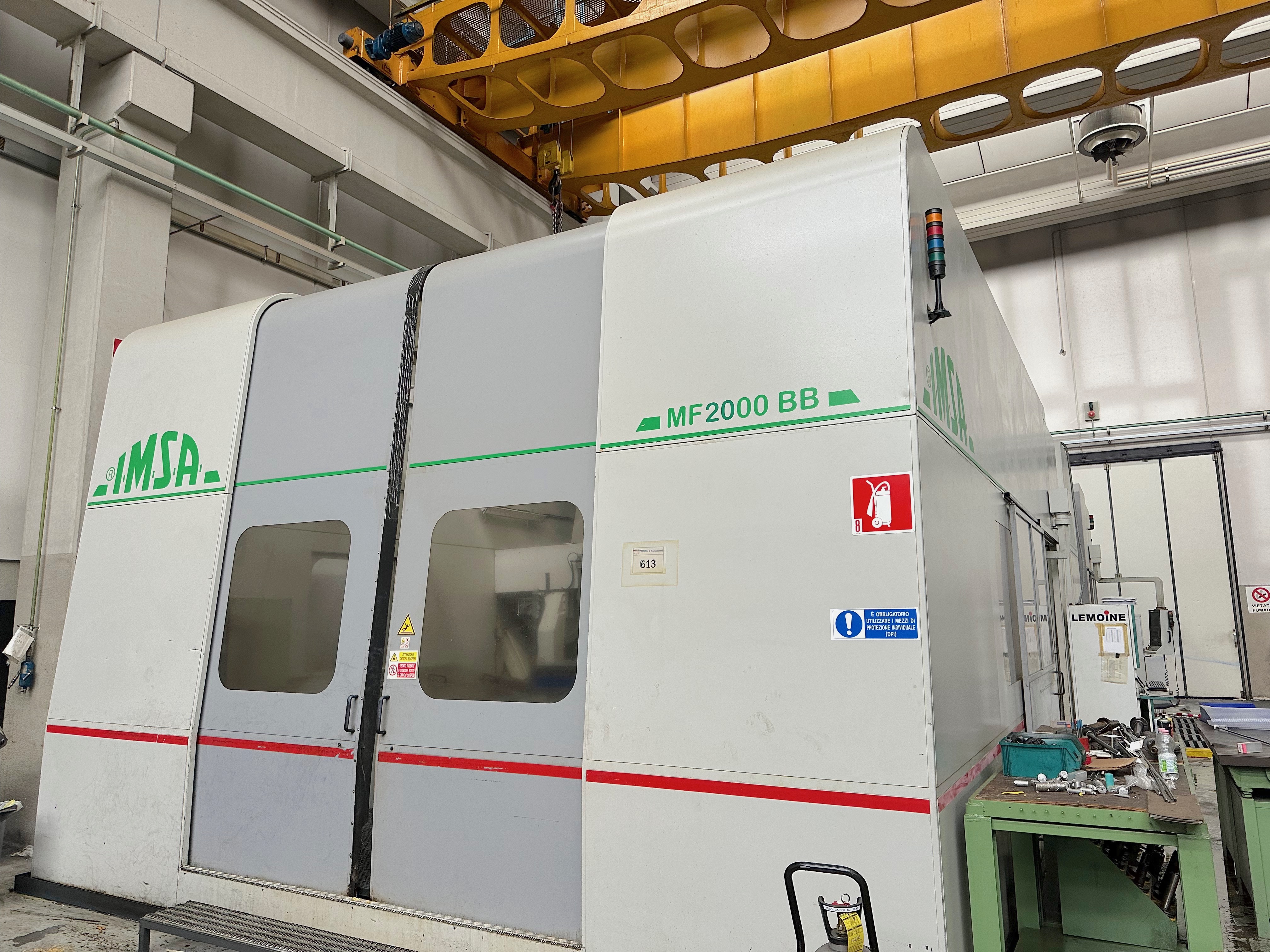

MF2000BB
Capacity
foratura ø6/40x2000 / fresatura 3250x1500 mmforatura ø0,24/1,57x78,74 / fresatura 127,95x59,06 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Longitudinal (X)
3250 mm127,95 in
Vertical (Y)
1500 mm59,06 in
Cross (Z)
asse filettatura 500 mmasse filettatura 19,69 in
Profondità di foratura (V)
2000 mm78,74 in
Inclinazione Testa di foratura ( C)
+/-20 °
Table rotation (B)
360.000x0,001 °
Piece approchement (W)
500 mm19,69 in
CNC
Measuring system
righe ottiche

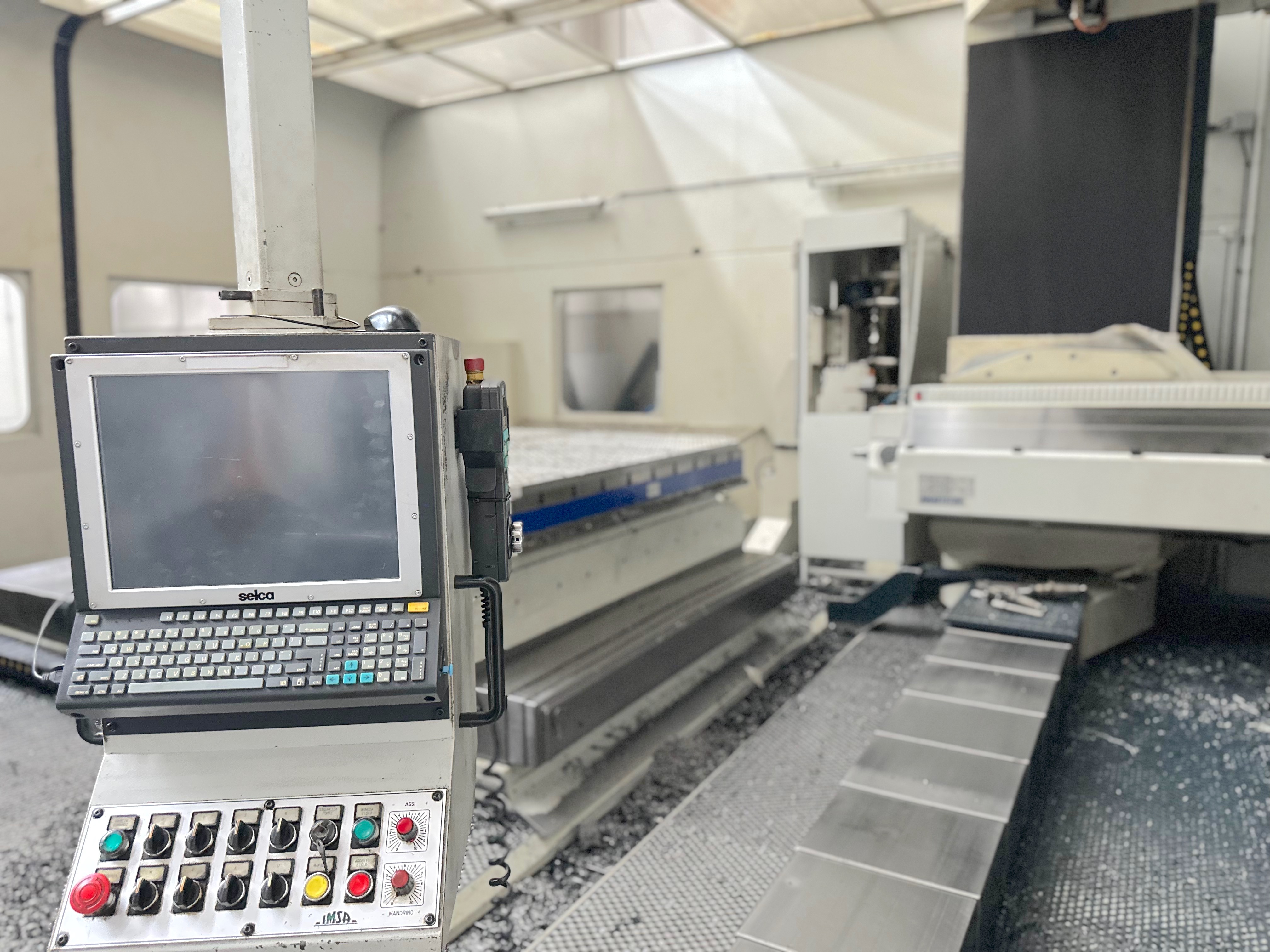

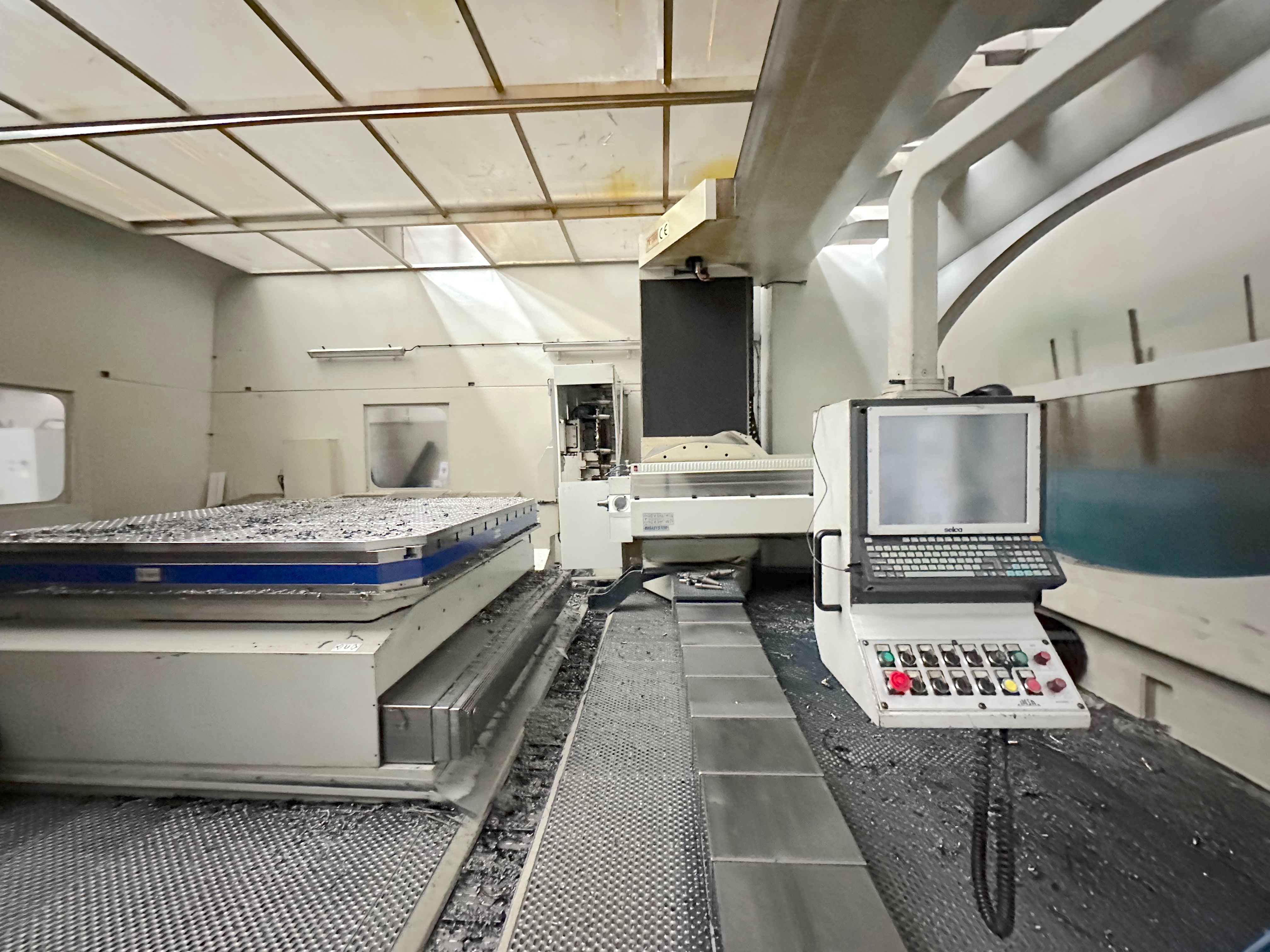

CNC
SELCA 4045

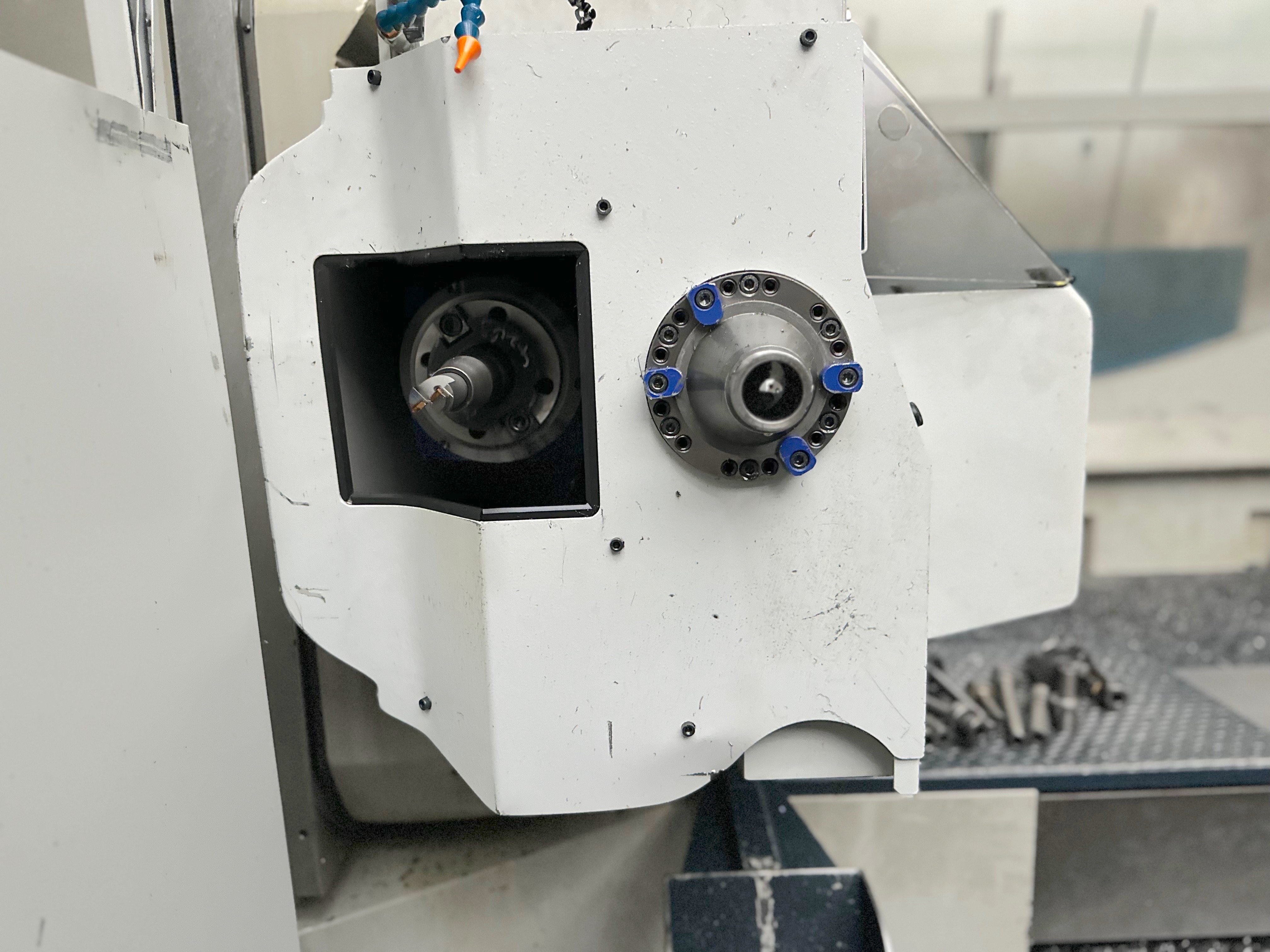

UNITà DI FORATURA
Diametro min-max dal pieno
6-40 mm0,24-1,57 in
Spindle power
18 Kw
Rotating speed
2000 Rpm
Tipo foratura
gundrill
Inclinazione Testa di foratura ( C)
40 (+/-20) °
FEEDS
Rapid X
8 m/min314,96 ipm
Rapid Y
8 m/min314,96 ipm
Rapid Z
8 m/min314,96 ipm
Rapid V
8 m/min314,96 ipm

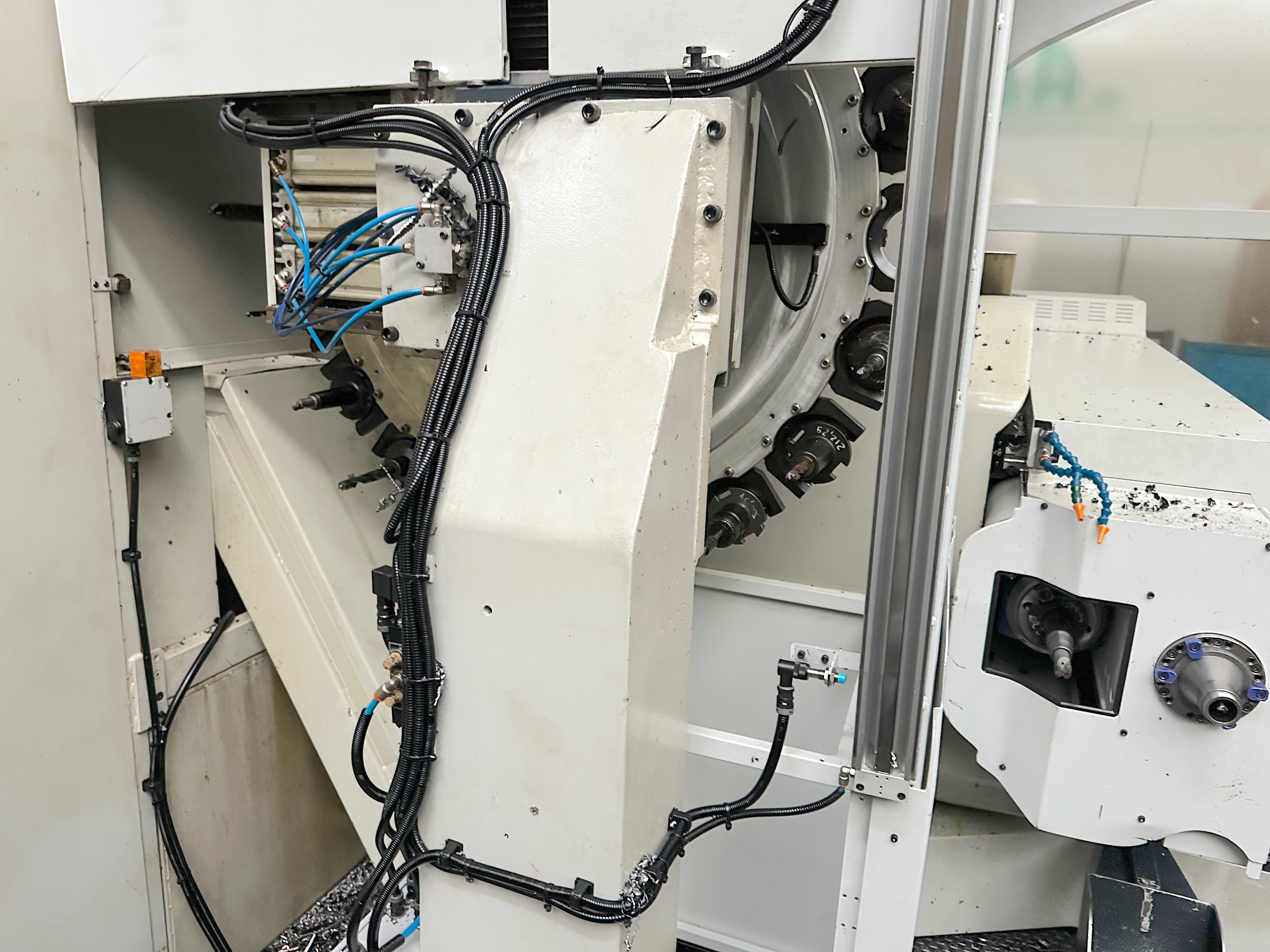

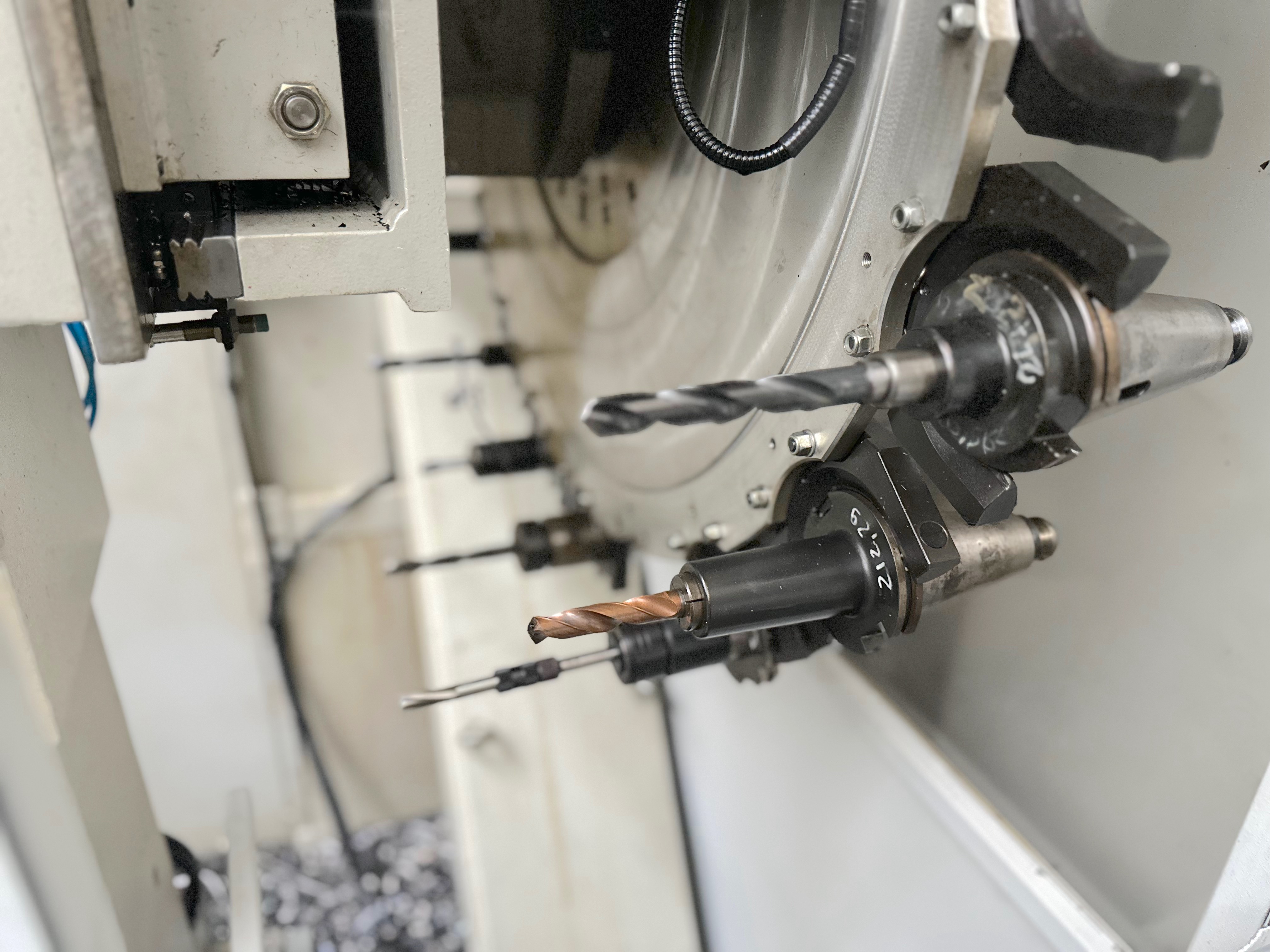

ATC FRESATURA
Positions
20

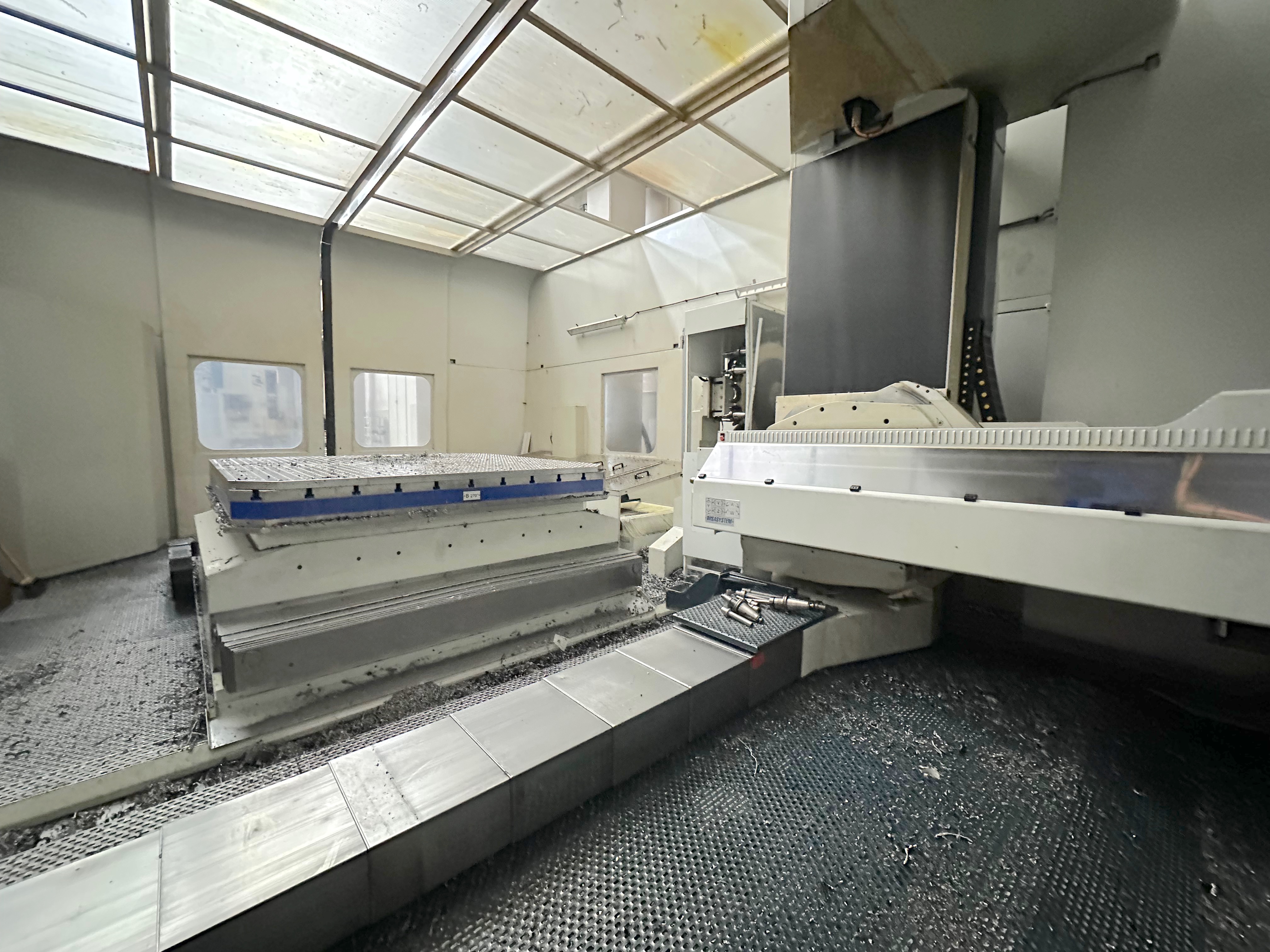

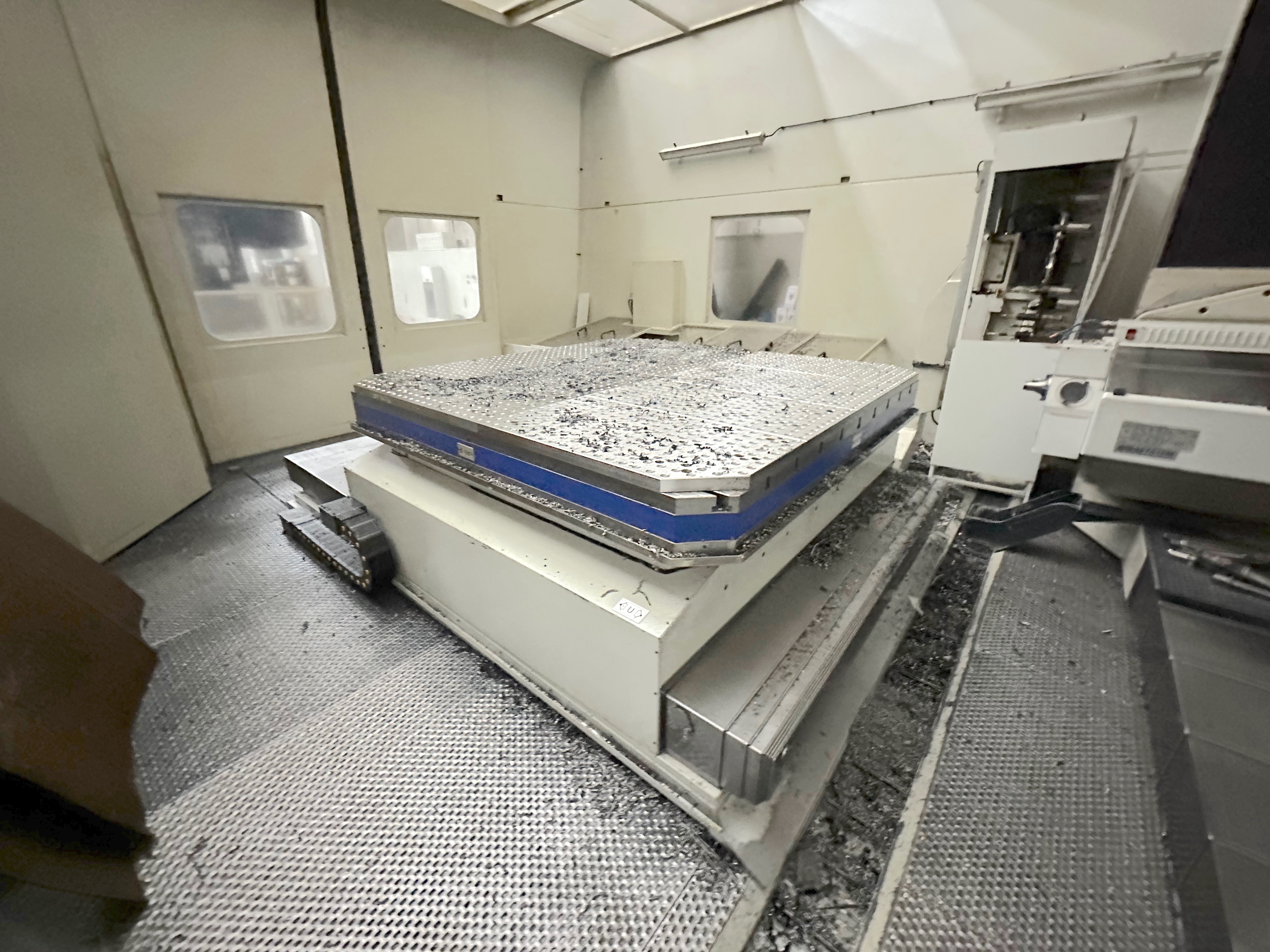

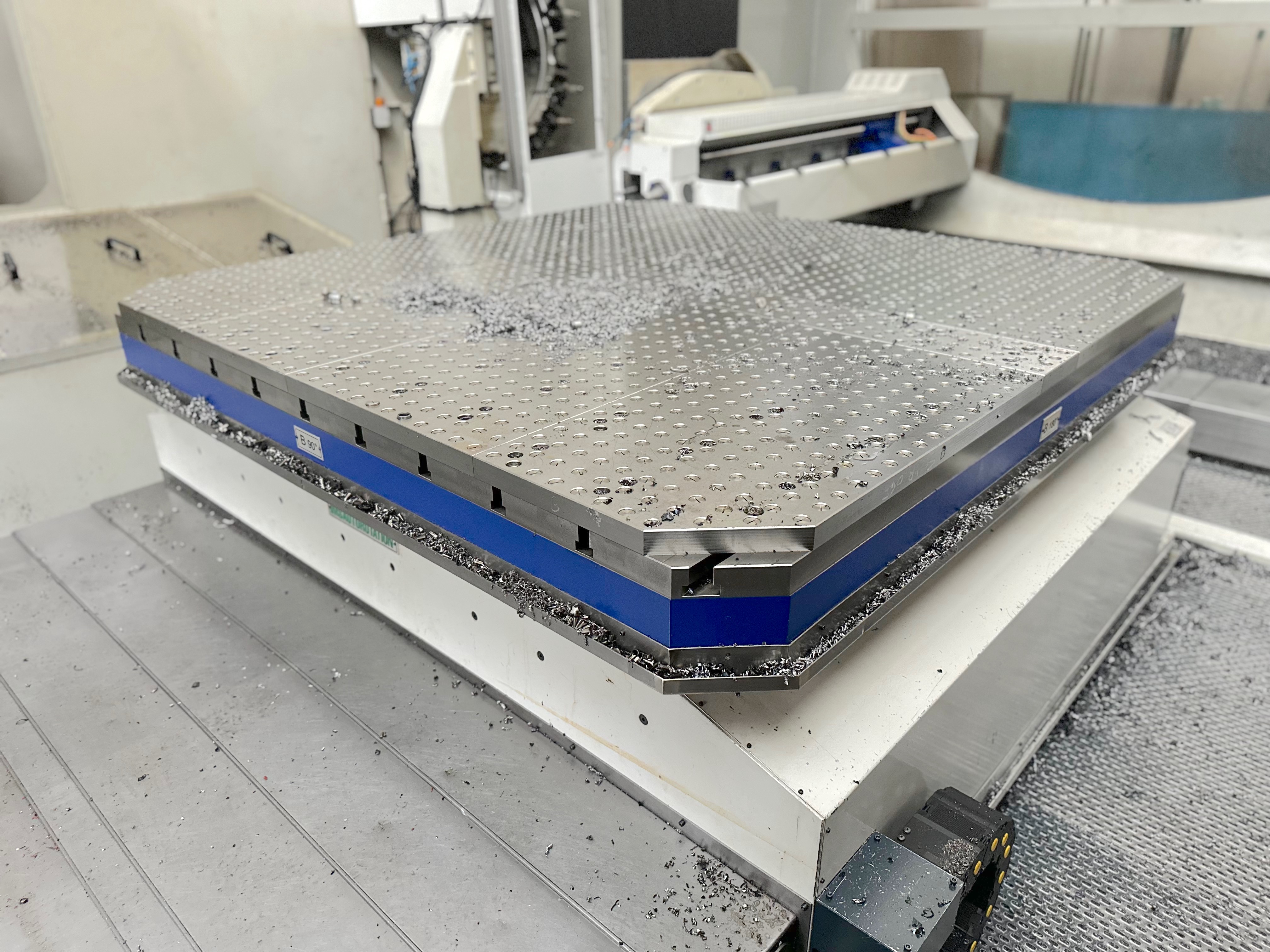

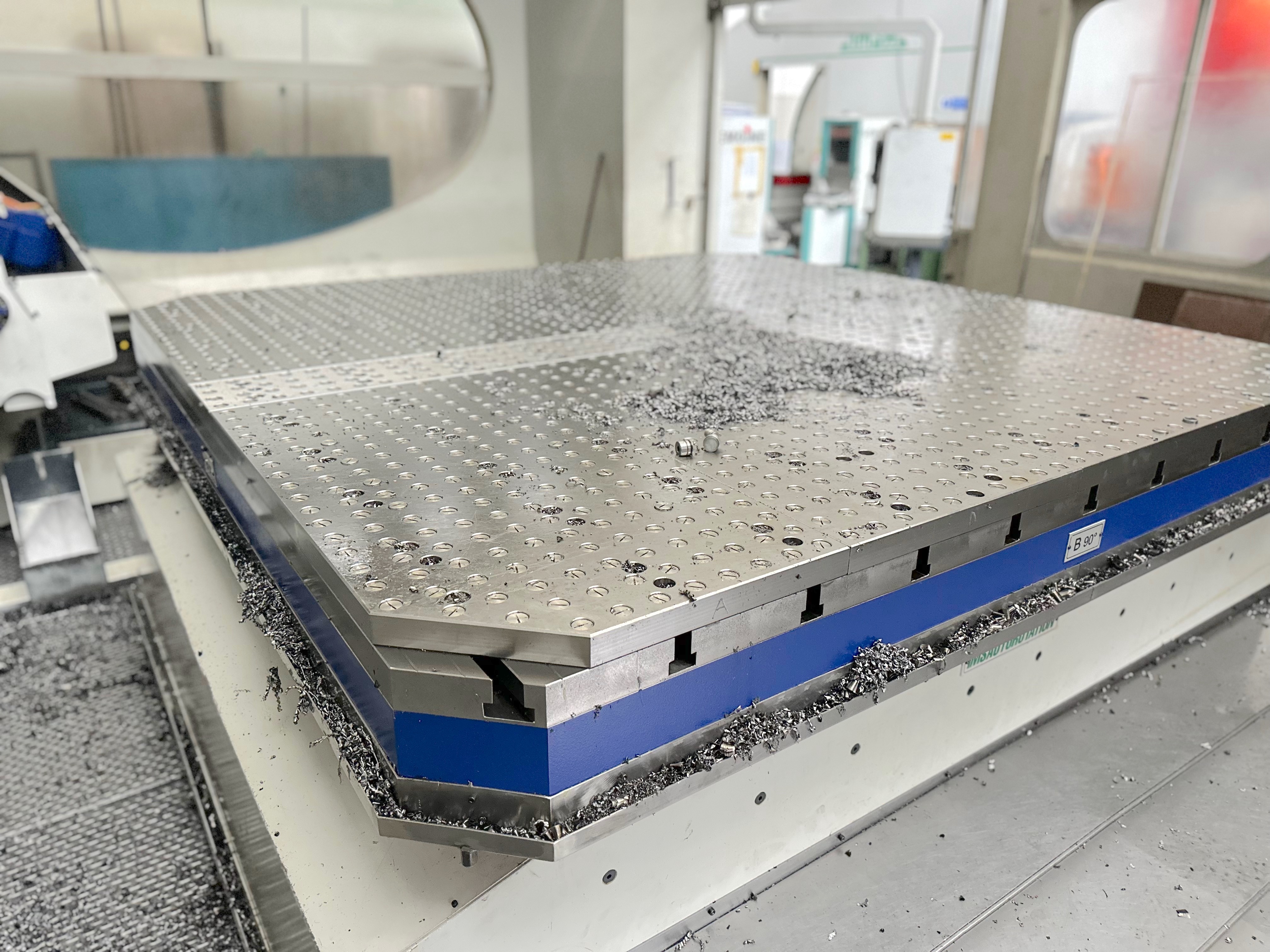

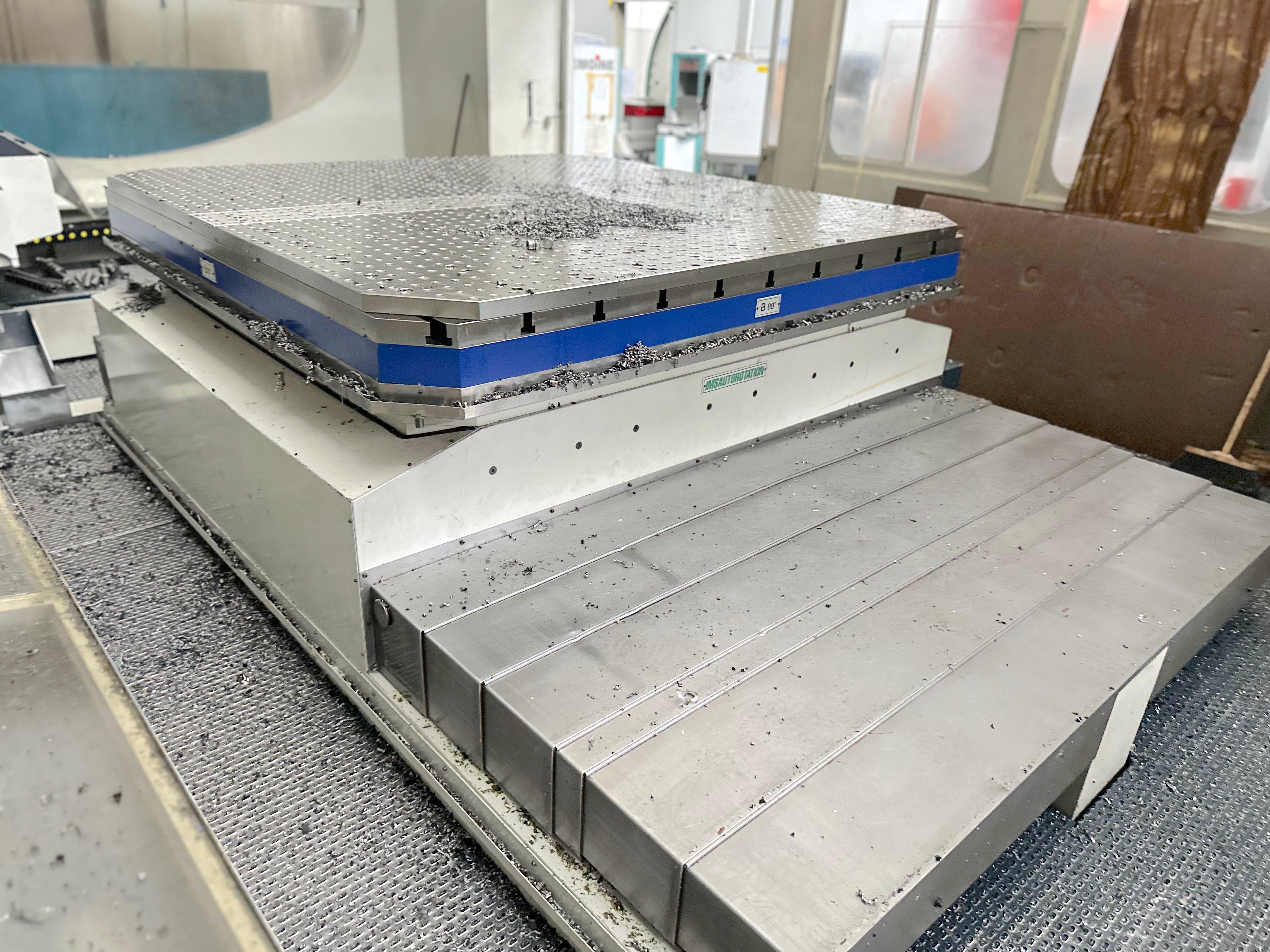

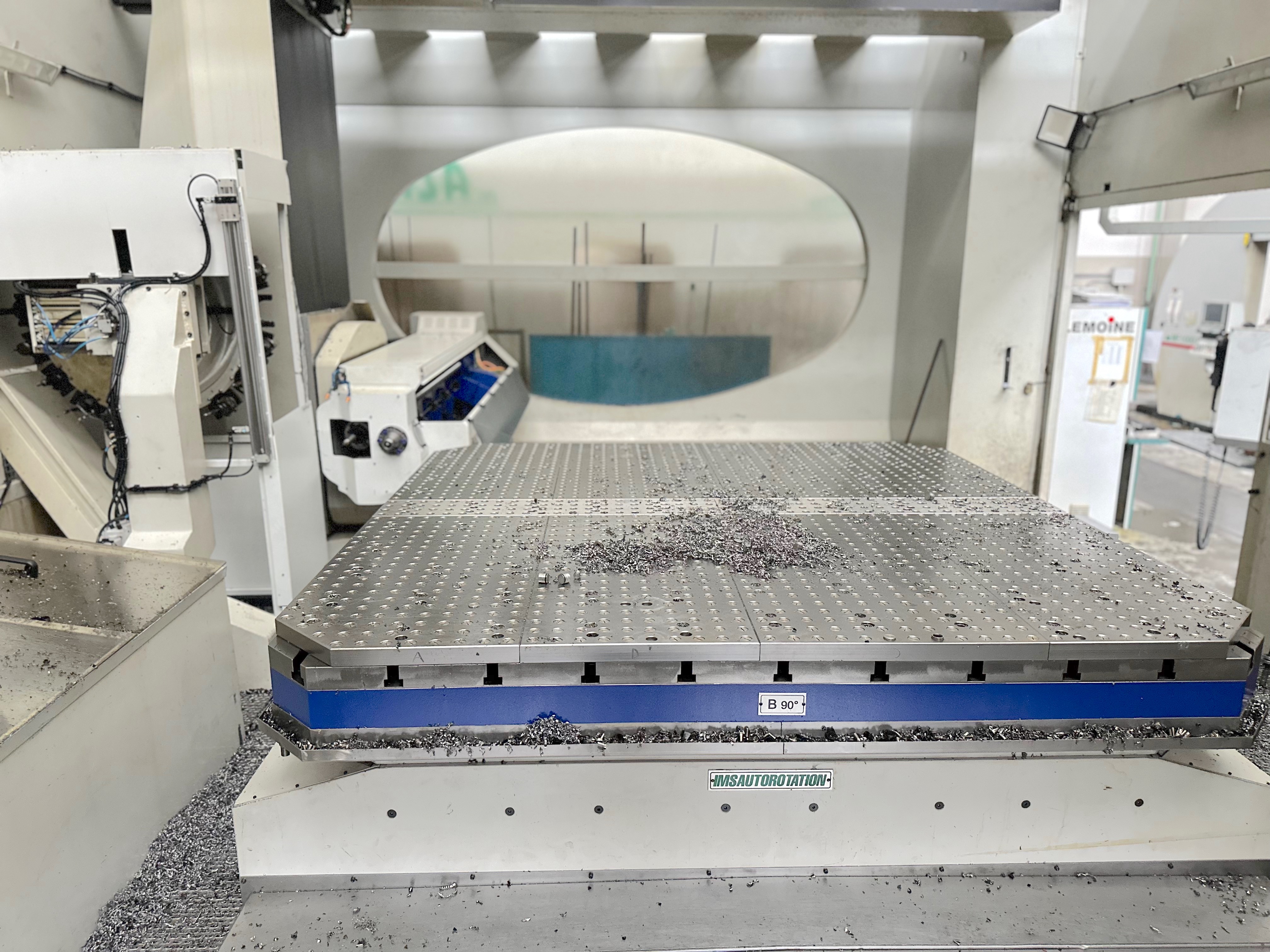

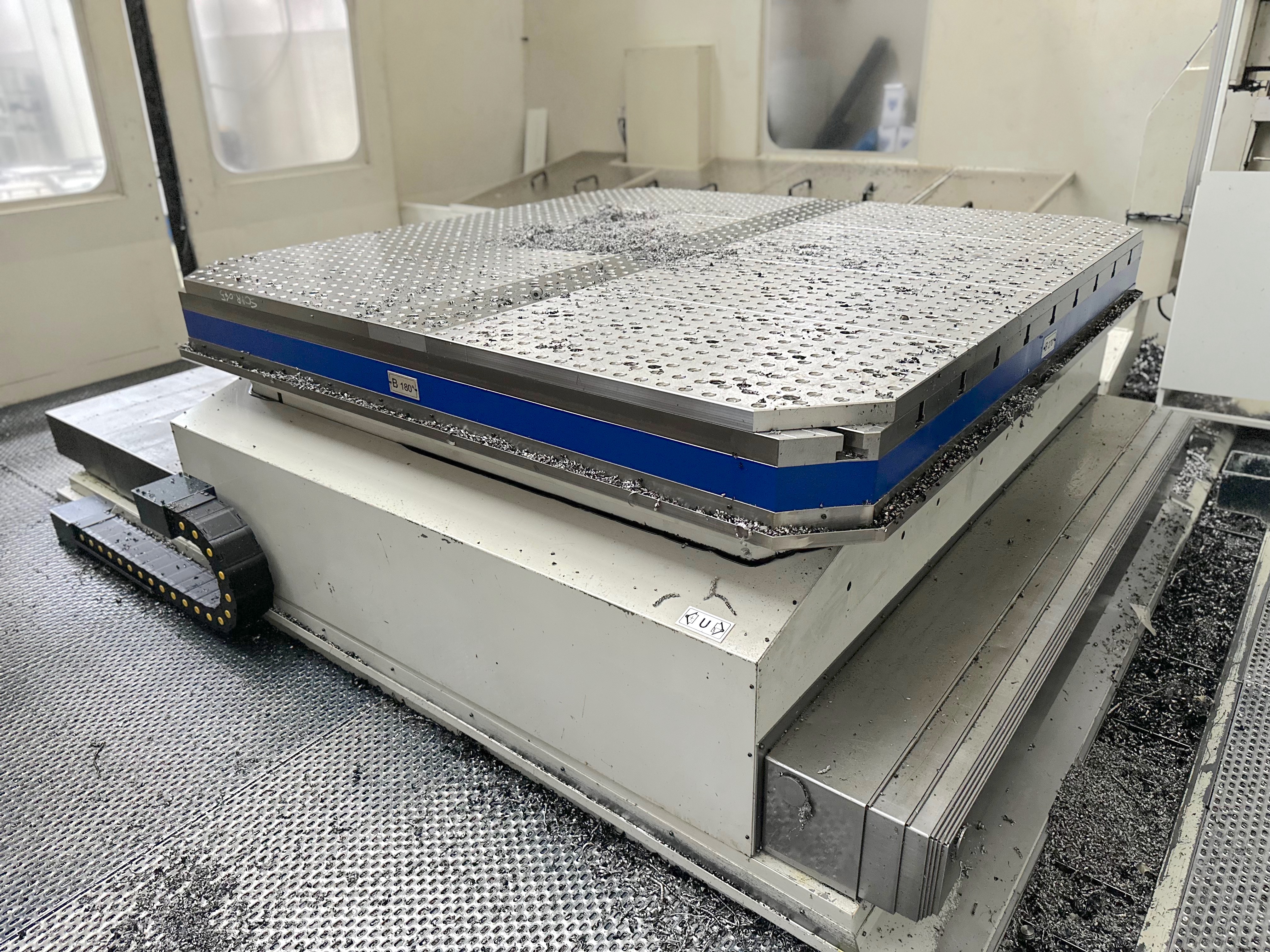

TABLE
Surface
2000x2000 mm78,74x78,74 in
Translation
1000 mm39,37 in
Accuracy (B axis)
0,001 °
Capacity
statico 50.000Kg / dinamico 30.000 Kg

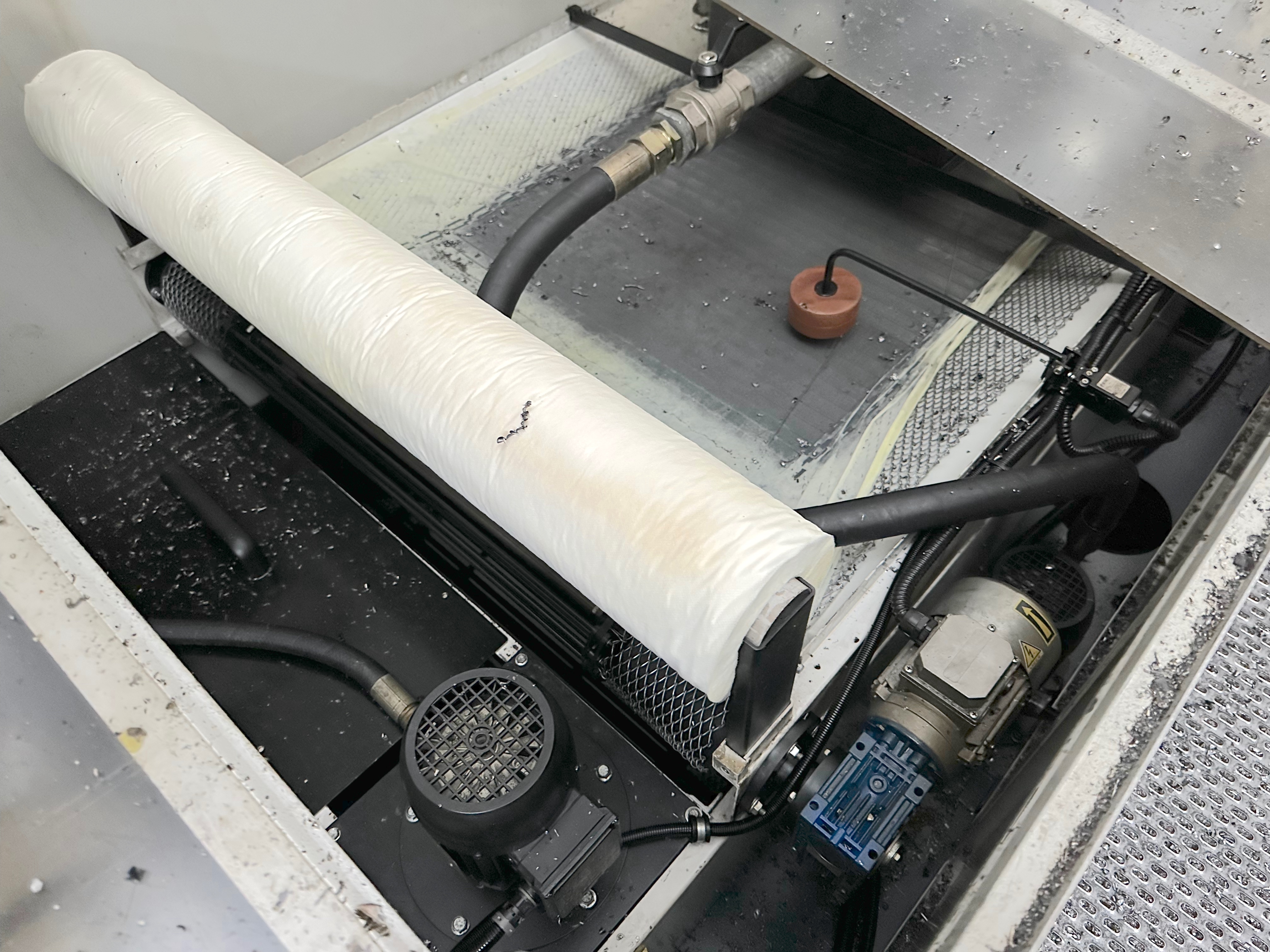

SISTEMA REFRIGERANTE
Capacità vasca
1500 l
EXTRA
Total power supply
45 Kw
Machine weight
45.000 Kg
Floor space
8000x6000x4300 mm314,96x236,22x169,29 in
Housing
integrale
