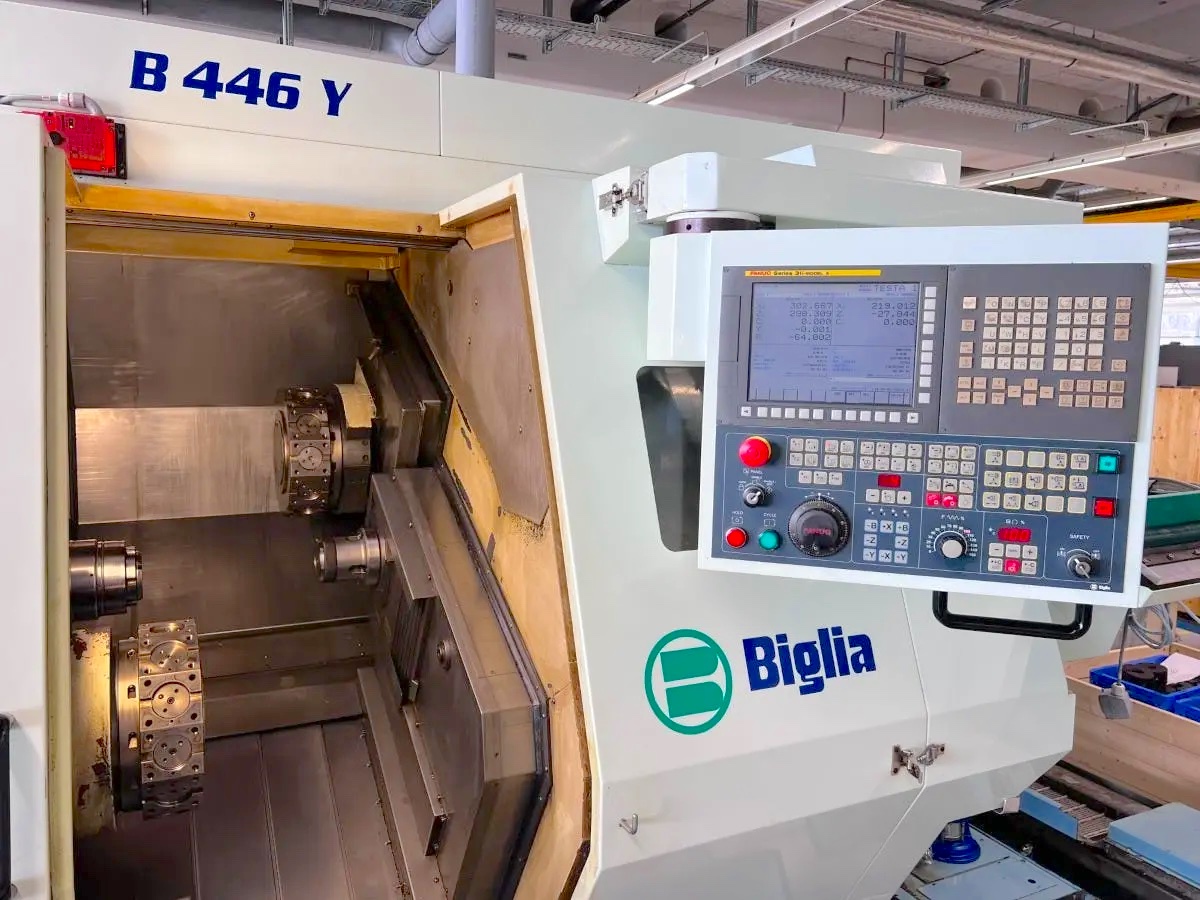

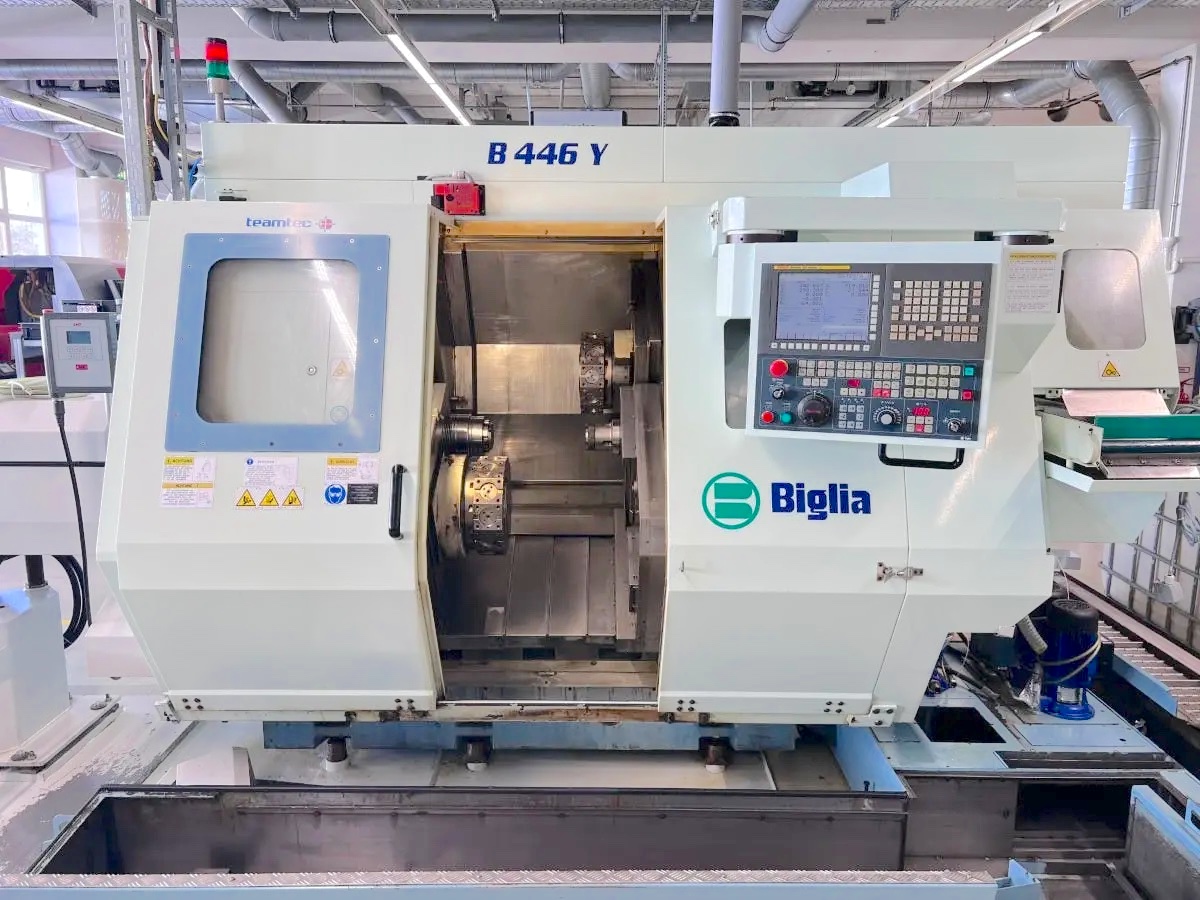

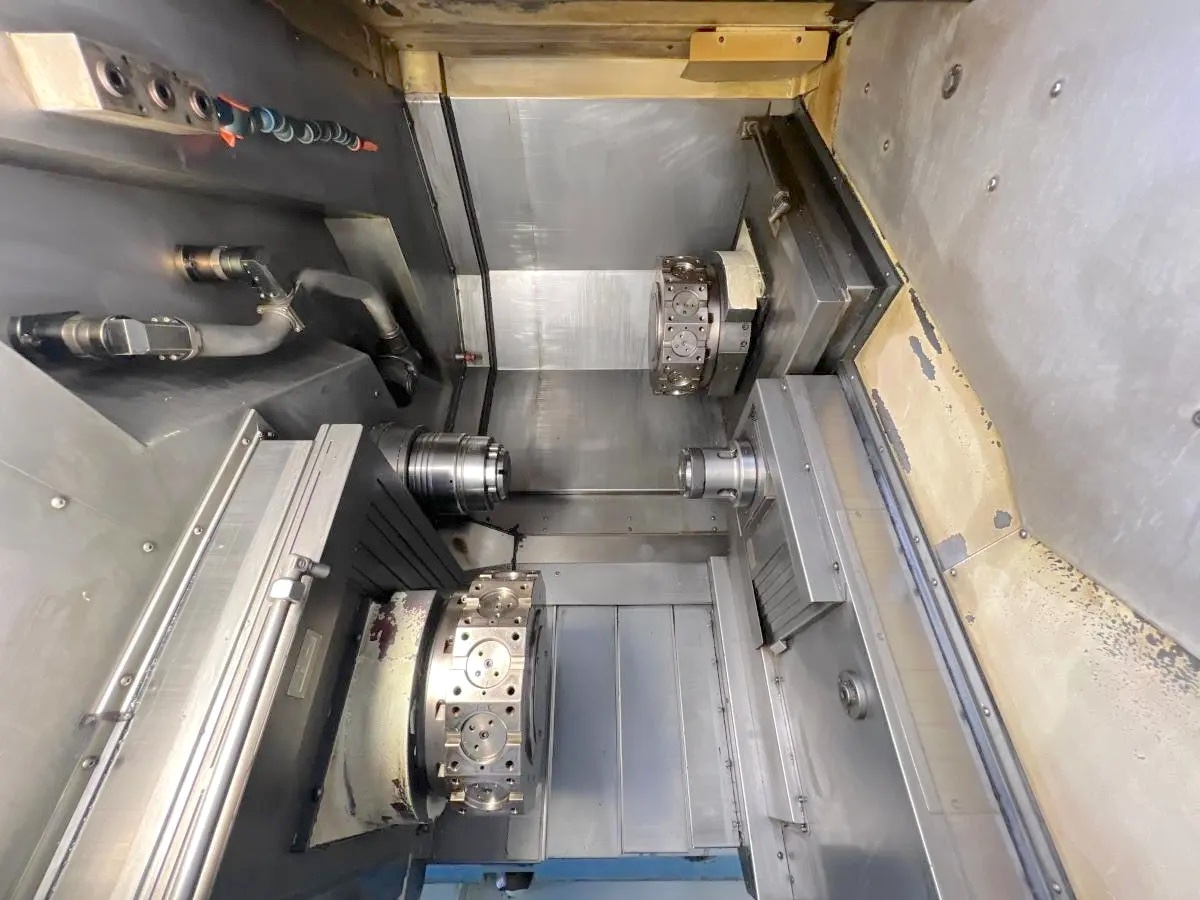

Turning Machine
Type
CNC
Made
Model
B446Y
Capacity
ø45/230x320 mmø1,77/9,06x12,60 in
Technical specifications
Metric
Imperial
MAIN SPINDLE
Max rotation speed
5000 rpm
Spindle nose
ASA5"
Spindle hole
55 mm2,17 in
Internal bearing diameter
80 mm3,15 in
Max power
15 Kw
Accuracy (C axis)
0,001 °
Notes
Portapinze Hainbuch
SUBSPINDLE
Max rotation speed
5000 rpm
Spindle nose
ASA5"
Spindle hole
55 mm2,17 in
Internal bearing diameter
80 mm3,15 in
Max power
11 Kw
Accuracy (C axis)
0,001 °
Automatic B axis positioning
420 mm16,54 in
Rapid feed B
30 m/min1.181,10 ipm

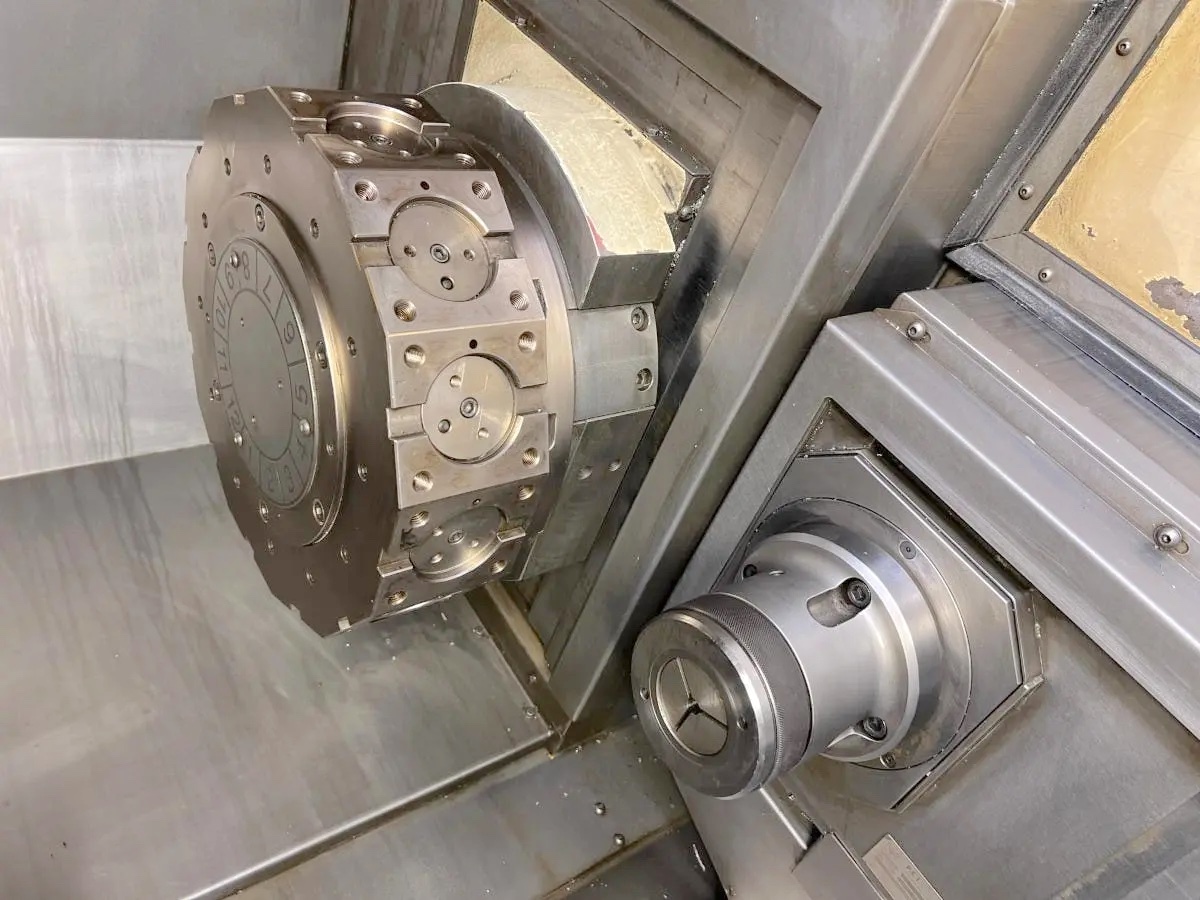

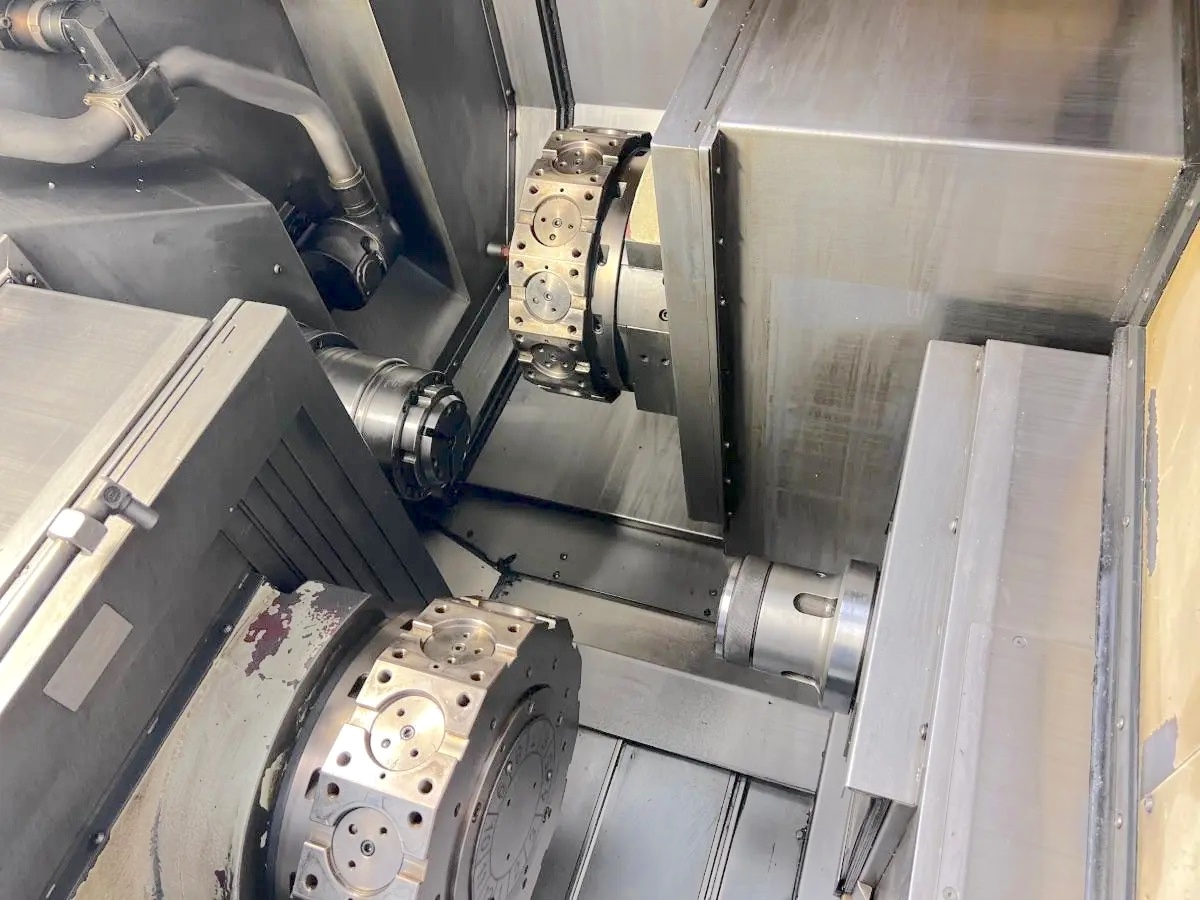

TURRET 2
Positions number
12
Rotation time (1 pos)
0,15 sec.
Number of driven stations
12
Driven tools speed
4000 rpm
Driven tools power
3,7 Kw
Axis stroke X2
170 mm6,69 in
Rapid feed X2
18 m/min708,66 ipm
Axis stroke Z2
390 mm15,35 in
Rapid feed Z2
30 m/min1.181,10 ipm
Axis stroke Y2
90 [-40/+50] mm3,54 [-1,57/+1,97] in
Rapid feed Y2
9 m/min354,33 ipm

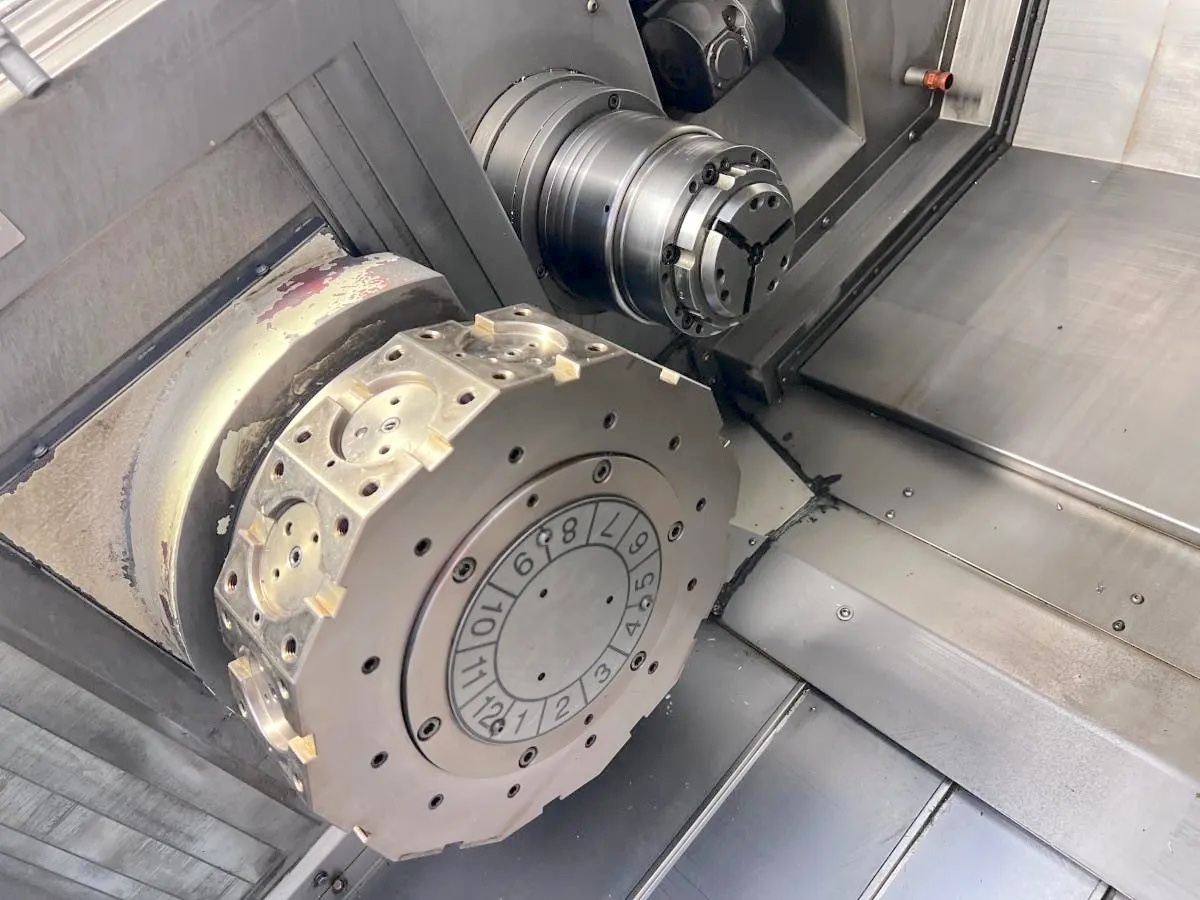

TURRET 3
Positions number
12
Rotation time (1 pos)
0,15 sec.
Number of driven stations
12
Driven tools speed
4000 rpm
Driven tools power
3,7 Kw
Axis stroke X3
170 mm6,69 in
Rapid feed X3
18 m/min708,66 ipm
Axis stroke Z3
400 mm15,75 in
Rapid feed Z3
30 m/min1.181,10 ipm
EXTRA
Machine total weight
7200 Kg
Floor space
4400x2150x2200 mm173,23x84,65x86,61 in
Workpiece espulsion robot
Workpiece unloading device with conveyor belt
Chip conveyor
Si
Workpieces conveyor belt
Yes

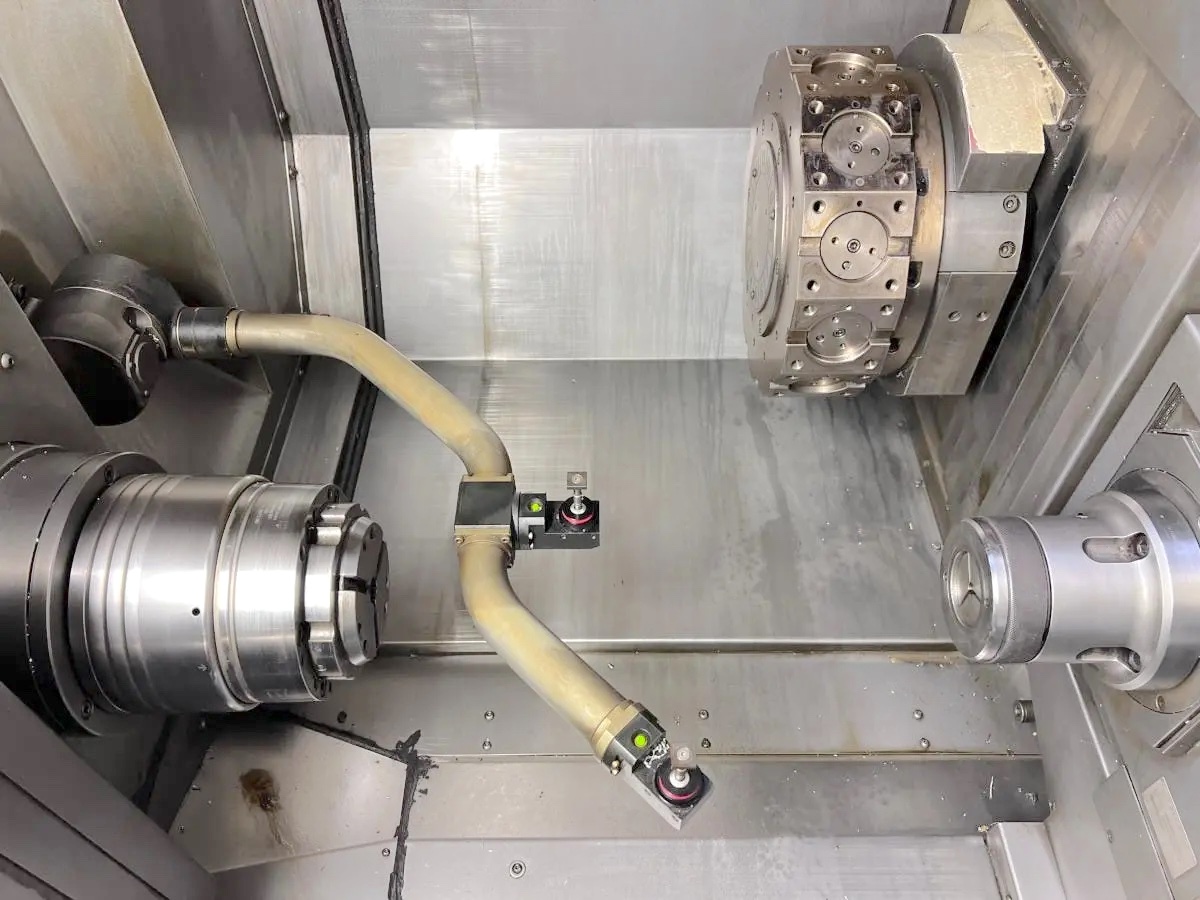

Tool presetter
Marposs TT30
Coolant pump
CTS 20Bar

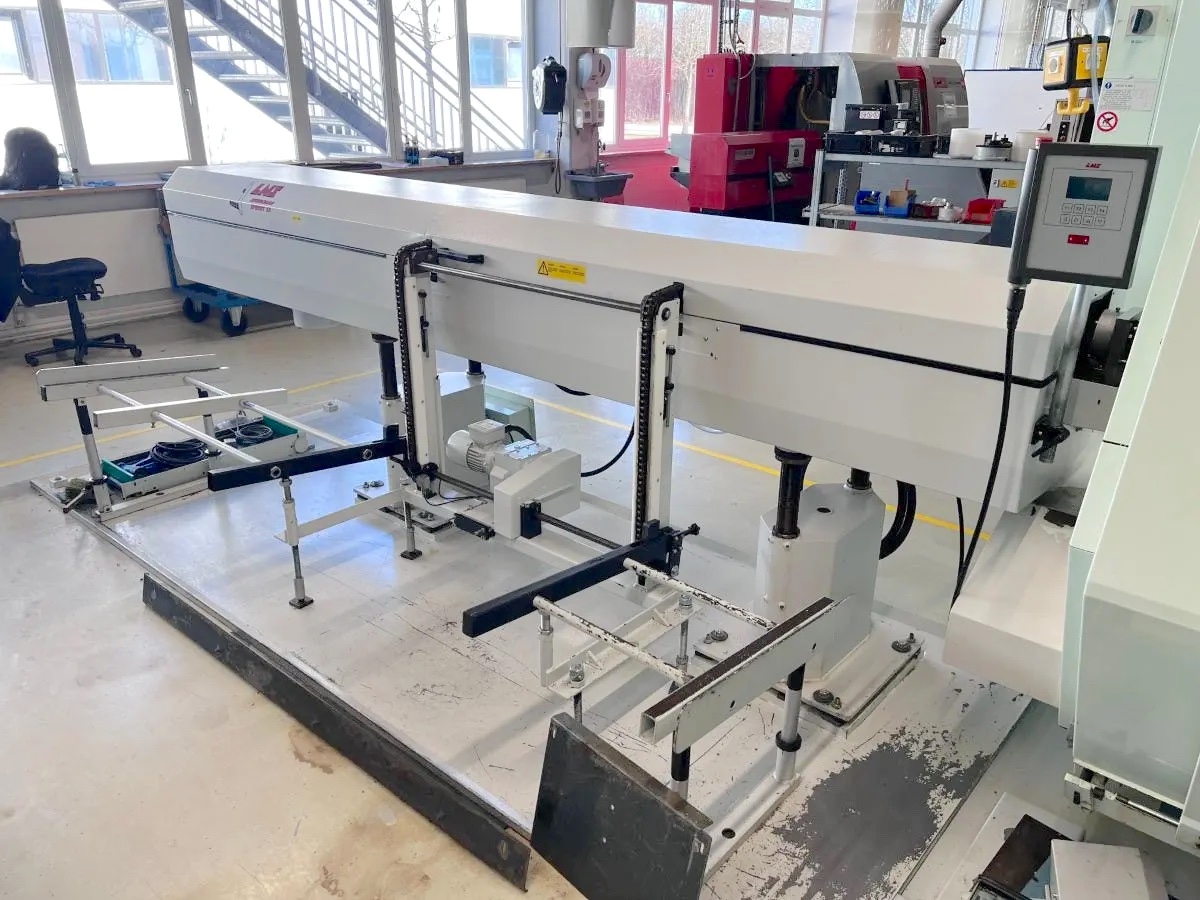

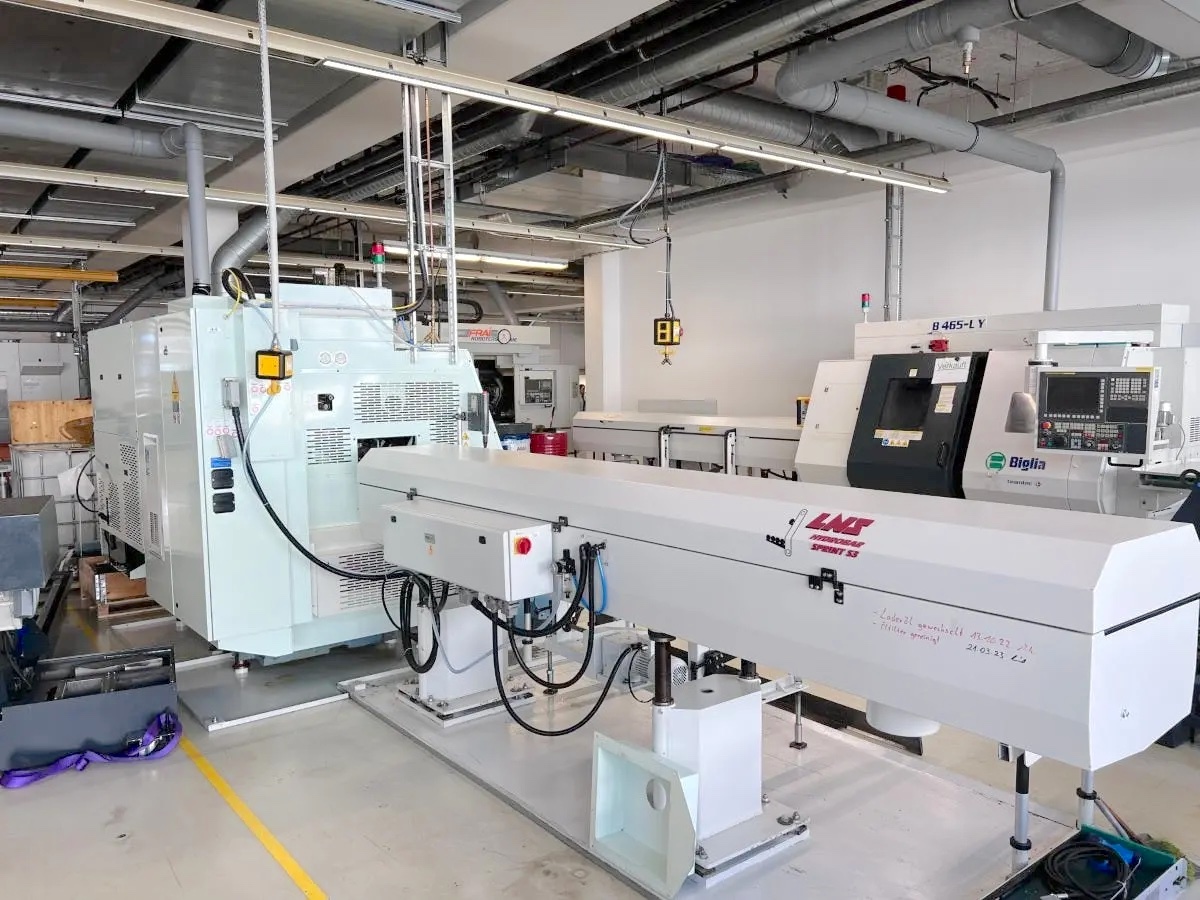

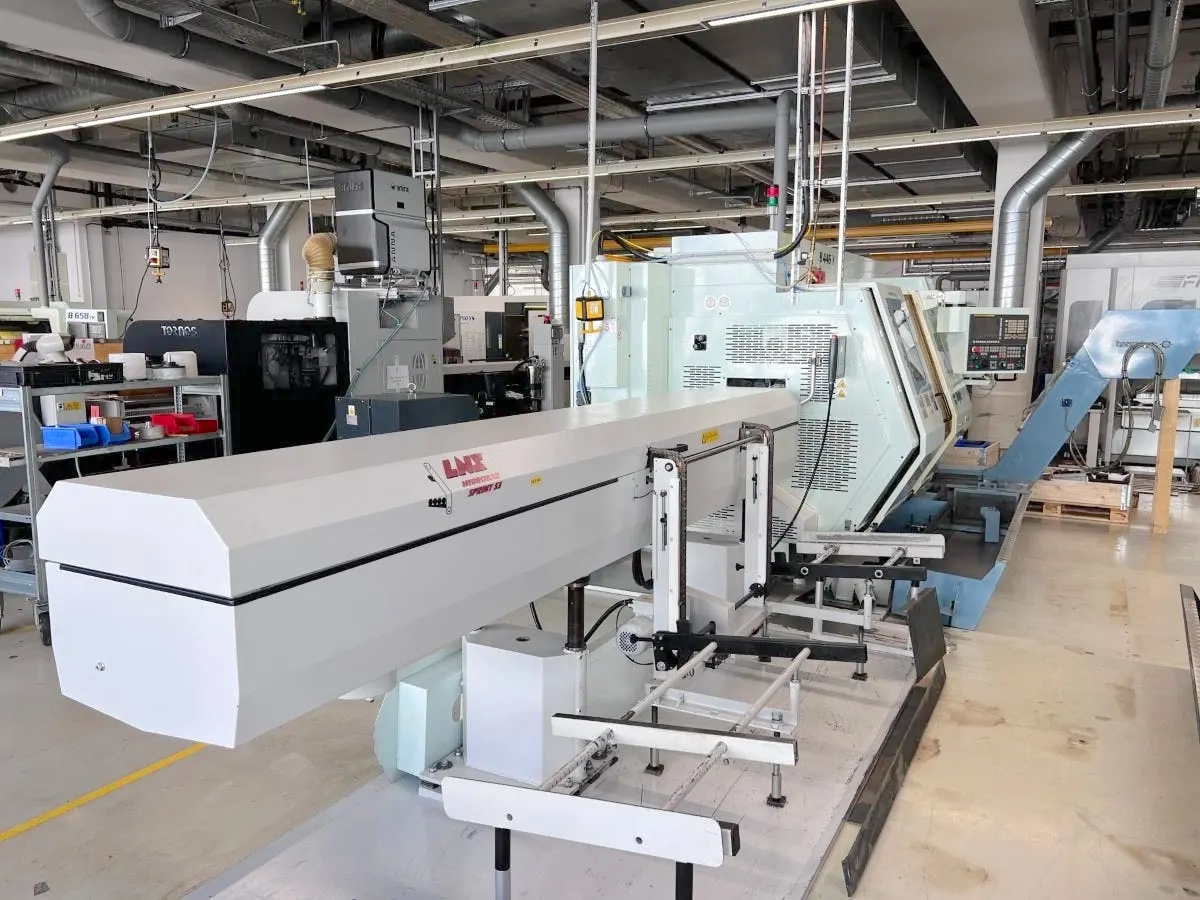

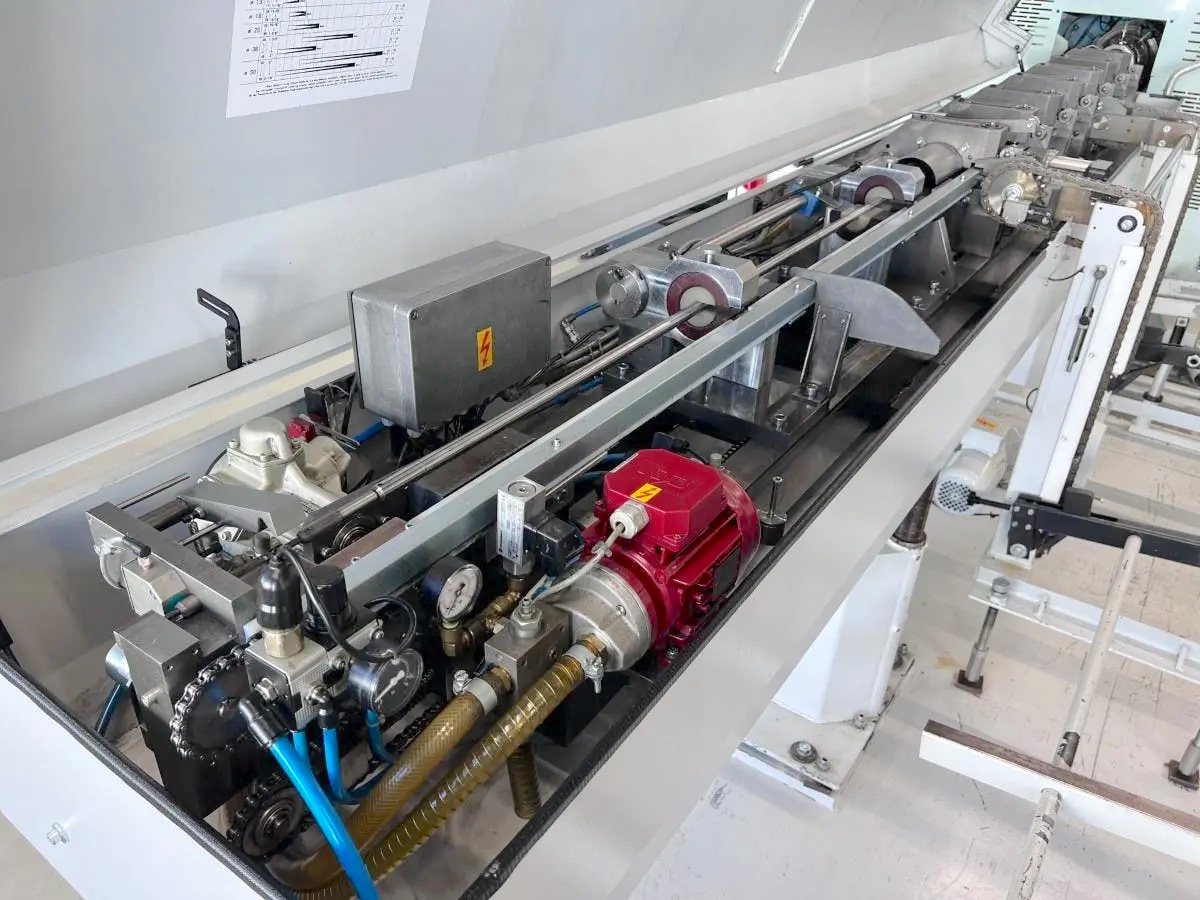

Bar feeder
LNS Hydrobar Sprint S3
