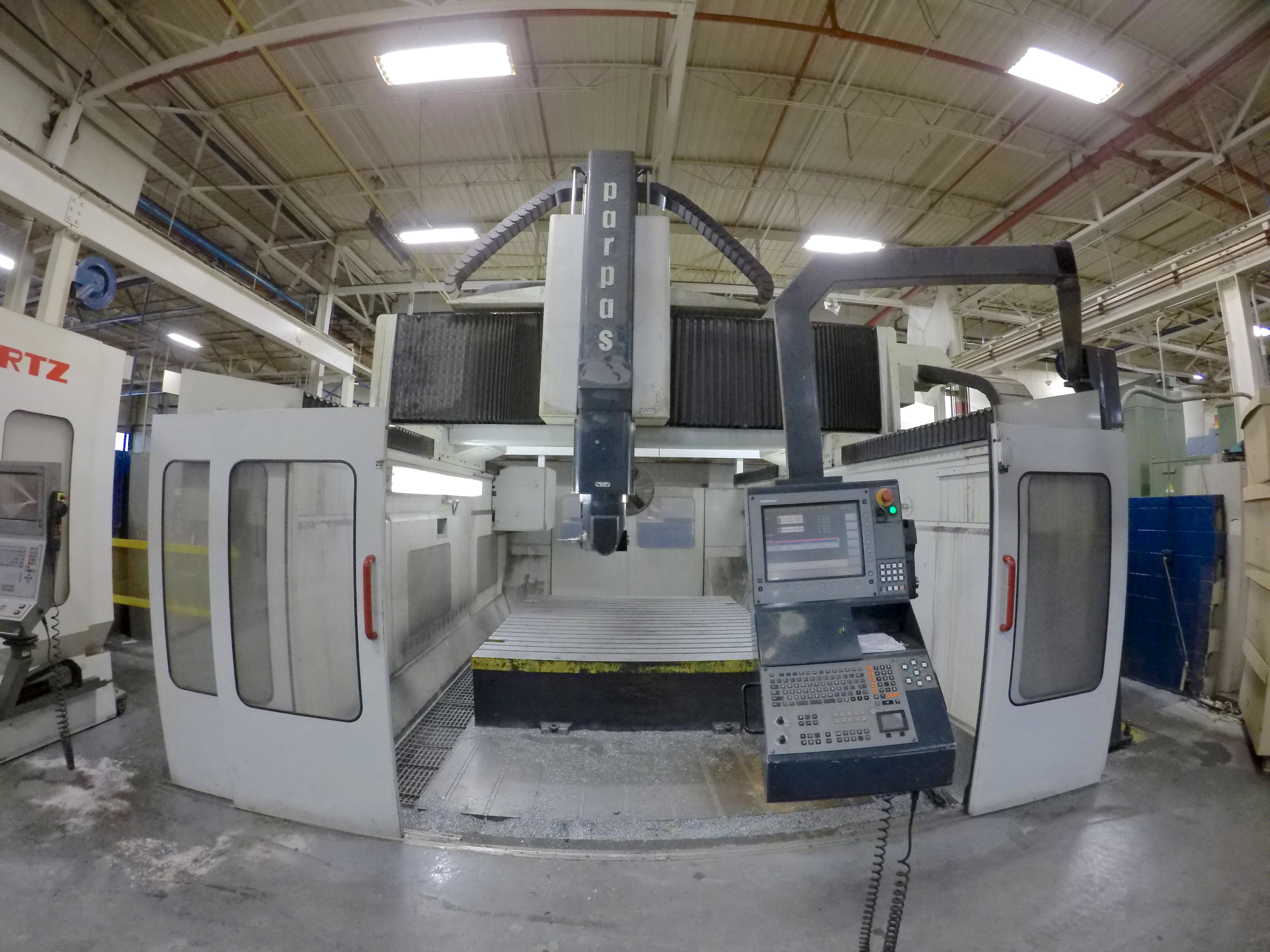

Category
Milling machine
Type
Gantry
Made
Model
OMNIA 43
Capacity
4000x3000x1500 mm157,48x118,11x59,06 in

Technical specifications

Metric Imperial
WORKING CAPACITY
Longitudinal (X)
4000 mm157,48 in
Vertical RAM (Y)
1500 mm59,06 in
Cross Crossrail (Z)
3000 mm118,11 in
Column distance
3630 mm142,91 in
Spindle nose - table distance
2030 mm79,92 in

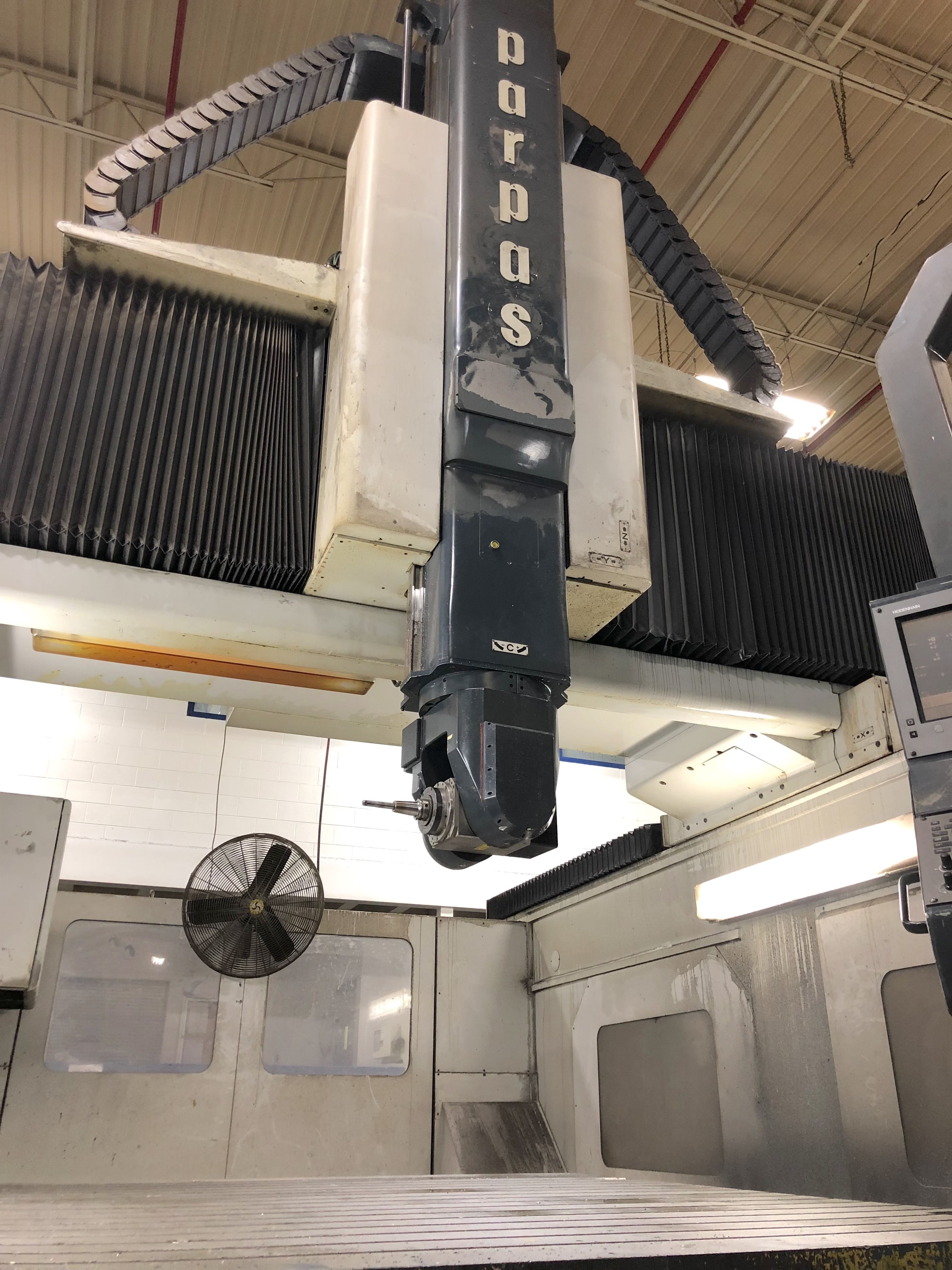

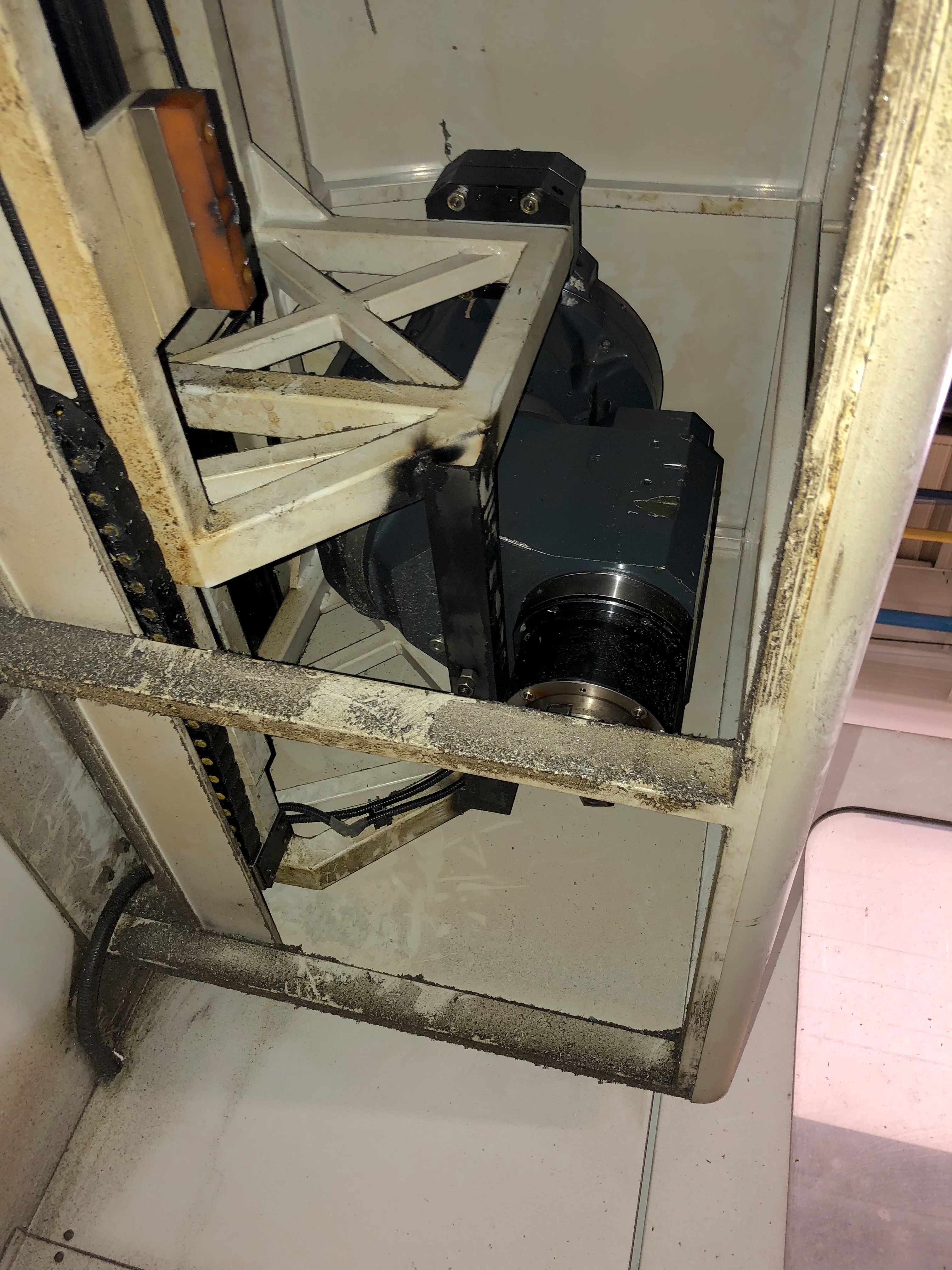

HEAD 1
Coolant
esterno
Type
TU600
Spindle taper
ISO50
A axis
144x2,5 °
C axis
continua 0,001x360.000 °
Max speed
5000 Rpm

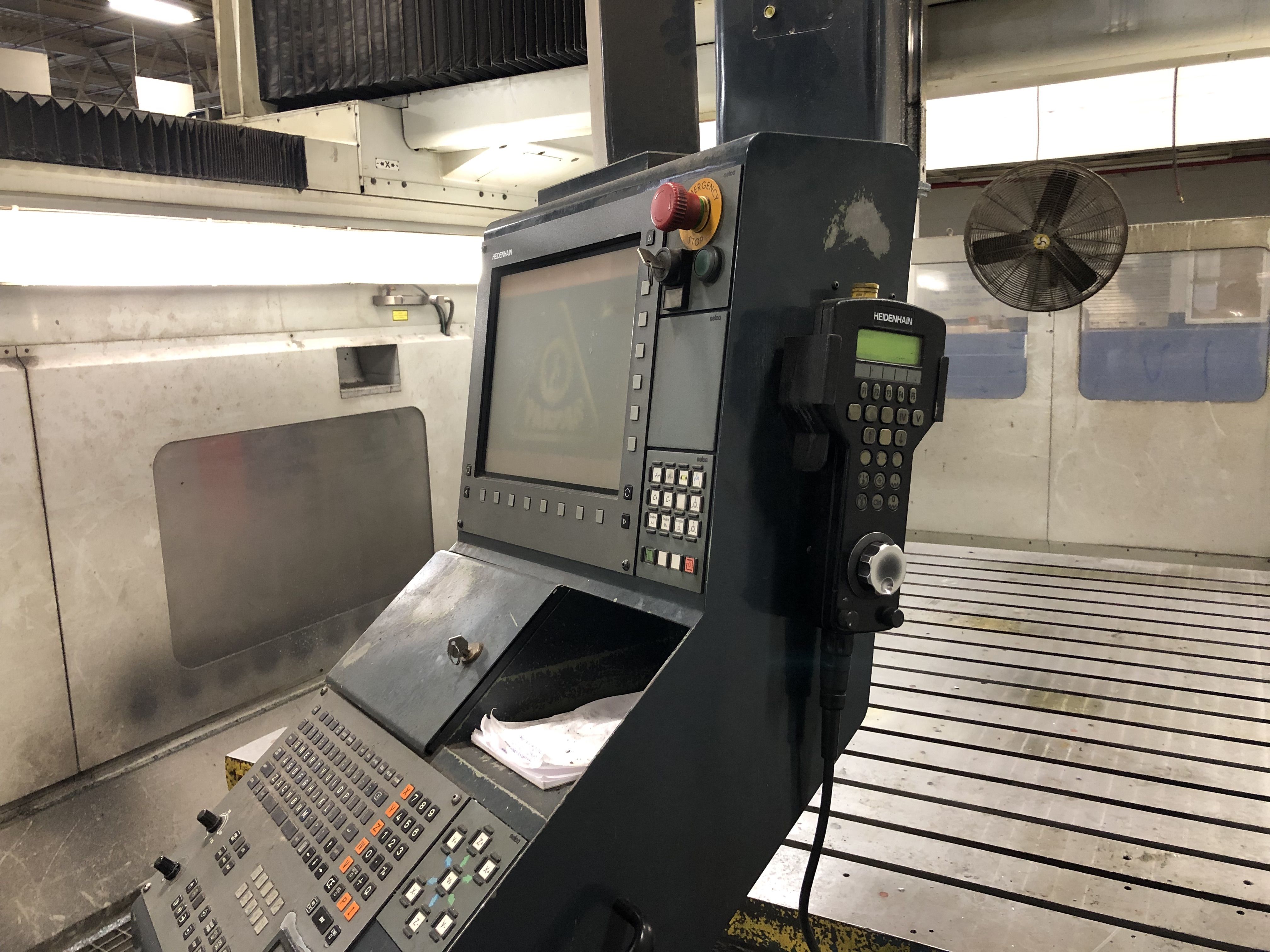

CNC
CNC
Heidenhain TNC530
FEEDS
Rapid X
24 m/min944,88 ipm
Rapid Y
24 m/min944,88 ipm
Rapid Z
24 m/min944,88 ipm

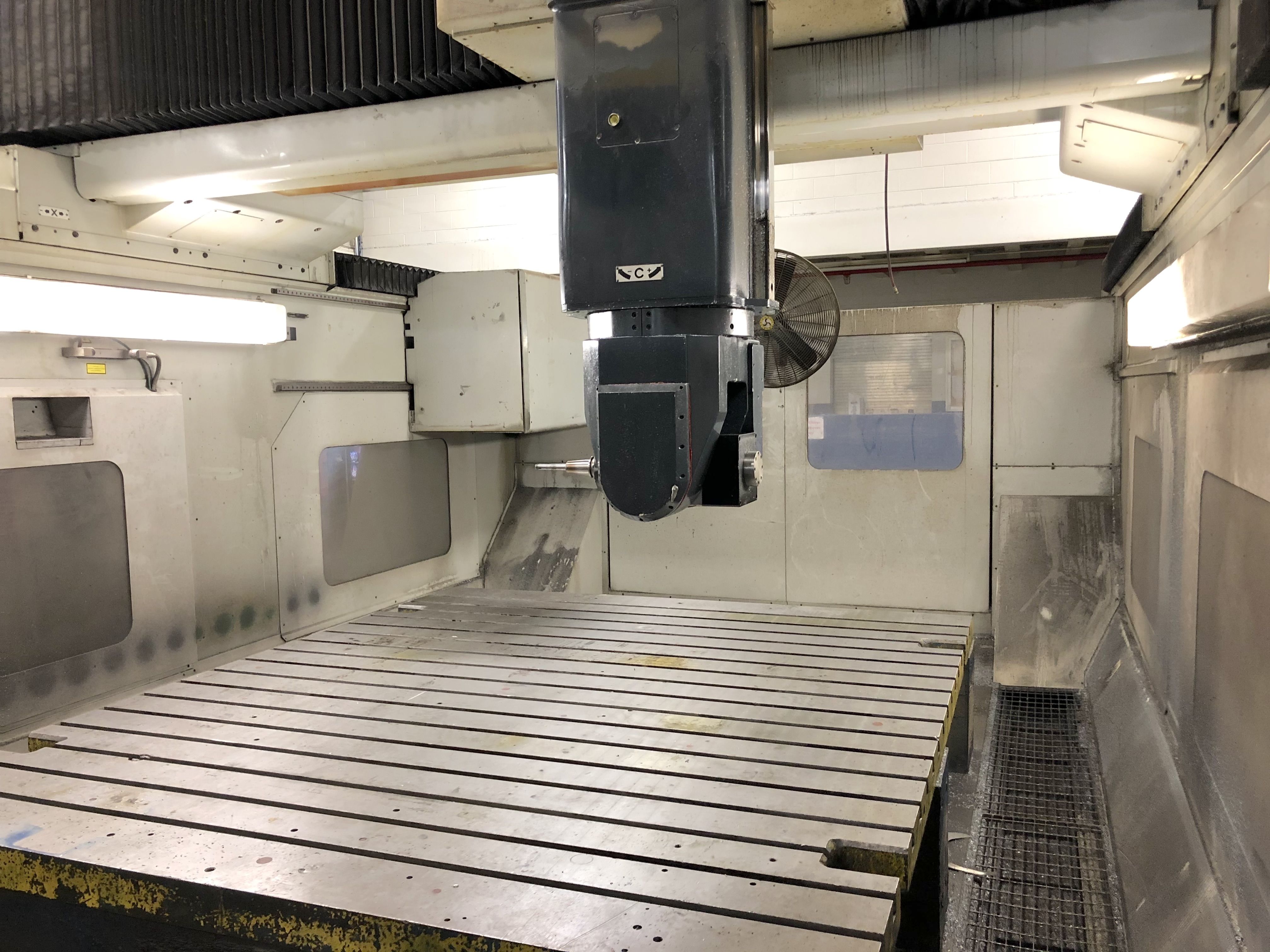

WARKING TABLE
Floorspace (LxWxH)
5000x2500 mm196,85x98,43 in
Capacity
15000 Kg/mq
Total weight capacity
187.000 Kg
T slots number
22x28mm

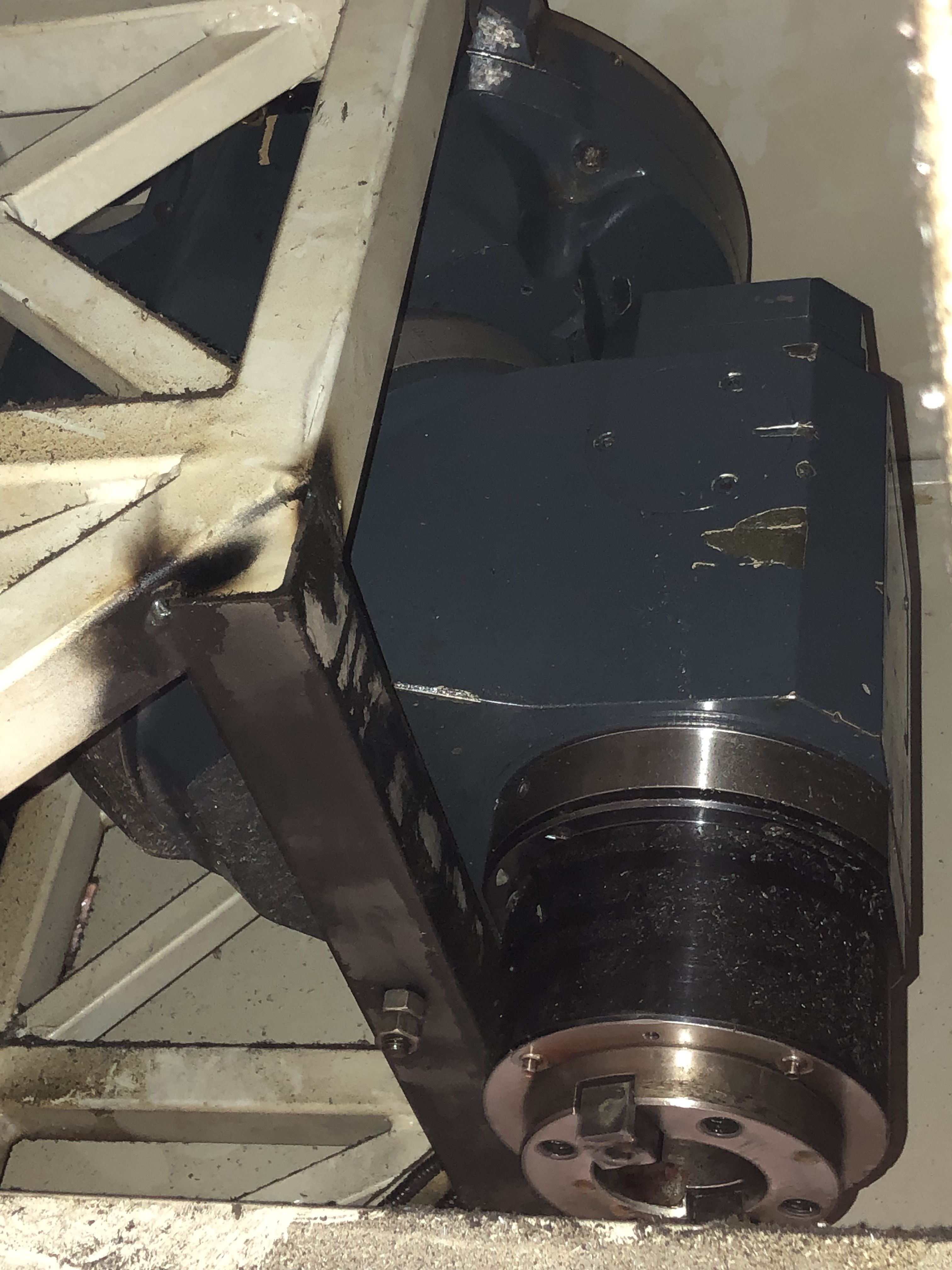

HEAD 2
Available upon request
No
A axis
(+/-105°) continua 0,001x360.000 °
C axis
continua 0,001x360.000 °
Max speed
21000 Rpm
Max power
16 Kw
EXTRA
Total power supply
77 Kw

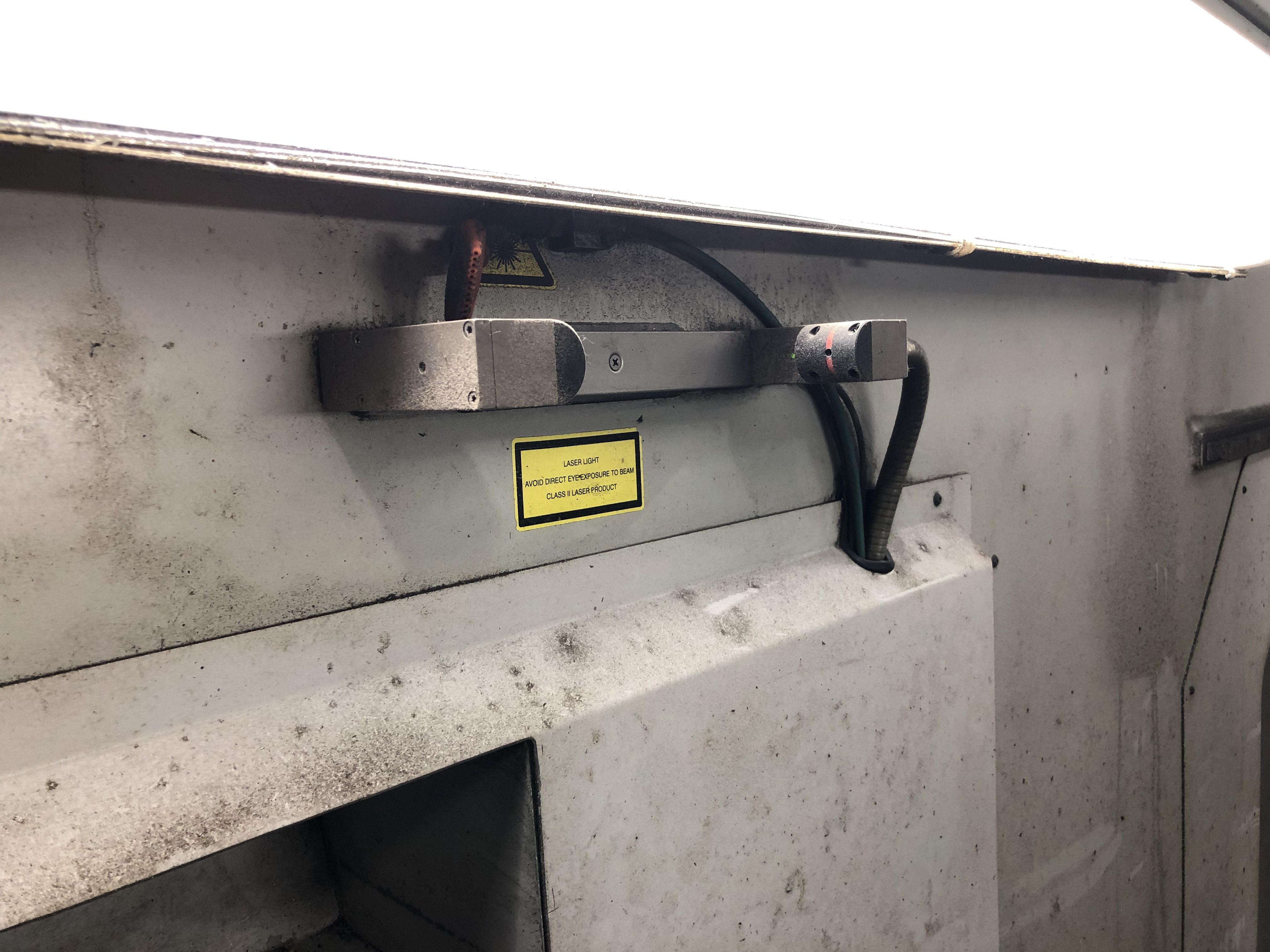

Tool presetter
laser
Maintenance & Use books
Yes
CE Certification
Yes

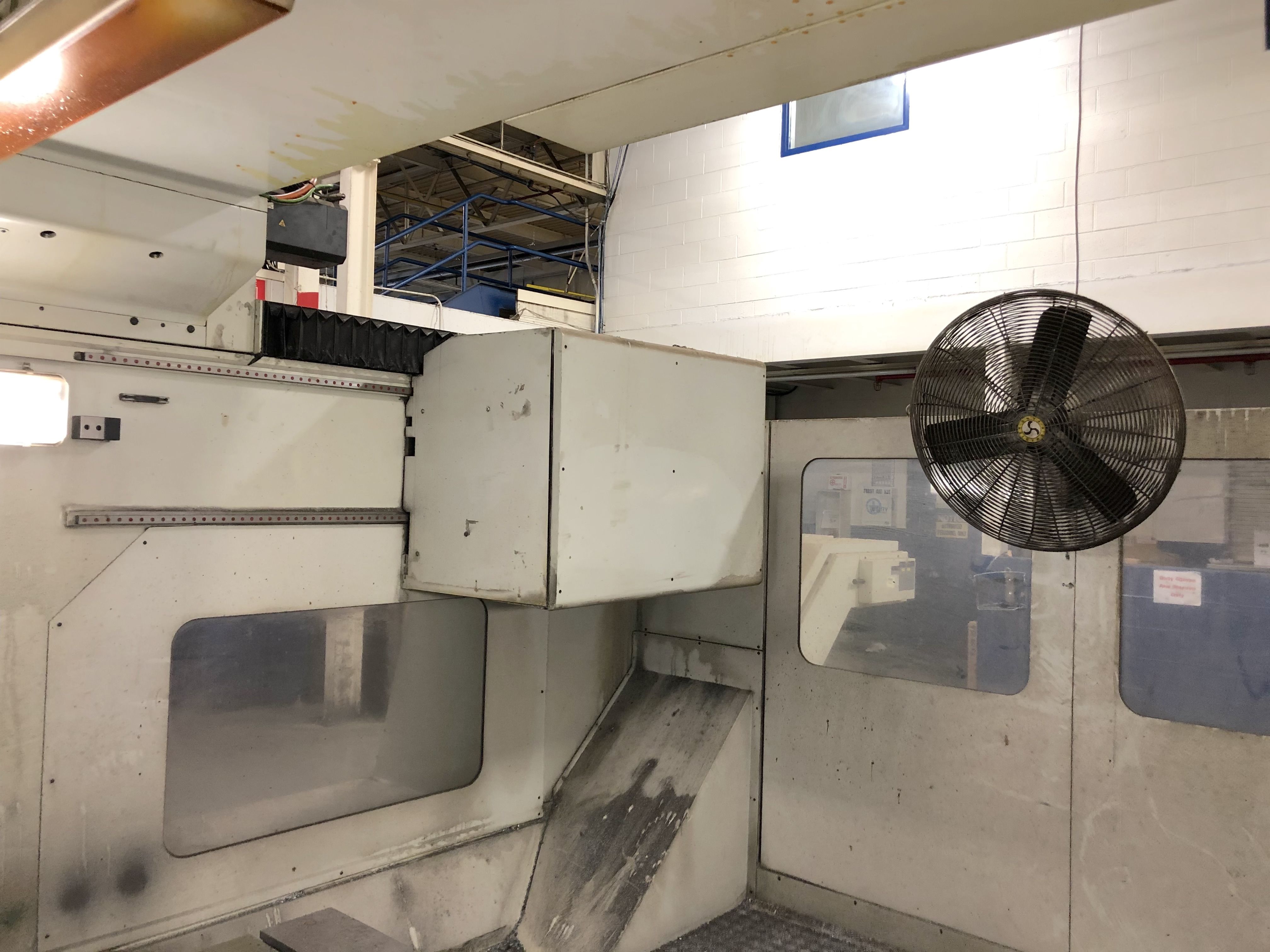

Housing
perimetrale
Floor space
7230x6951x5623 mm284,65x273,66x221,38 in
Chip conveyor
Yes
