Category
Milling machine
Type
Gantry
Made
Model
OMNIA 42
Capacity
4000x2500x1250 mm157,48x98,43x49,21 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Longitudinal (X)
4000 mm157,48 in
Vertical RAM (Y)
1250 mm49,21 in
Cross Crossrail (Z)
2500 mm98,43 in
Spindle nose - table distance
1400 mm55,12 in
Column distance
3200 mm125,98 in
CNC
CNC

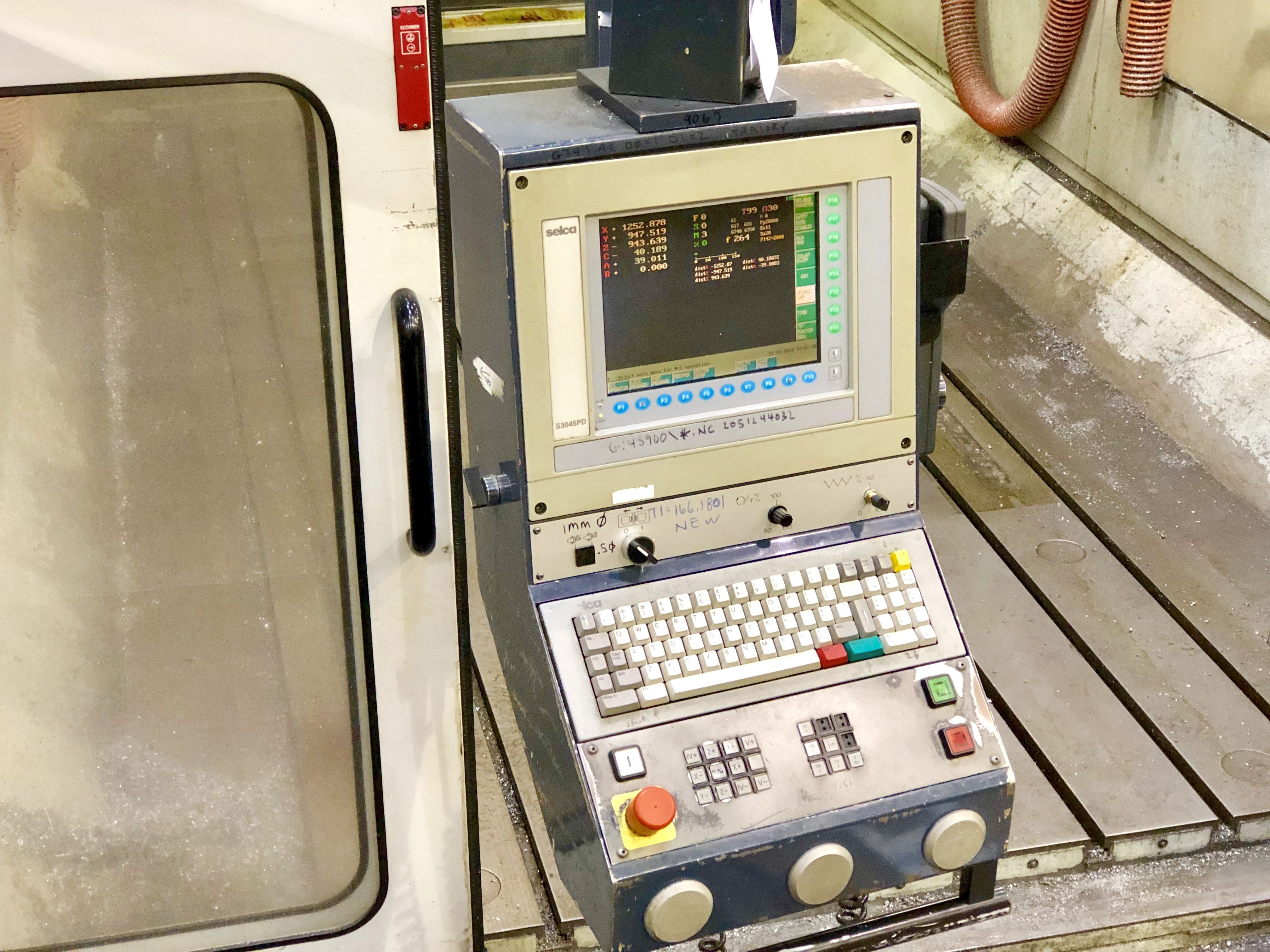

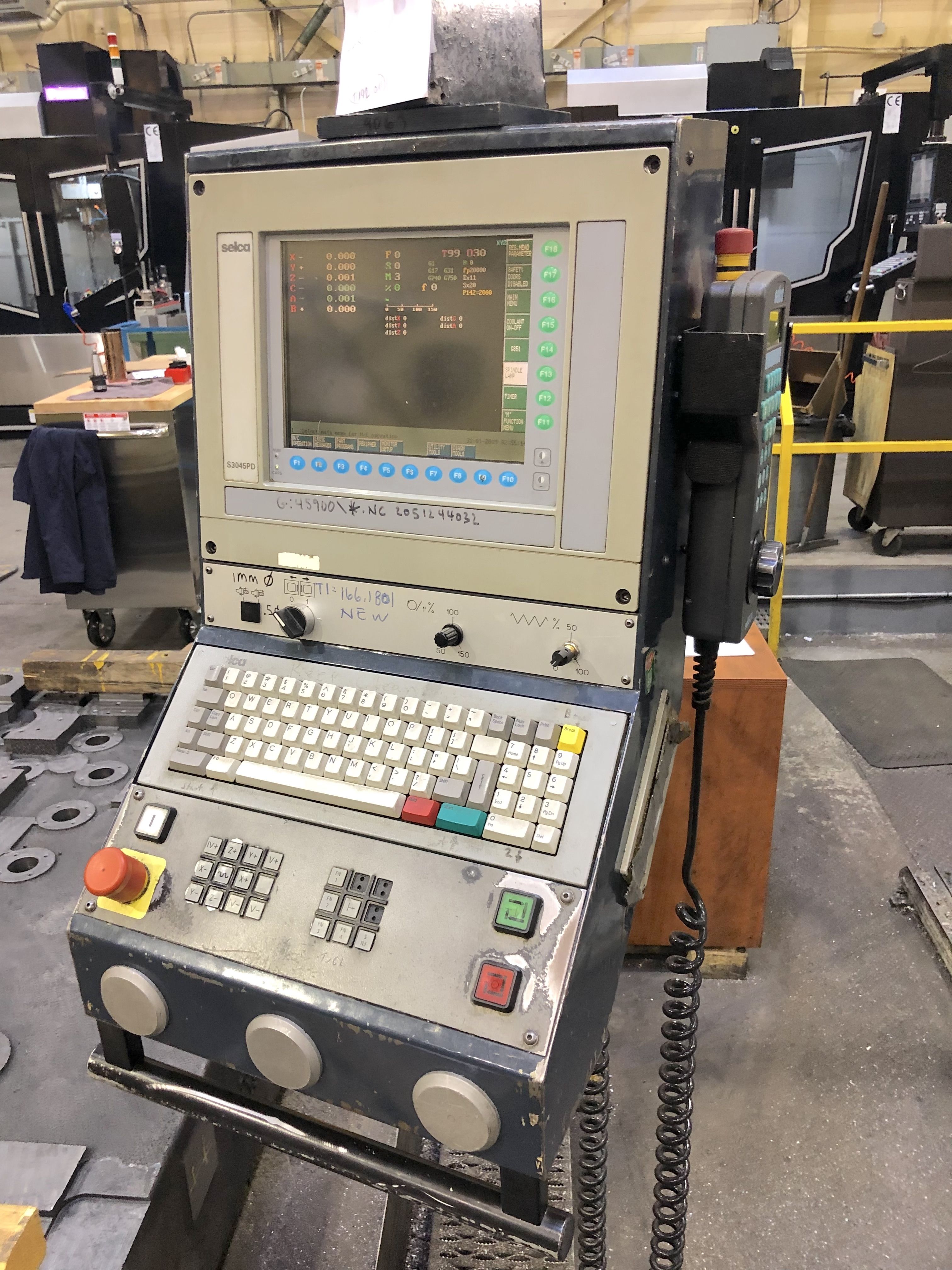

SELCA 3045PD
FEEDS
Rapid X
20 m/min787,40 ipm
Rapid Y
20 m/min787,40 ipm
Rapid Z
20 m/min787,40 ipm
WARKING TABLE
Floorspace (LxWxH)
5000x2000 mm196,85x78,74 in
Capacity
15000 Kg/mq
T slots number
8x28
Total weight capacity
150.000 Kg

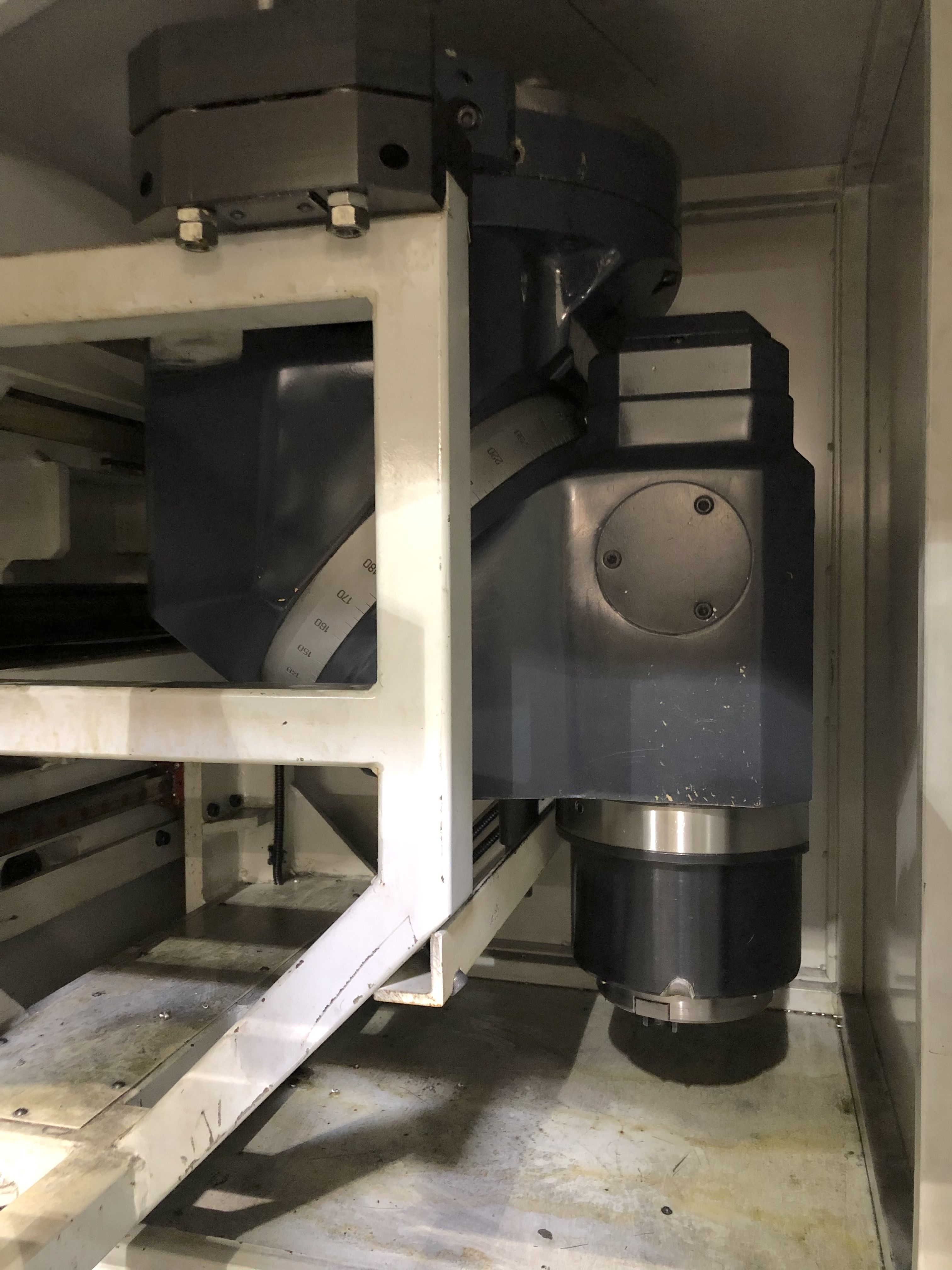

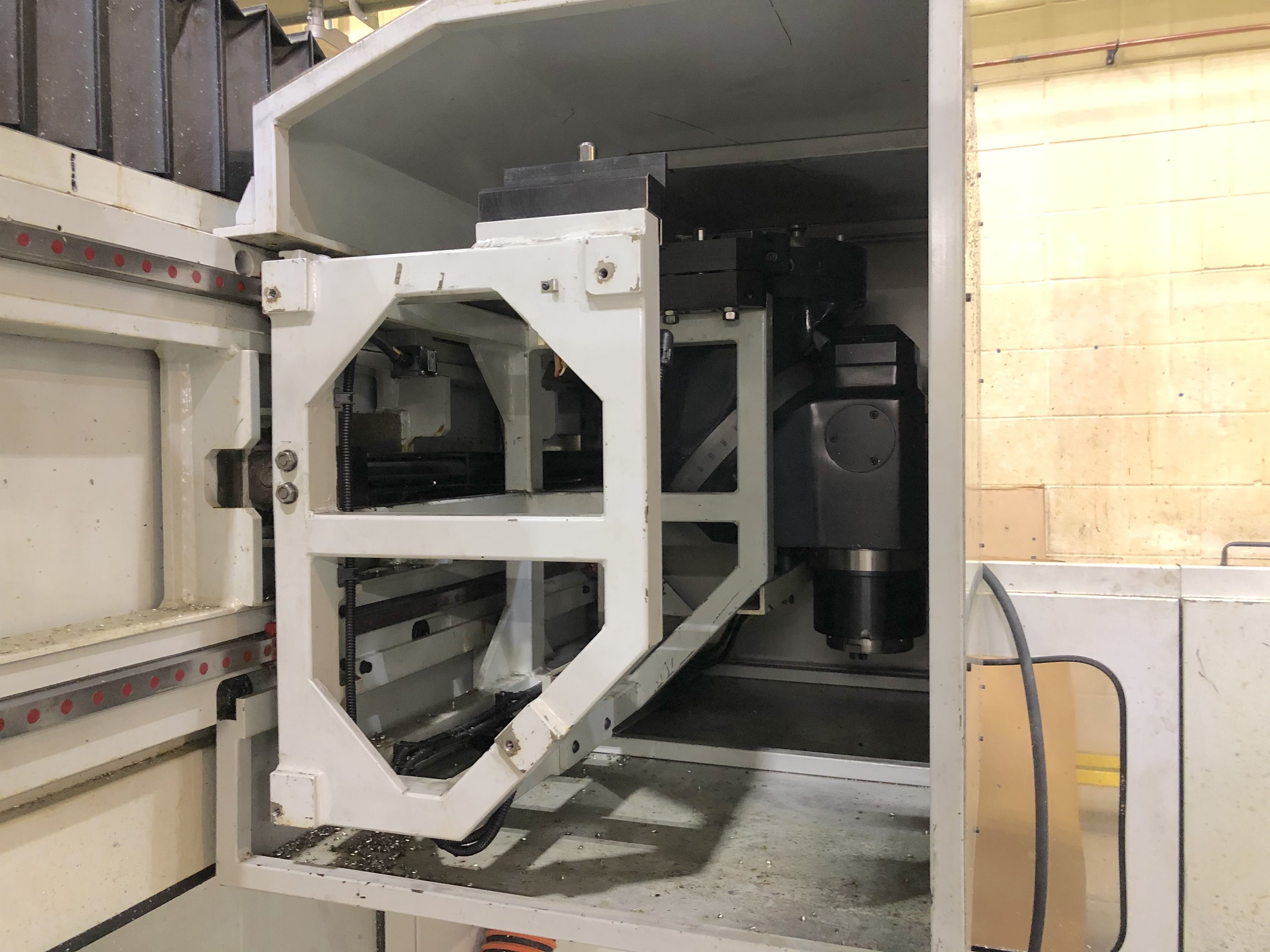

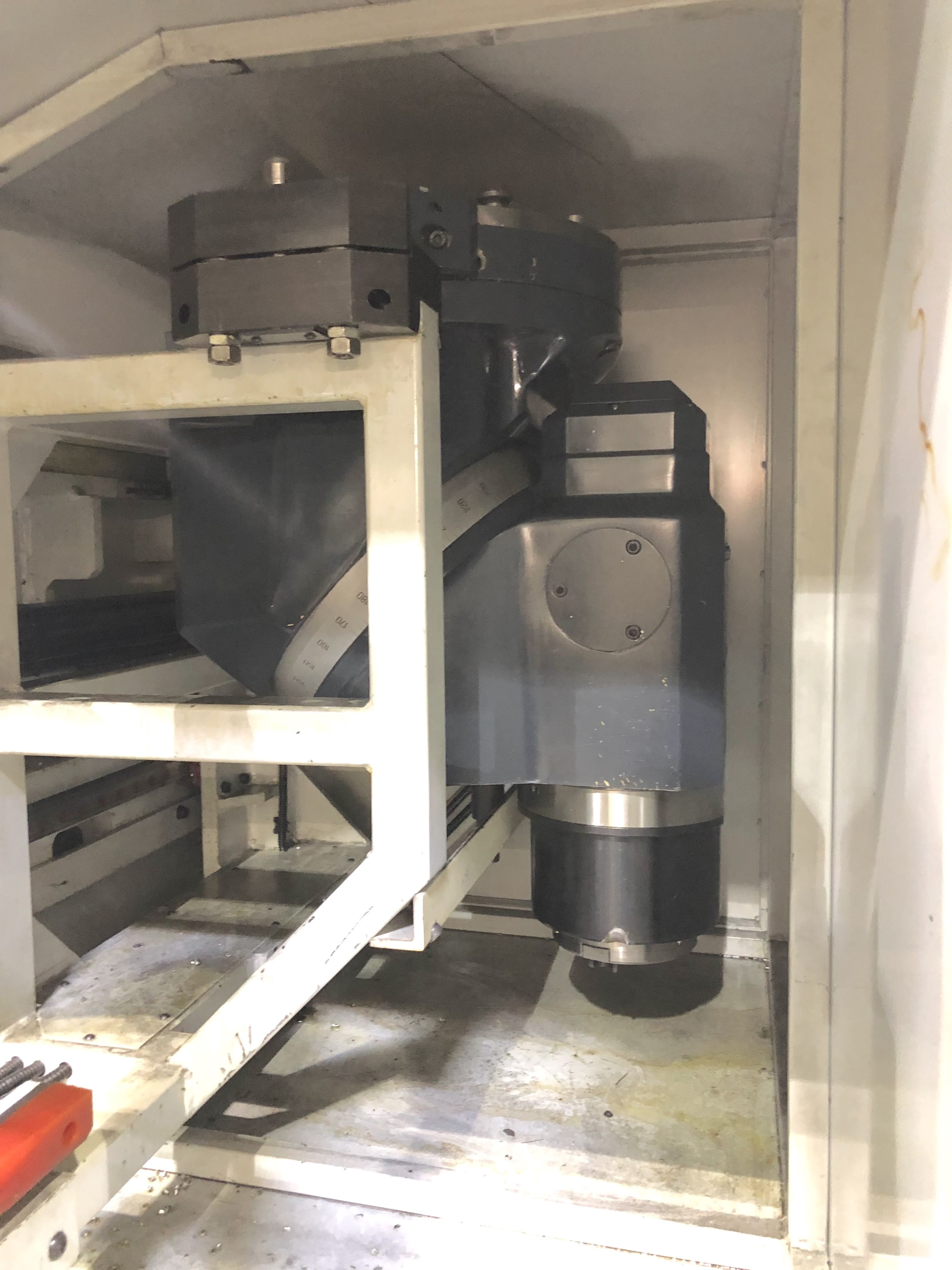

PICK UP STATION FOR HEADS
Positions
2

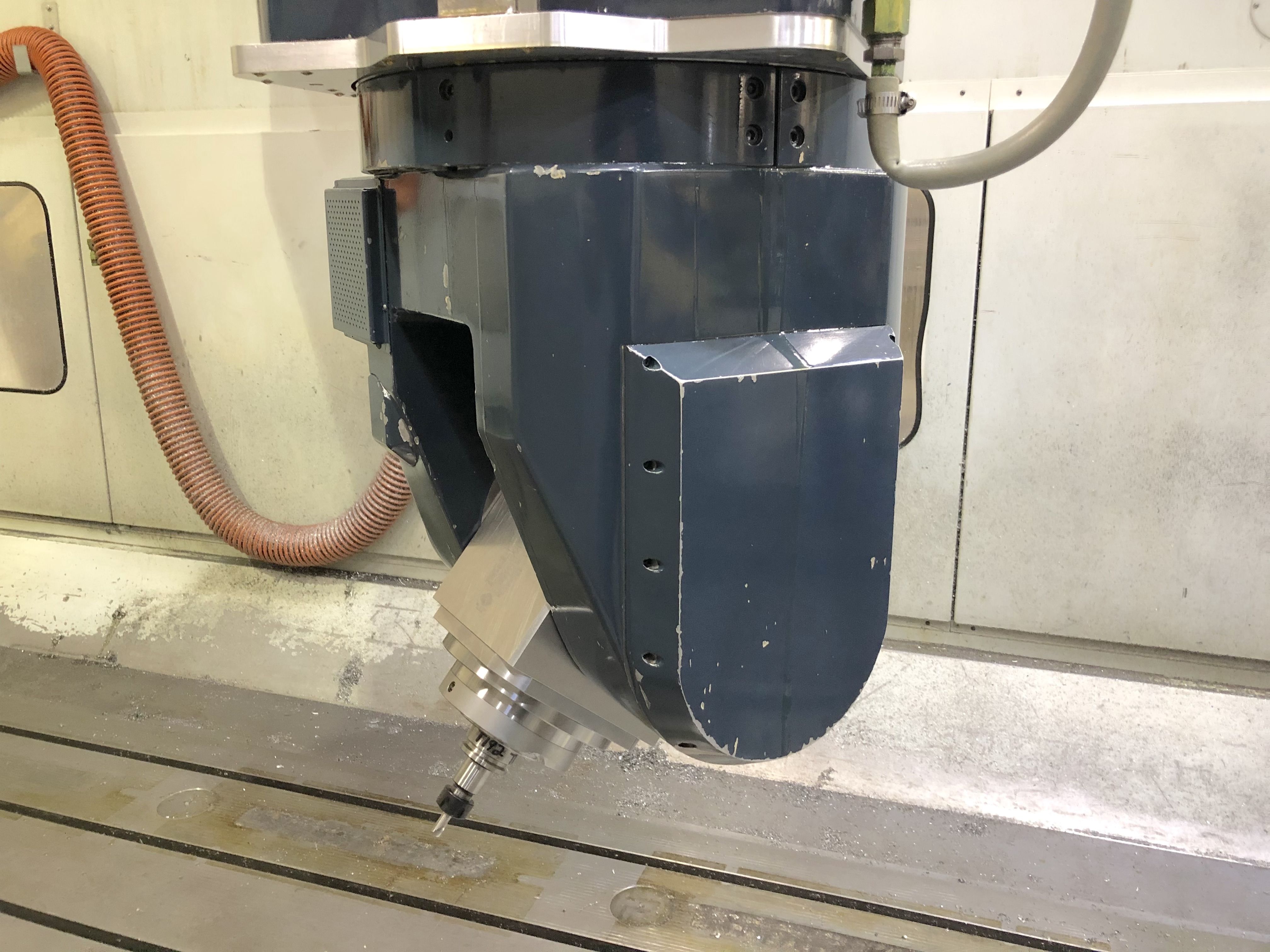

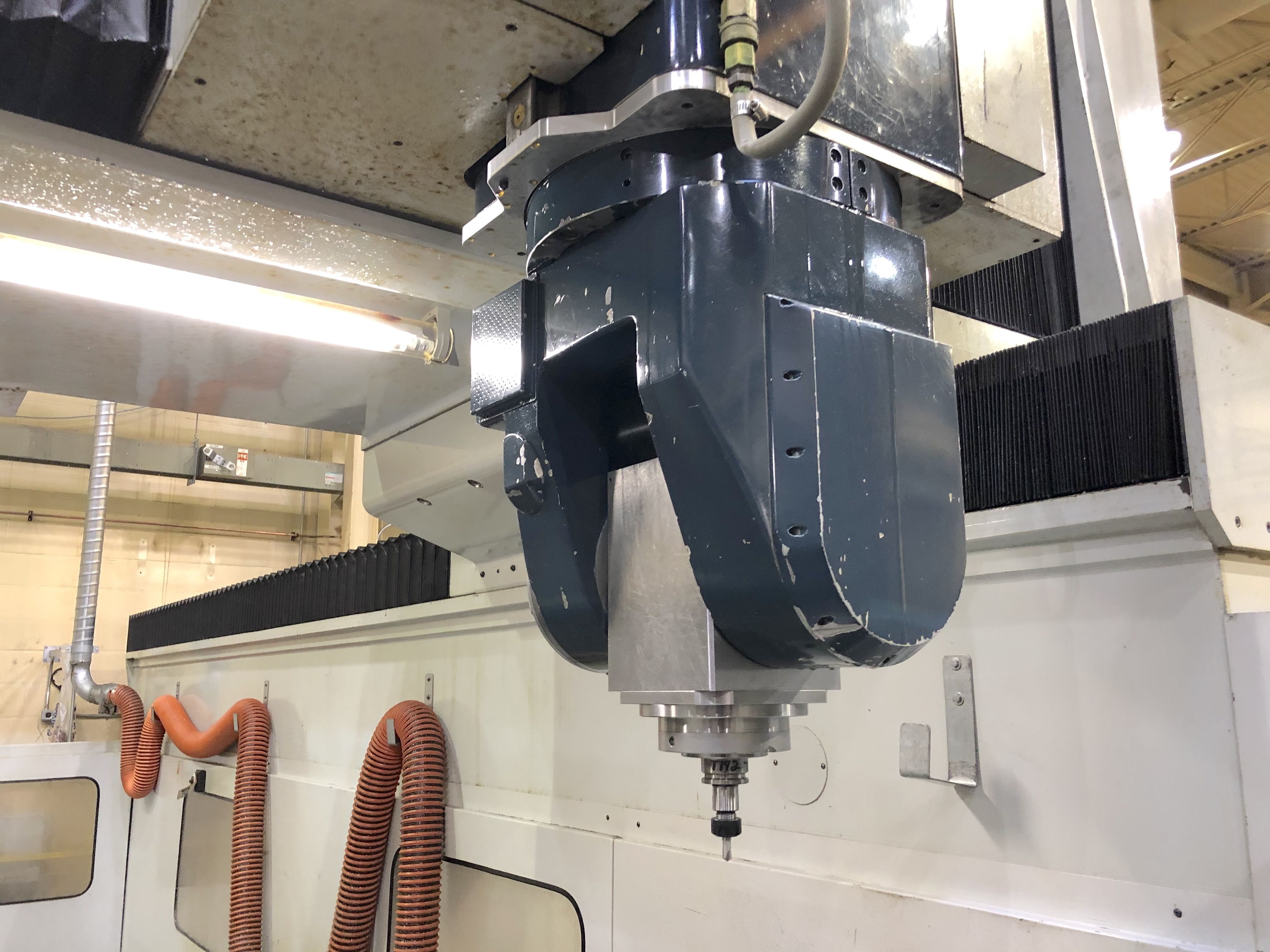

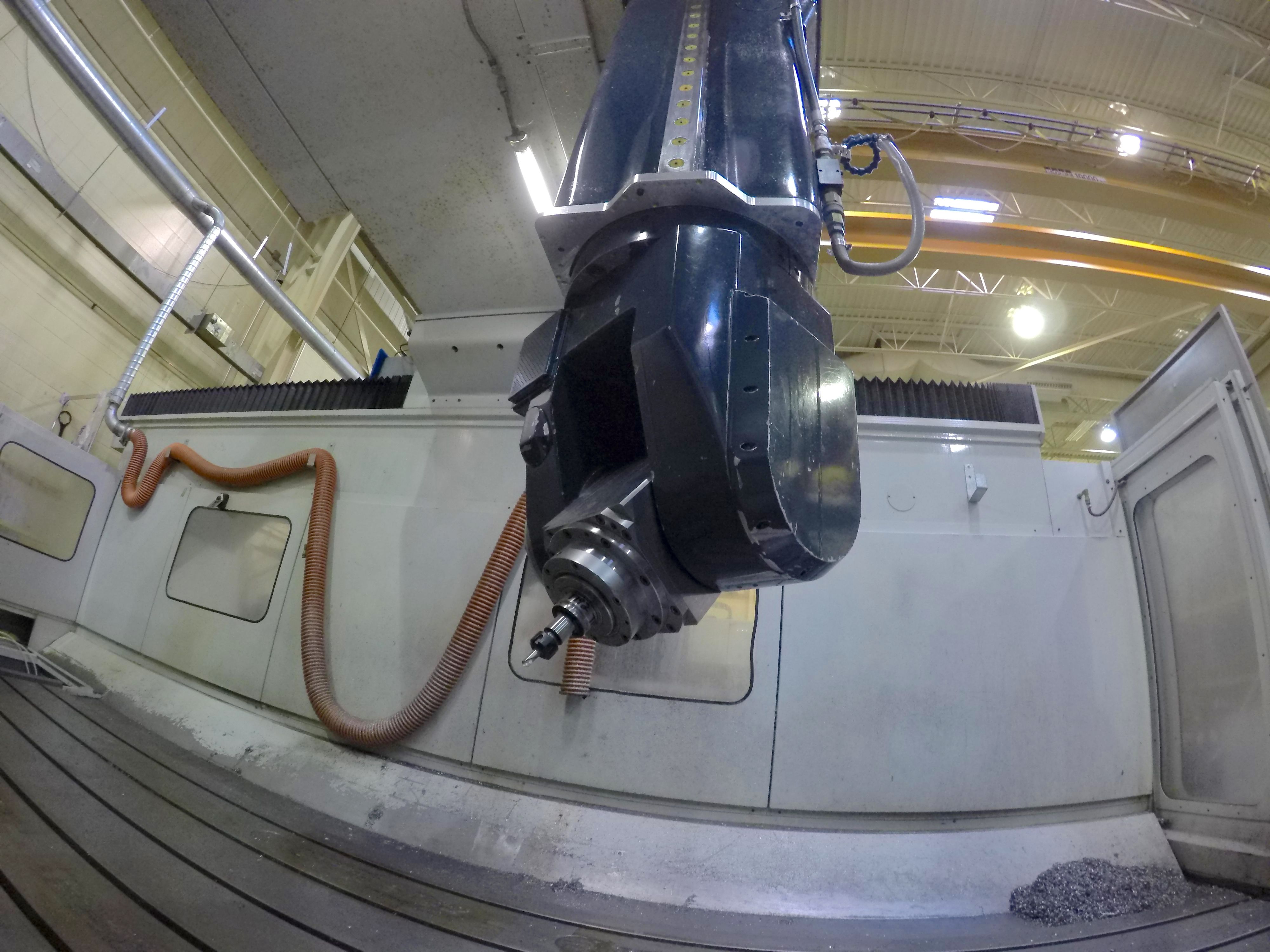

HEAD 1
Type
TWE16
Spindle taper
HSK63
A axis
+/-105 - resolution 0,001 °
C axis
+/-360° - resolution 0,001 °
Max speed
6000-16000 Rpm
Max power
16 Kw
HEAD 2
Available upon request
No
A axis
144x2,5 °
C axis
continuo 360.000x0,001 °
Max speed
6000 Rpm
Max power
22 Kw
SPINDLE
Spindle power
30/52 Kw
Rotating speed
8000 Rpm
Torque
190 Nm
Taper
ISO50
EXTRA
Maintenance & Use books
Yes
CE Certification
Yes

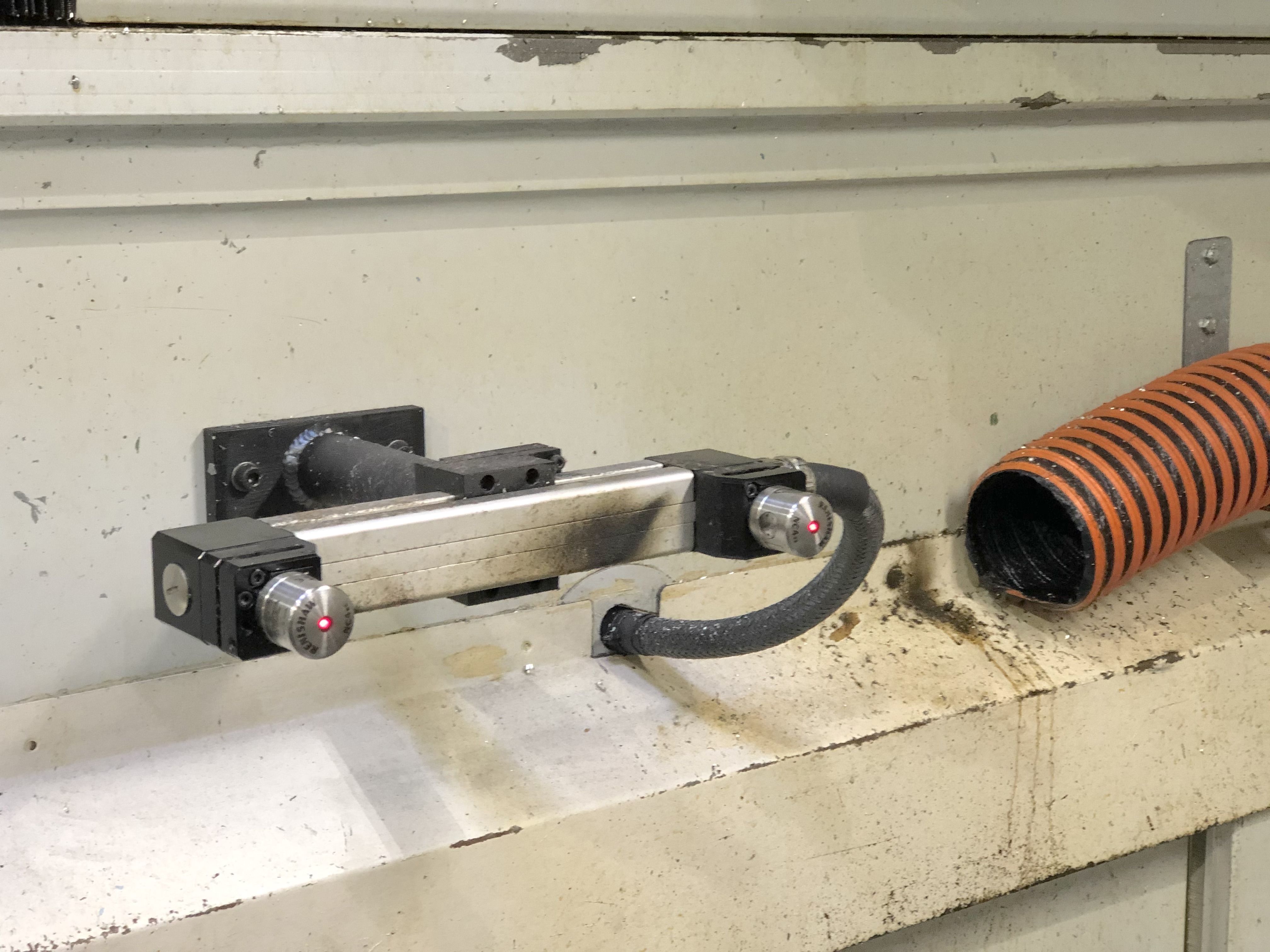

Tool presetter
Renishaw
Floor space
5440x6730x5305 mm214,17x264,96x208,86 in
