Category
Drilling machine
Type
for deep holes for moulds
Made
Model

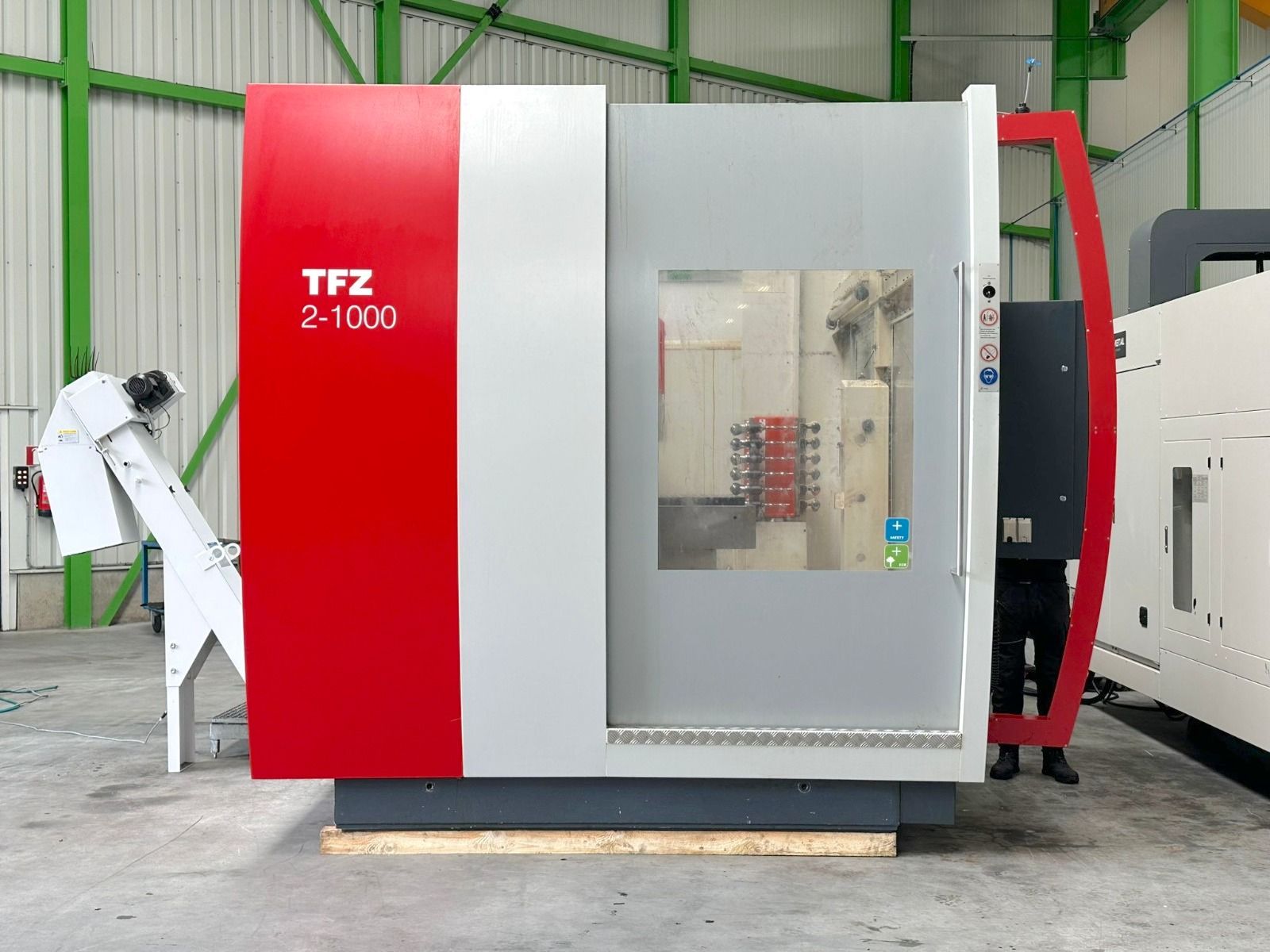

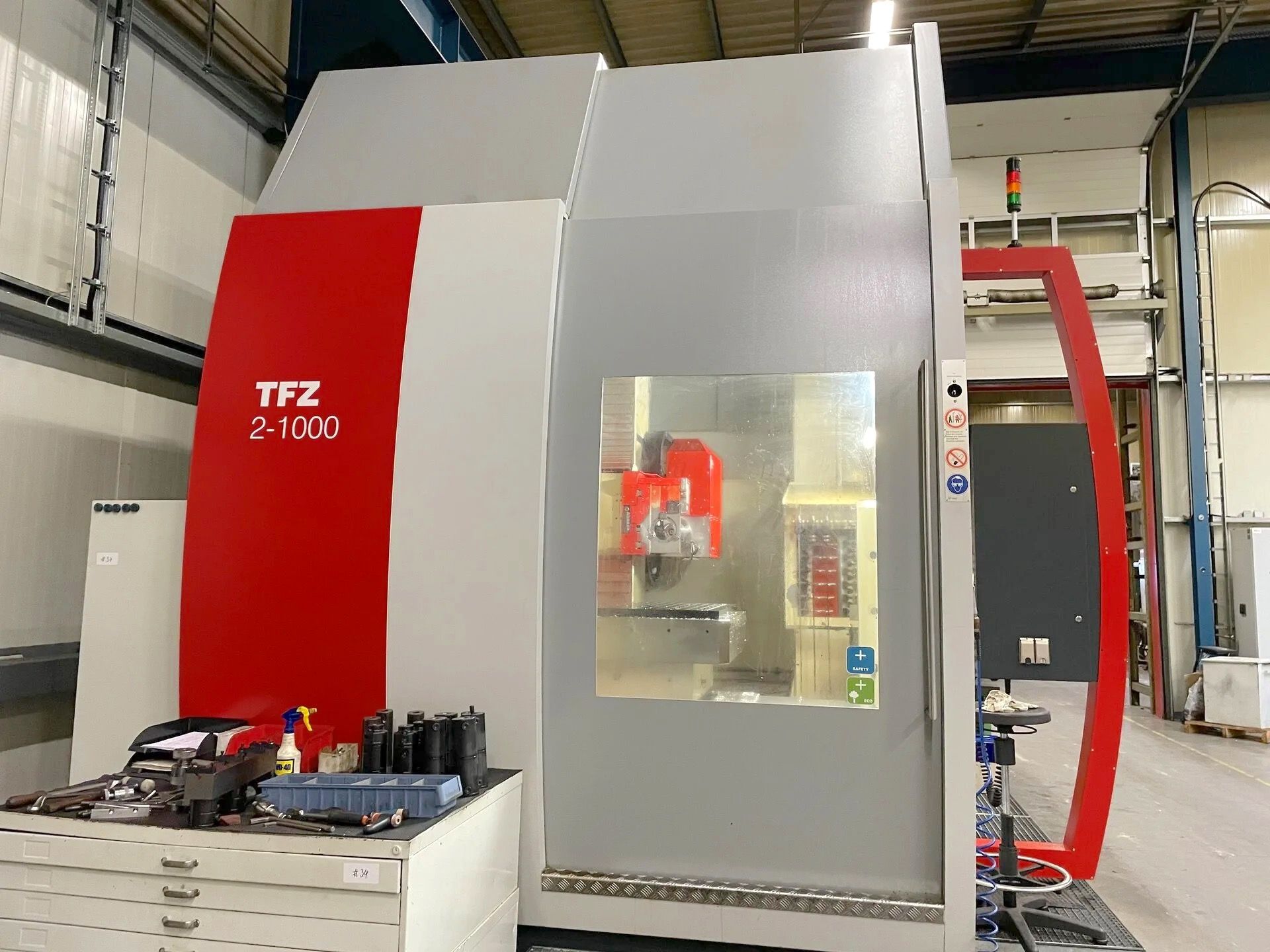

TFZ2-1000
Capacity
ø4-30x1600 mmø0,16-1,18x62,99 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Longitudinal (X)
1200 mm47,24 in
Vertical (Y)
1250 mm49,21 in
Cross (Z)
1100 mm43,31 in
Table rotation (B)
360.000 °
Profondità di foratura (V)
1600 mm62,99 in
Inclinazione Testa di foratura ( C)
-15/+30 °
CNC
CNC

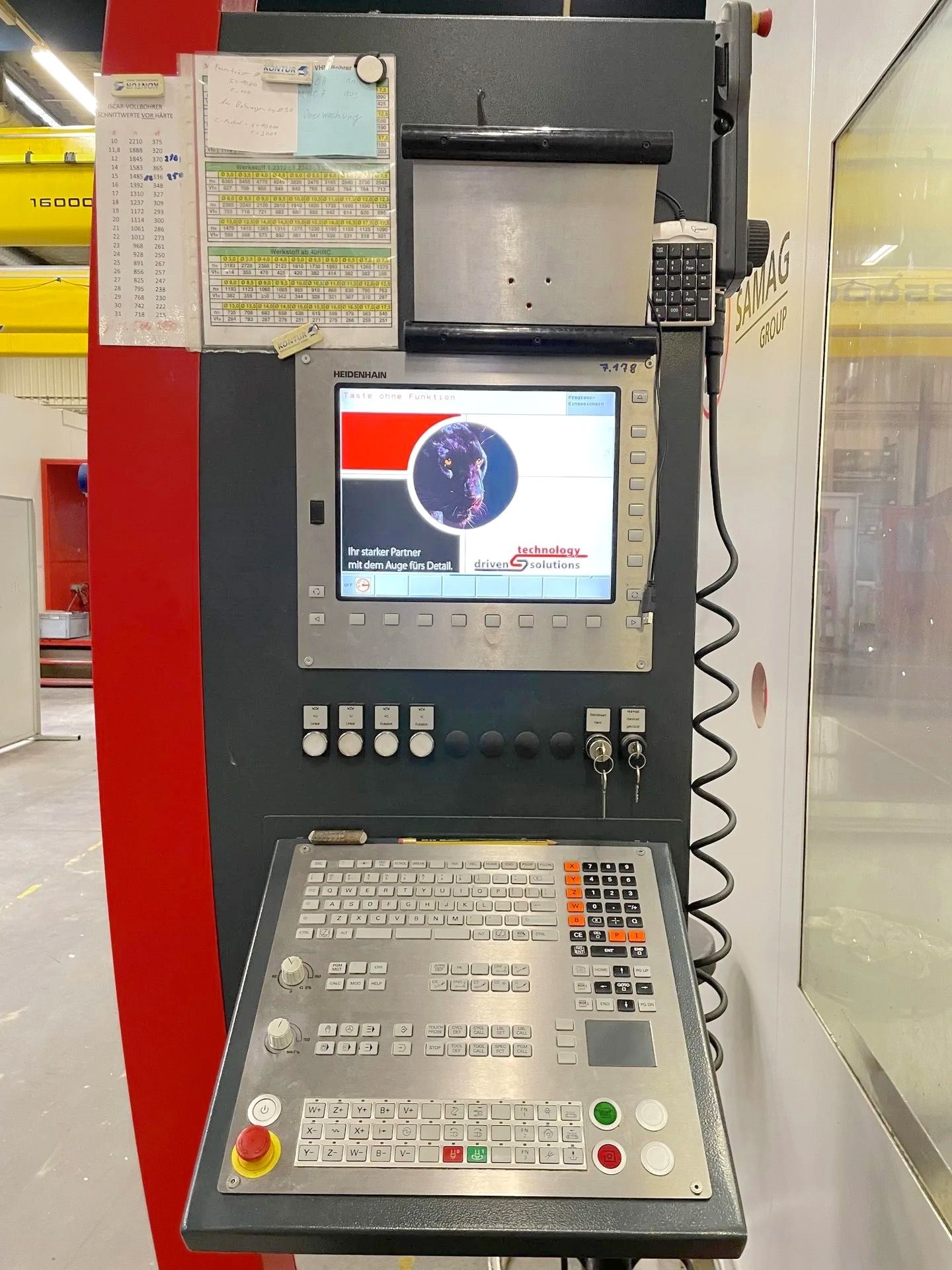

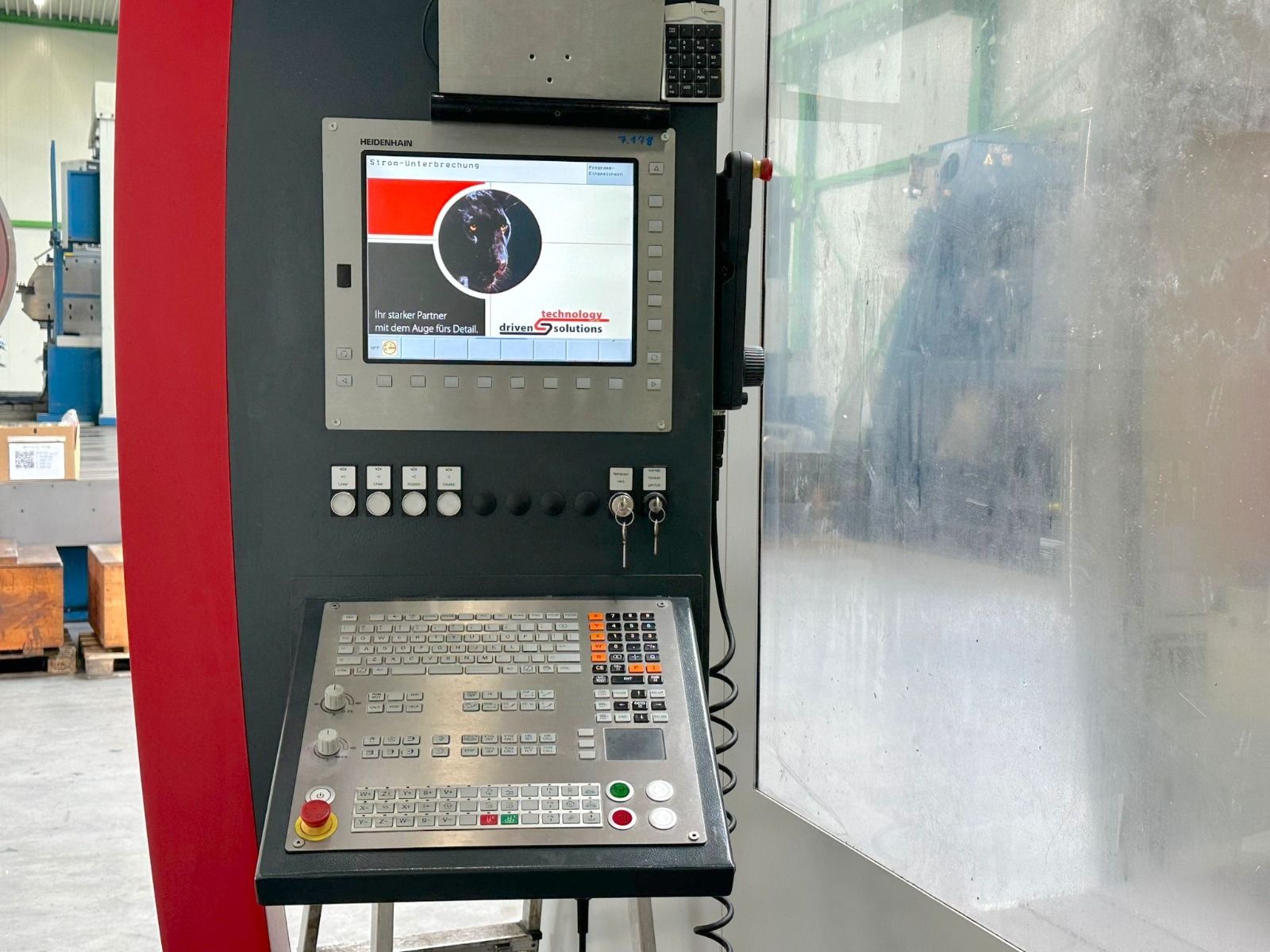

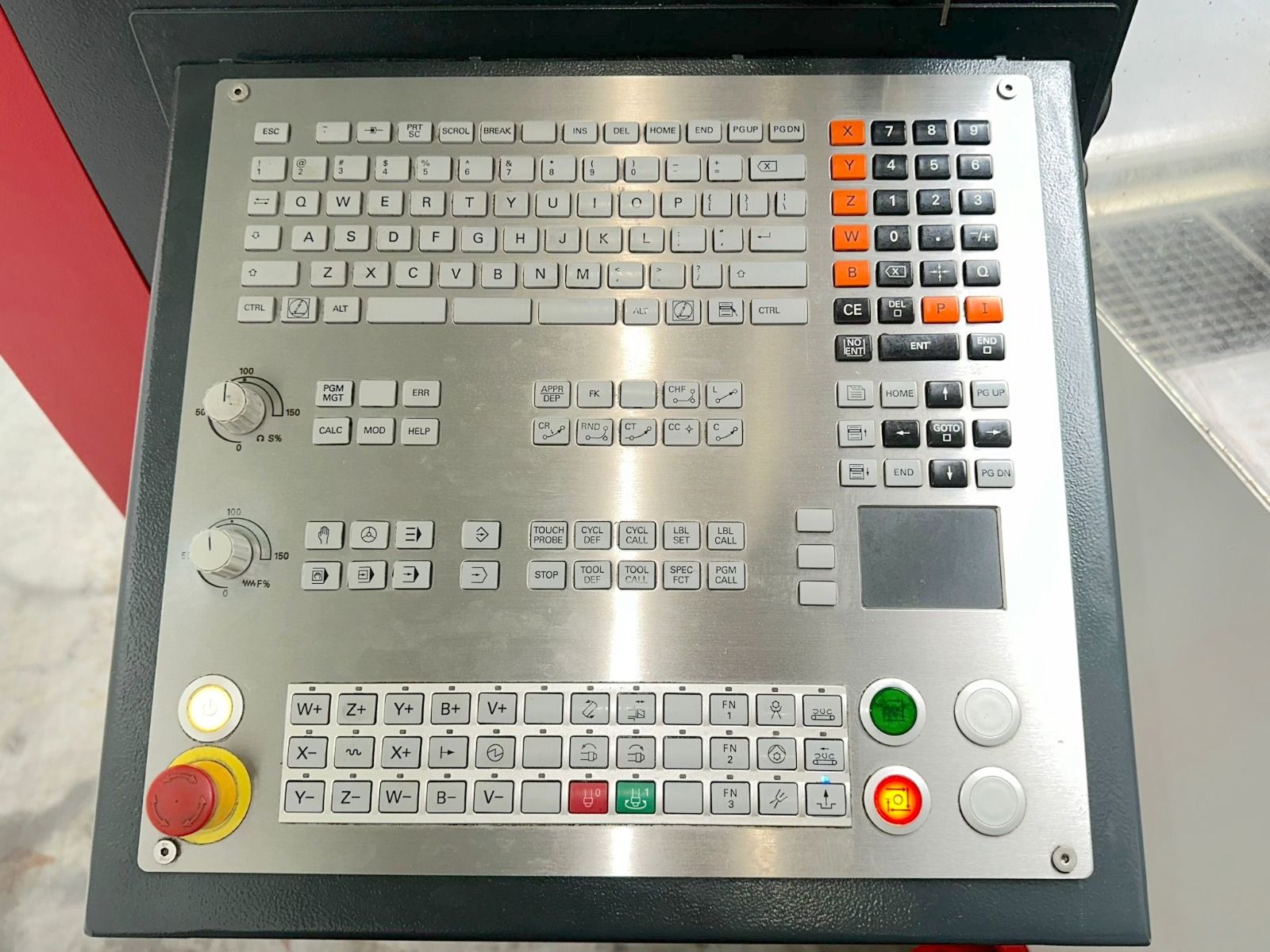

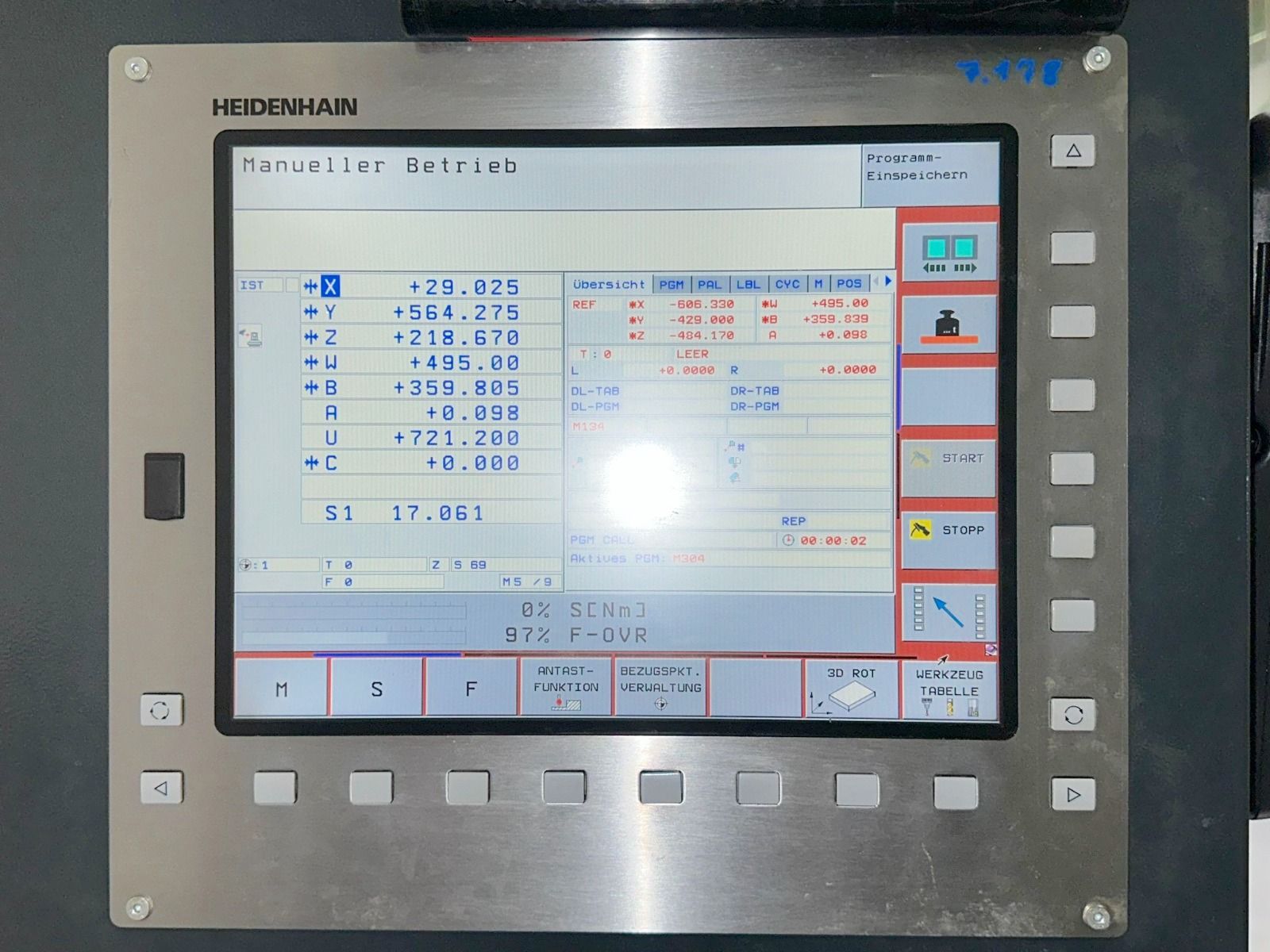

Heidenhain iTNC530
Spindle

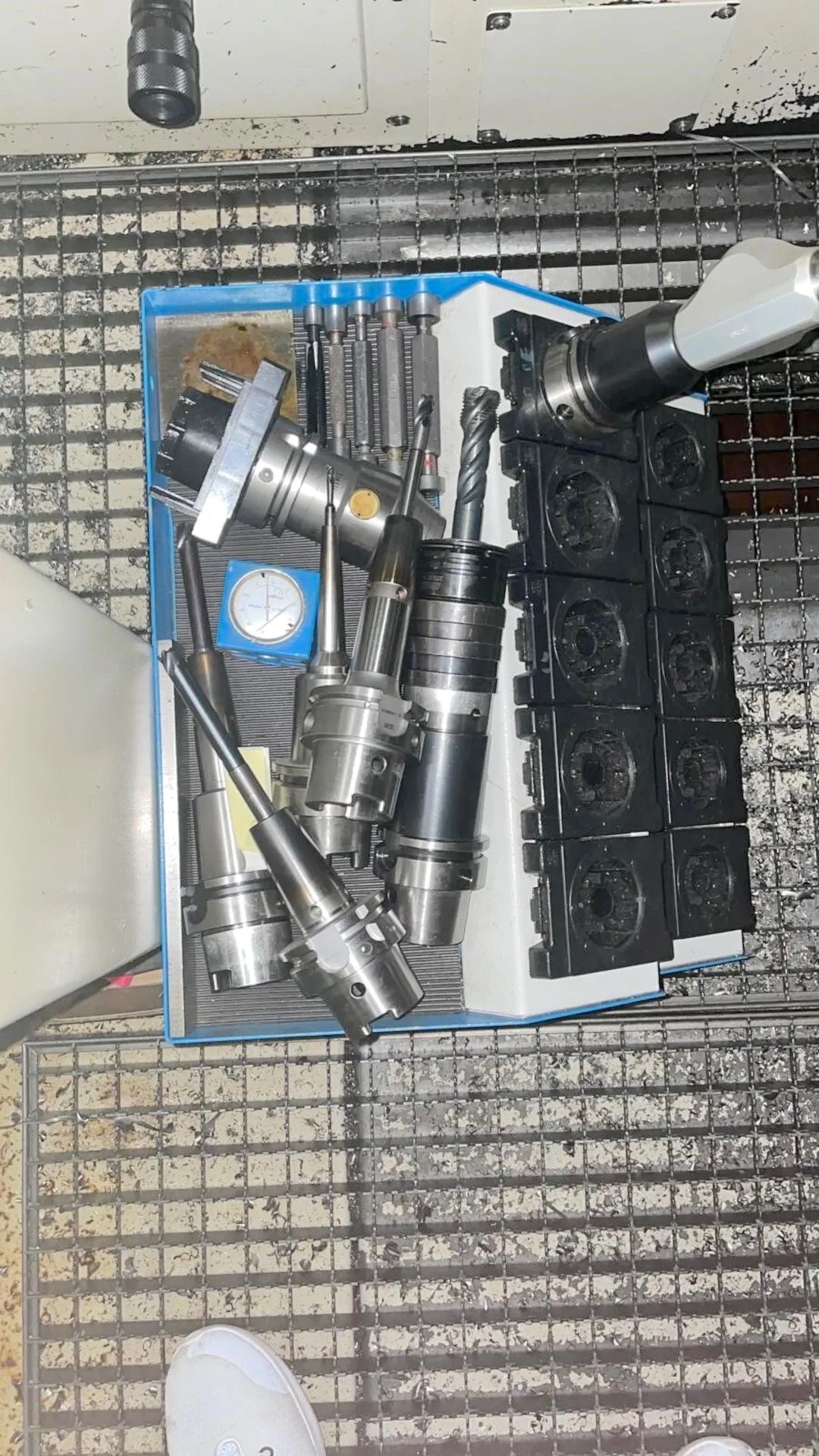

HSK63A

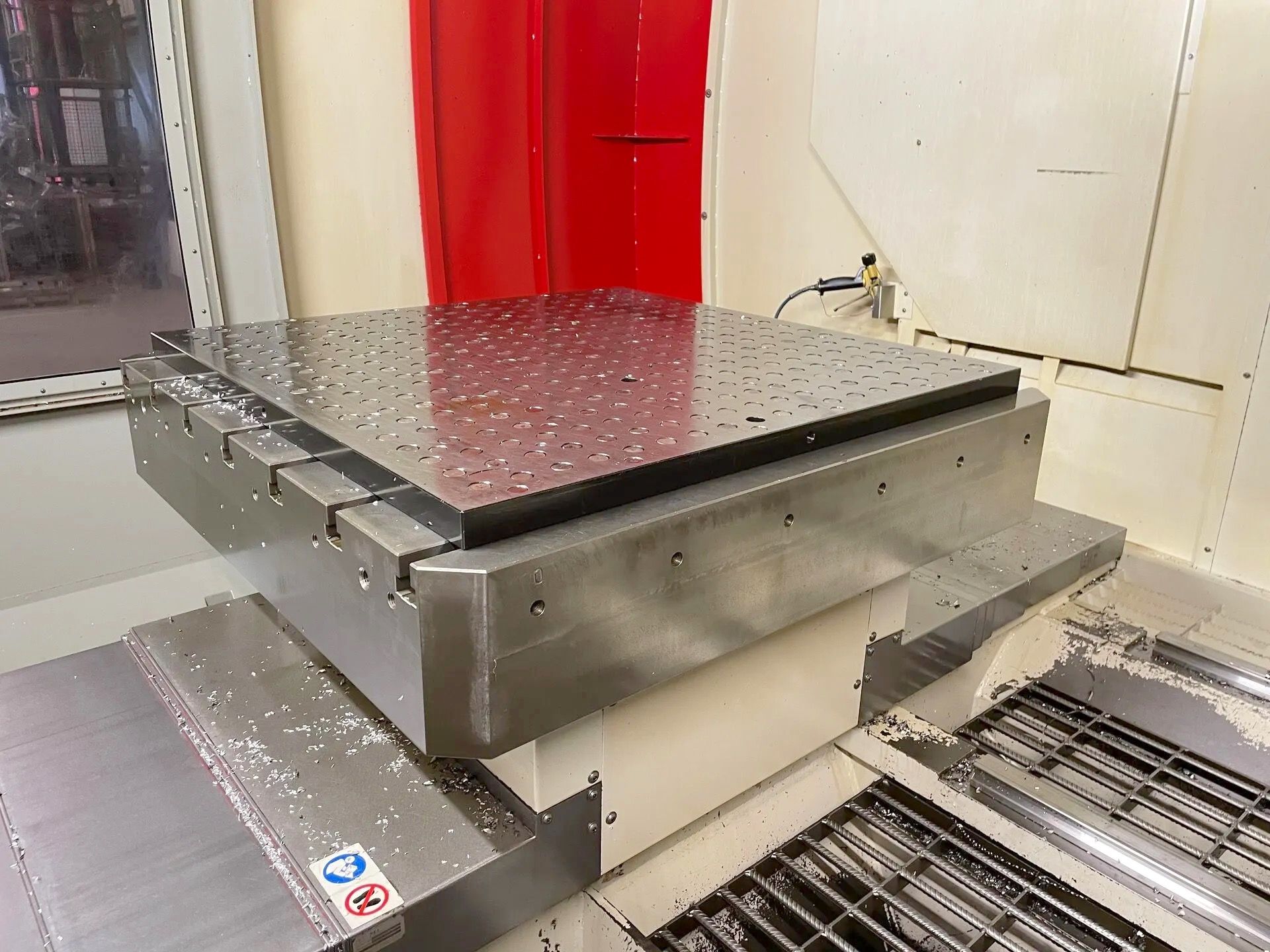

TABLE
Surface
1100x1100 mm43,31x43,31 in
Capacity
7000 Kg
ATC FRESATURA
Positions
32

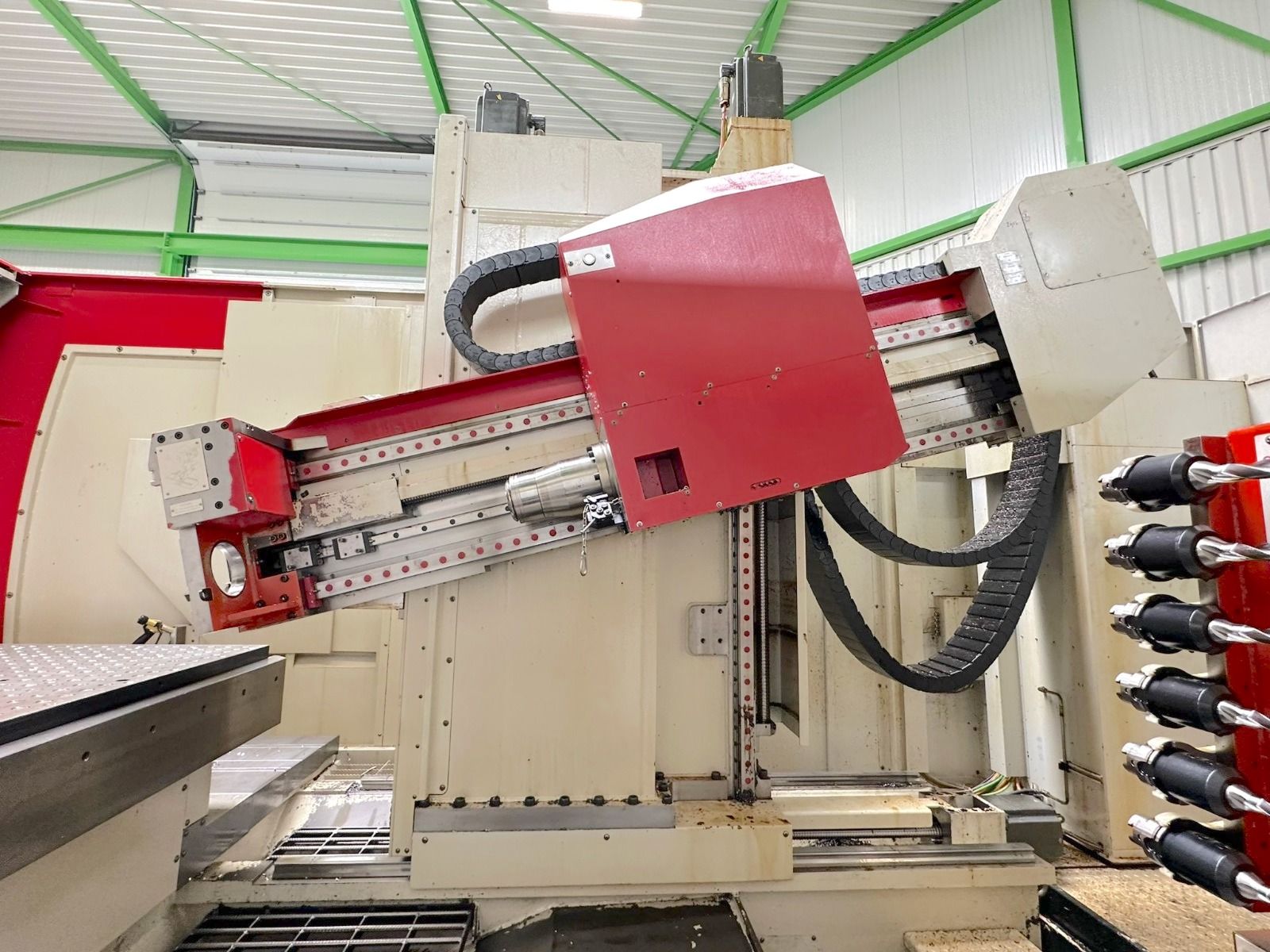

UNITÃ DI FORATURA
Diametro min-max dal pieno
4-30 mm0,16-1,18 in
Diametro max con preforo
4-30 mm0,16-1,18 in
Spindle power
15/23 Kw
Rotating speed
6000 Rpm
Torque
124 Nm
Inclinazione Testa di foratura ( C)
+15/-30 °
SISTEMA REFRIGERANTE
Pressione
100 Bar
Capacity
40 l/min
EXTRA
Machine weight
36000 kg
Unità di fresatura
Yes

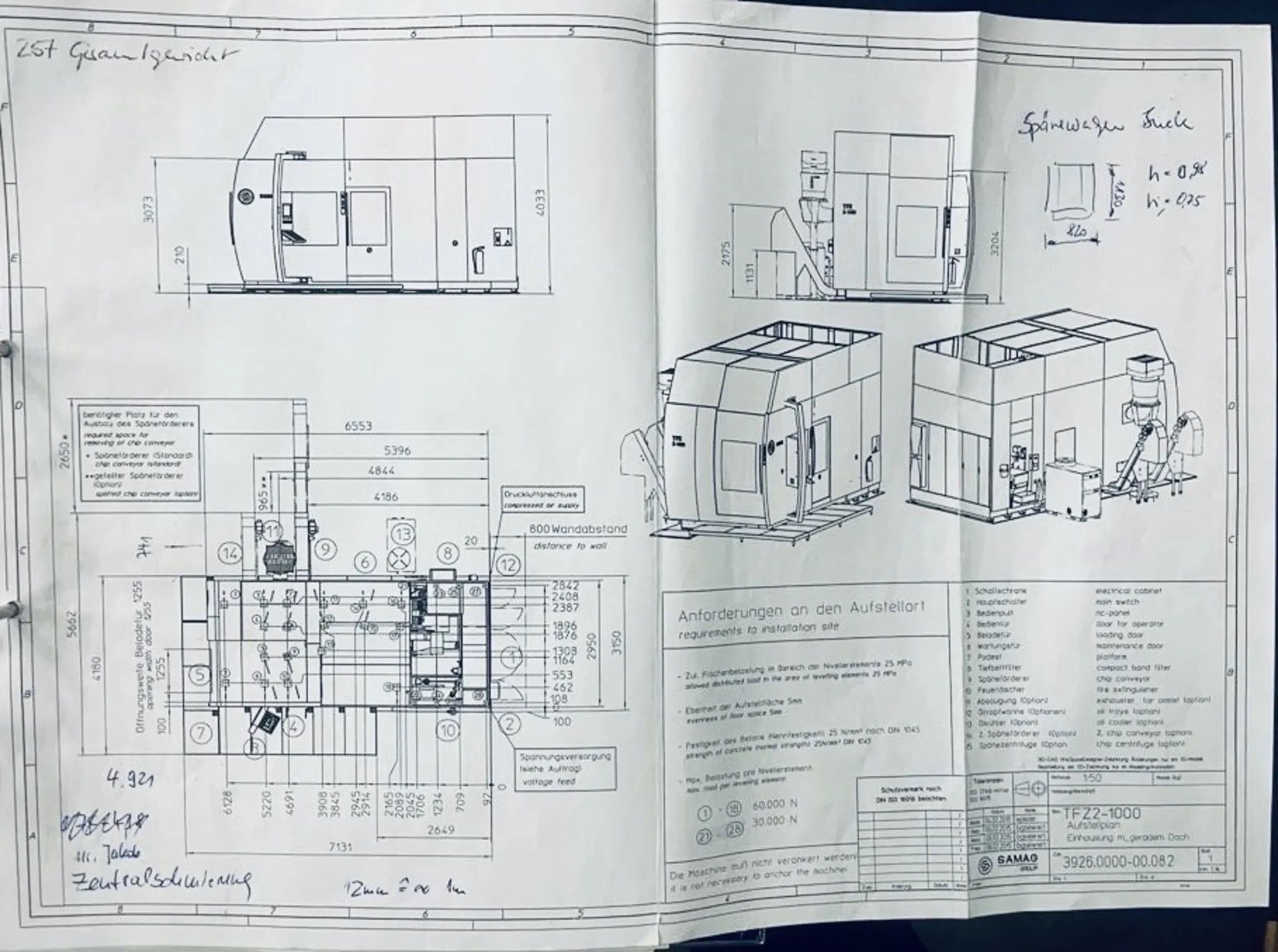

Floor space
7400x5700x4050 mm291,34x224,41x159,45 in
