Category
Milling machine
Type
T type
Made
Model

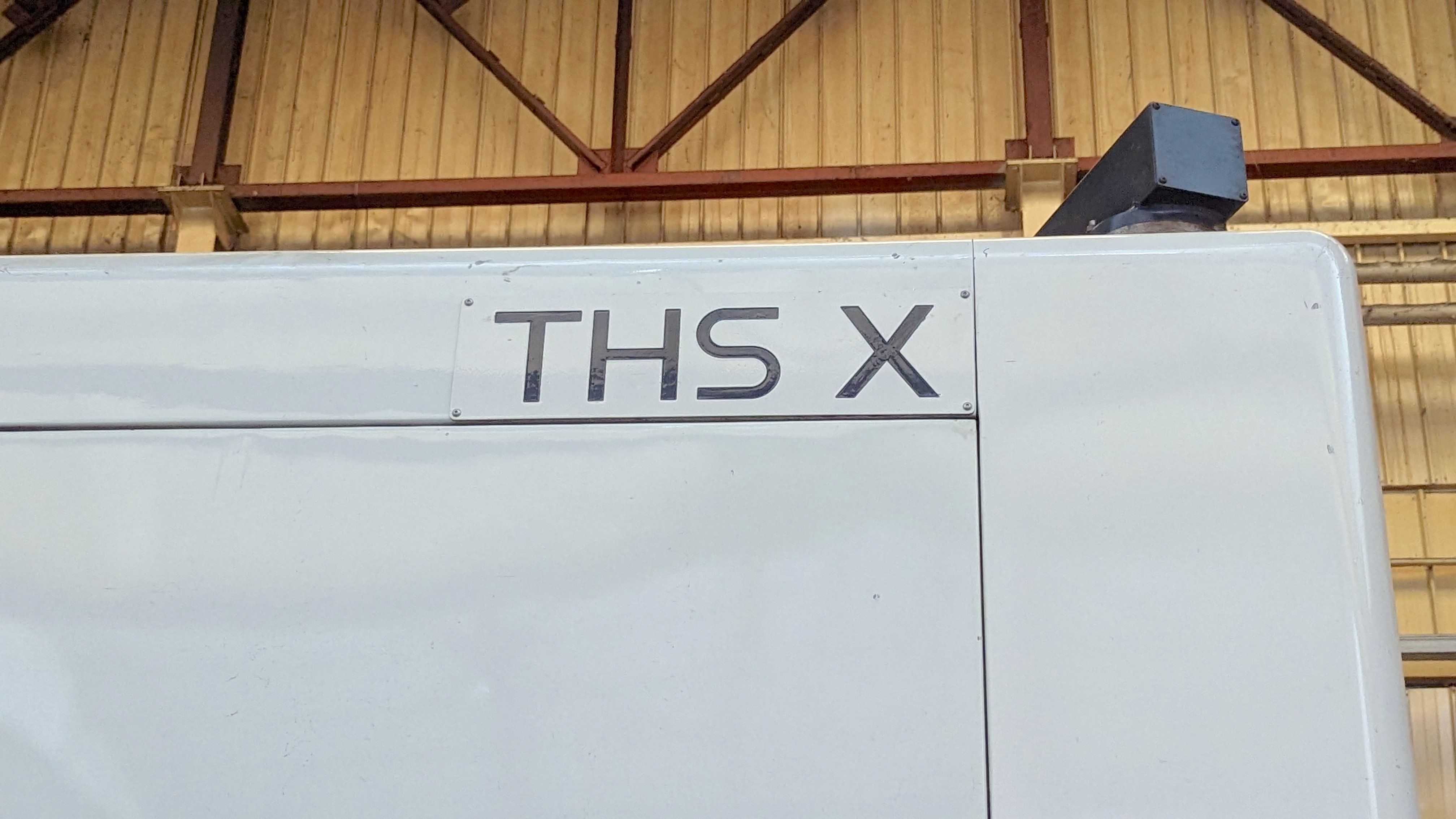

THSX
Capacity
2000x1250x1250 mm78,74x49,21x49,21 in

Technical specifications

Metric Imperial
WORKING CAPACITY
Longitudinal (X)
2000 mm78,74 in
Vertical (Y)
1250 mm49,21 in
Cross column (Z)
1250 mm49,21 in

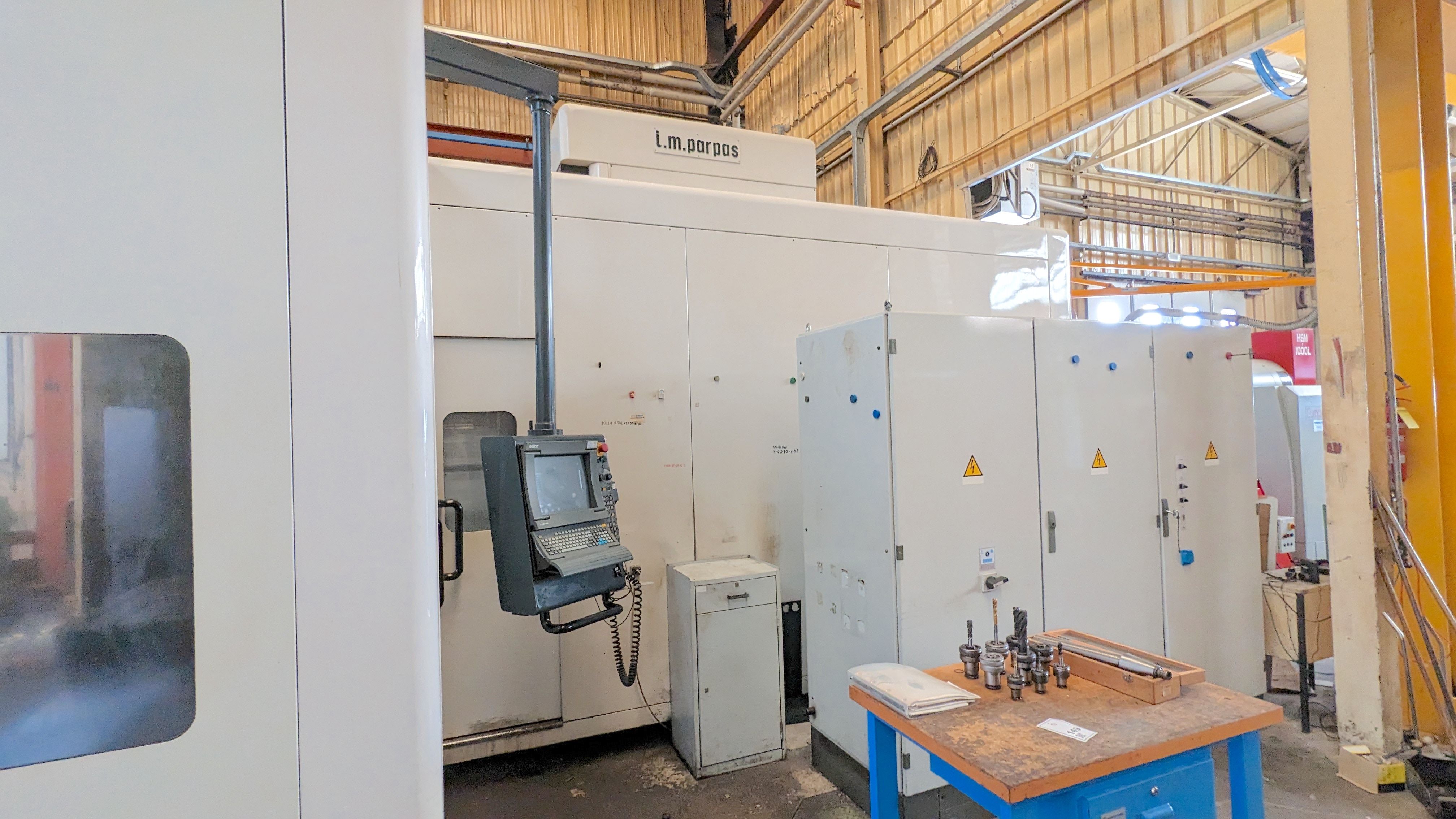

CNC
CNC

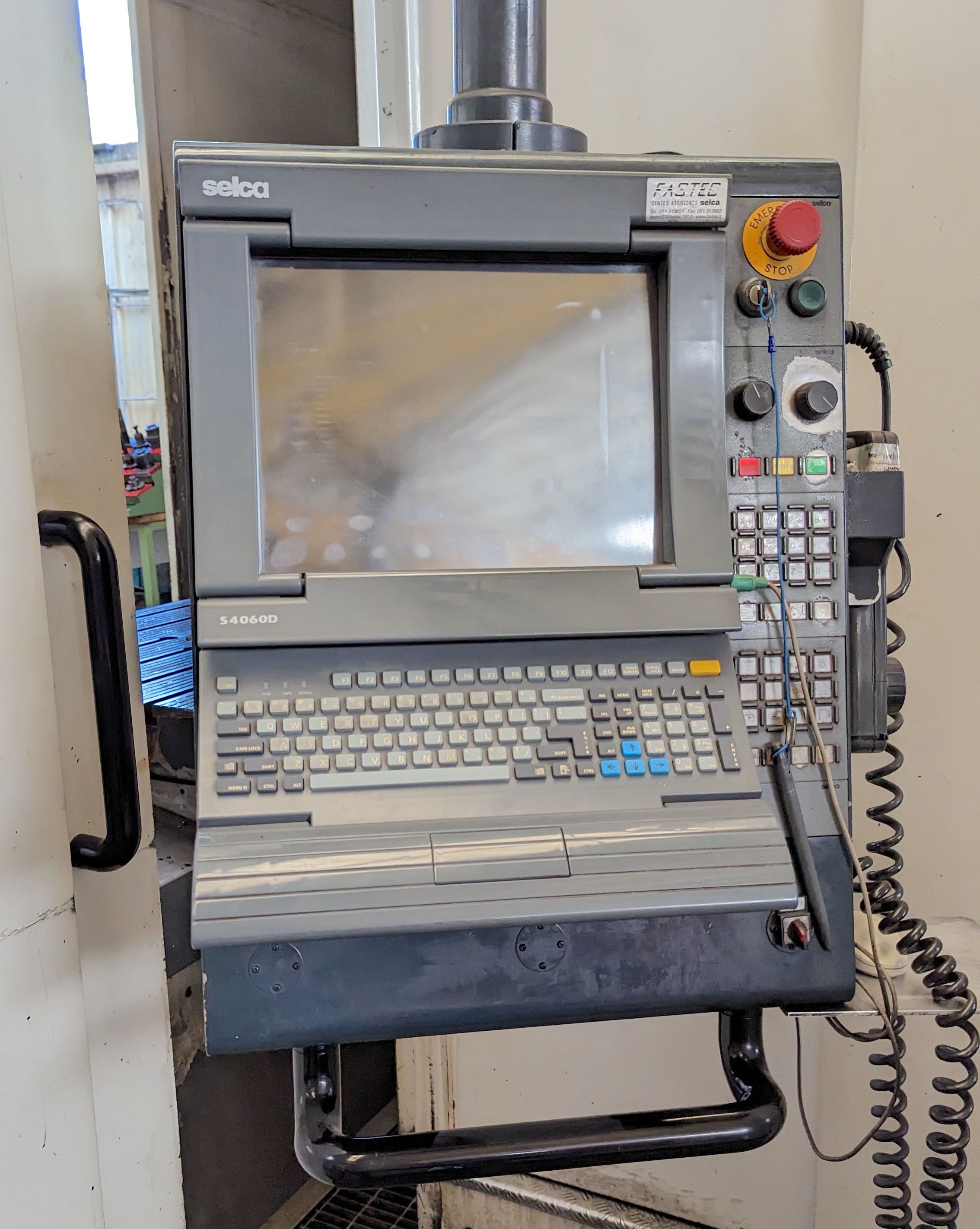

SELCA 4060D

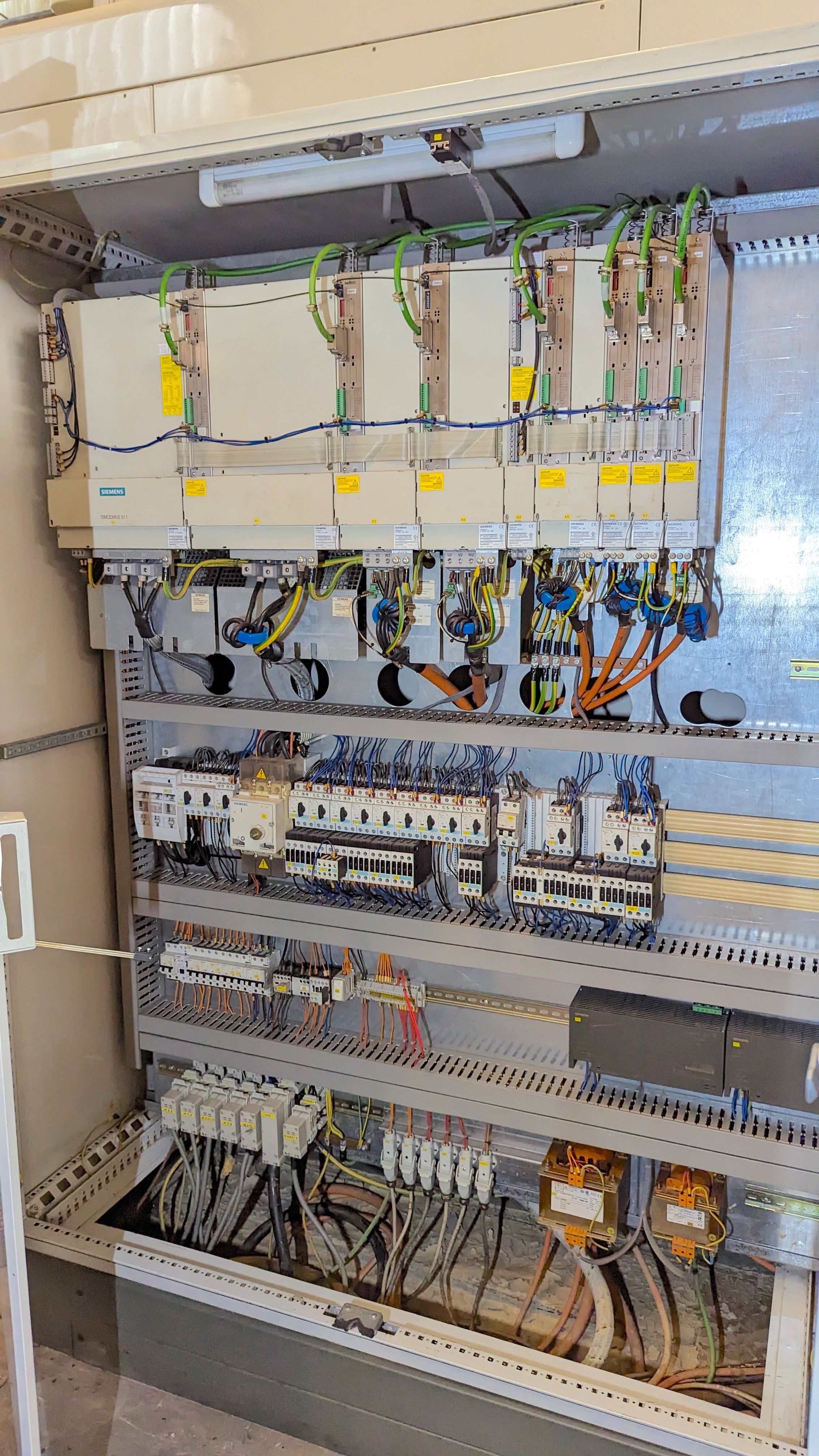

Drives
SIEMENS SIMODRIVE 611

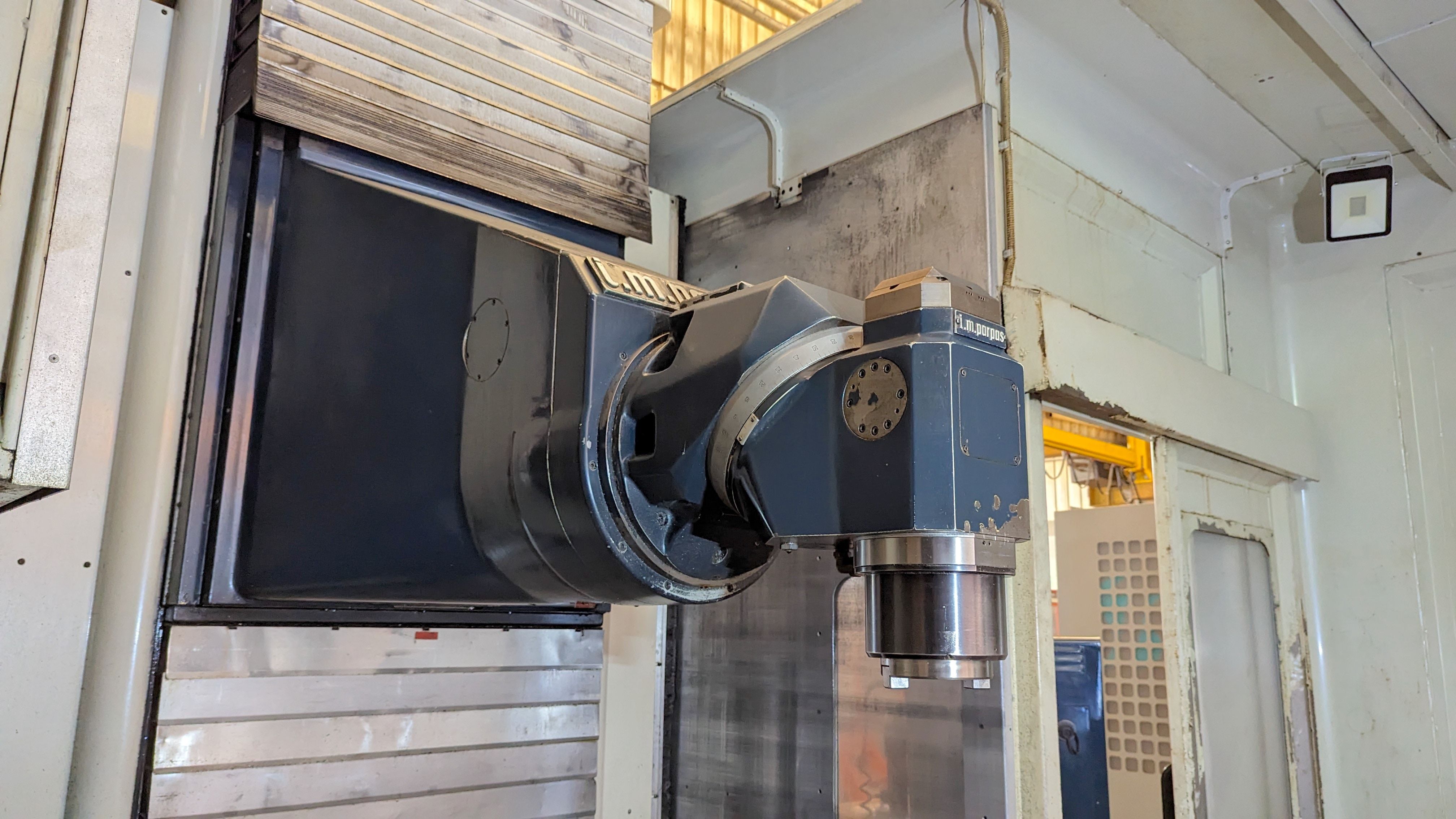

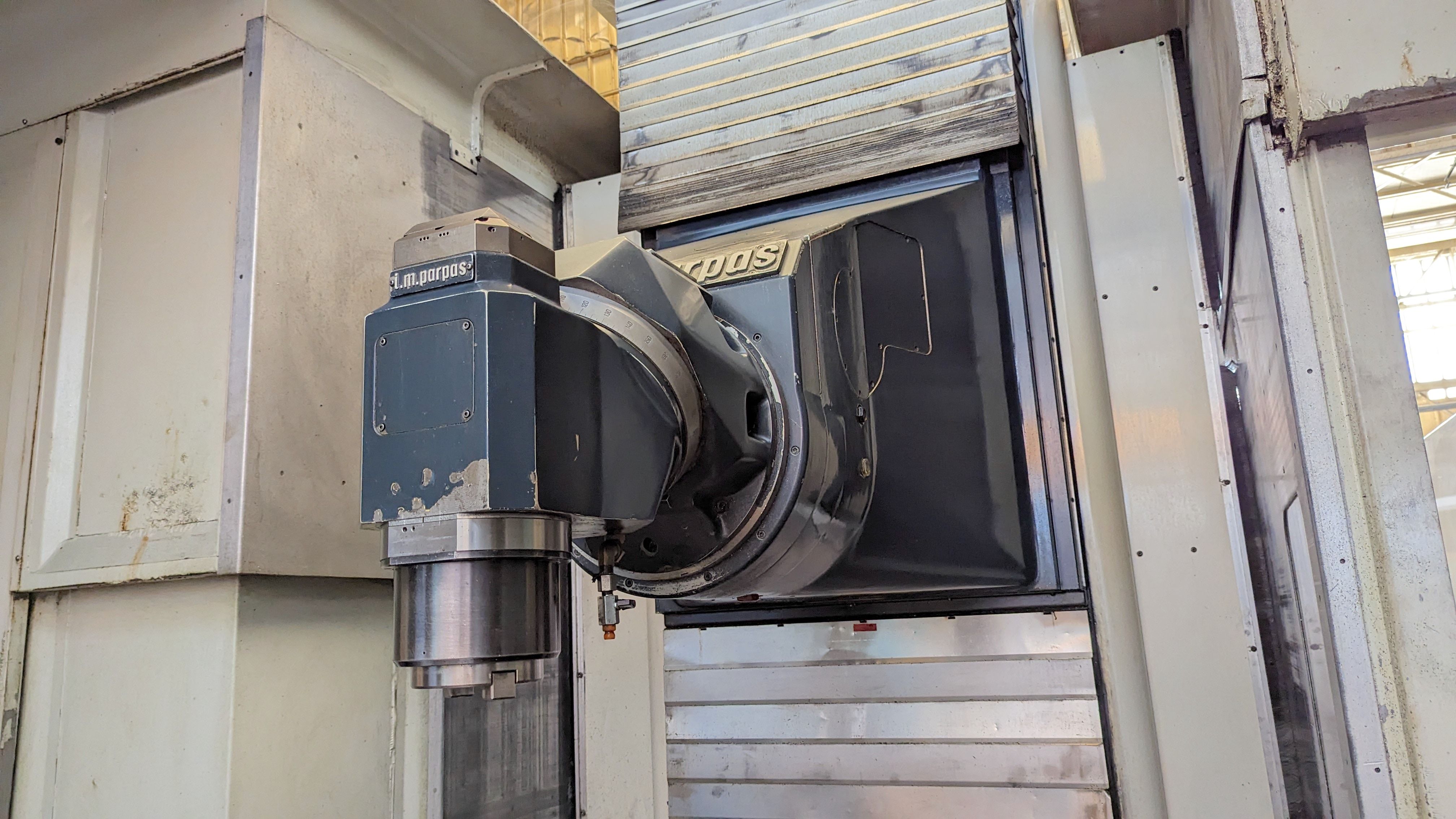

HEAD 1
Type
TU600

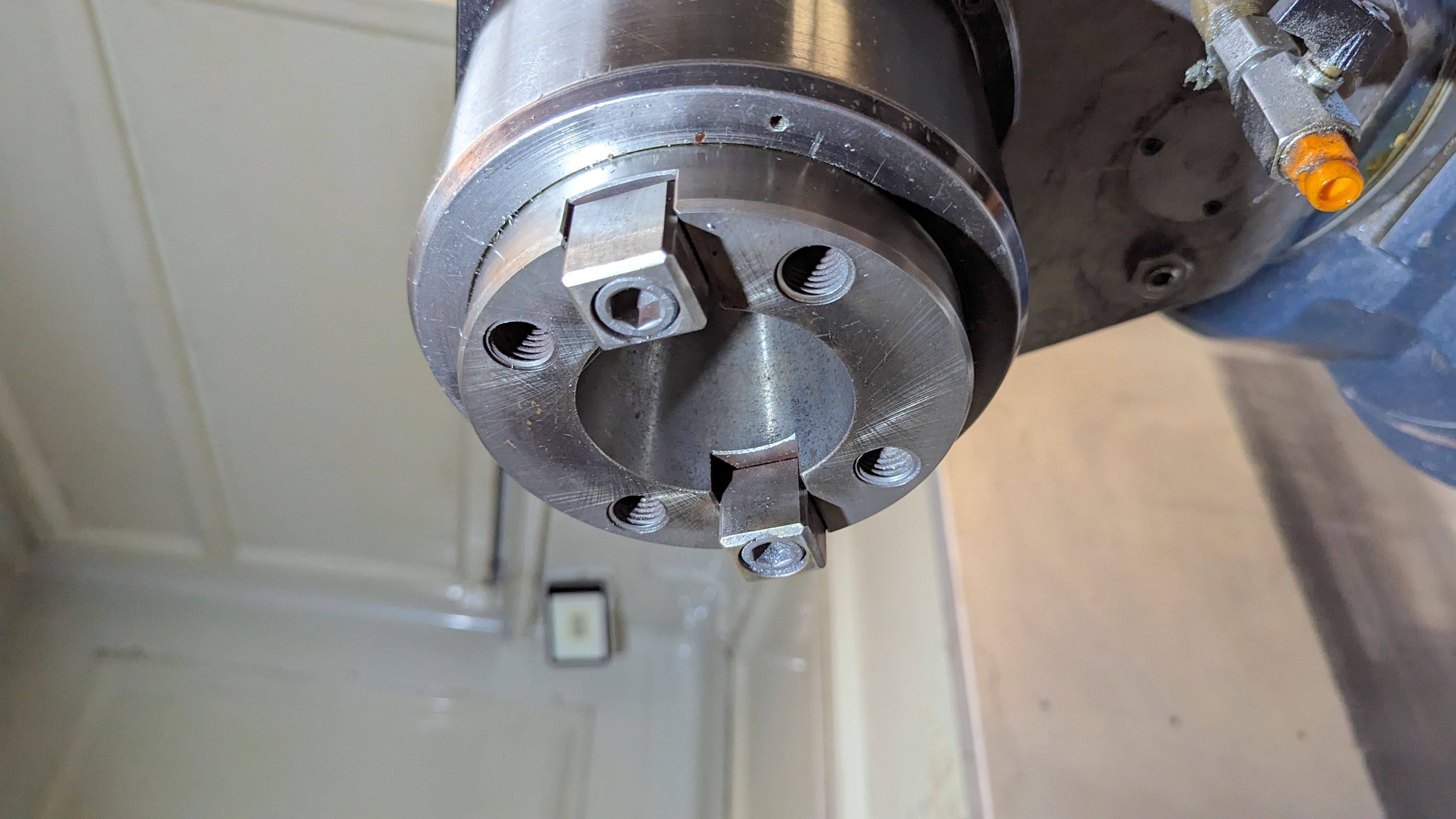

Spindle taper
ISO50 DIN69871
A axis
+/- 180 °
C axis
continuo °
Max power
30 Kw
Max speed
5000 Rpm
TABLE 1
Surface
1250x1000 mm49,21x39,37 in
Capacity
5000 Kg
FEEDS
Rapid X
24 m/min944,88 ipm
Rapid Y
24 m/min944,88 ipm
Rapid Z
24 m/min944,88 ipm

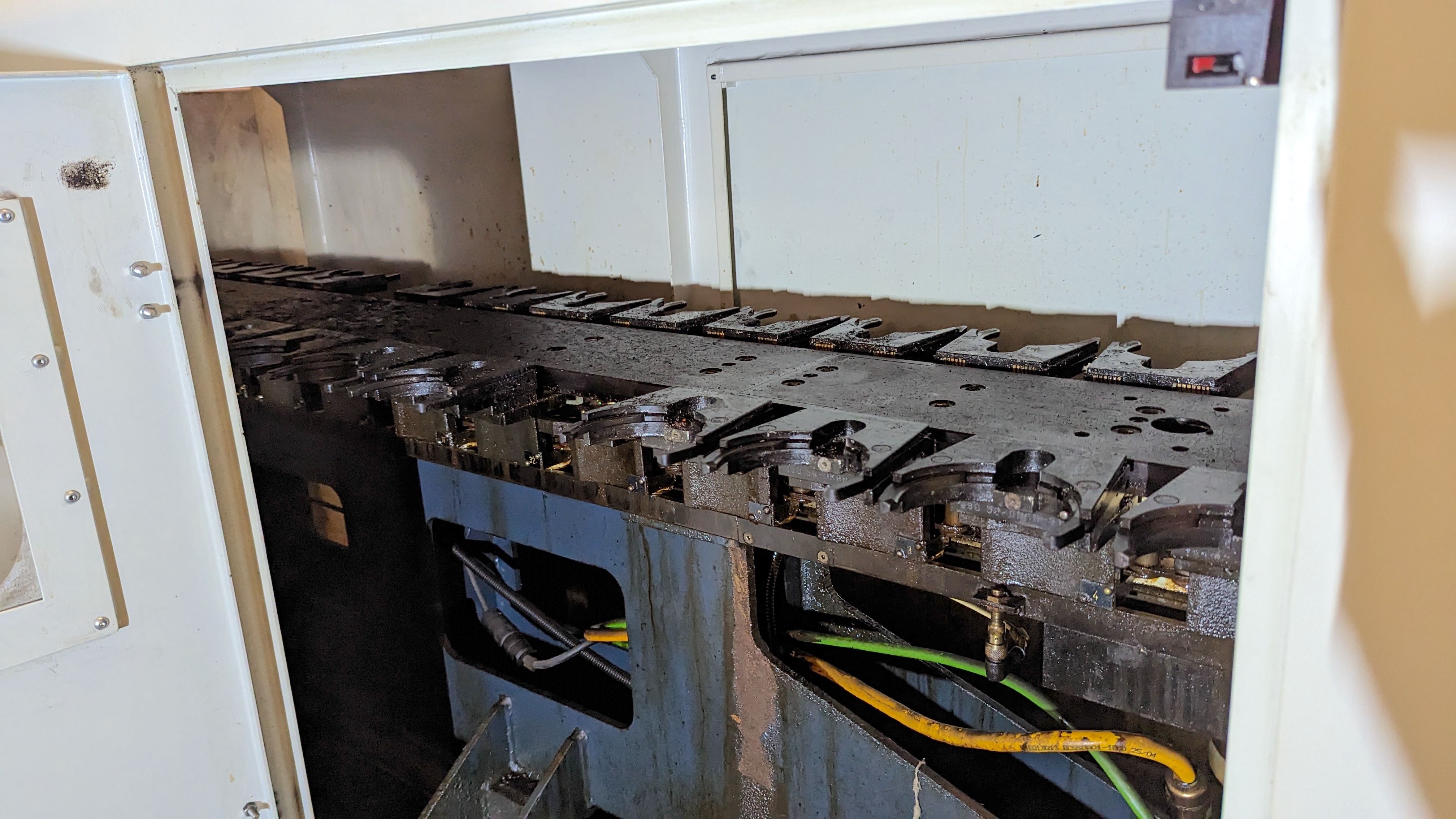

ATC
Positions
32
EXTRA
Housing
integrale con tetto

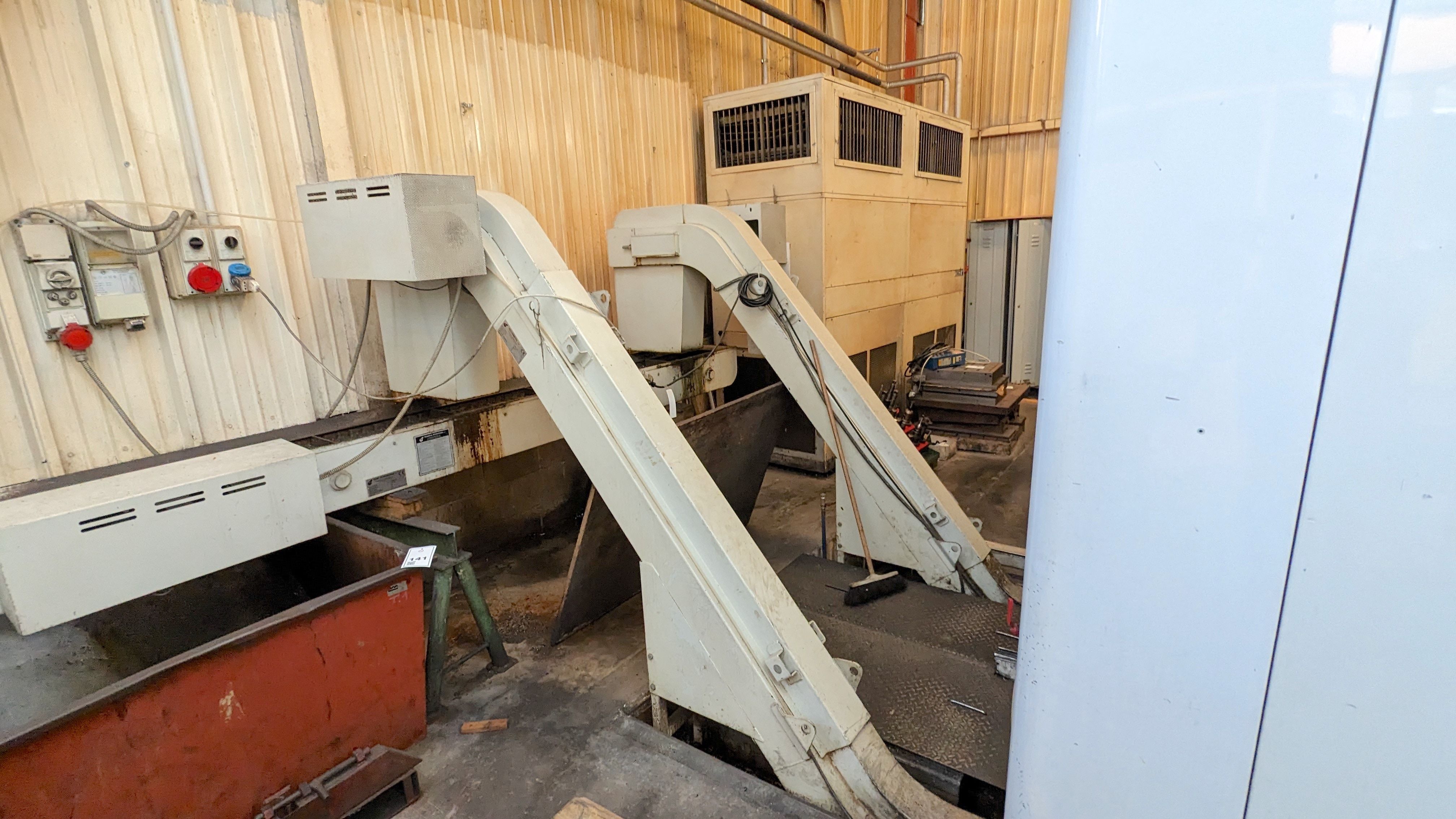

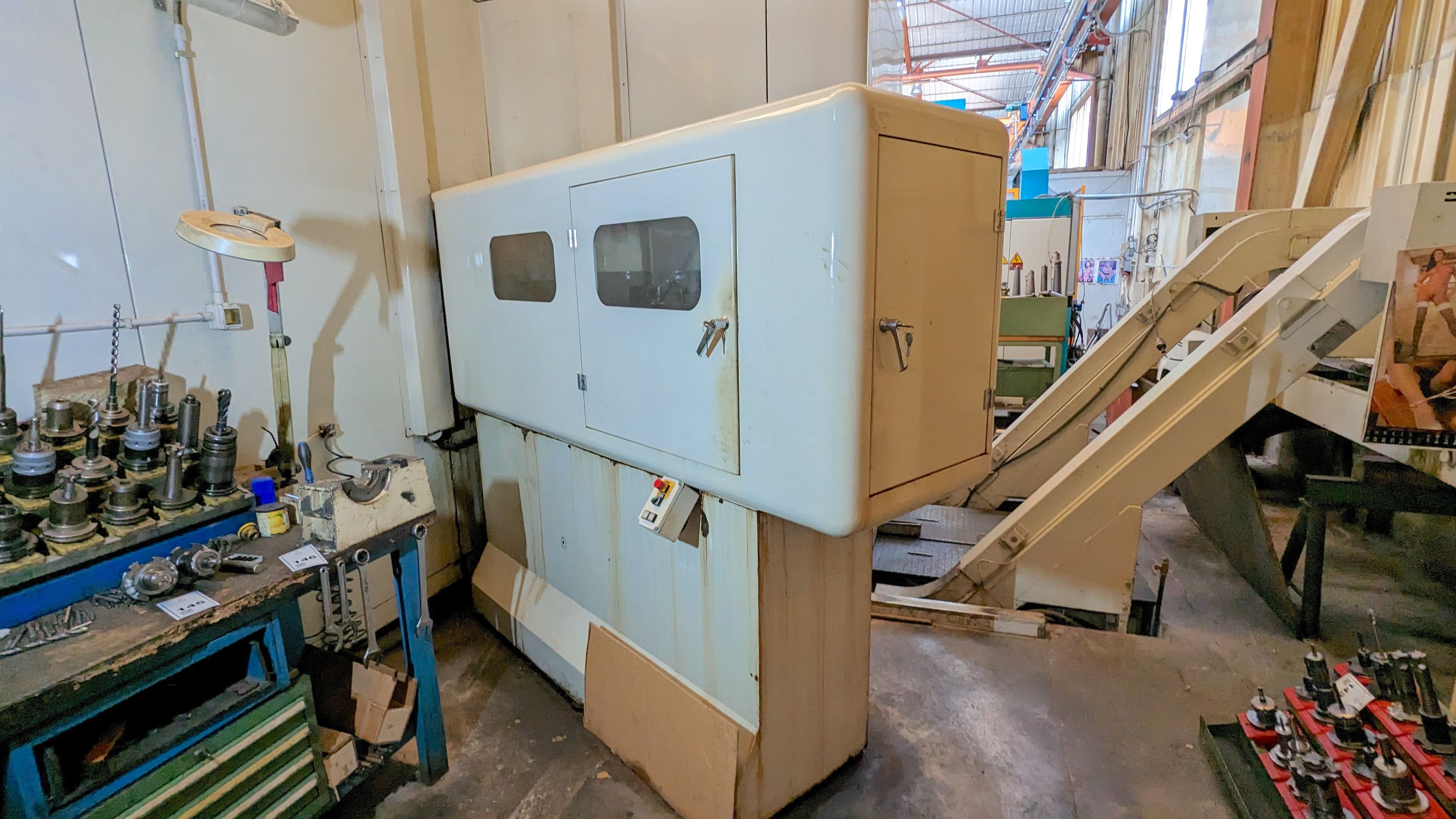

Chip conveyor
2 longitudinali + 1 di raccolta perpendicolare
The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy cannot be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!
