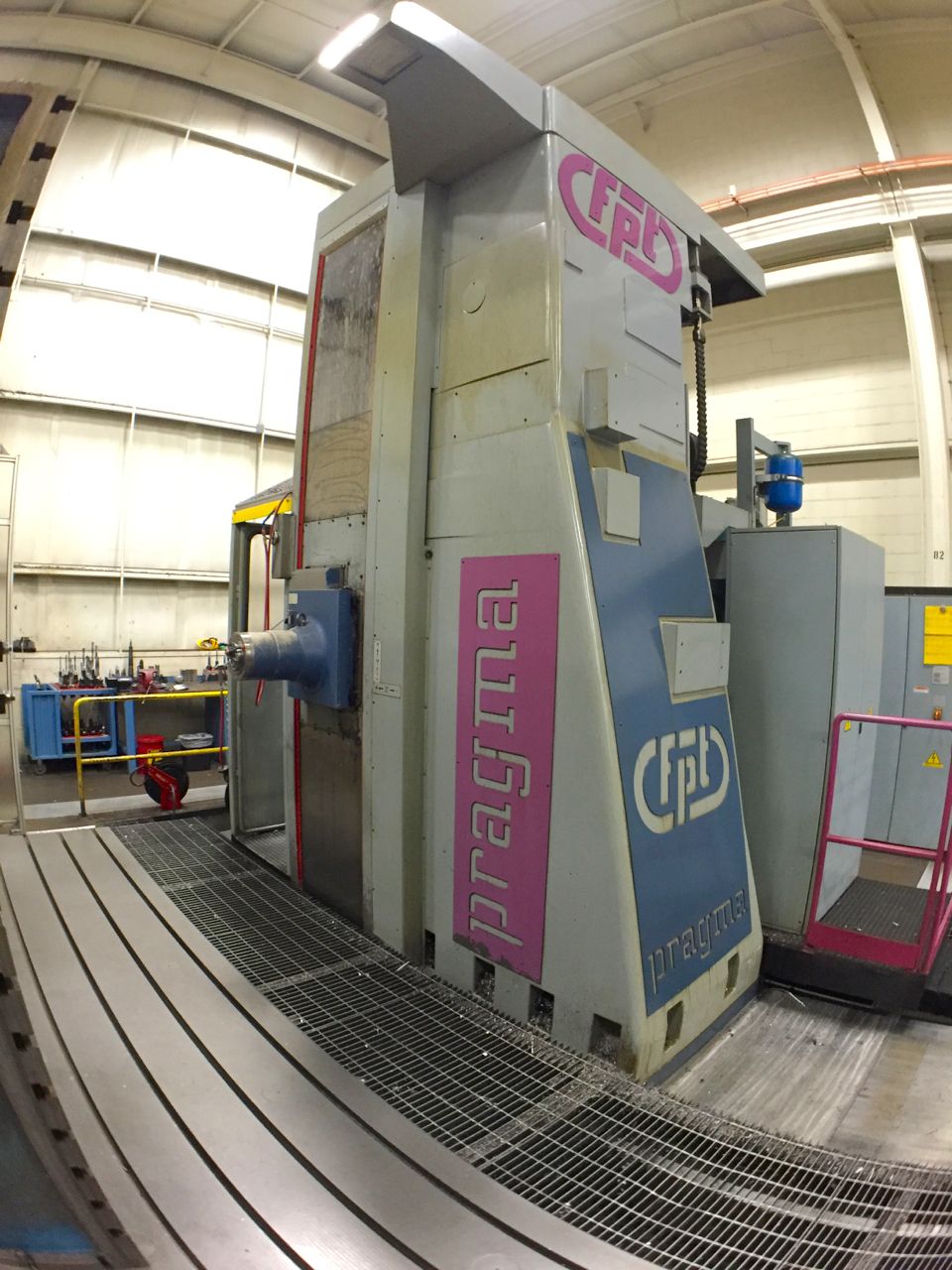

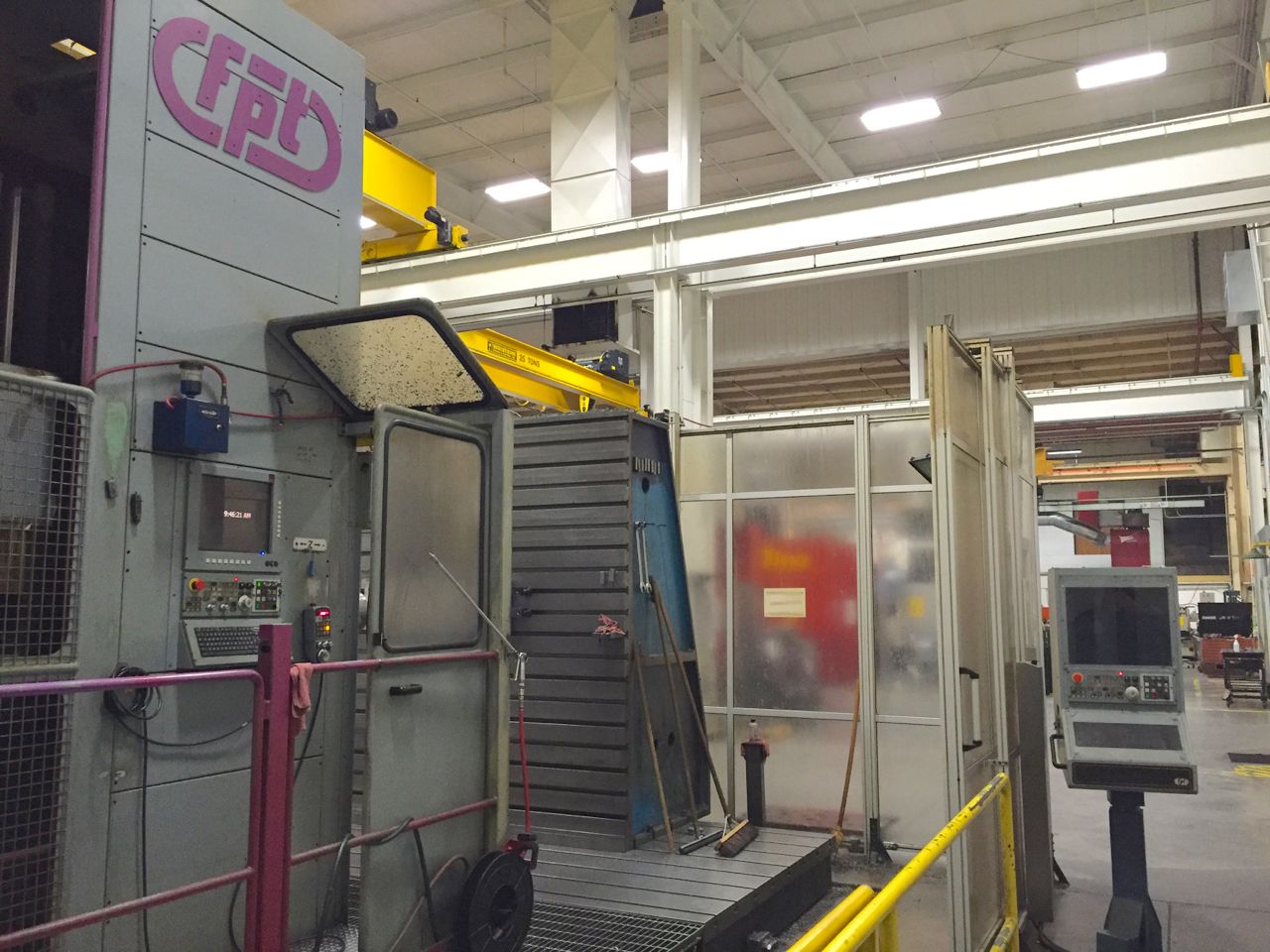

Category
Milling machine
Type
mobile column
Made
Model
PRAGMA M60
Capacity
6000x2000x1200 mm236,22x78,74x47,24 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Longitudinal (X)
6000 mm236,22 in
Vertical (Y)
2000 mm78,74 in
Cross RAM (Z)
1200 mm47,24 in
Axes support
guide lineari

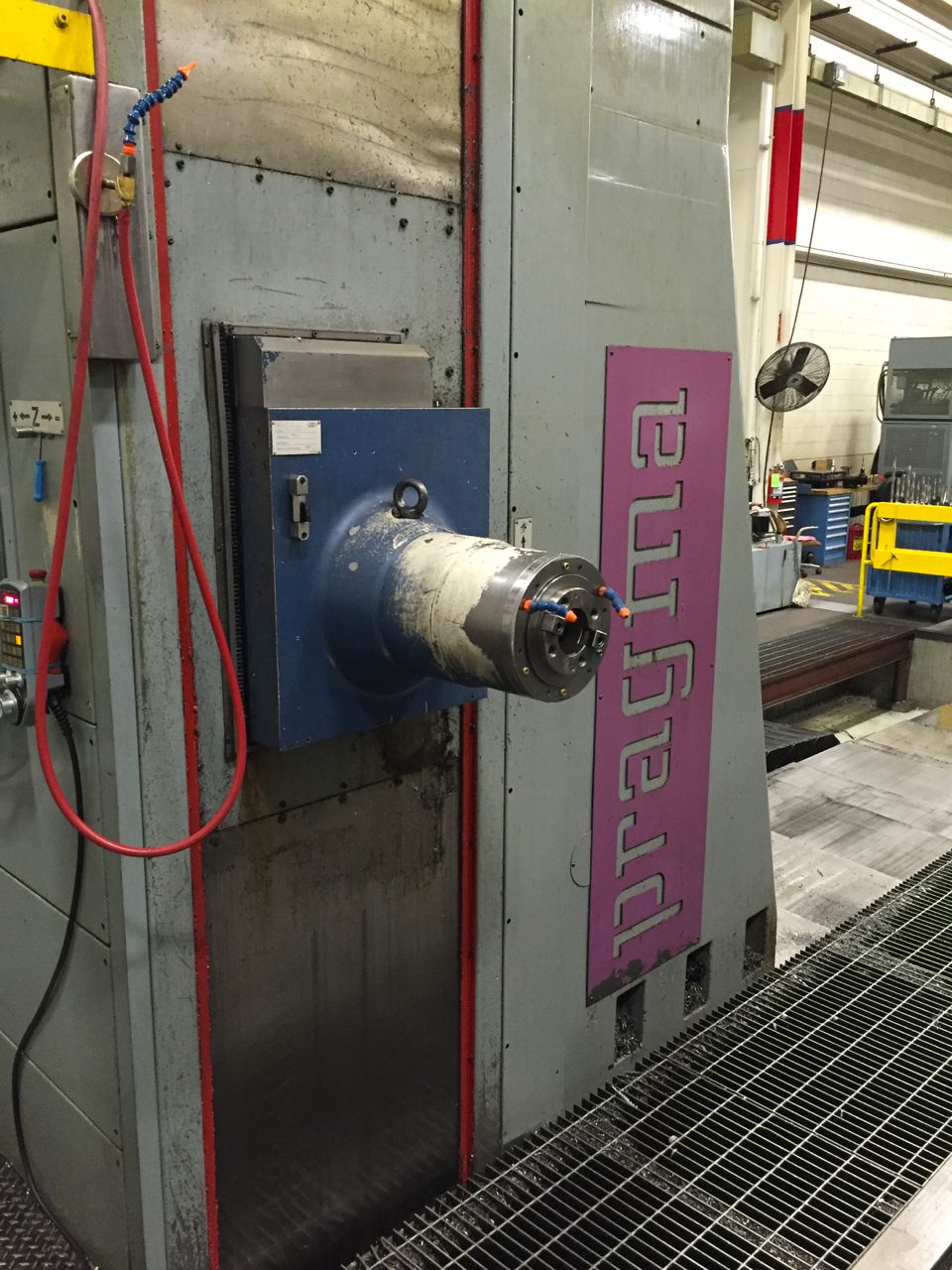

SPINDLE
Spindle power
24/27,5 Kw
Gearbox
0-235 / 235-5000
Rotating speed
0-5000 Rpm
Torque
1120 Nm
Taper
ISO50
RAM section
450x530 mm17,72x20,87 in
FEEDS
Rapid X
30 m/min1.181,10 ipm
Rapid Y
30 m/min1.181,10 ipm
Rapid Z
30 m/min1.181,10 ipm
X
15 m/min590,55 ipm
Y
15 m/min590,55 ipm
Z
15 m/min590,55 ipm
ATC
Positions
24
Max tool diameter
125 mm4,92 in
Max diam with free adiacent space
230 mm9,06 in
Max tool lenght
400 mm15,75 in
Max tool weight
20 Kg
Tool taper
ISO50 / HSK63
Position
Pickup station
FIXING TABLE
Floorspace (LxWxH)
7000x2000x300 mm275,59x78,74x11,81 in
T slots number
8

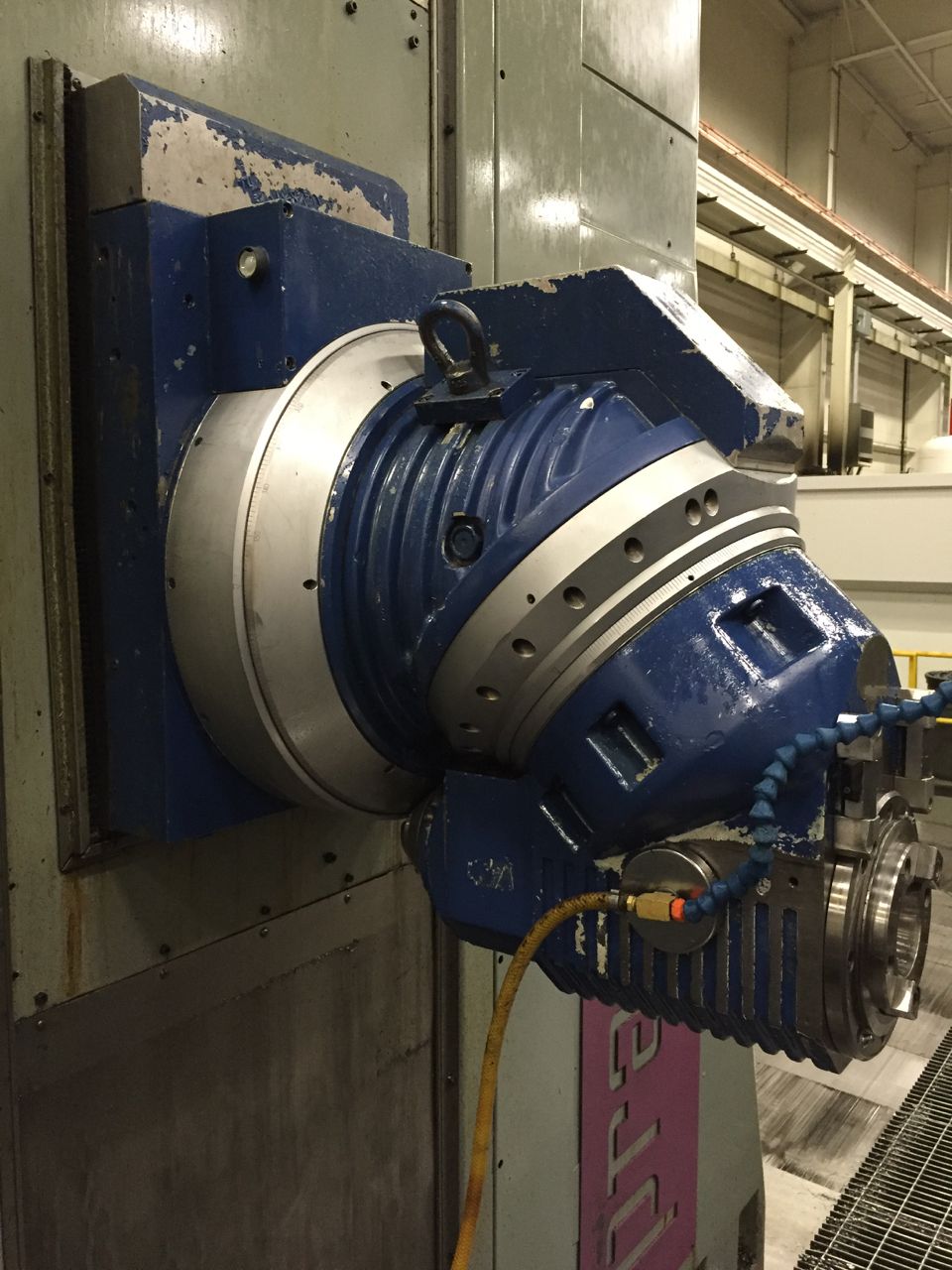

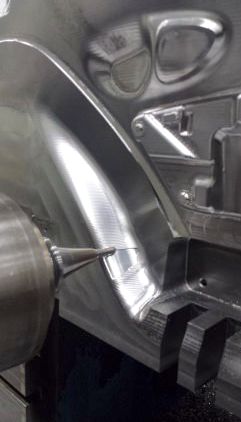

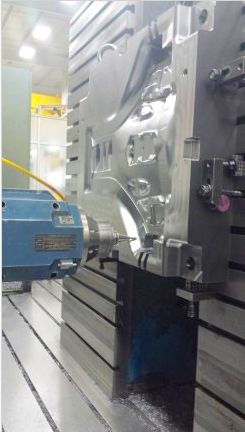

HEAD 1
Type
FPT TUPCG CSA
Spindle taper
ISO50
A axis
360.000x0,001 °
C axis
360.000x0,001 °
Max torque
1120 Nm
Max speed
5000 Rpm
Max power
27.5 Kw
Coolant
interno 20 bar
Notes
testa automatica a posizionamento continuo
HEAD 2
Available upon request
No
A axis
360.000x0,001 °
C axis
360.000x0,001 °
Max speed
22.000 Rpm
Max power
27,5 Kw
HEAD 3
Available upon request
No
Max torque
1120 Nm
Max speed
5000 Rpm
Max power
27.5 Kw

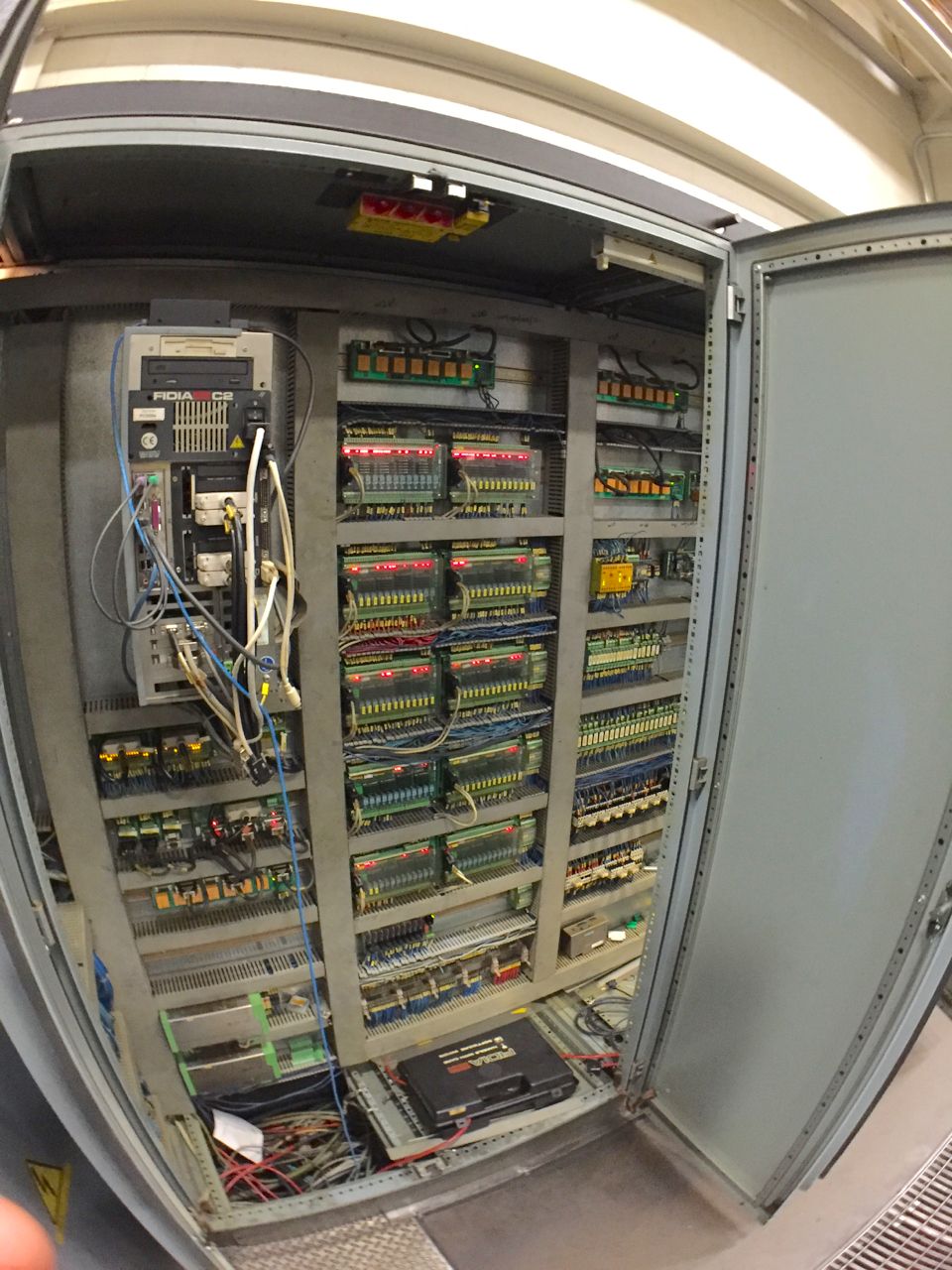

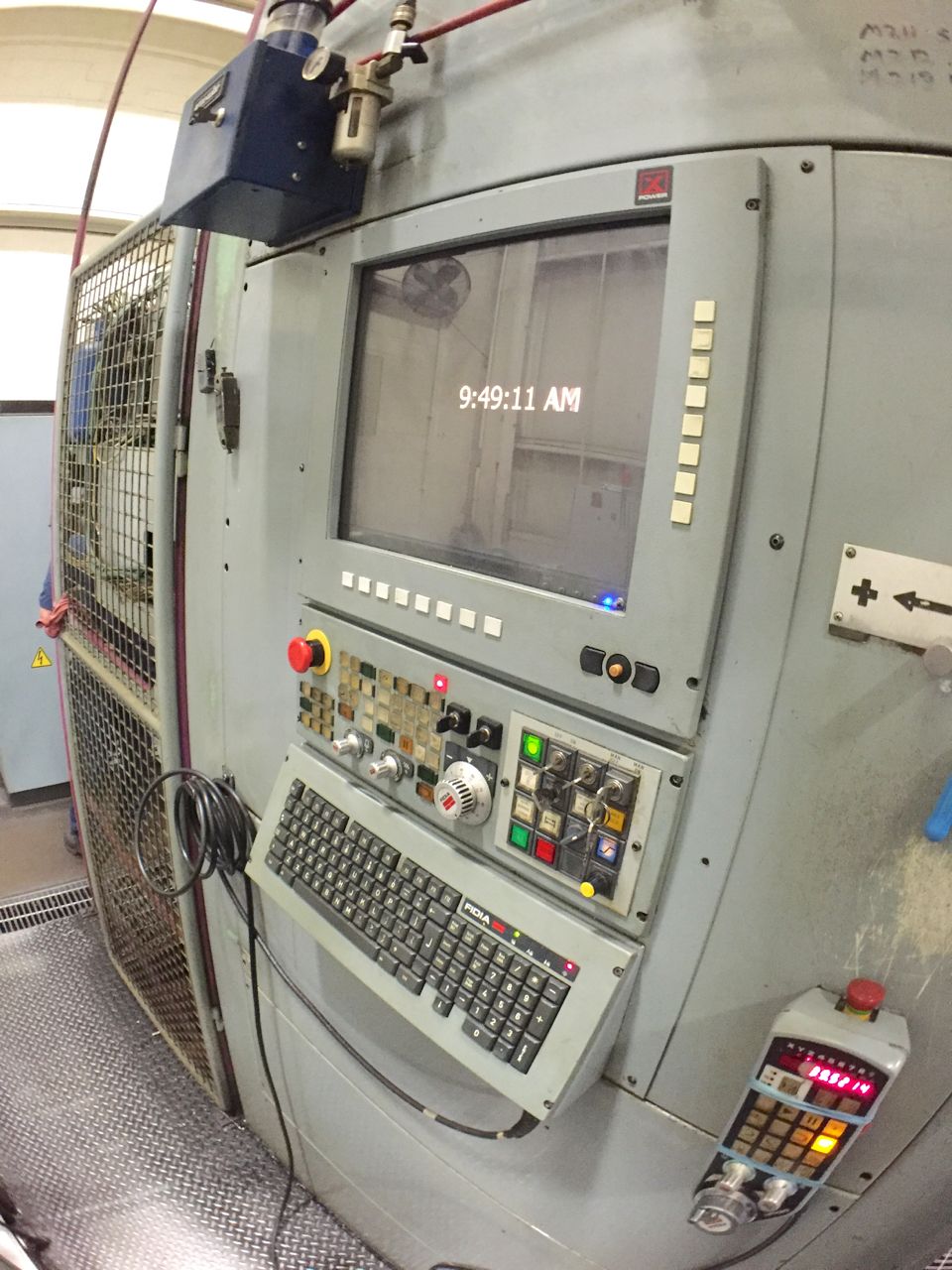

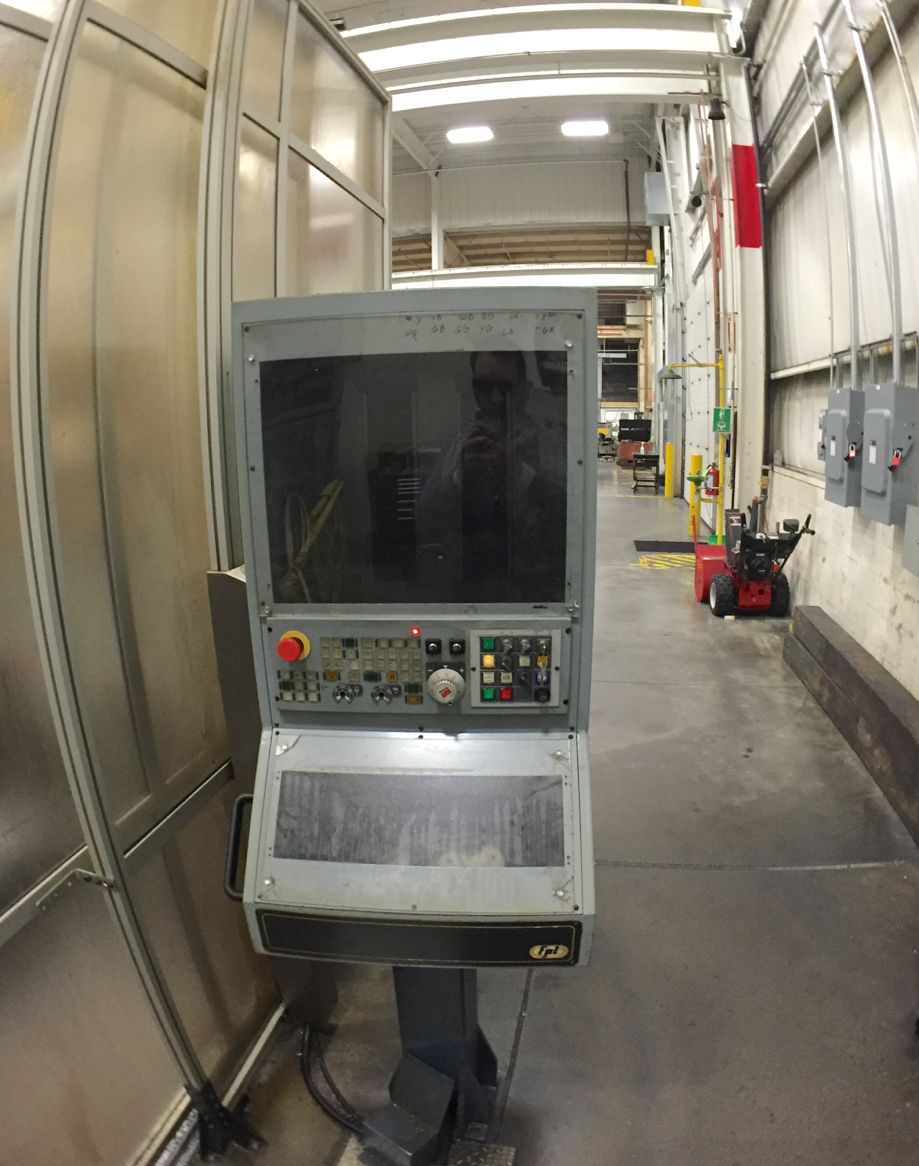

CNC
CNC
FIDIA C10
Measuring system
pressurized linear scale

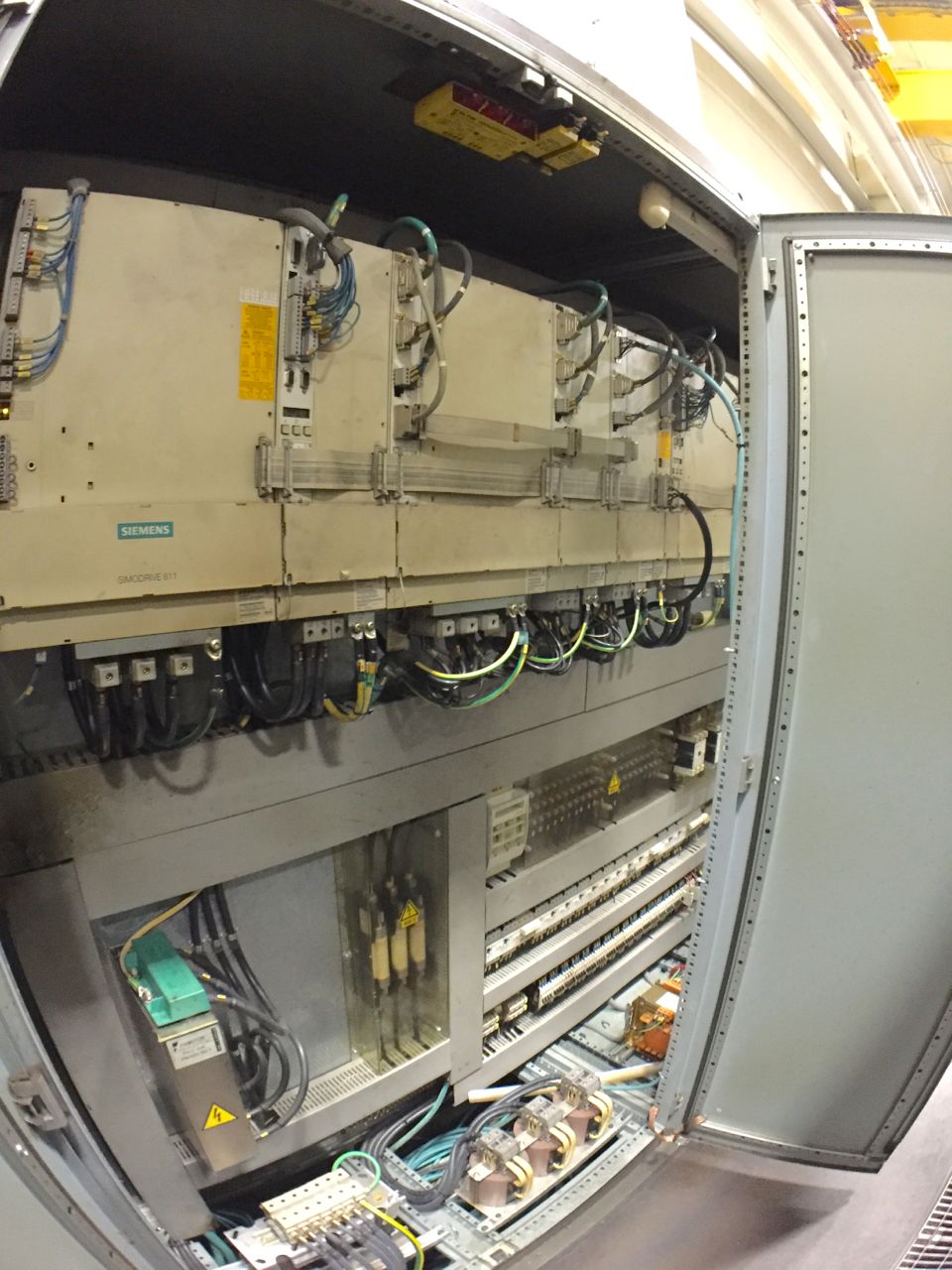

Drives
Siemens
Notes
connessione Ethernet

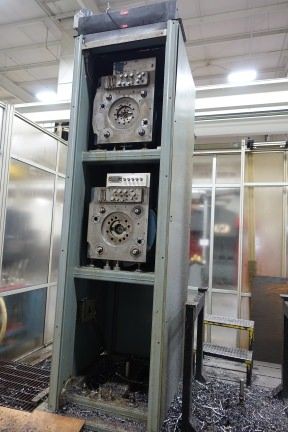

PICK UP STATION FOR HEADS
Positions
3
EXTRA
Relevant updates made on the machine
retrofitting con Heidenhain iTNC530 in 2014, revisione testa 2015, revisione viti, chiocciole asse Z, Rack & pinion asse X in 2015/2016
Total power supply
62 Kw
Floor space
11200x8099x4230 (incl. piano stolle e protezioni perimetrali) mm440,94x318,86x166,54 (incl. piano stolle e protezioni perimetrali) in

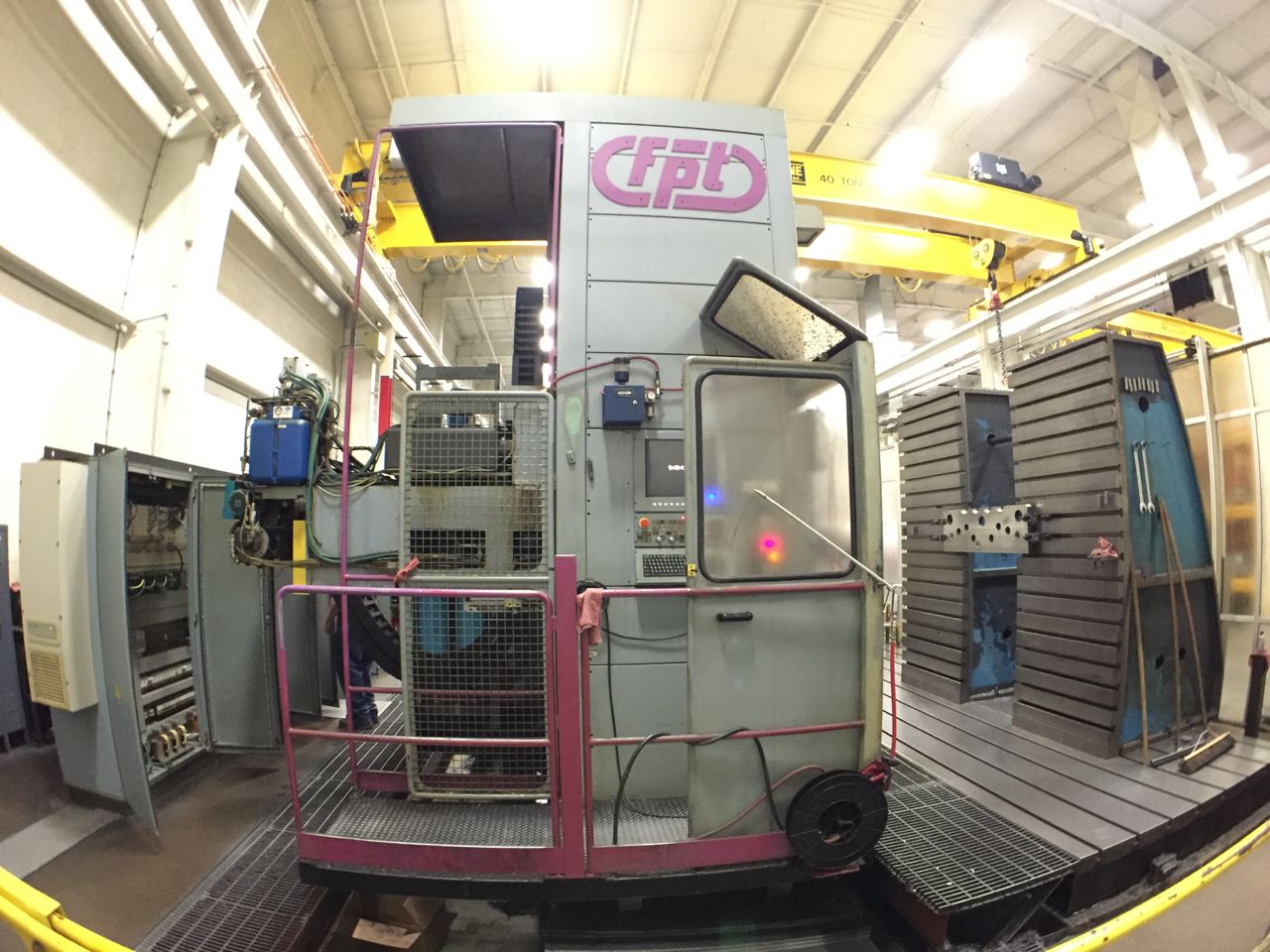

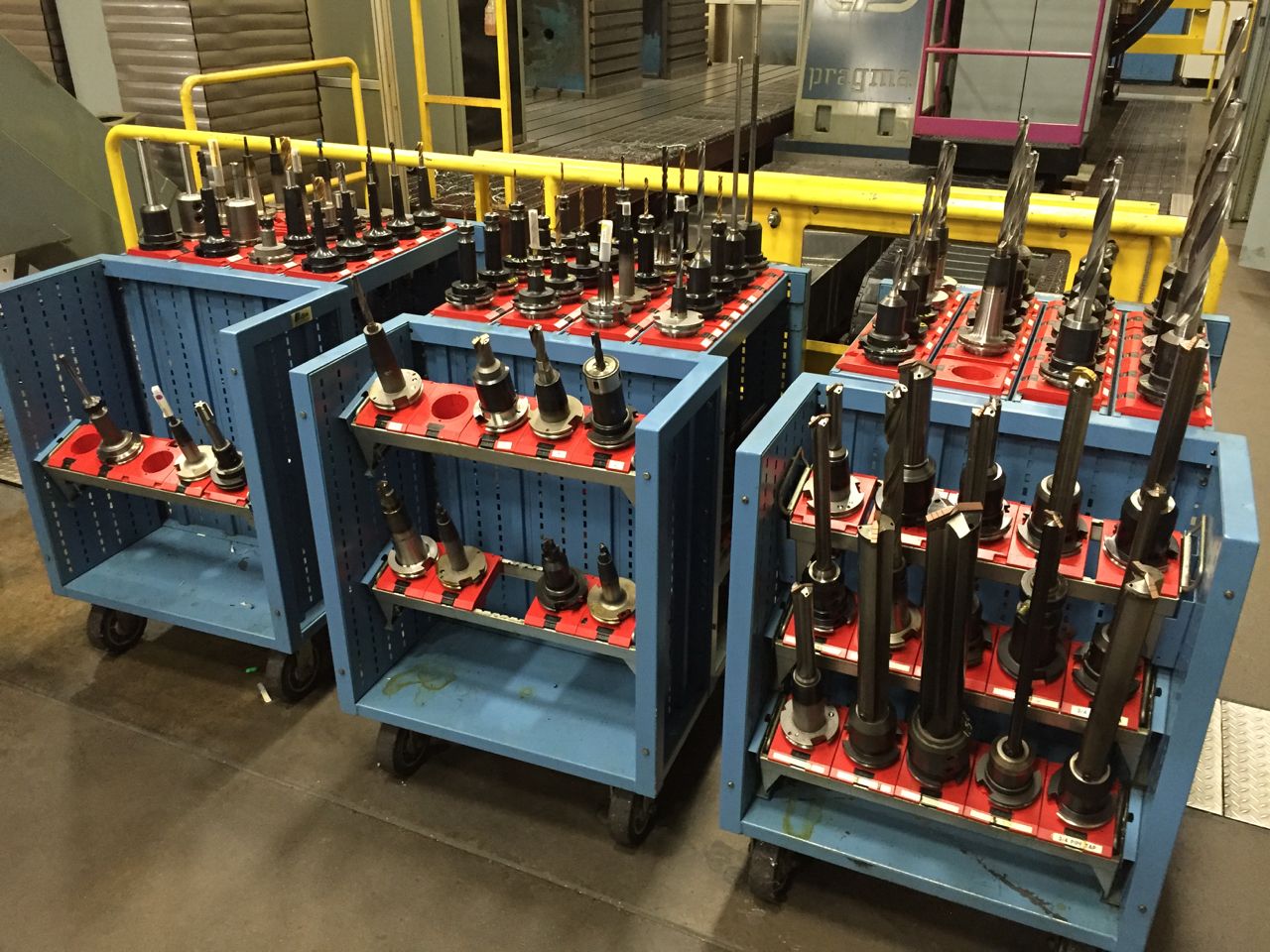

Tooling included

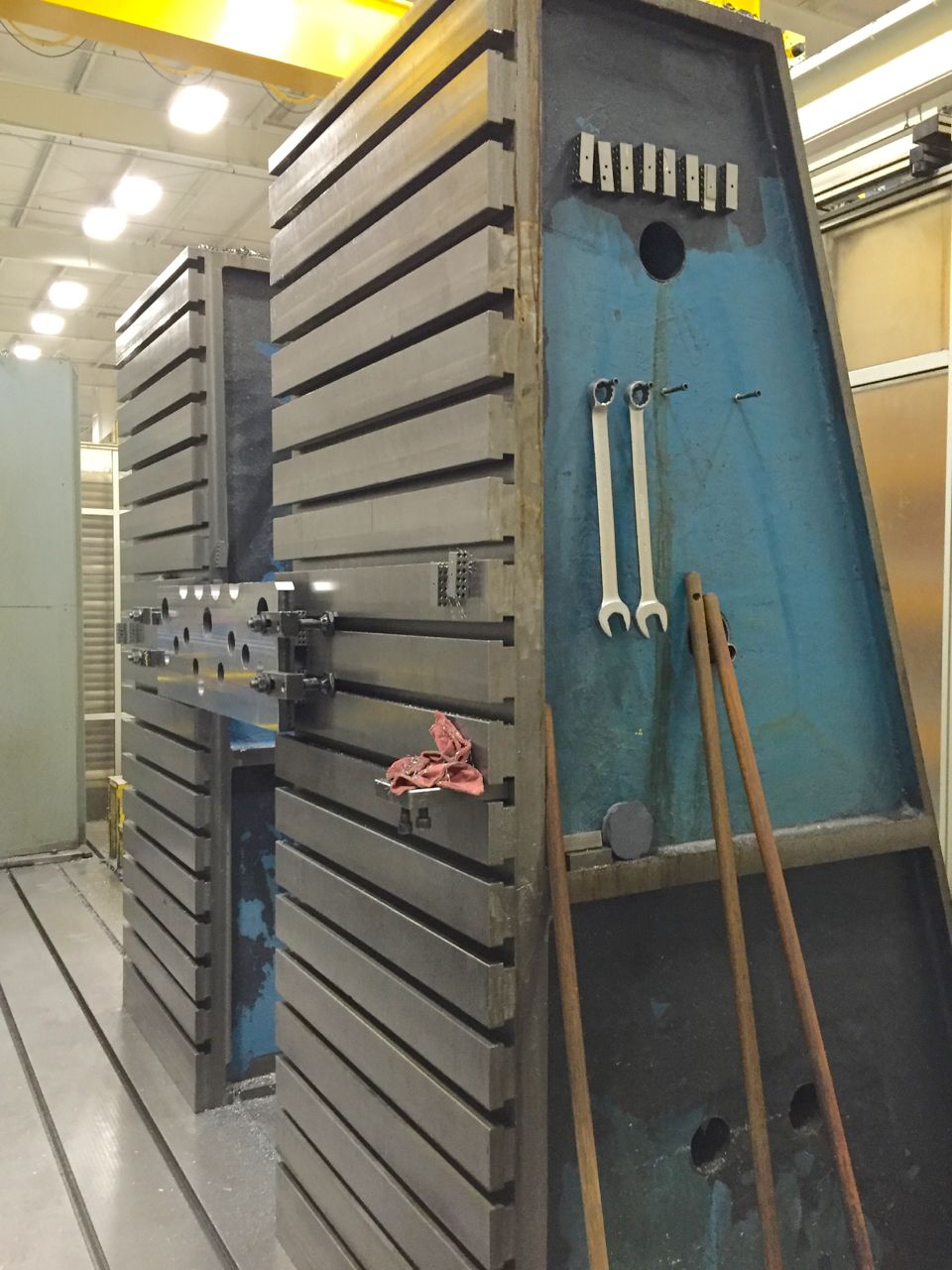

n.2 squadre 2500x1000x1200mm con cave a T, n.1 piano Stolle 7000x2000x300mm,
High Pressure
20Bar attraverso mandrino
Filtration unit
Vasca filtro a carta
Chiller
si
Maintenance & Use books
Yes

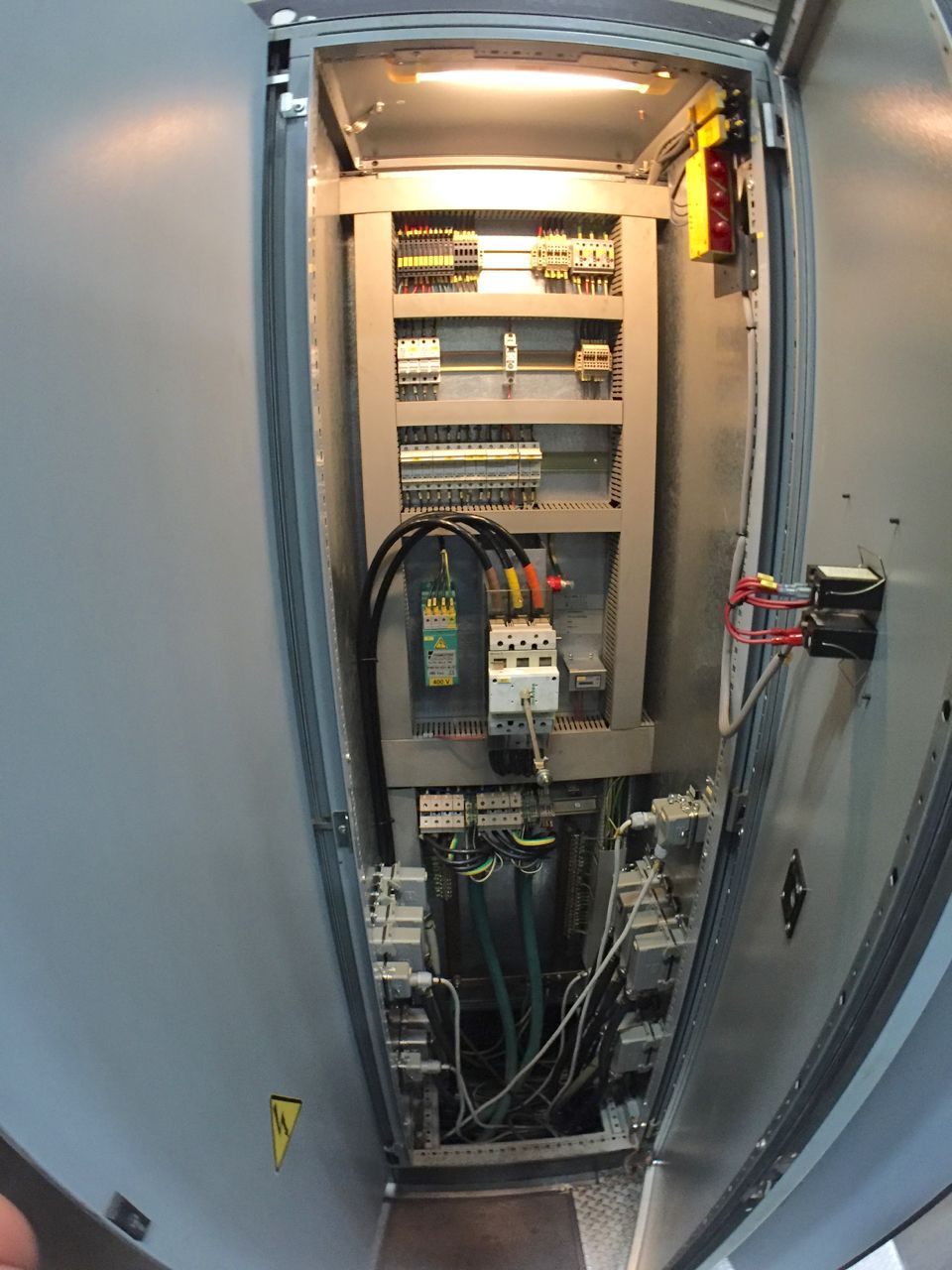

Electrical drawings
Yes
Housing
perimetrale completa

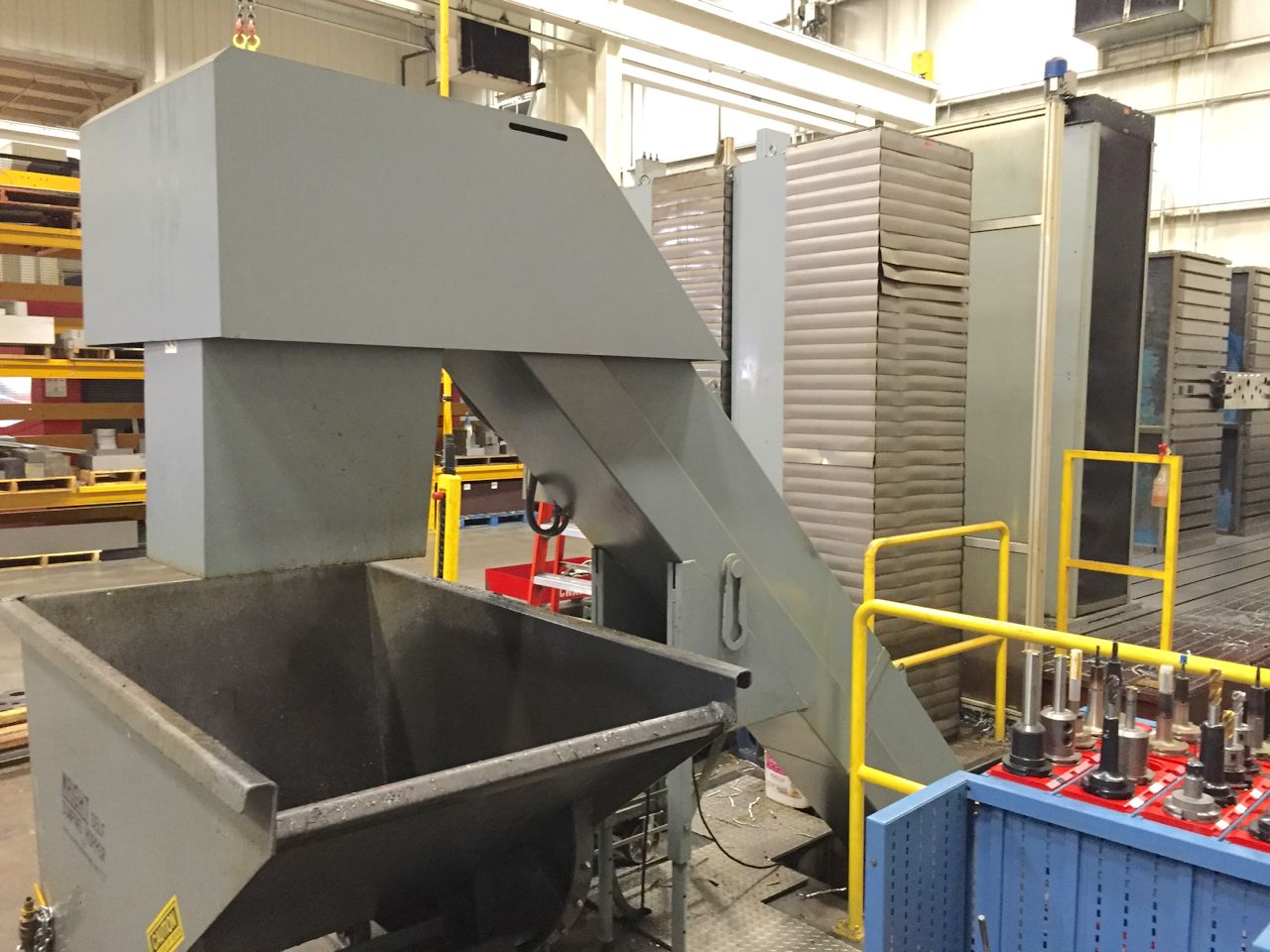

Chip conveyor
si
Available under power
si
Machine total weight
≈50.000 Kg
The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy cannot be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!
