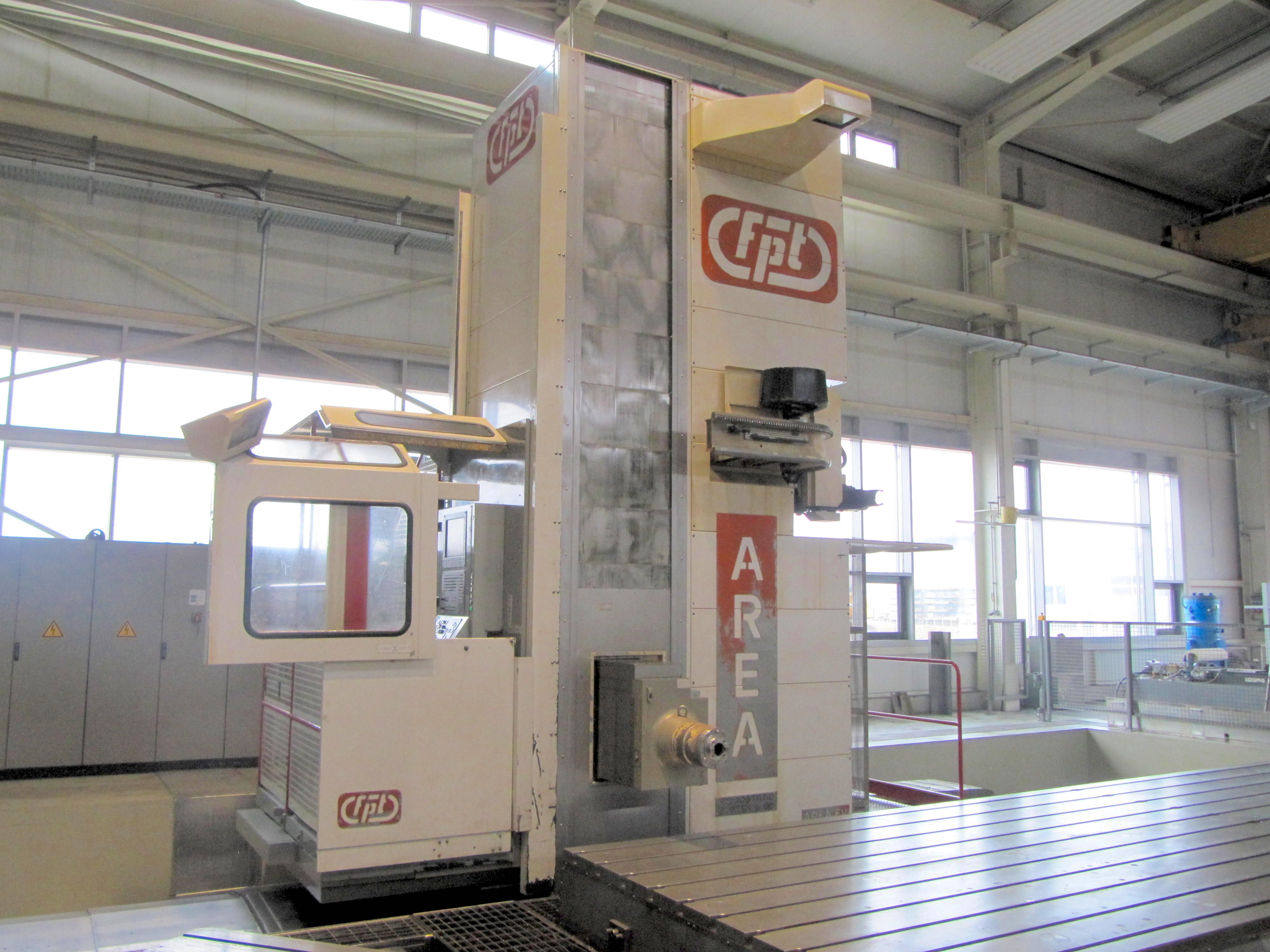

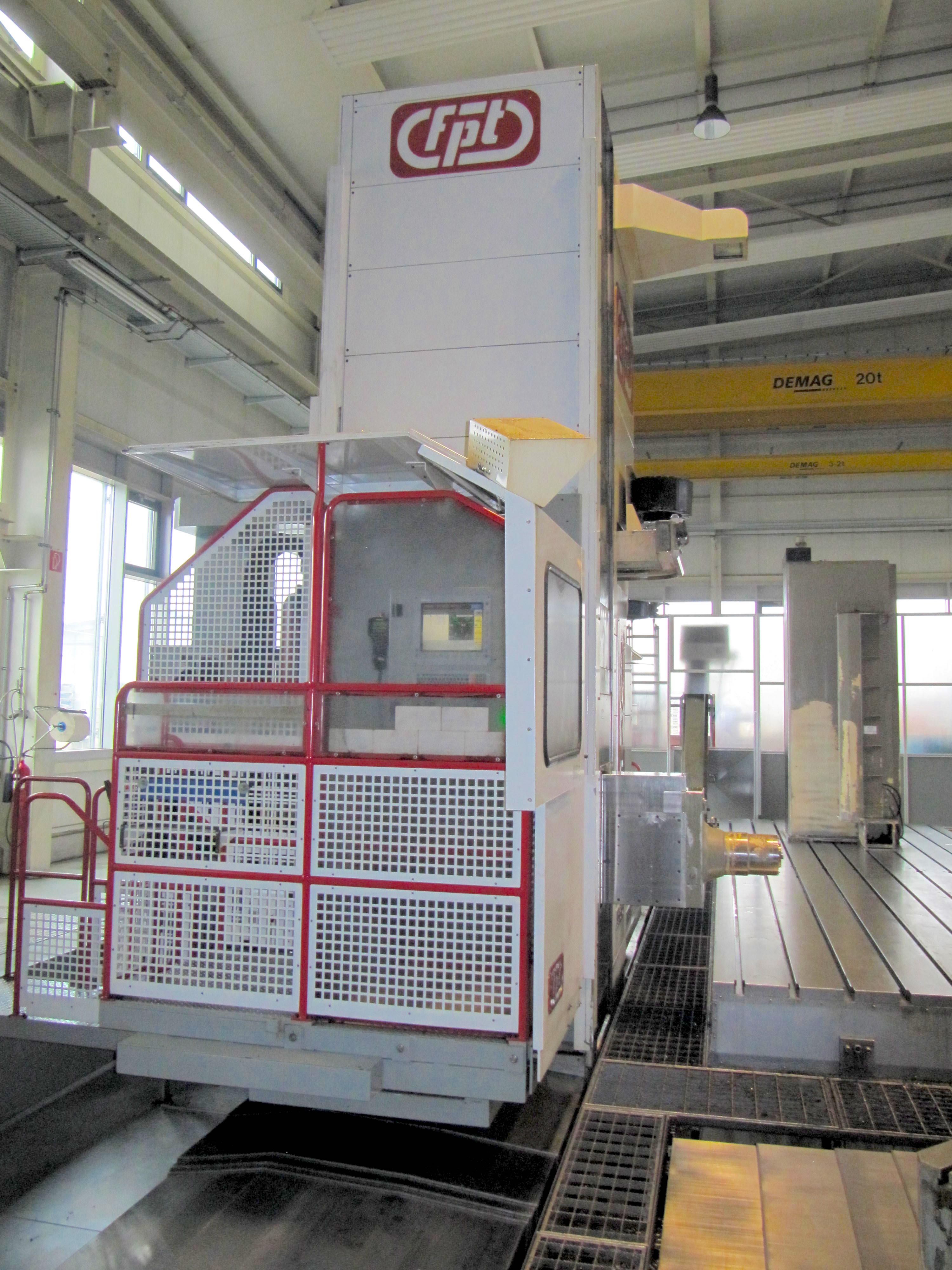

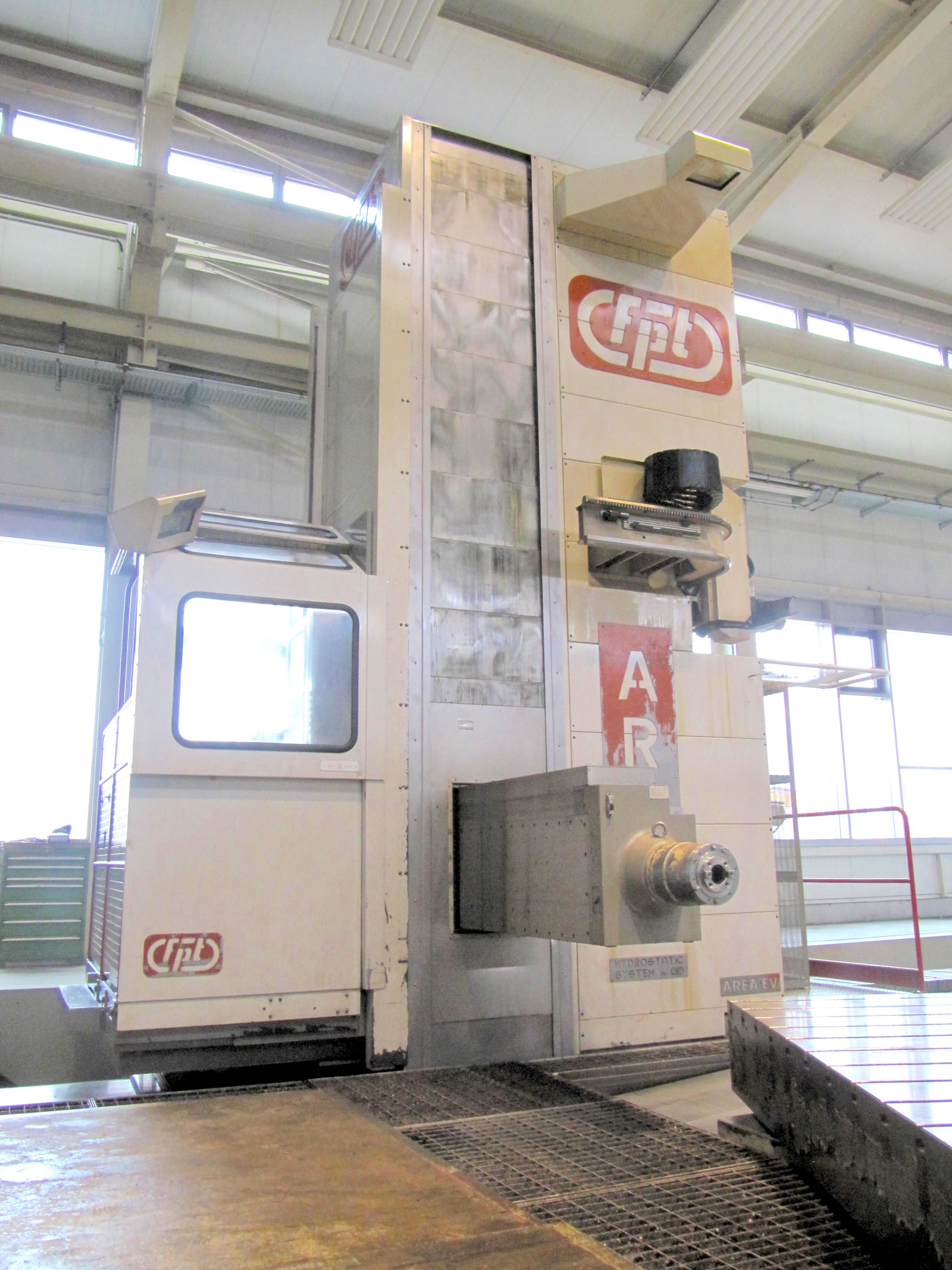

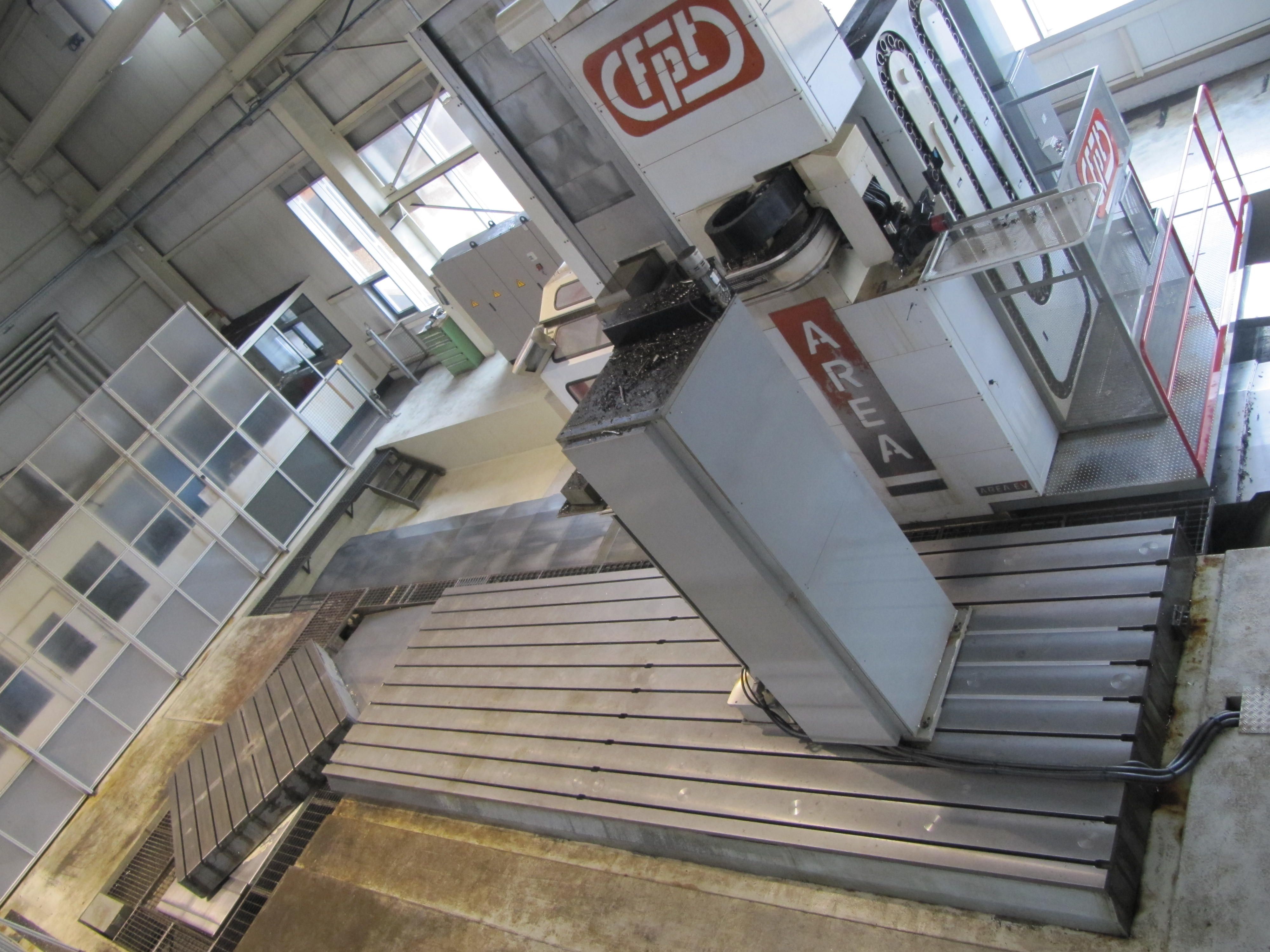

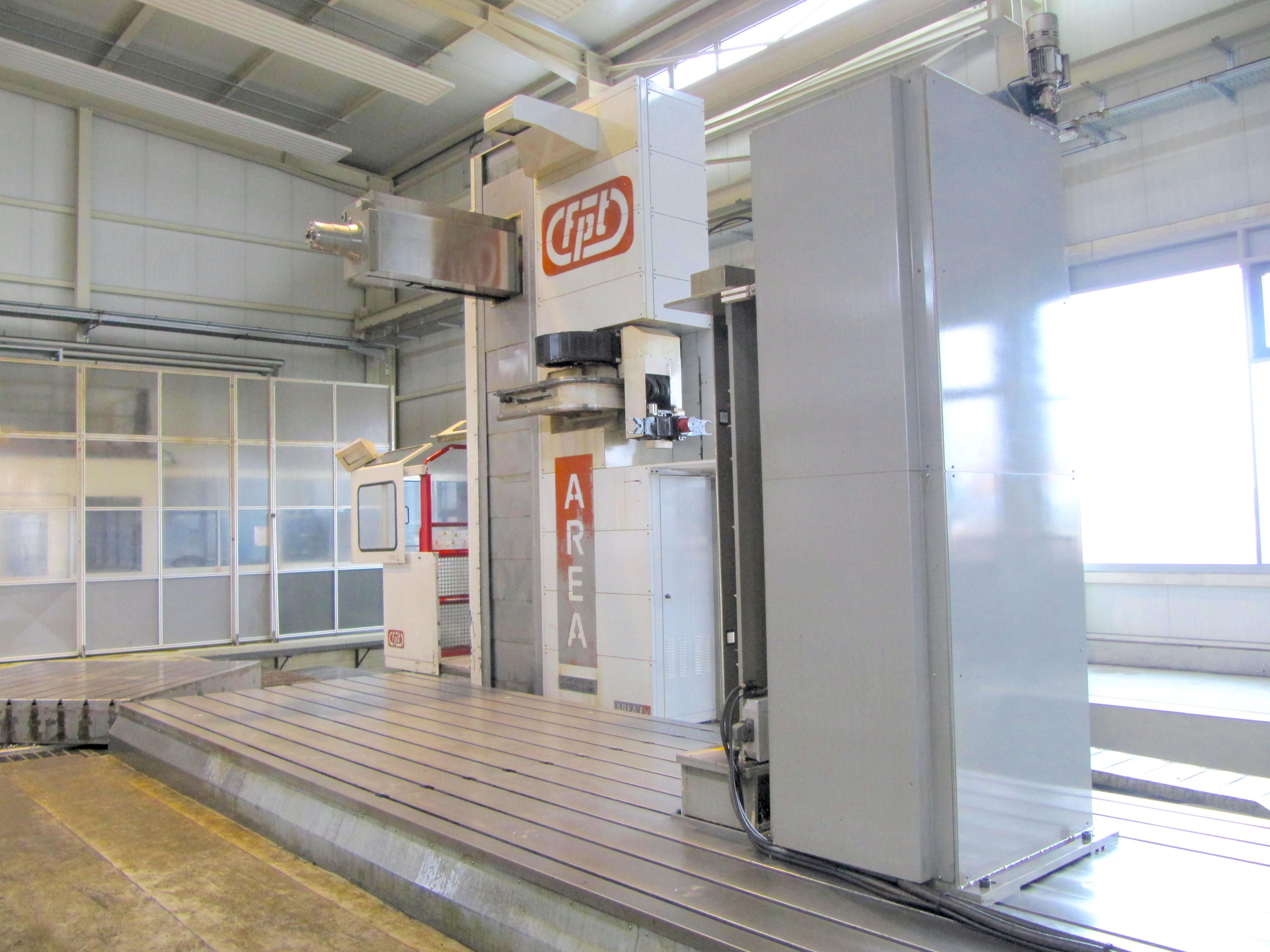

Category

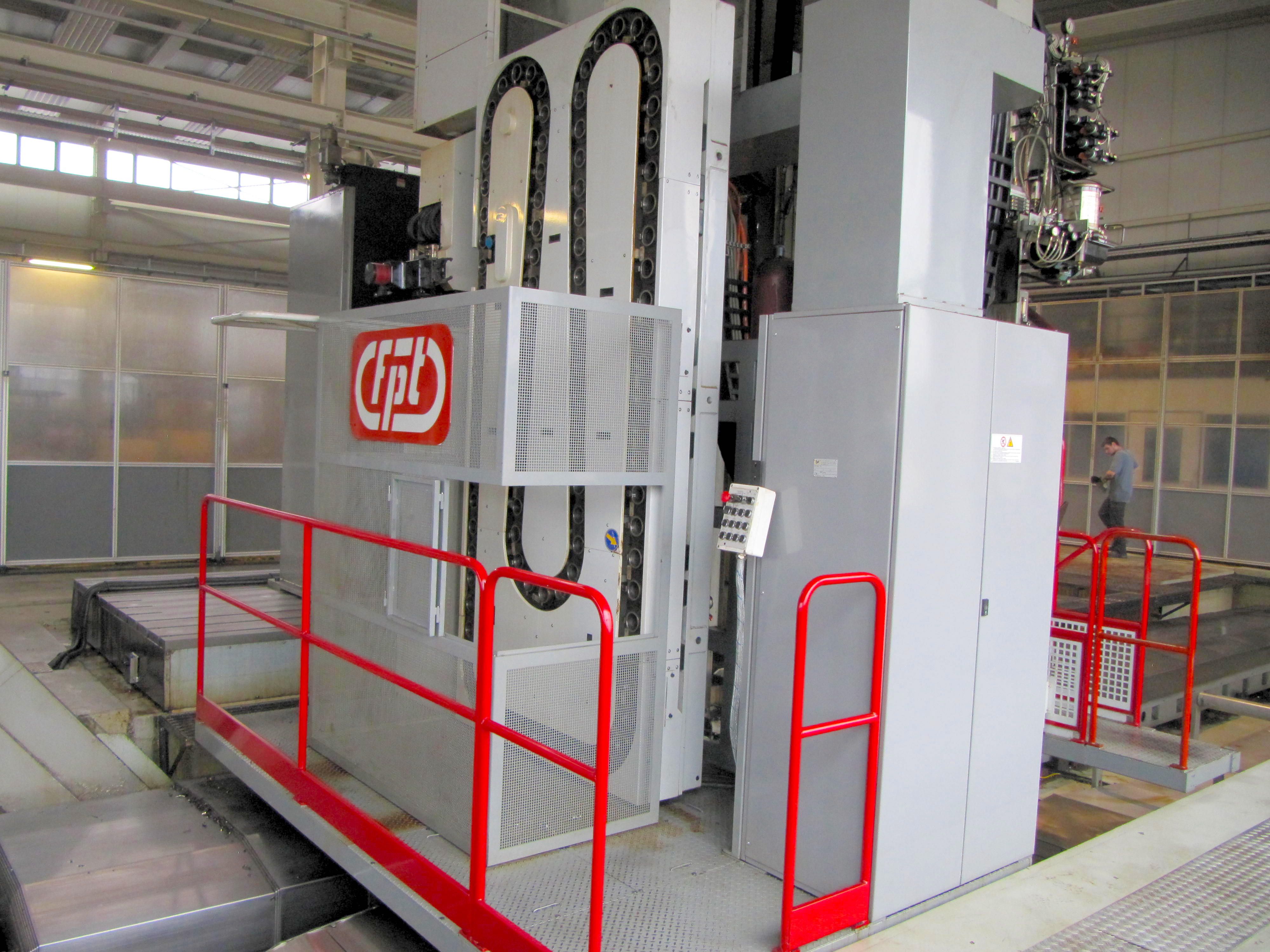

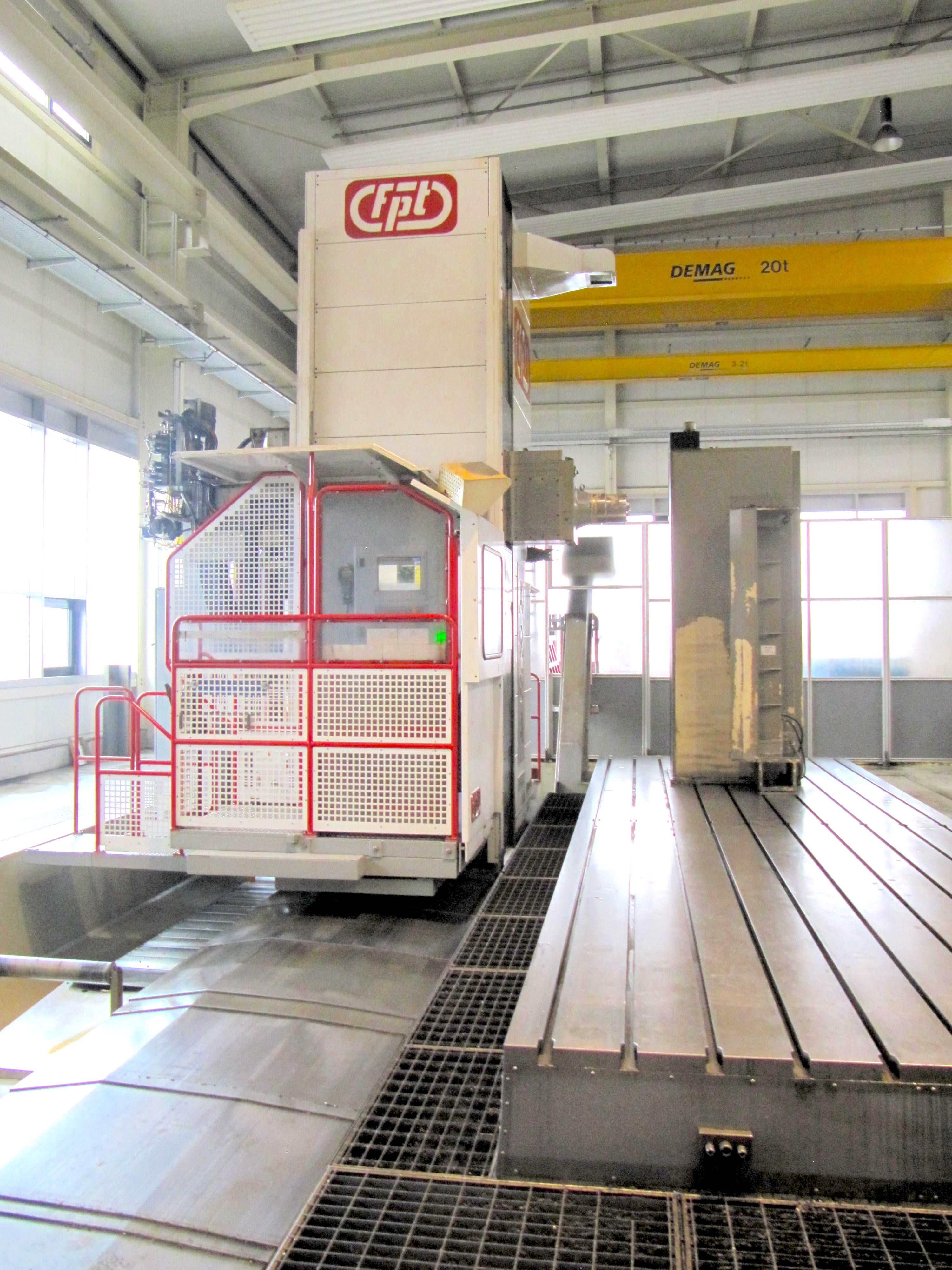

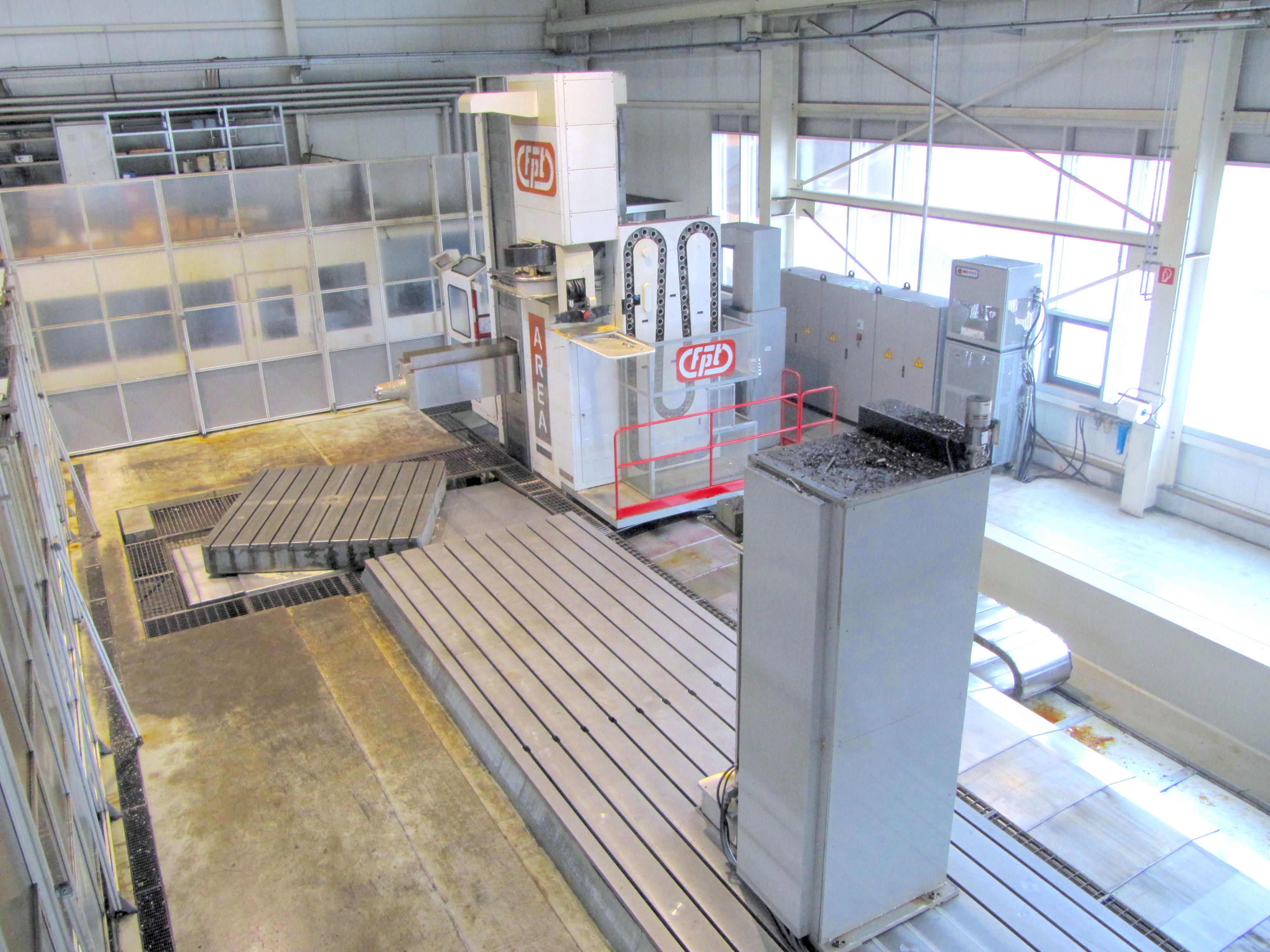

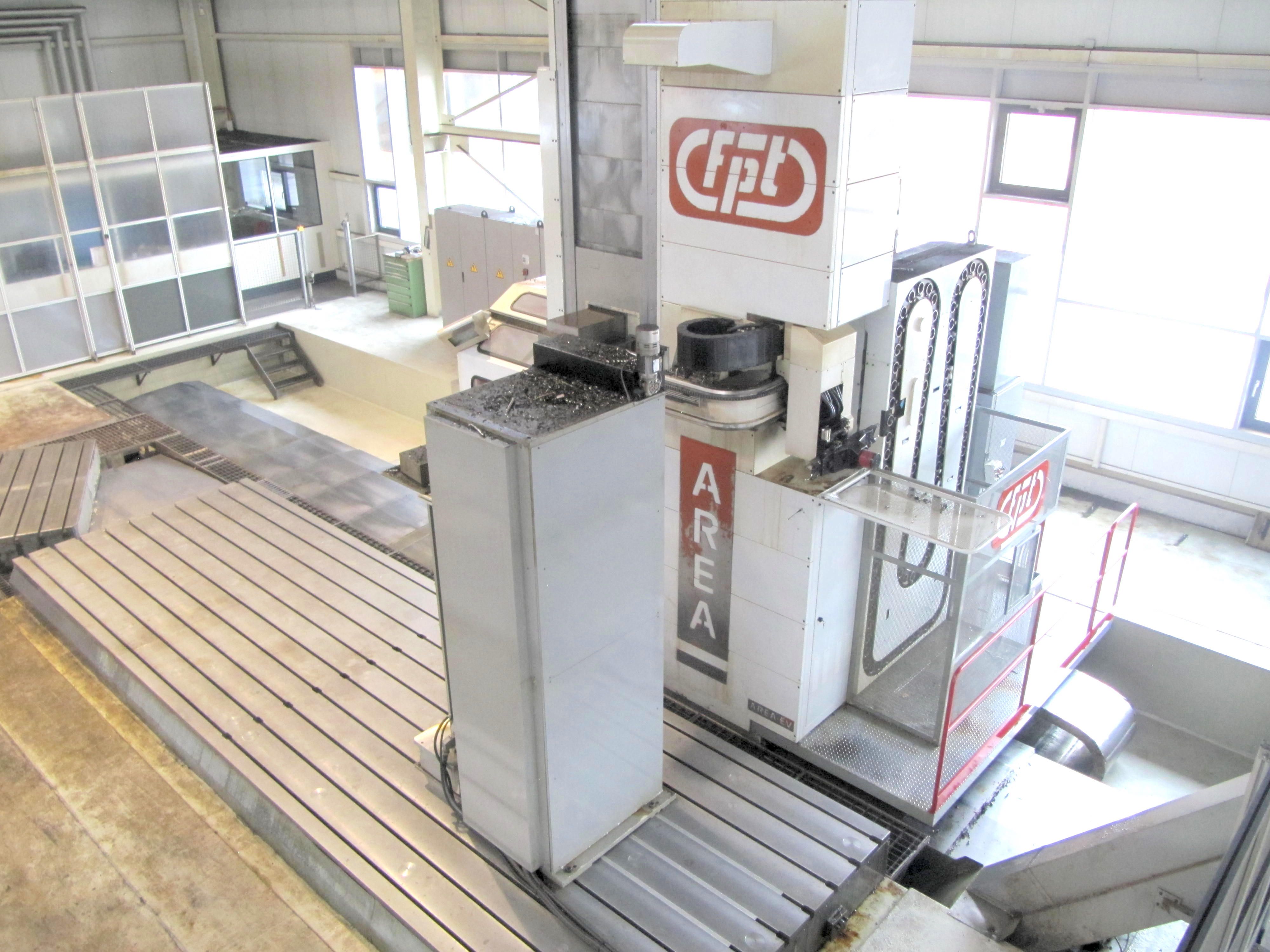

Milling machine
Type
mobile column
Made
Model

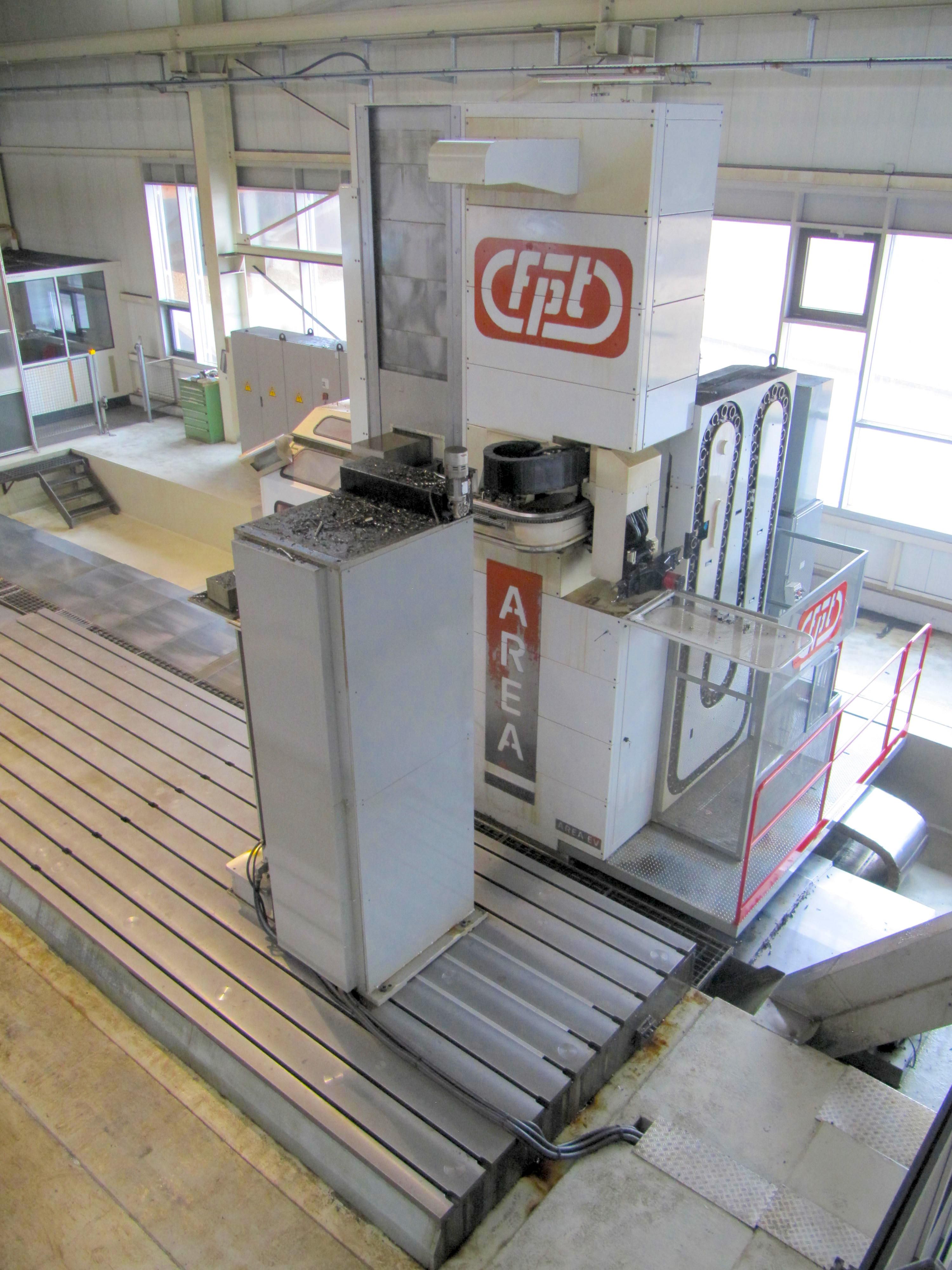

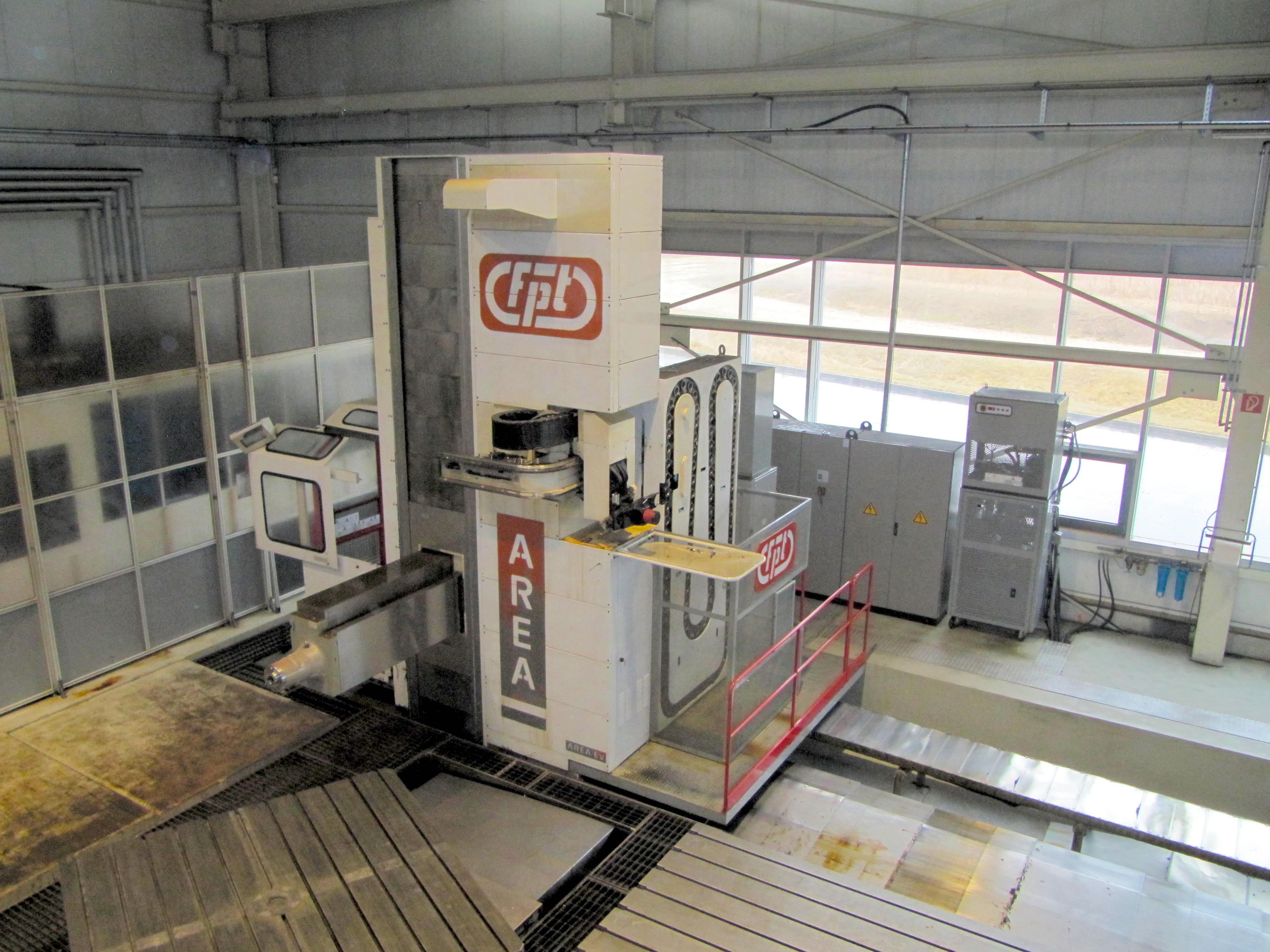

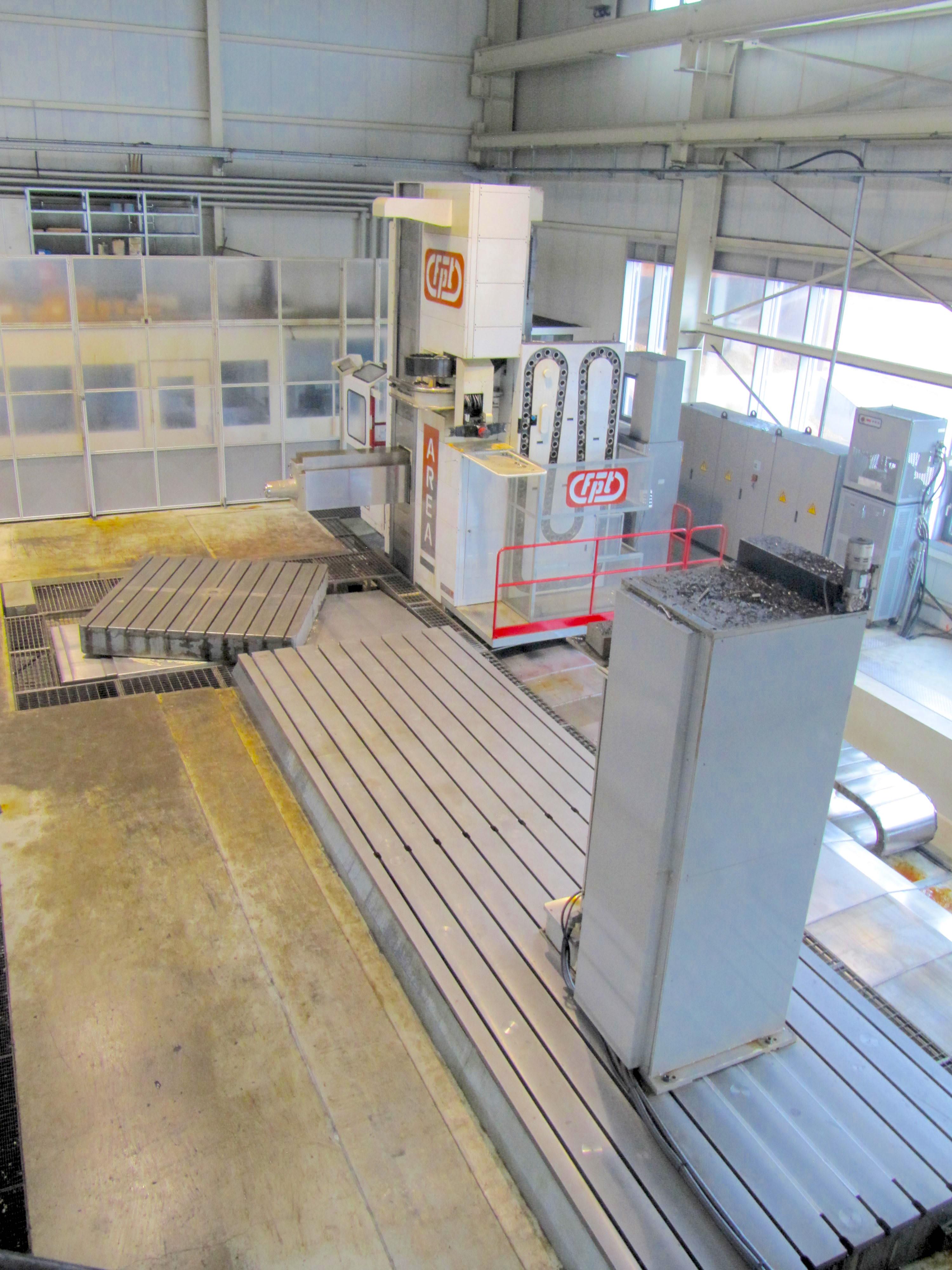

AREA EV100
Capacity
10000x3500x1500+1500 mm393,70x137,80x59,06+59,06 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Longitudinal (X)
10000 mm393,70 in
Vertical (Y)
3500 mm137,80 in
Cross RAM (Z)
1500 mm59,06 in
Table (V)
1500 mm59,06 in
Axes support
Hydrostatic

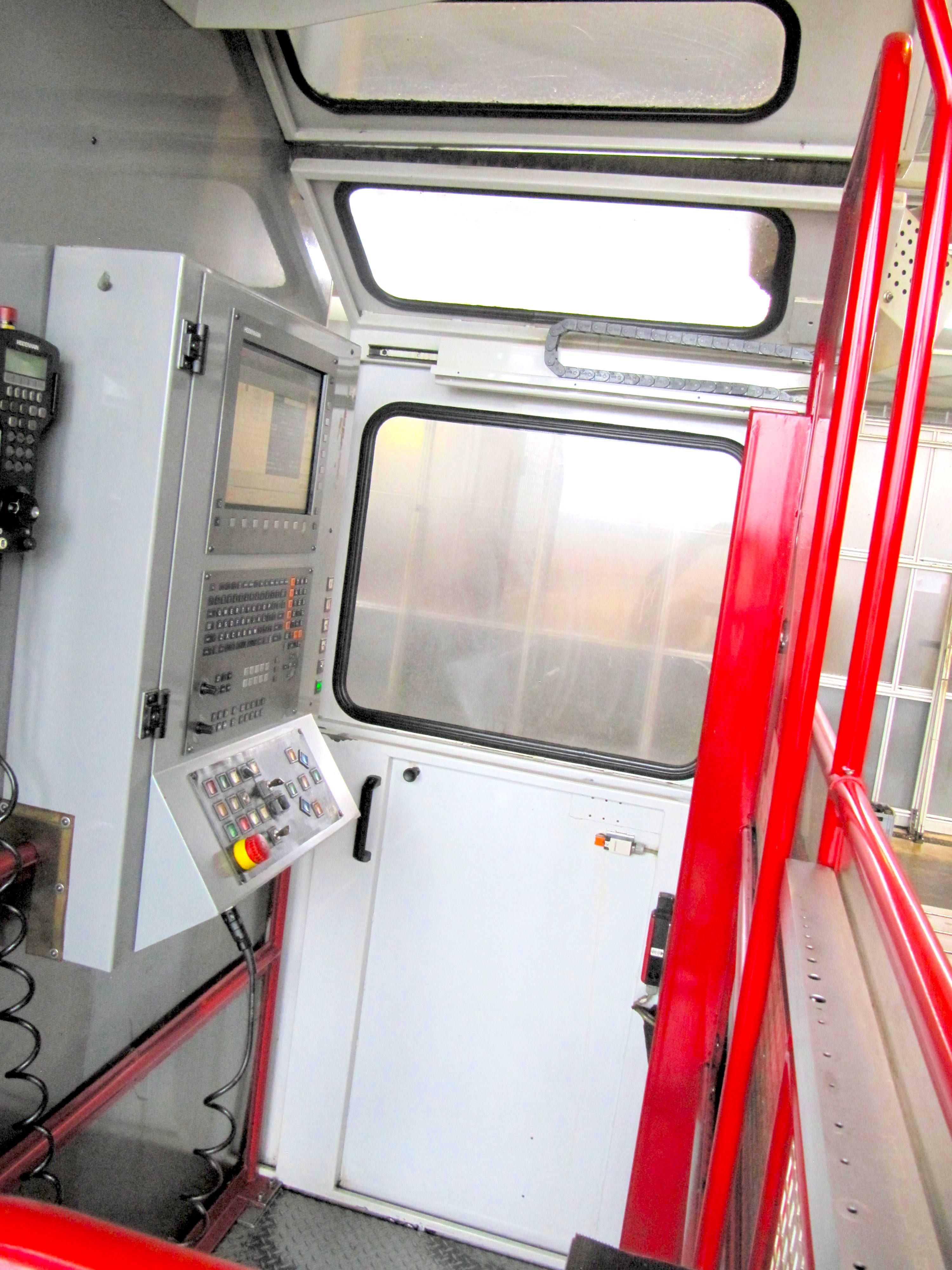

CNC
CNC

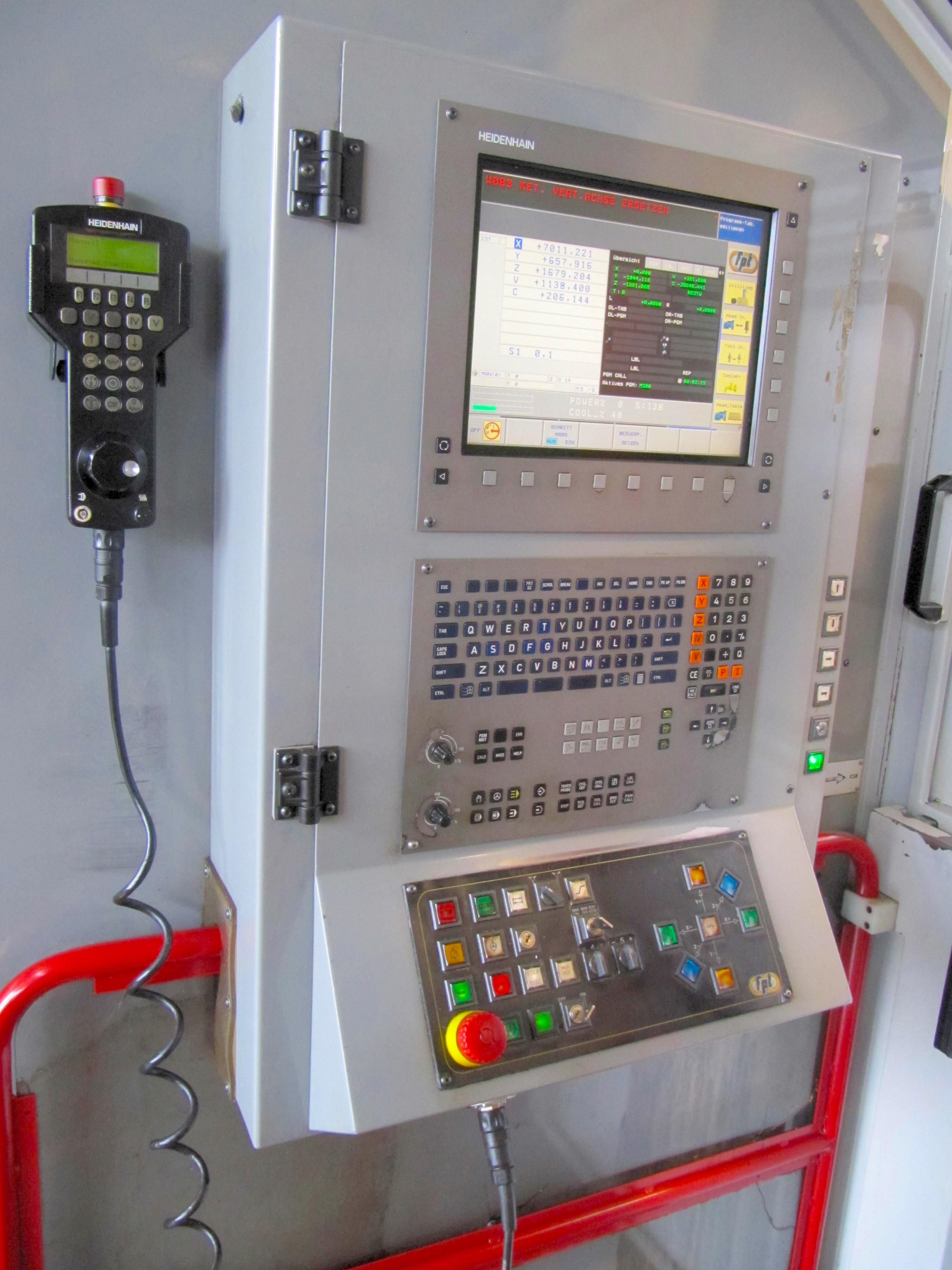

Heidenhain iTNC530
Drives
Siemen Sinumerik
SPINDLE
Spindle power
46/37 Kw
Rotating speed
5000 Rpm
Torque
1.691 - 2.045 Nm
Taper
ISO50

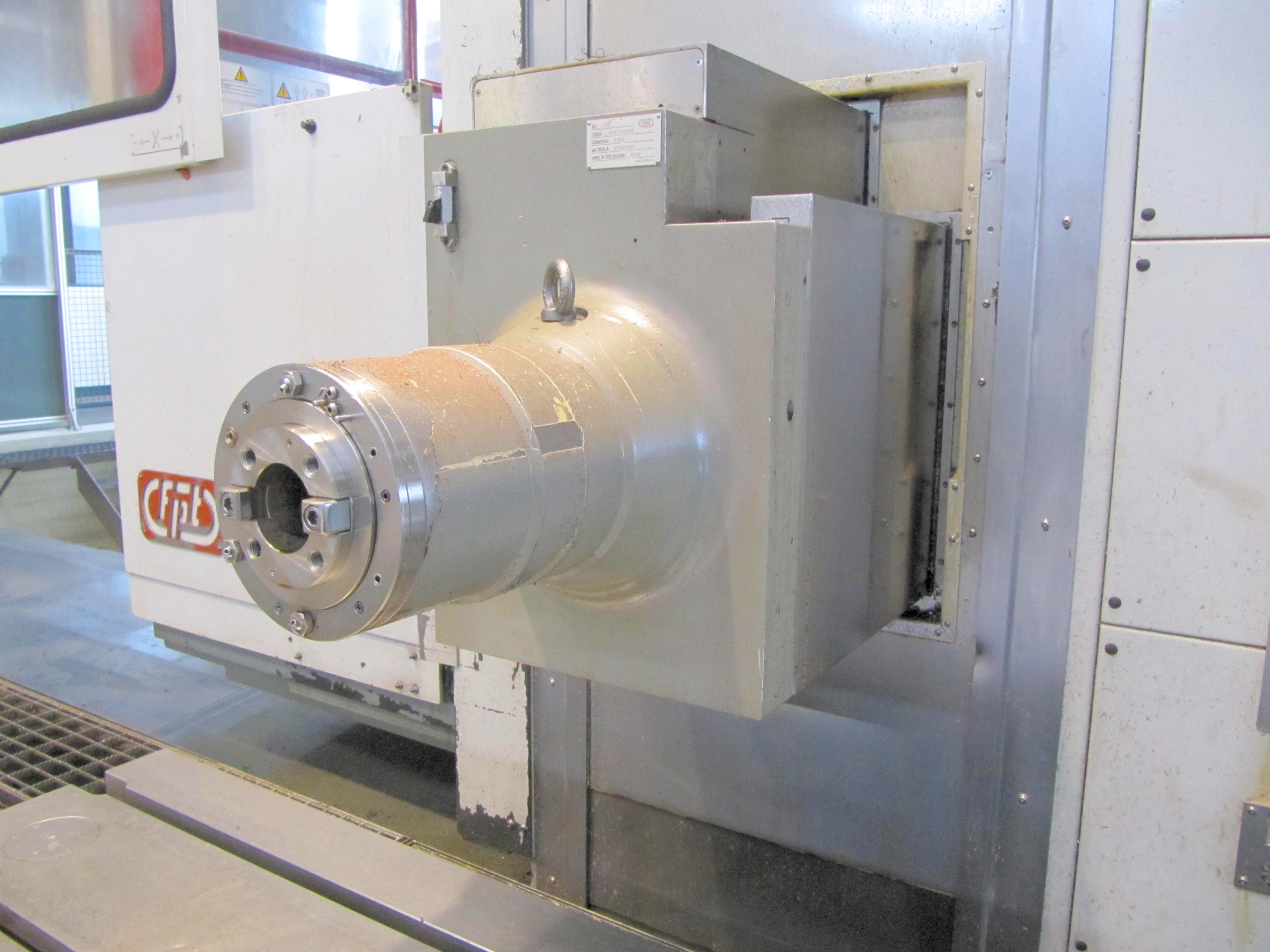

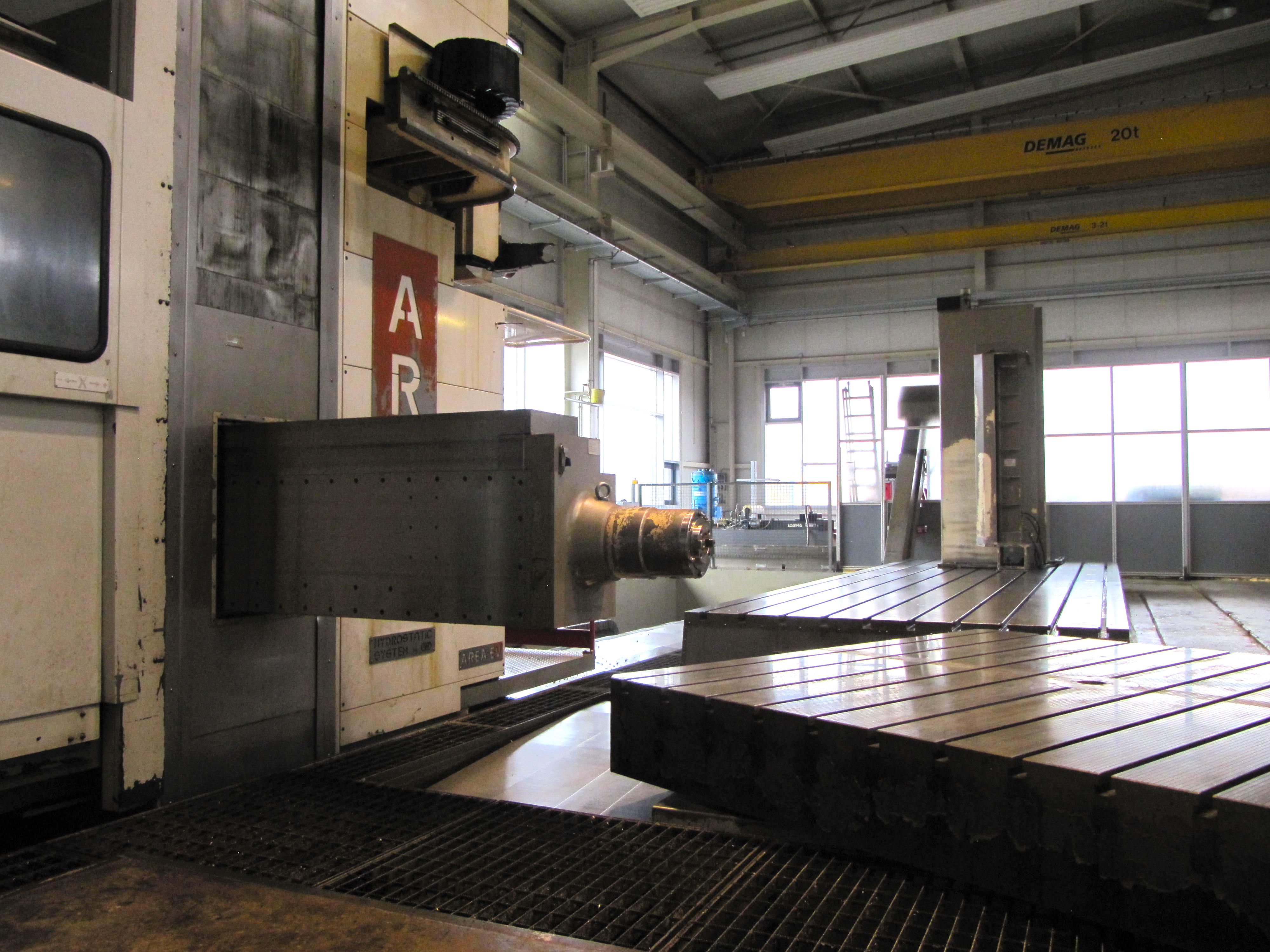

RAM section
700x500 mm27,56x19,69 in
FEEDS
Rapid X
25 m/min984,25 ipm
Rapid Y
25 m/min984,25 ipm
Rapid Z
25 m/min984,25 ipm
X
6 m/min236,22 ipm
Y
6 m/min236,22 ipm
Z
6 m/min236,22 ipm
Rapid V
25 m/min984,25 ipm
V
6 m/min236,22 ipm

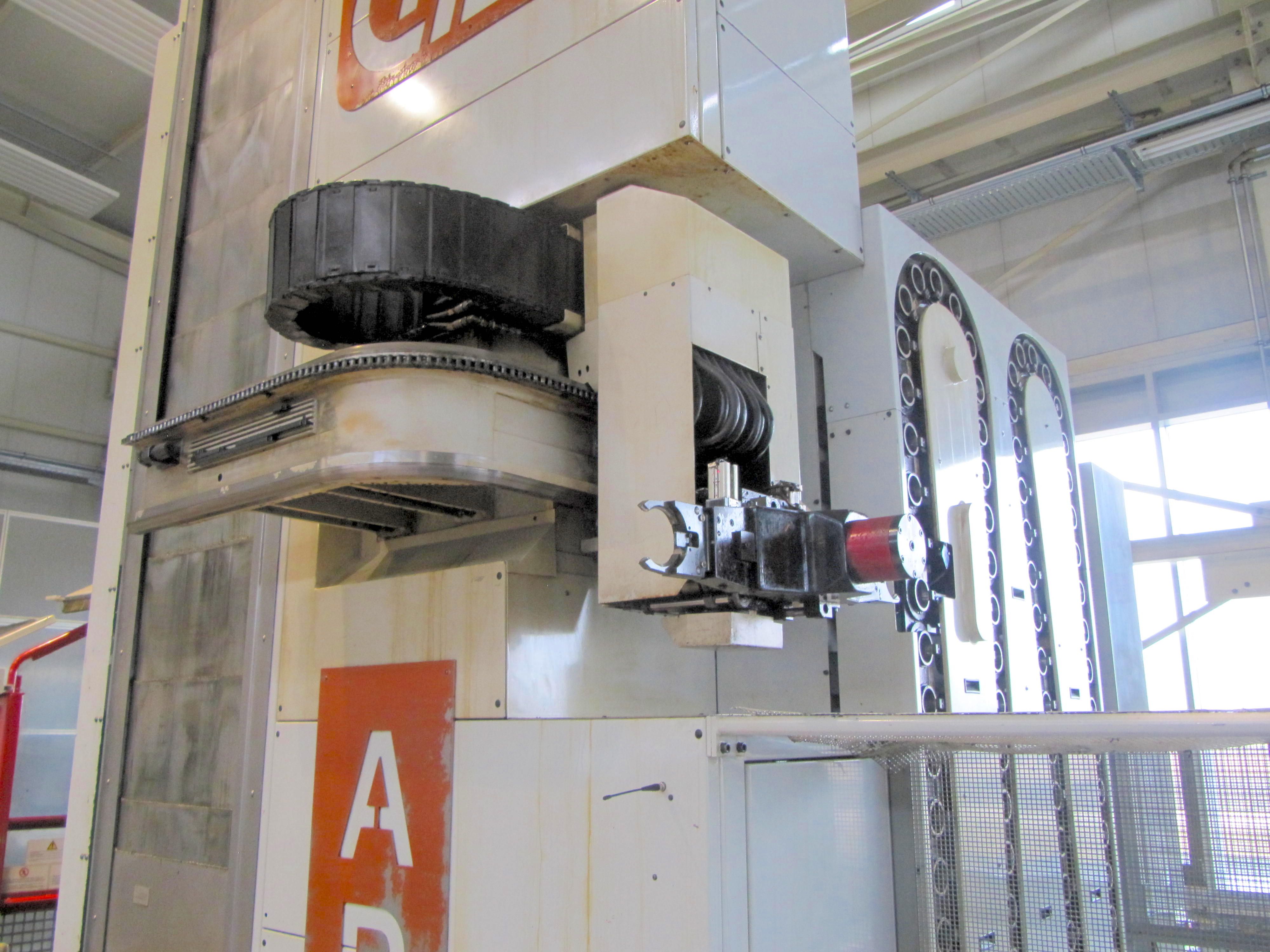

ATC
Positions
100

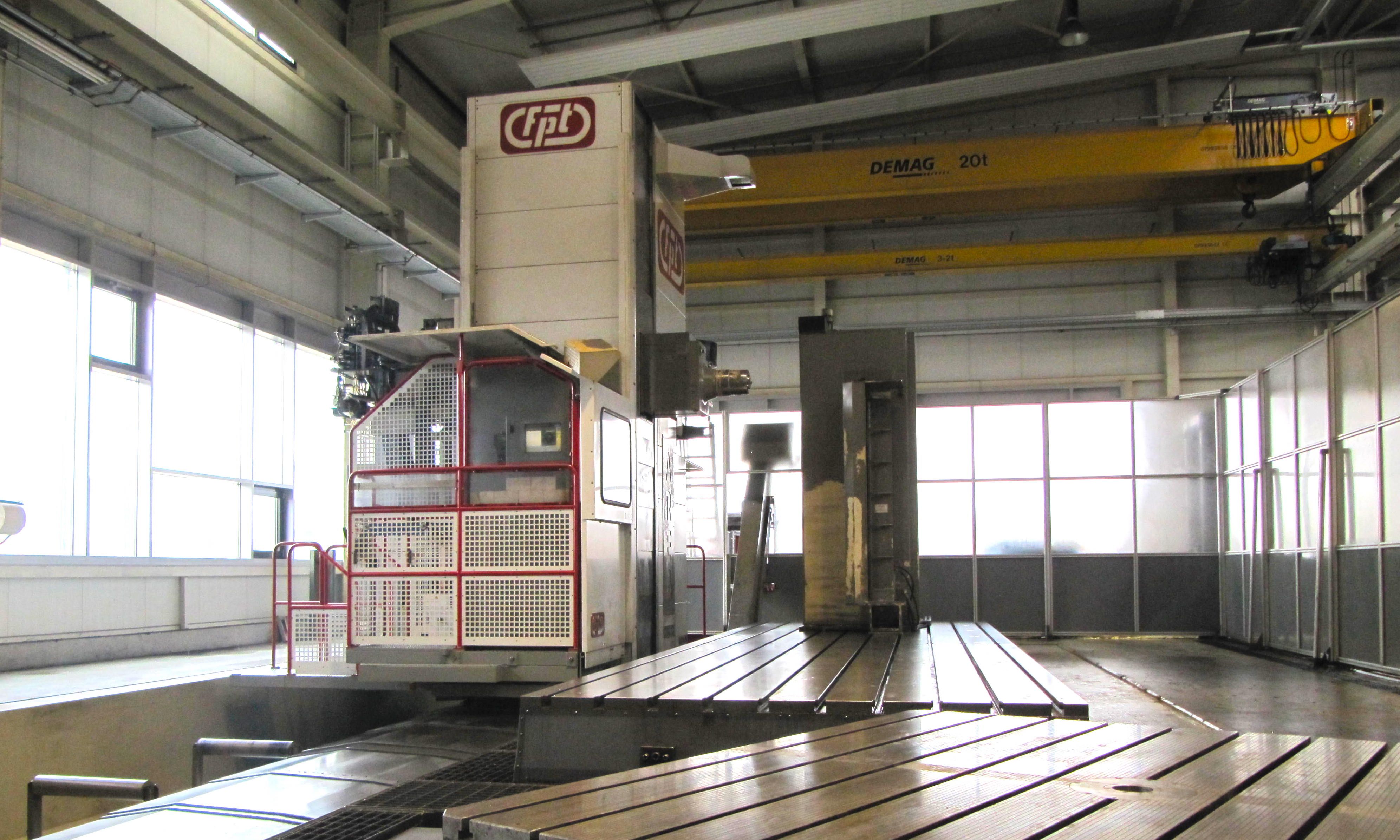

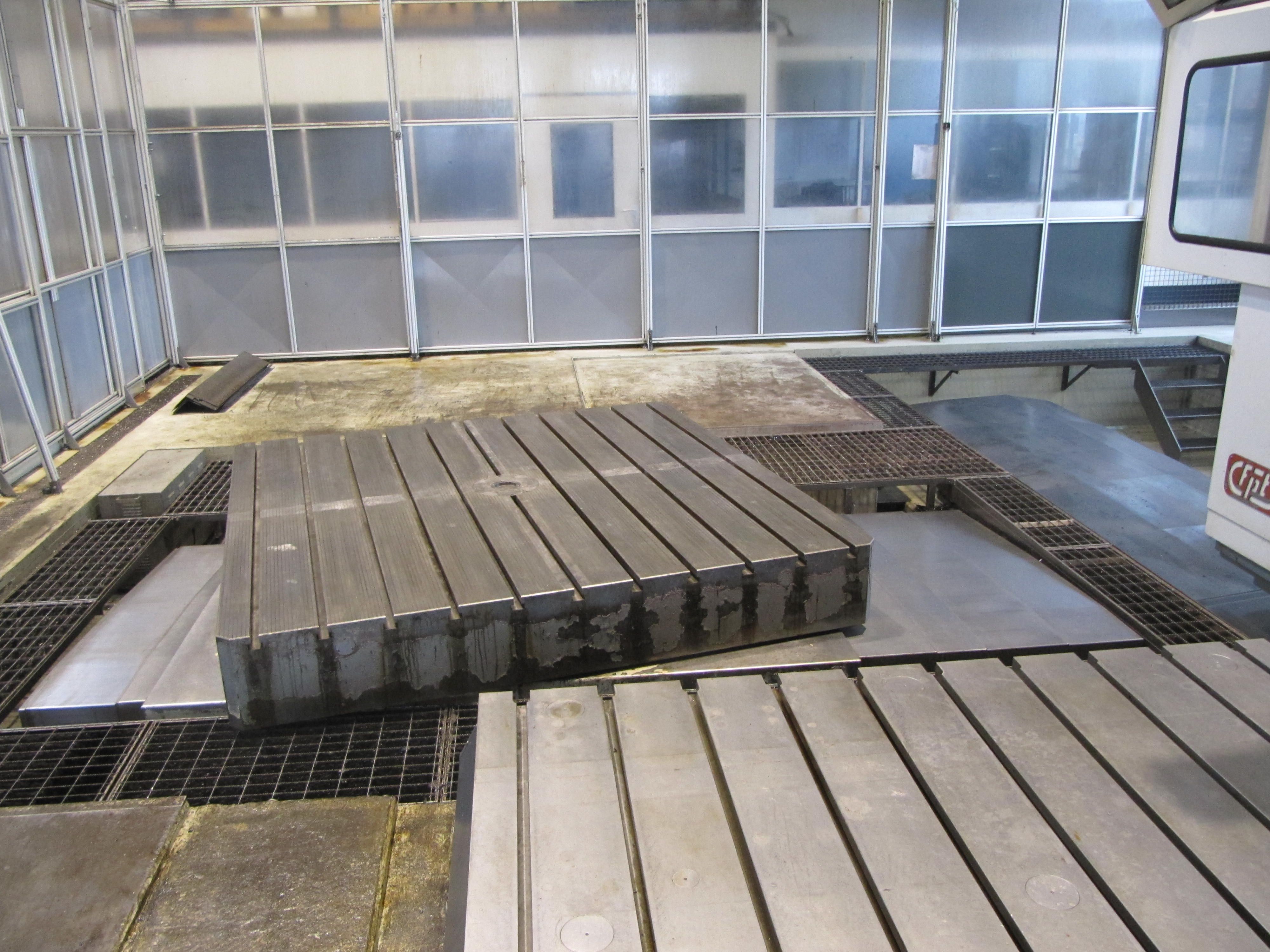

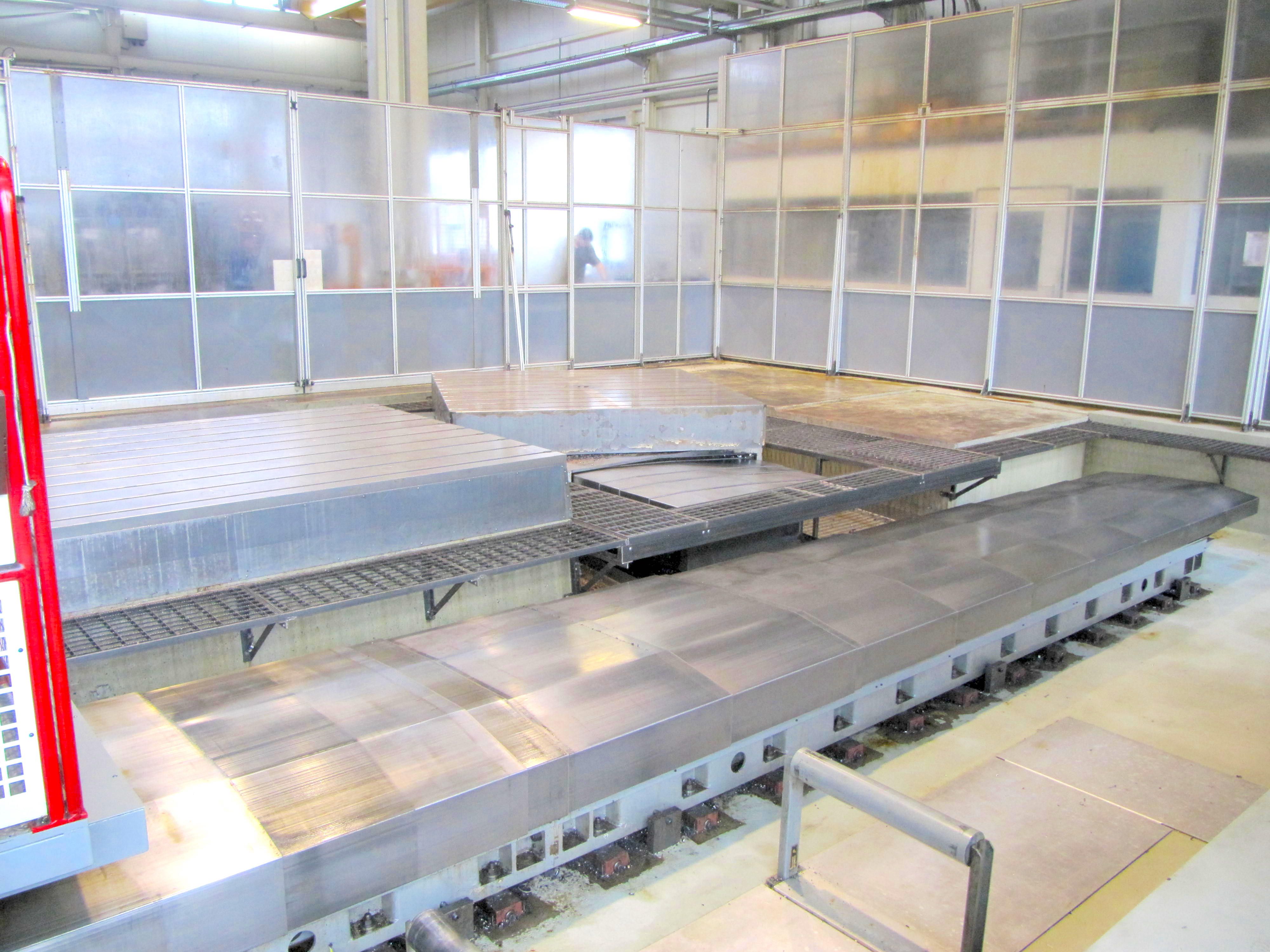

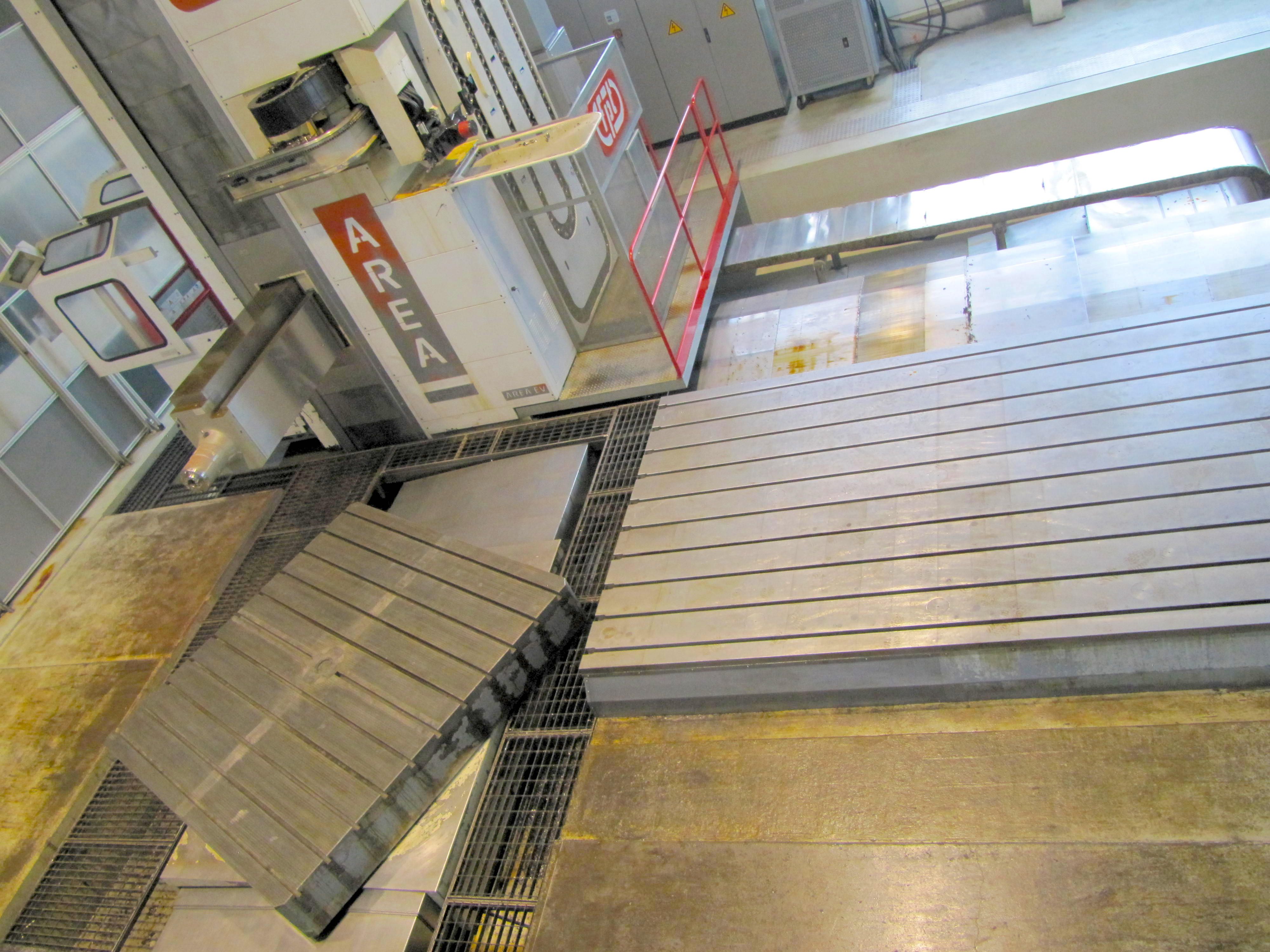

FIXING TABLE
Floorspace (LxWxH)
10000x2500 mm393,70x98,43 in
Capacity
10000 Kg/mq

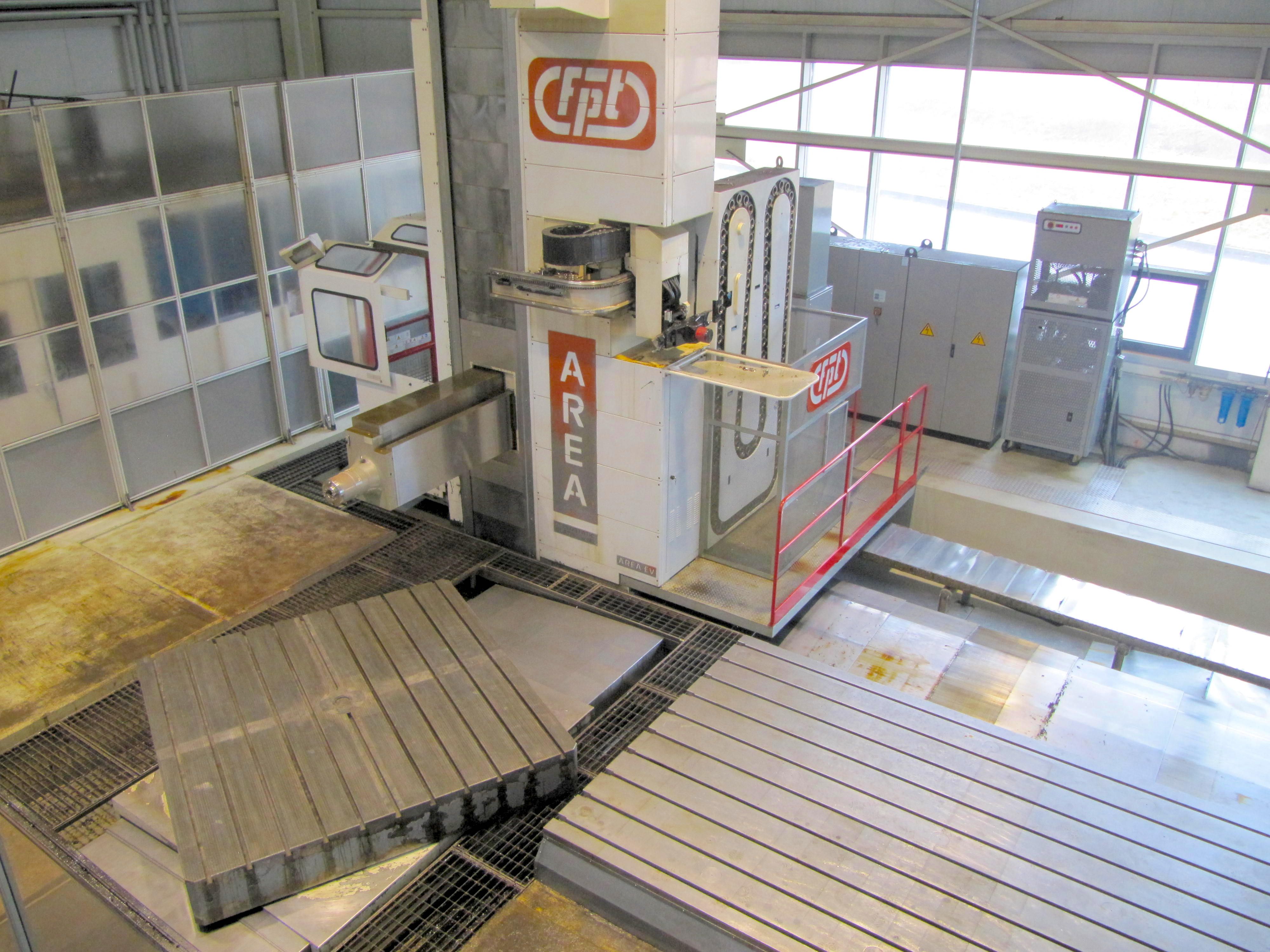

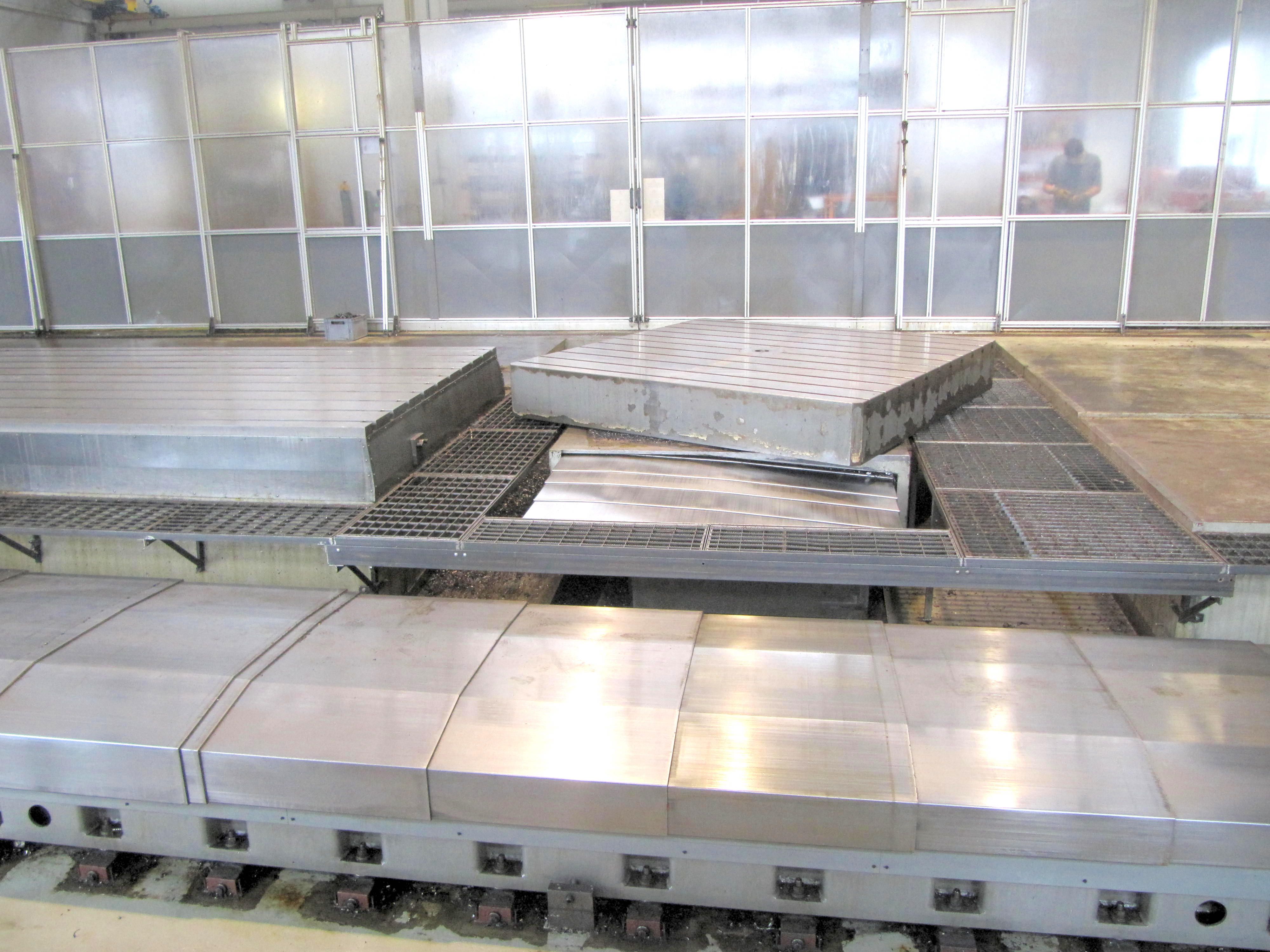

TABLE 1
Surface
2500x2500 mm98,43x98,43 in
Accuracy (B axis)
0,001 °
Capacity
40.000 Kg
Translation
1500 mm59,06 in
Support
Hydrostatic
PICK UP STATION FOR HEADS
Positions
3

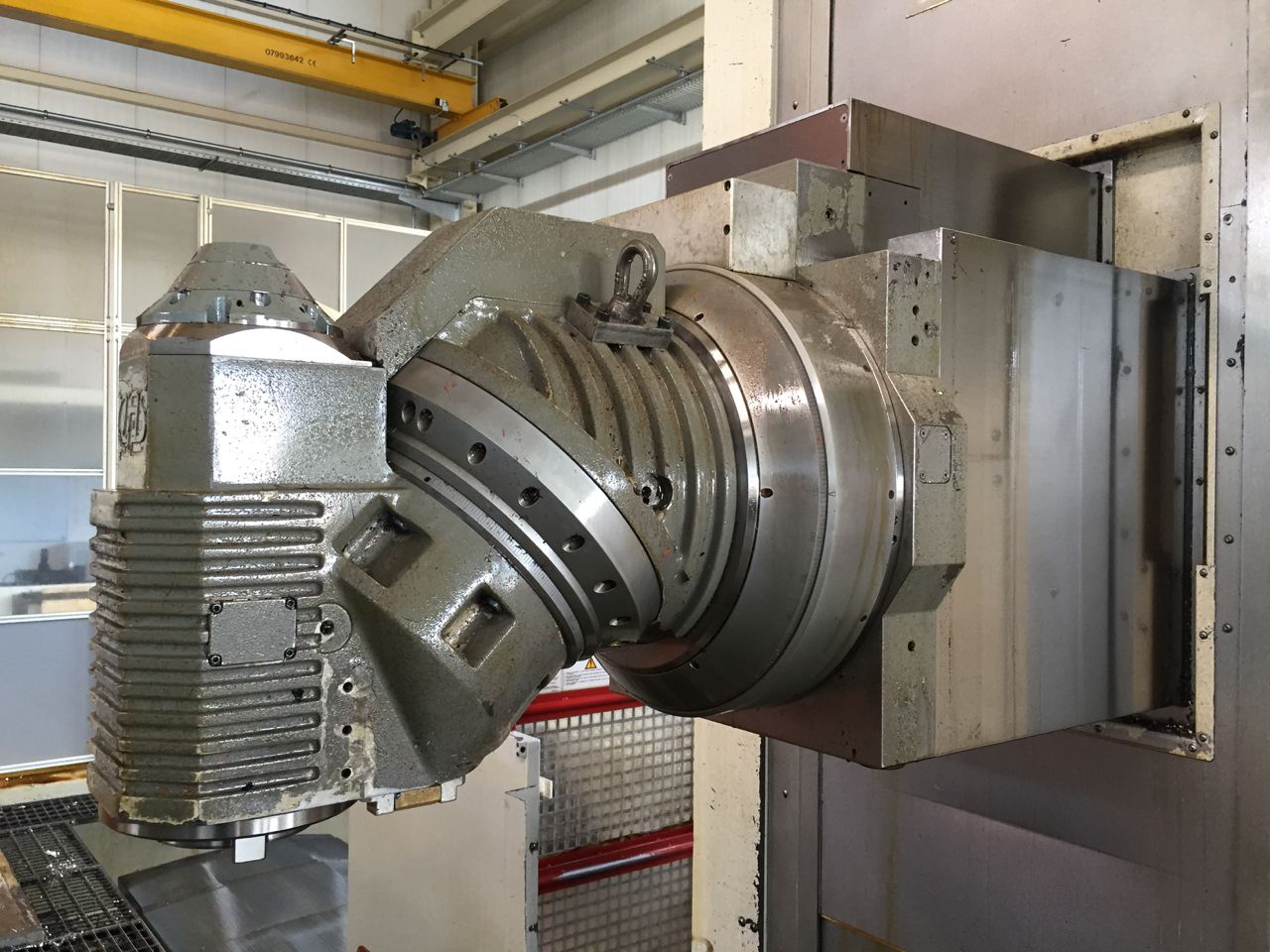

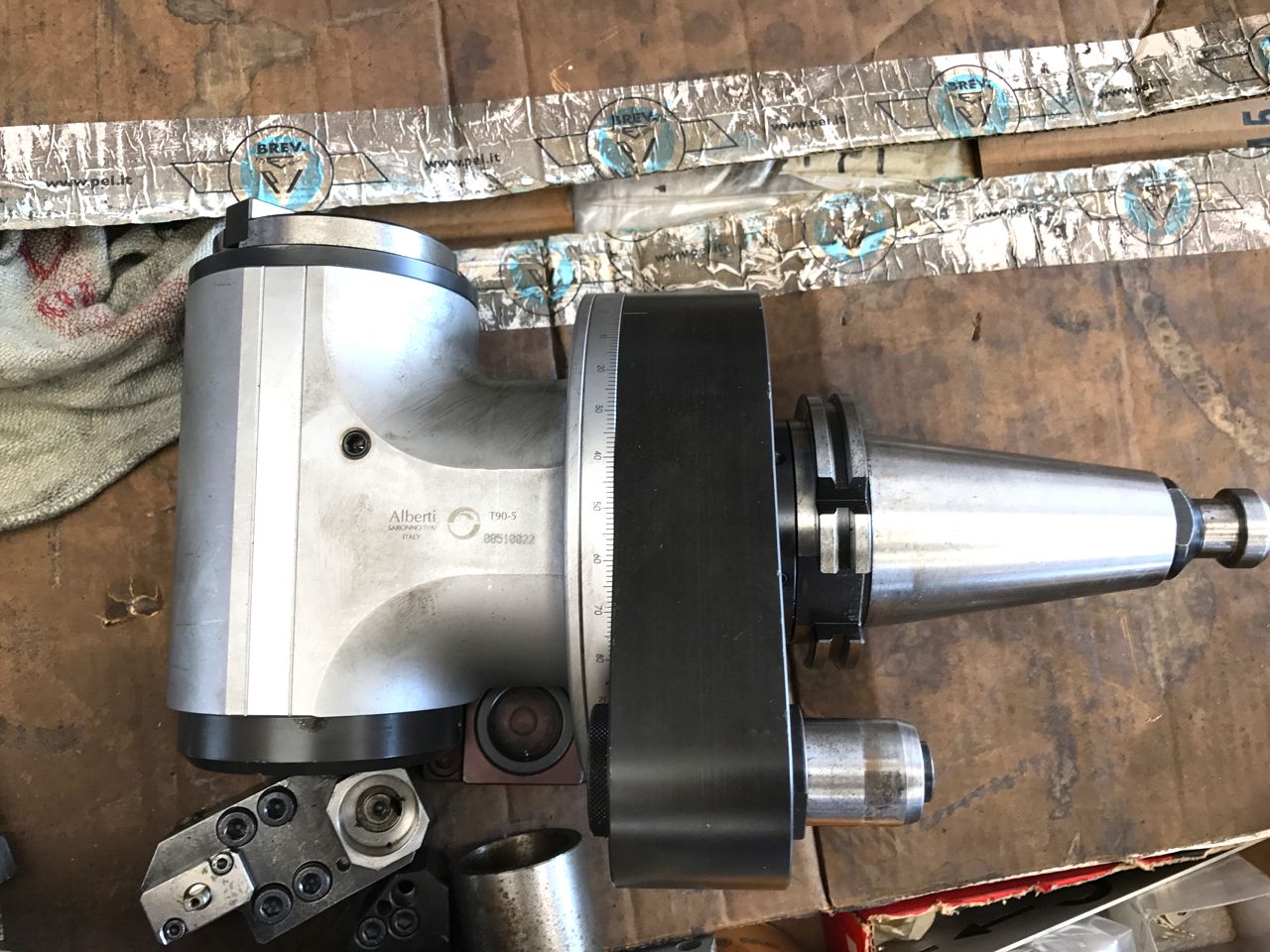

HEAD 1
Type
TUPC
Spindle taper
ISO50
A axis
0,001 °
C axis
0,001 °
Max torque
1210 Nm
Max speed
5000 Rpm
Max power
46/37 Kw
Coolant
internal
HEAD 2
Available upon request
No
EXTRA
Total power supply
79,3 Kw
Floor space
16630x11000x5430 mm654,72x433,07x213,78 in

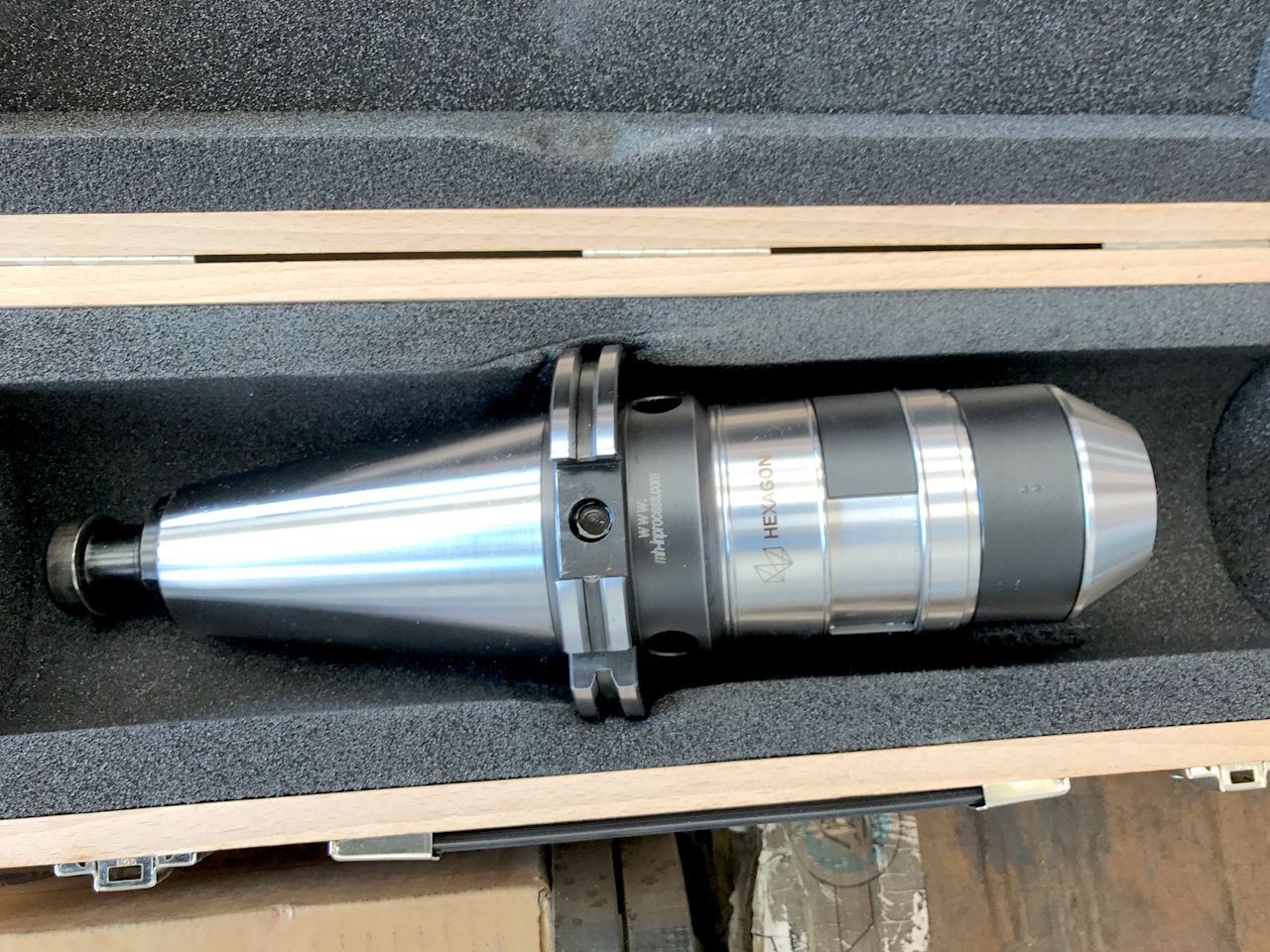

Tooling included
Pick up 3 positions for heads, Pick up for special tools
High Pressure
40Bar
Filtration unit
si
Chiller
si

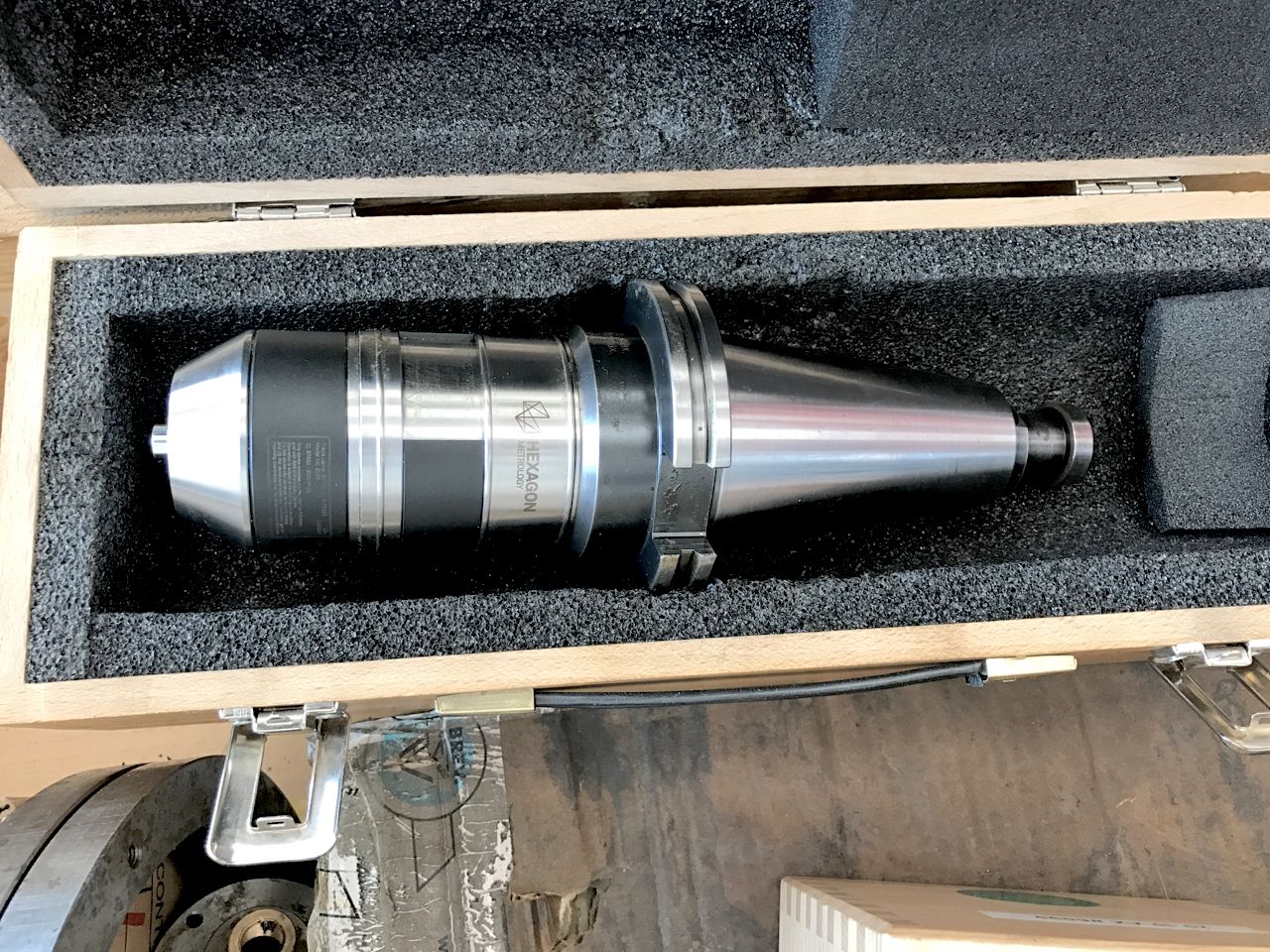

Workpiece touch probe
Renishaw RMP60
Tool presetter
Blum
Maintenance & Use books
Yes

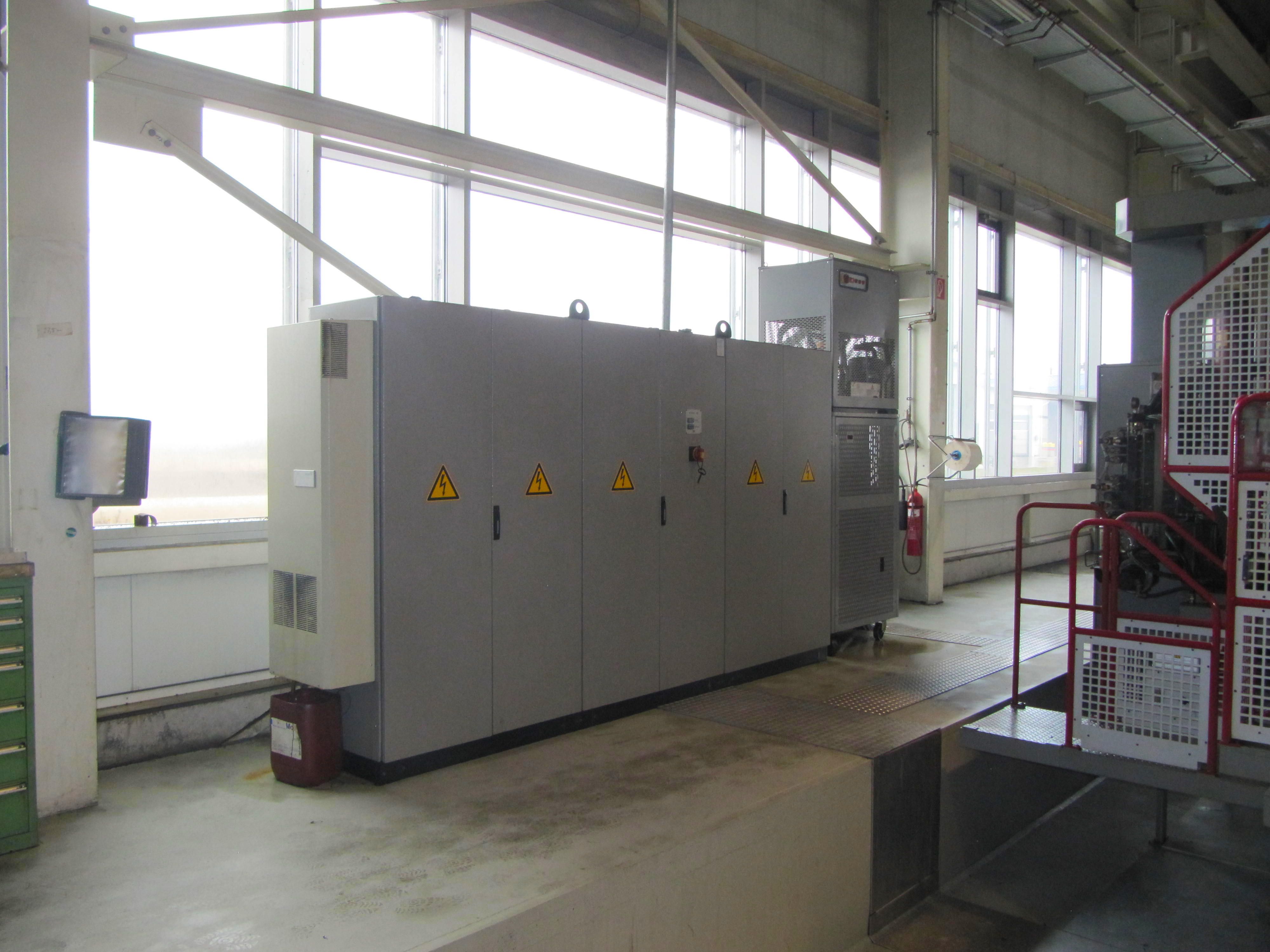

Electrical drawings
Yes
CE Certification
Yes
Housing
perimetrale
Chip conveyor
si
Availability
pronta
Available under power
si
Relevant updates made on the machine
check up semestrale ordinario, sostituzione raschiaolio, manutenzione teste
