Category

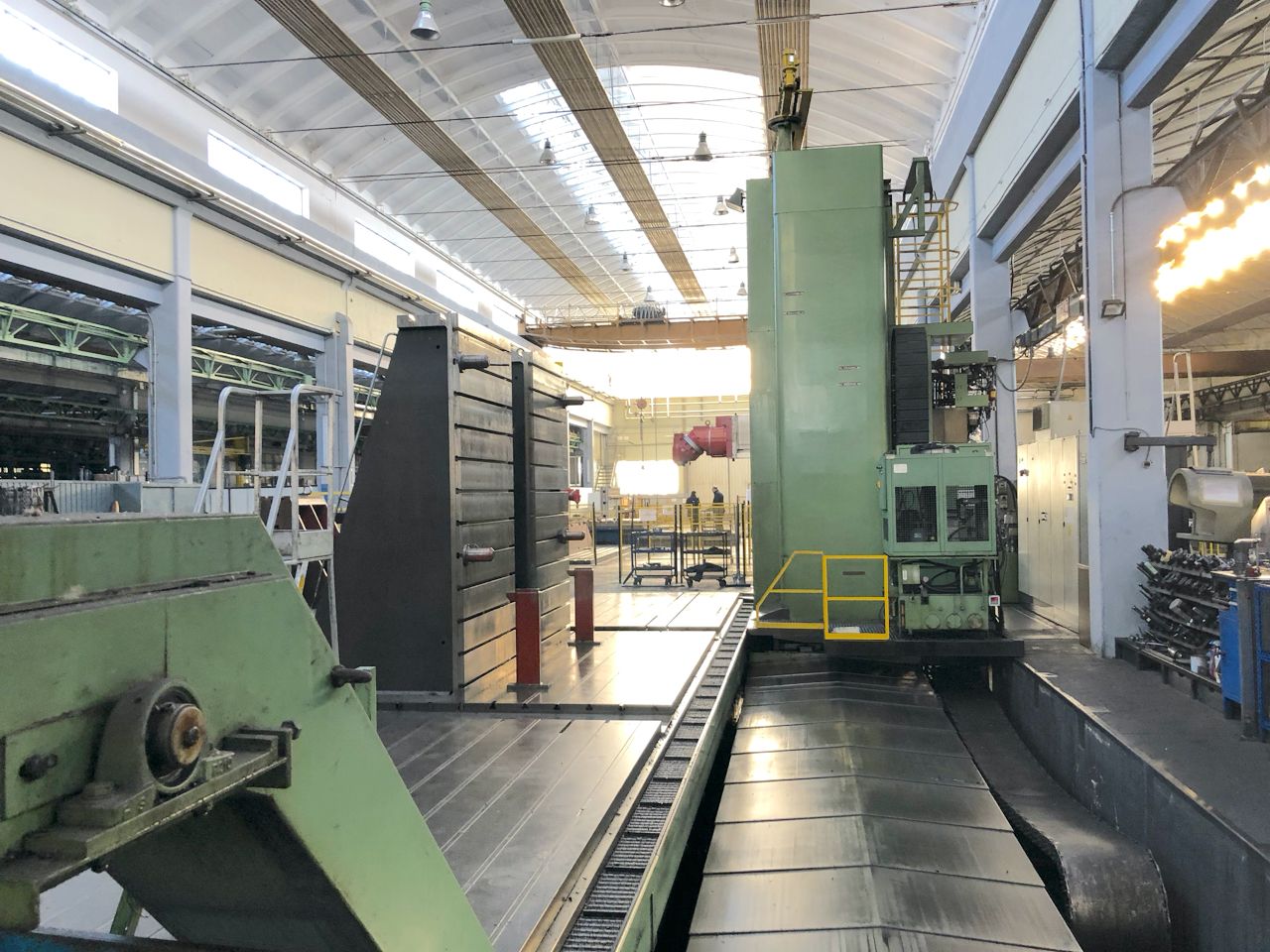

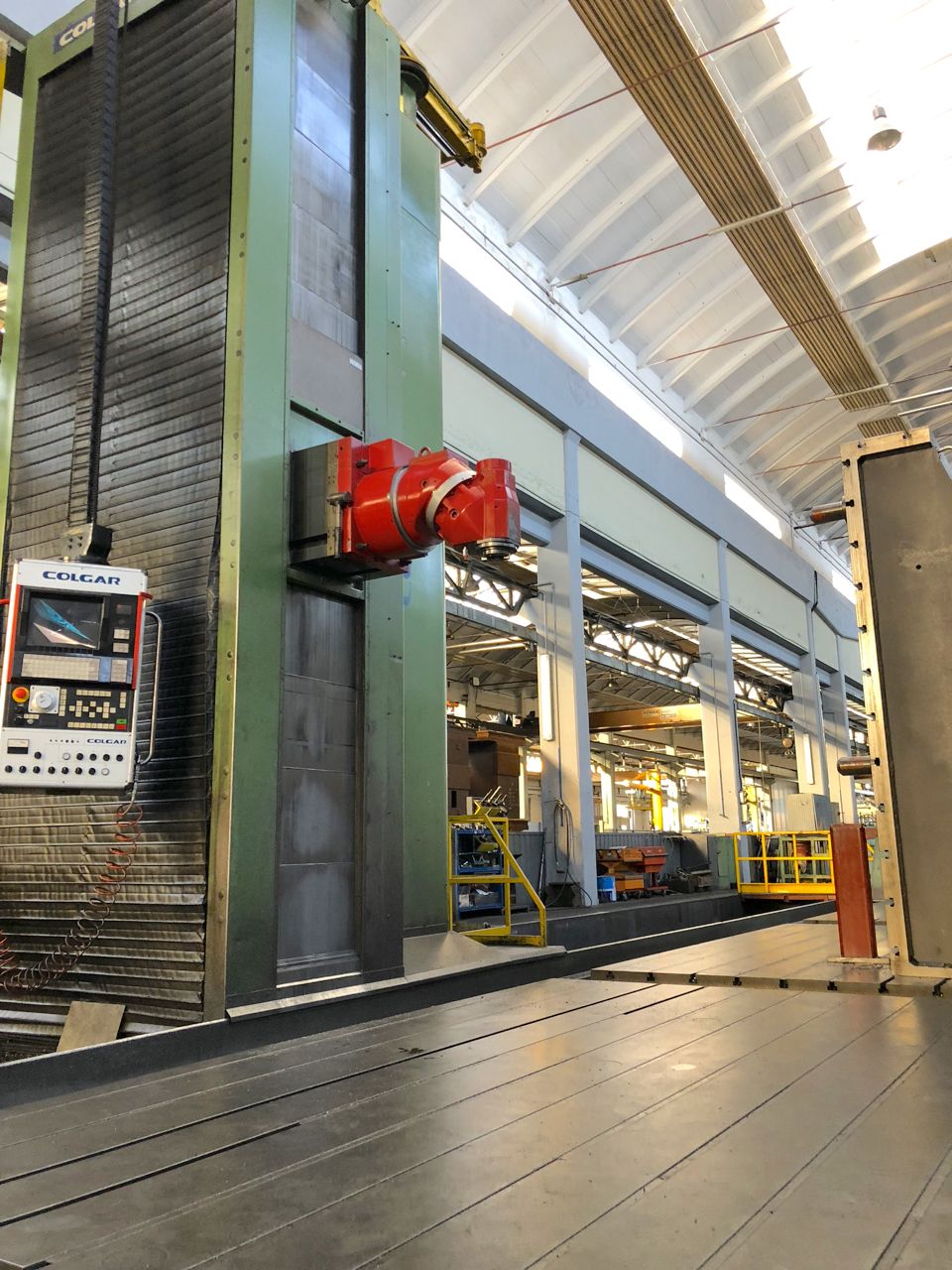

Milling machine
Type
mobile column
Made
Model
FRAL400
Capacity
13000x3500x1250 mm511,81x137,80x49,21 in

Technical specifications

Metric Imperial
WORKING CAPACITY
Longitudinal (X)
13000 mm511,81 in
Vertical (Y)
3500 mm137,80 in
Cross RAM (Z)
1250 mm49,21 in
Axes support
Hydrostatic
SPINDLE
RAM section
450x555 mm17,72x21,85 in
Spindle power
40 Kw
Rotating speed
400-2450 Rpm
Torque
1700 Nm
Taper
ISO50
FEEDS
Rapid X
10 m/min393,70 ipm
Rapid Y
10 m/min393,70 ipm
Rapid Z
10 m/min393,70 ipm
X
4 m/min157,48 ipm
Y
4 m/min157,48 ipm
Z
4 m/min157,48 ipm

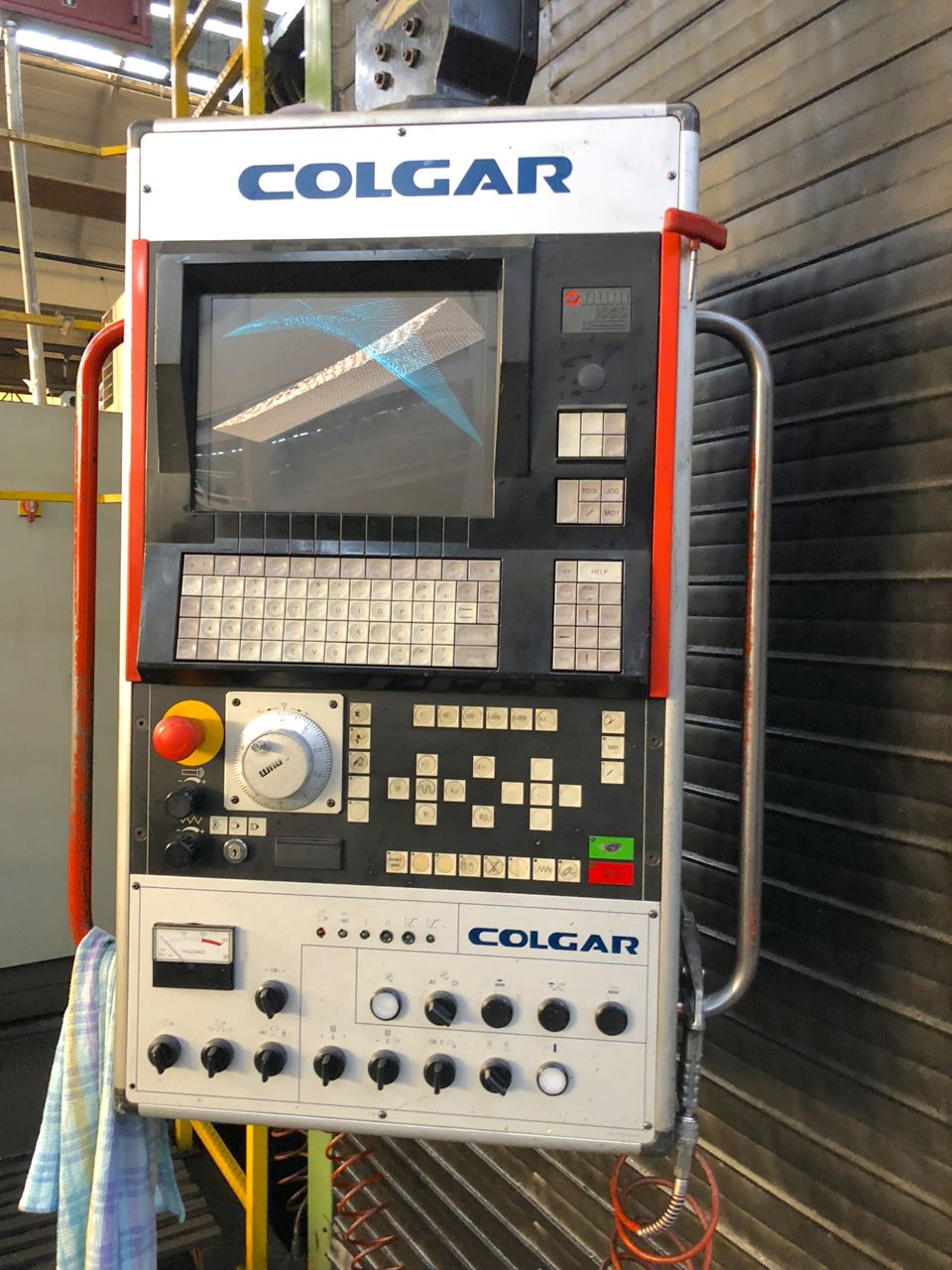

CNC
CNC
NUM 1060

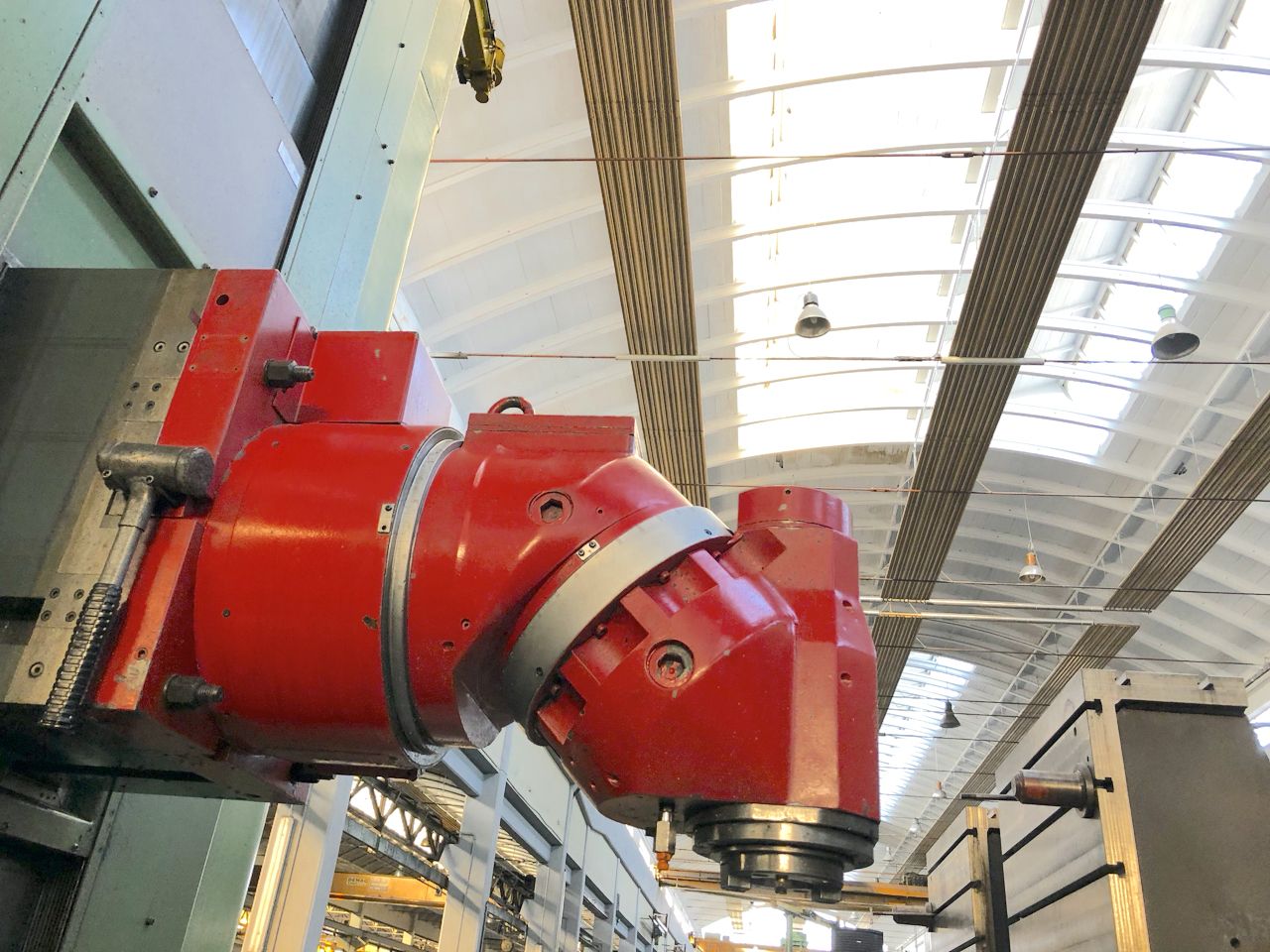

HEAD 1
Type
TA110
Spindle taper
ISO50
A axis
144x2,5 °
C axis
144x2,5 °
Max torque
1100 Nm
Max speed
2400 Rpm
Coolant
Interno/Esterno
HEAD 2
Available upon request
No
Max power
40 Kw
EXTRA
Filtration unit
Vasca filtro refrigerante
Chiller
Impianto per liquido raffreddamento int/est utensile
High Pressure
4bar esterni, 10 bar interni
Electrical drawings
Yes
Maintenance & Use books
Yes

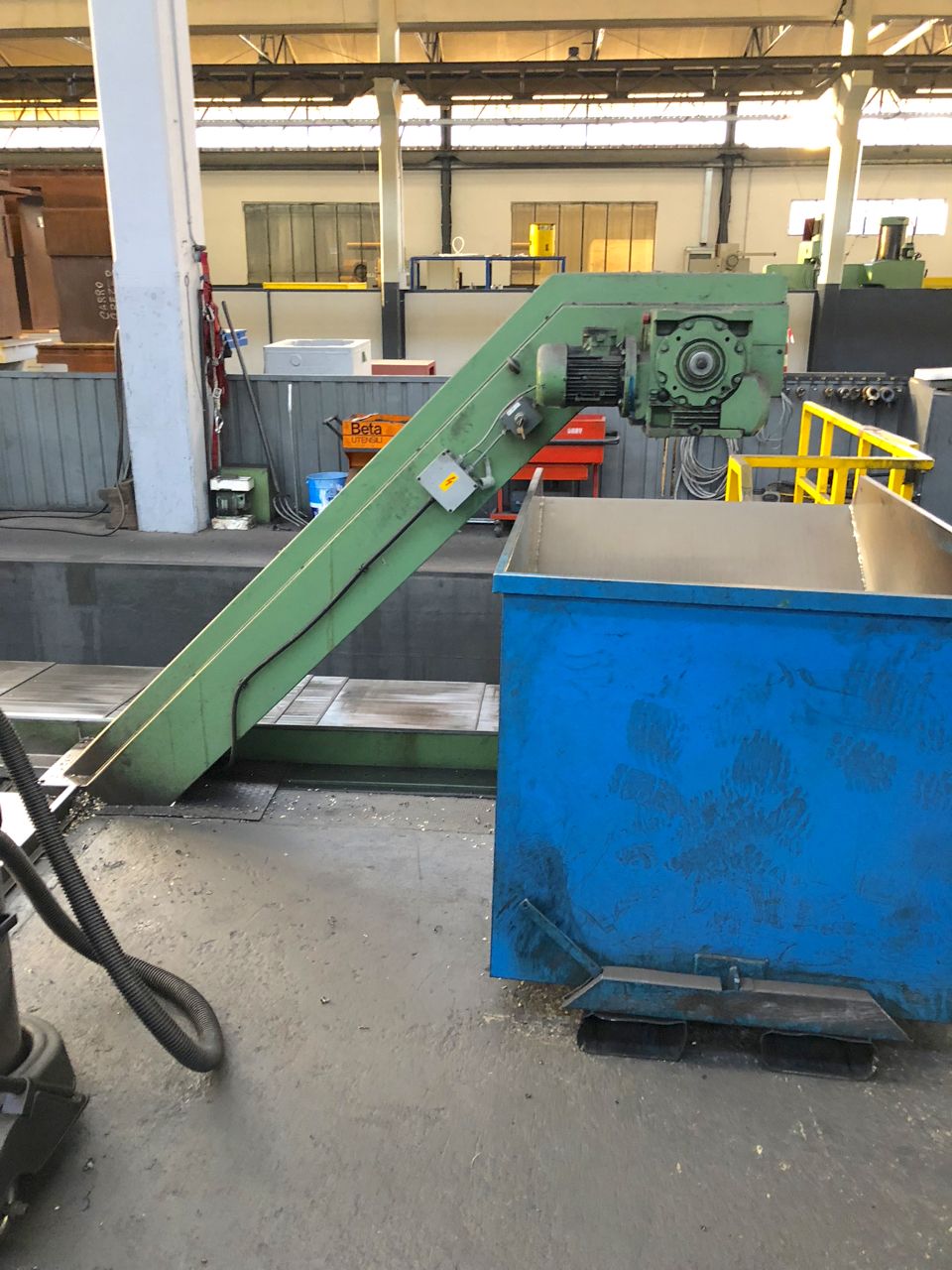

Chip conveyor
si
Availability
Pronta
Available under power
Si
