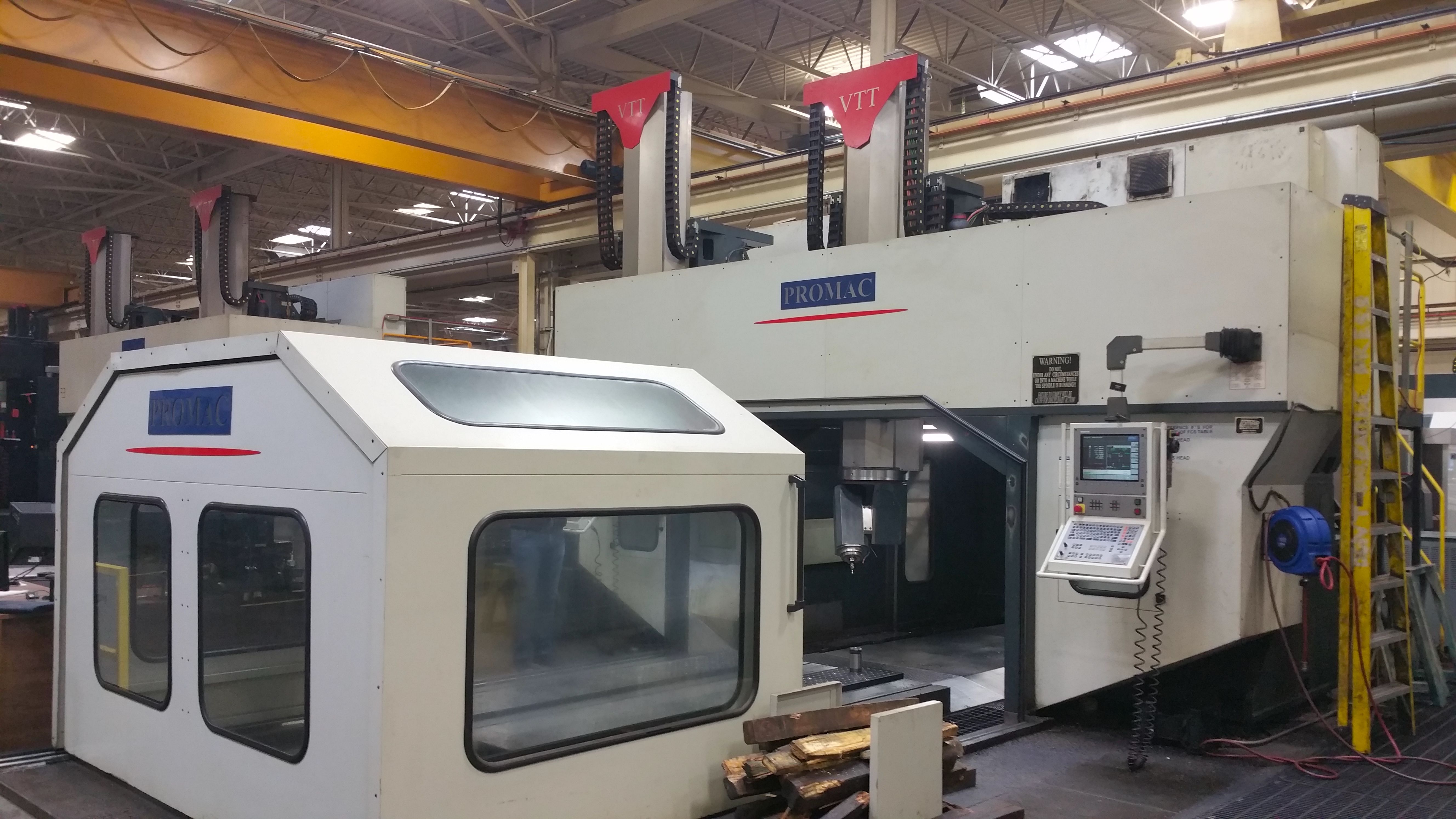

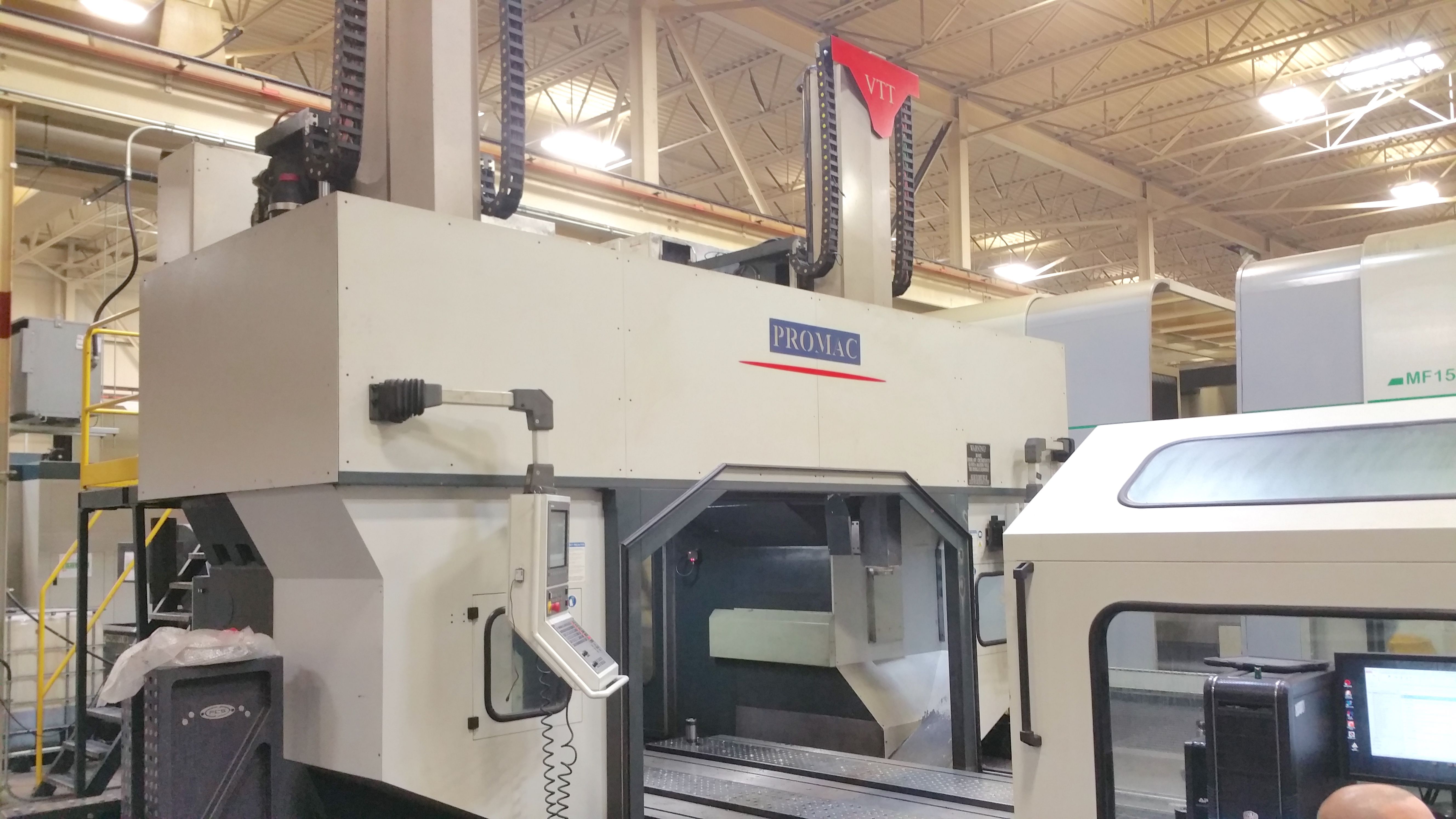

Category
Machining Centre
Type
portal
Made
Model
ZEPHYR VTT 3.0
Capacity
3500x2700x1200 mm137,80x106,30x47,24 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Longitudinal (X)
3500 mm137,80 in
Vertical RAM (Y)
1200 mm47,24 in
Vertical Ram 2 (Y2)
1200 mm47,24 in
Cross Ram (Z)
2700 mm106,30 in
Cross Ram 2 (Z2)
2700 mm106,30 in
Spindle nose - table distance
1200 mm47,24 in
Column distance
2800 mm110,24 in
Axes support
guide a pattini a ricircolo di rulli e viti con doppia chiocciola precaricata
Table size
3000x2000 mm118,11x78,74 in
Table max load
25.000 Kg
CNC
CNC
Heidenhain iTNC530
Operator CNC panels
2
Drives
SIEMENS SINUMERIK 611
Measuring system
assi ottici lineari ad alta risoluzione
SPINDLE
Spindle power
30 Kw
Rotating speed
20.000 Rpm
Torque
85 Nm
Taper
HSK63A
SPINDLE N.2
Spindle power
55,5 Kw
Rotating speed
6.000 Rpm
Torque
830 Nm
FEEDS
Rapid X
30 m/min1.181,10 ipm
Rapid Y
30 m/min1.181,10 ipm
Rapid Z
30 m/min1.181,10 ipm
Rapid A
10 Rpm
Rapid C
10 Rpm
ATC
Positions
40
Max tool diameter
40 mm1,57 in
Max tool lenght
250 mm9,84 in
Max tool weight
4 Kg
Tool taper
HSK63A
ATC 2
Max tool diameter
100 mm3,94 in
Max tool lenght
300 mm11,81 in
Max tool weight
8 Kg

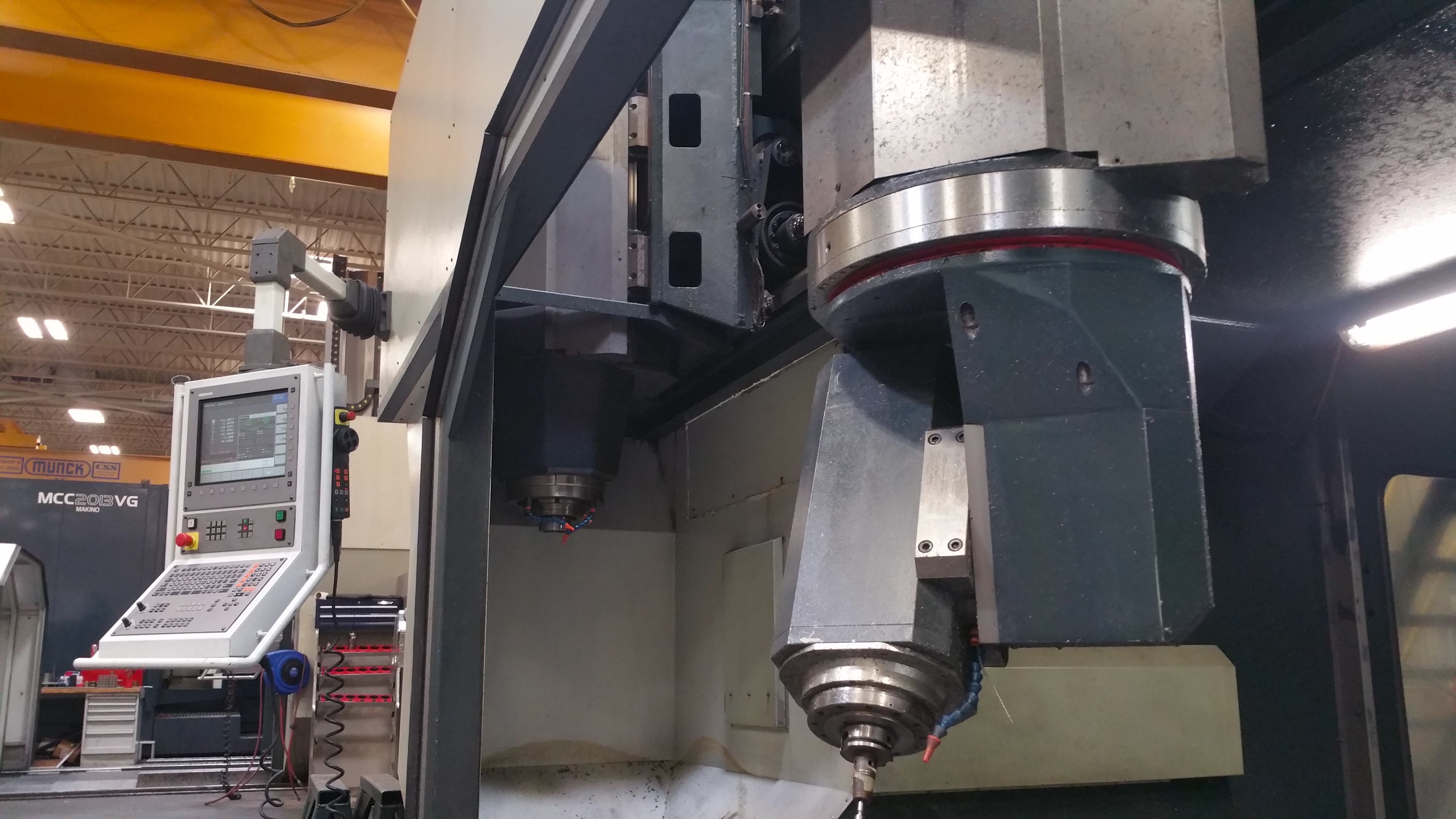

HEAD 1
Type
4WDP
Spindle taper
HSK63A
A axis
+/- 110 °
C axis
+/- 360 °
Max torque
85 Nm
Max speed
20.000 Rpm
Max power
30 Kw
Coolant
alta pressione interna al mandrino
HEAD 2
Available upon request
No
Max torque
830 Nm
Max speed
6.000 Rpm
Max power
55,5 Kw
EXTRA
Total power supply
40 Kw
Machine total weight
57000 Kg
Tooling included
doppio ATC, doppio Laser presetting
High Pressure
si
Maintenance & Use books
Yes
Electrical drawings
Yes
CE Certification
Yes
Housing
completa
Availability
pronta
Relevant updates made on the machine
revisione testa automatica
Tool presetter
Laser, uno per ogni Ram
Floor space
12000x6000x4800 mm472,44x236,22x188,98 in
