Category
Machining Centre
Type
5-Axis or more
Made
Model
ZEPHYR VT 2.0
Capacity
2000x1800x1000 mm78,74x70,87x39,37 in

Technical specifications

Metric Imperial
WORKING CAPACITY
Longitudinal (X)
2000 mm78,74 in
Vertical (Z)
1000 mm39,37 in
Cross (Y)
1600 mm62,99 in
Head rotation (C )
360.000x0,001 °
Head tilting (A)
continua +/- 100 °
CNC
CNC
SELCA 4060DDH
Notes
Pulsantiera SELBOX S2
SPINDLE
Spindle power
40 Kw
Rotating speed
20000 Rpm

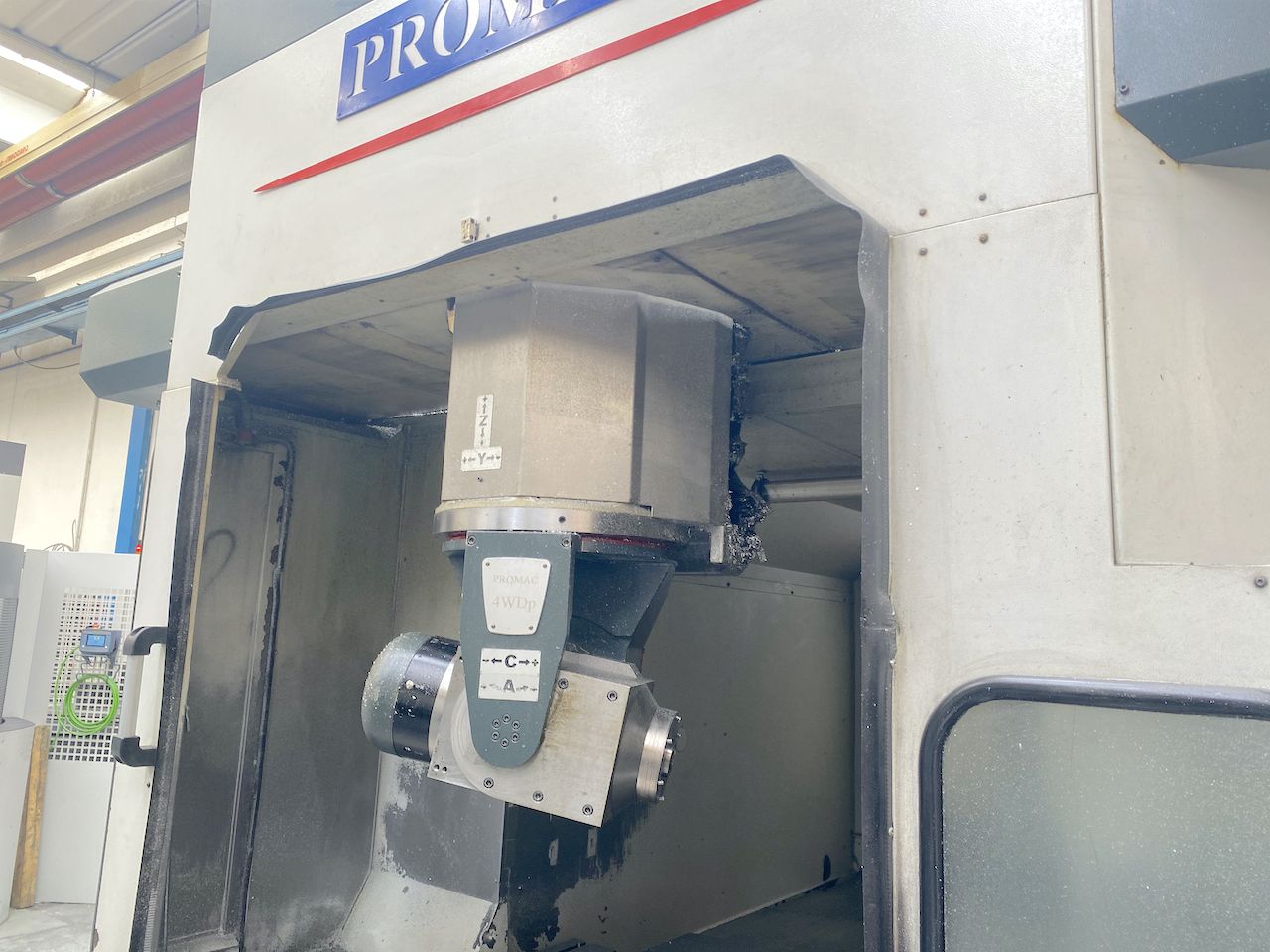

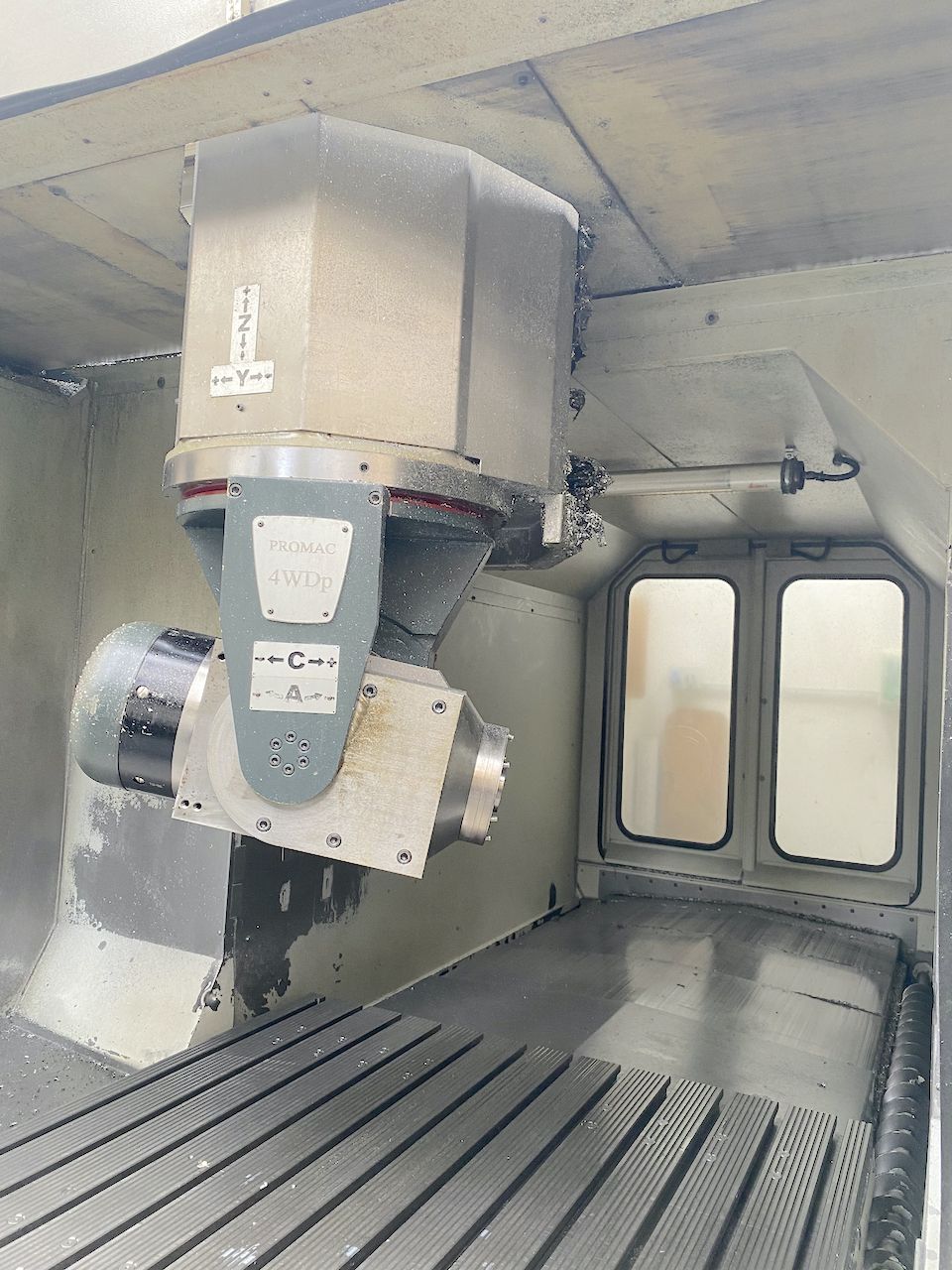

HEAD 1
Type
4WDP
Spindle taper
HSK63A
A axis
+/-100 °
C axis
360 °
Max speed
20000 Rpm
Max power
40 Kw
TABLE
Floorspace (LxWxH)
2000x1200 mm78,74x47,24 in
ATC
Positions
32
FEEDS
Rapid X
40 m/min1.574,80 ipm
Rapid Y
40 m/min1.574,80 ipm
Rapid Z
40 m/min1.574,80 ipm
EXTRA
Machine total weight
22000 Kg
Floor space
6550x4800x4900 mm257,87x188,98x192,91 in
