Category
Machining Centre
Type
5-Axis or more
Made
Model
LINX COMPACT
Capacity
3200x2200x1250 mm125,98x86,61x49,21 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Longitudinal (X)
2200 mm86,61 in
Vertical (Z)
1250 mm49,21 in
Cross (Y)
3200 mm125,98 in
Head rotation (C )
+/- 200 °
Head tilting (A)
(-90°/+100°) 190 °
Axes support
motori lineari
CNC
CNC

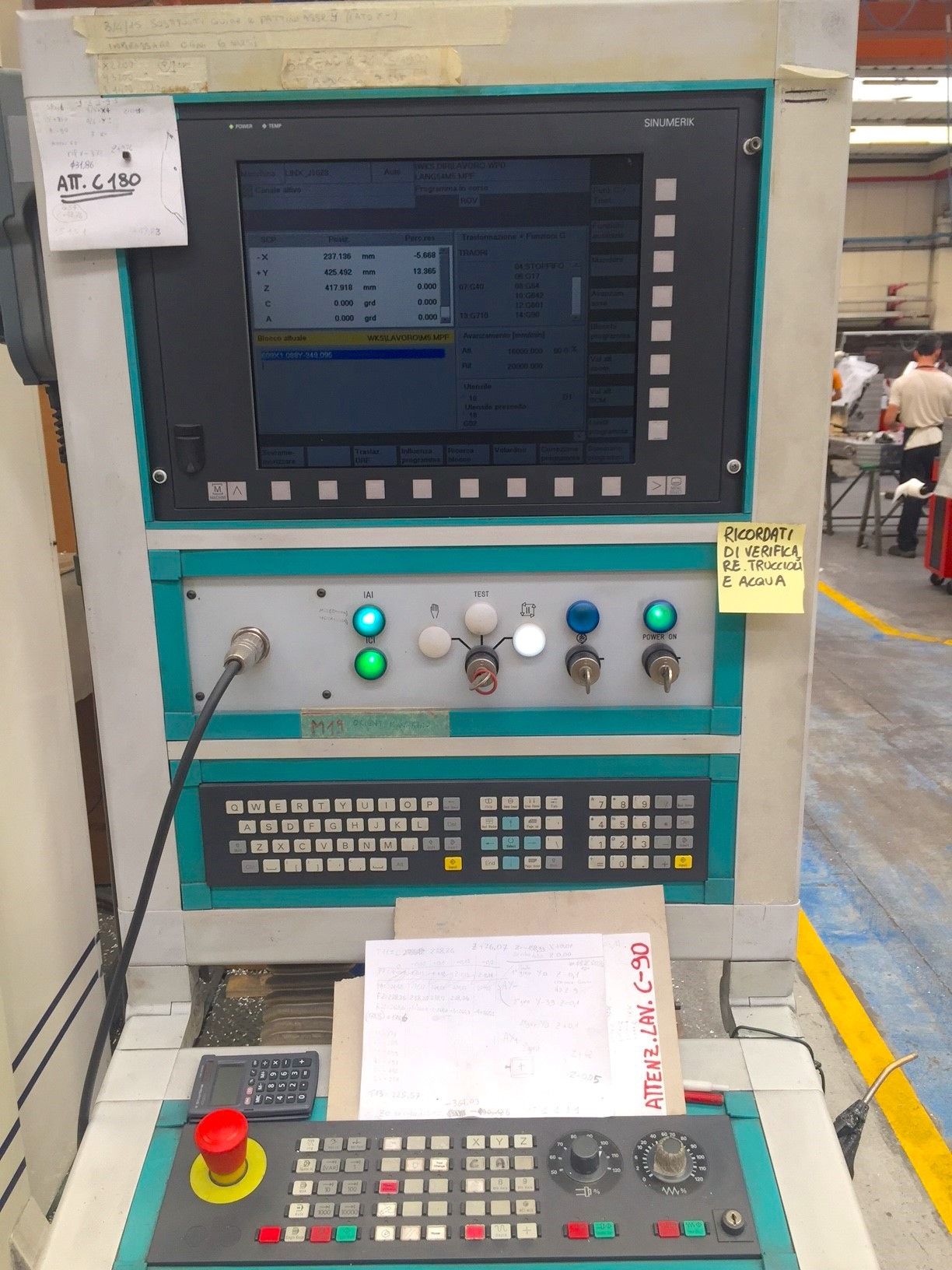

Siemens Sinumerik 840D
Measuring system
Righe ottiche
Drives
Siemens
FEEDS
Rapid X
50 m/min1.968,50 ipm
Rapid Y
50 m/min1.968,50 ipm
Rapid Z
50 m/min1.968,50 ipm
C
60 °/sec
A
60 °/sec
Axes acceleration
4 m/s2
ATC
Positions
20
Tool taper
HSK63A
Max tool diameter
125 mm4,92 in
Max diam with free adiacent space
180 mm7,09 in
Max tool lenght
400 mm15,75 in
Max tool weight
15 Kg
SPINDLE
Rotating speed
18000 Rpm
Taper
HSK63A
Spindle power
40 Kw
TABLE
Floorspace (LxWxH)
4000x2500 mm157,48x98,43 in
EXTRA
Total power supply
180 KvA Kw
CE Certification
Yes
Maintenance & Use books
Yes
Tool presetter
SI
Relevant updates made on the machine
sostituzione cartuccia mandrino 2019
Housing
integrale
Head 1
No
