Category
Grinding Machine
Type
Surface
Made
Model

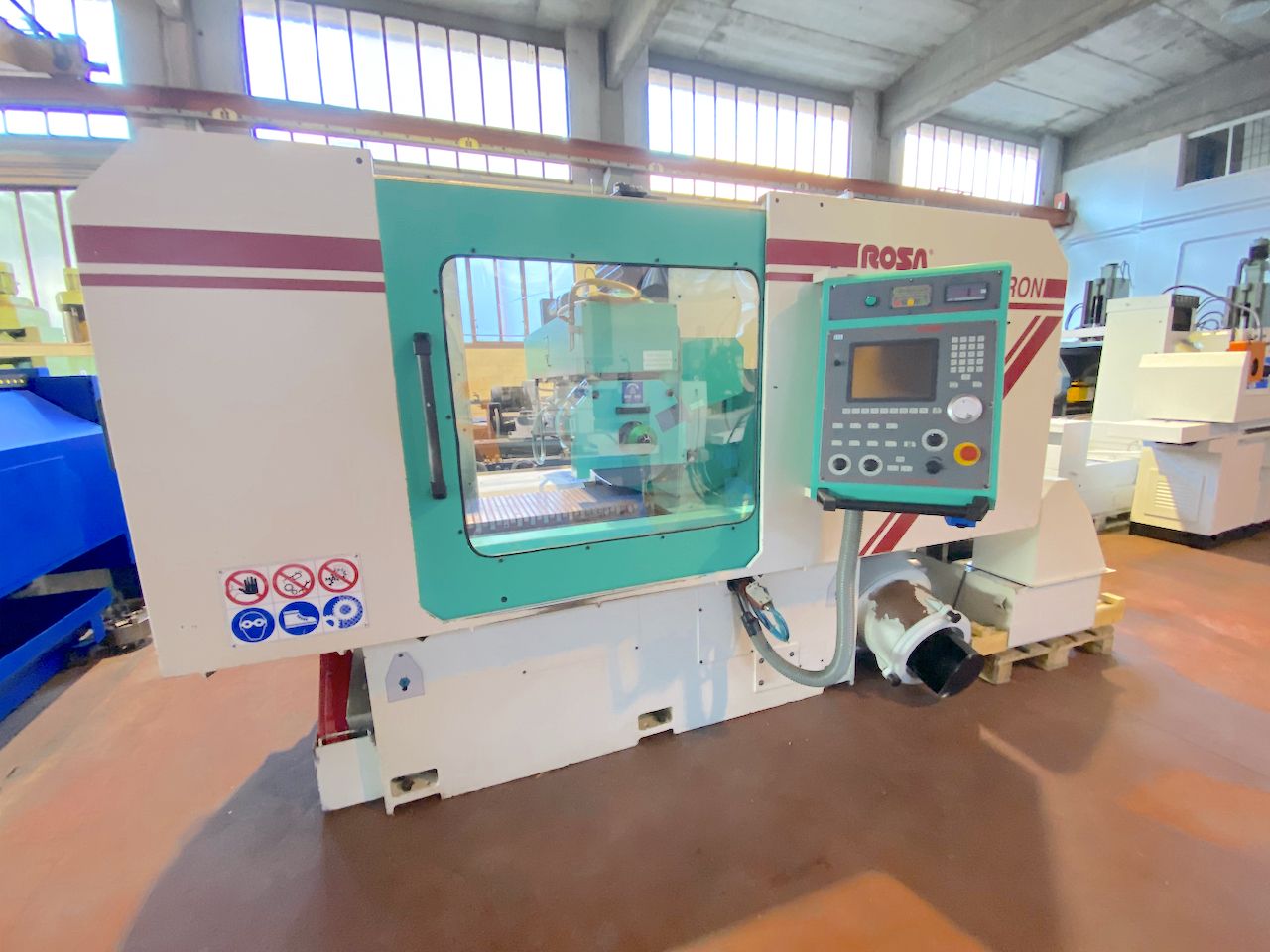

IRON 08.6 CN
Capacity
950x630 mm37,40x24,80 in

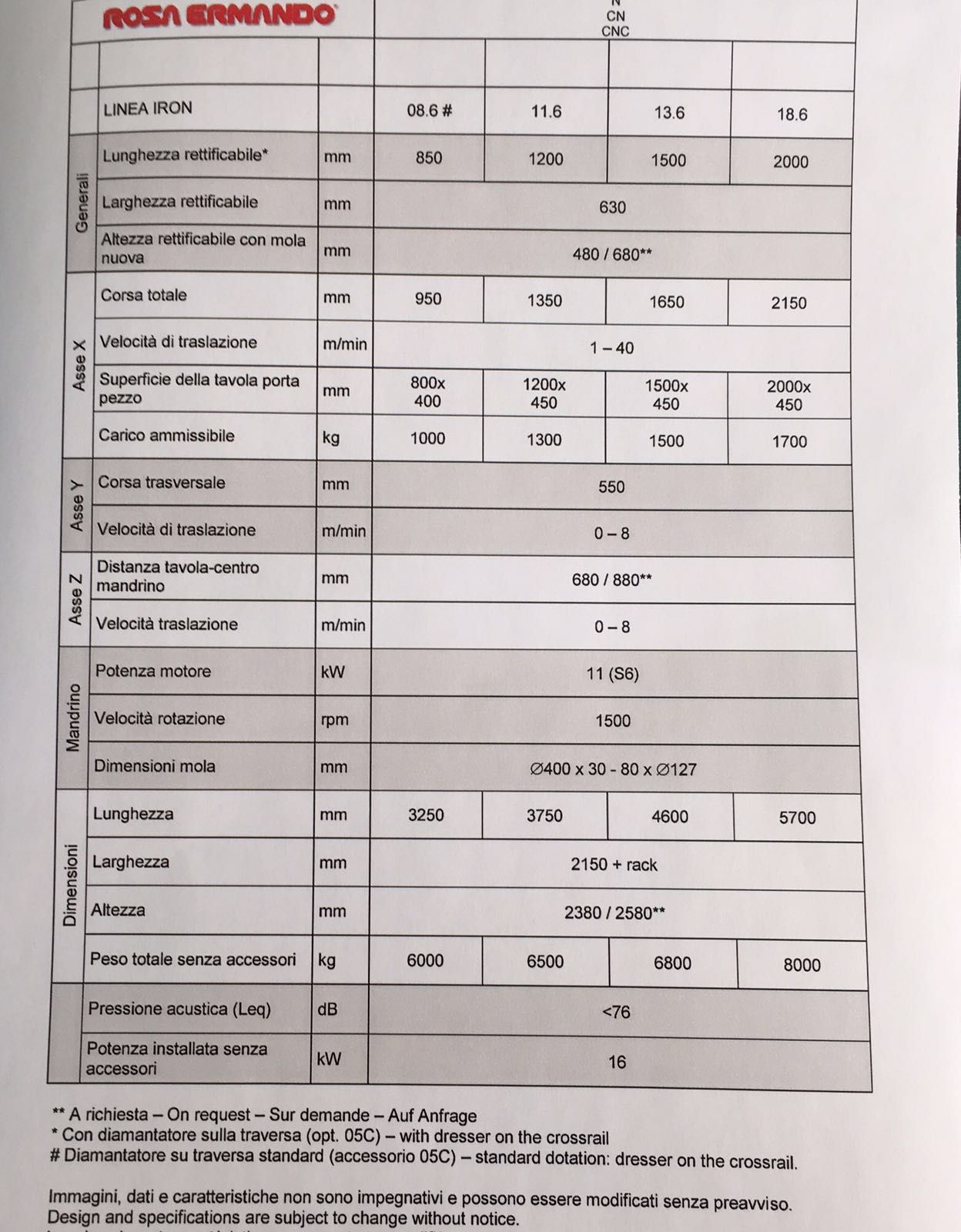

Technical specifications
Metric
Imperial
WORKING CAPACITY
Longitudinal (X)
950 mm37,40 in
Vertical (Z)
480 mm18,90 in
Cross Table (Y)
550 mm21,65 in
Spindle nose axis - table distance
680 mm26,77 in
Max grinding lenght
950 mm37,40 in
Max grinding width
630 mm24,80 in
TABLE
Surface
800x400 mm31,50x15,75 in
Stroke
950 mm37,40 in
Cross speed
1-40
Capacity
1000 Kg
MAGNETIC TABLE
Surface
800x400 mm31,50x15,75 in

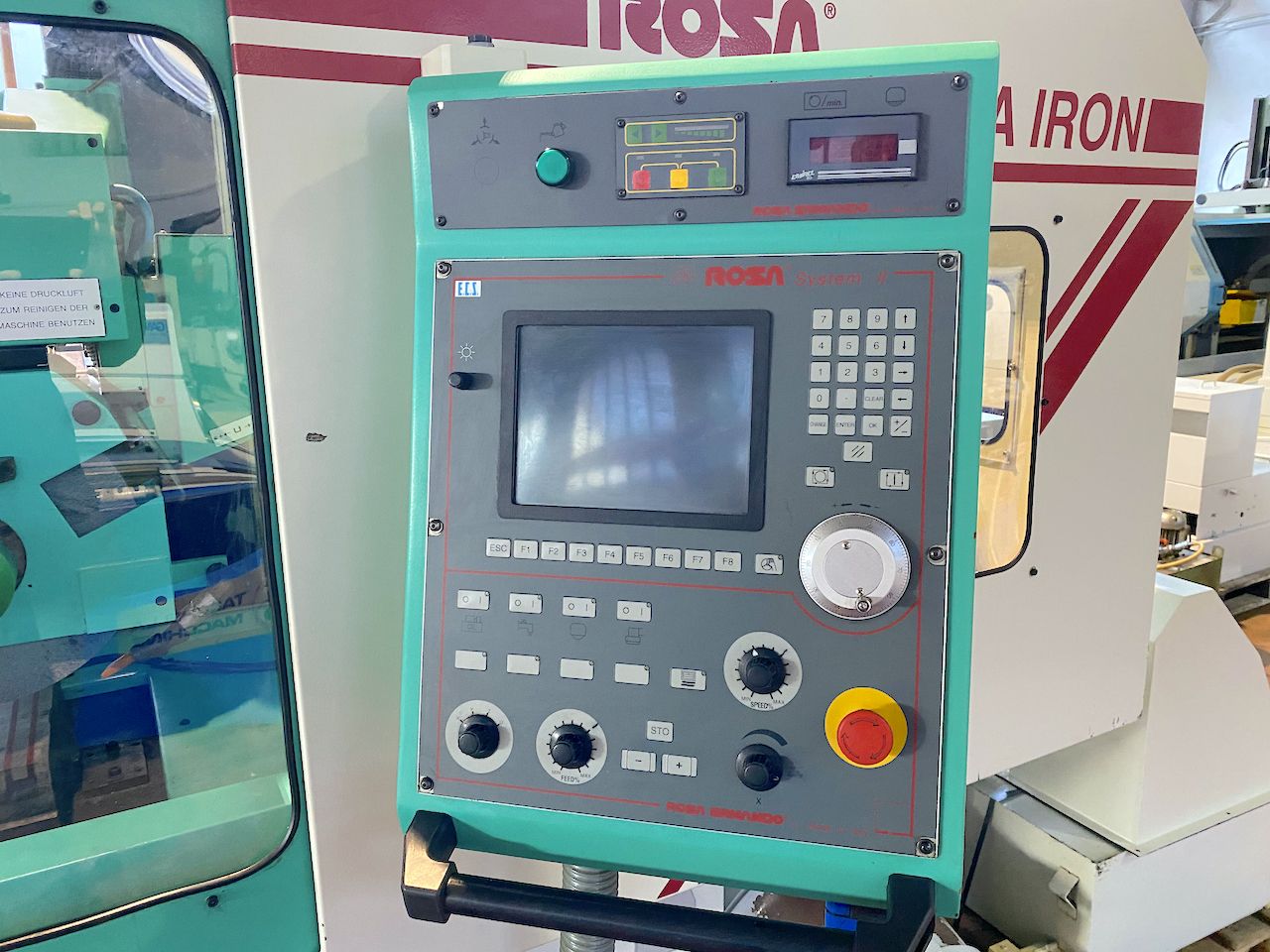

CNC
CNC
ECS2400 ROSA SYSTEM

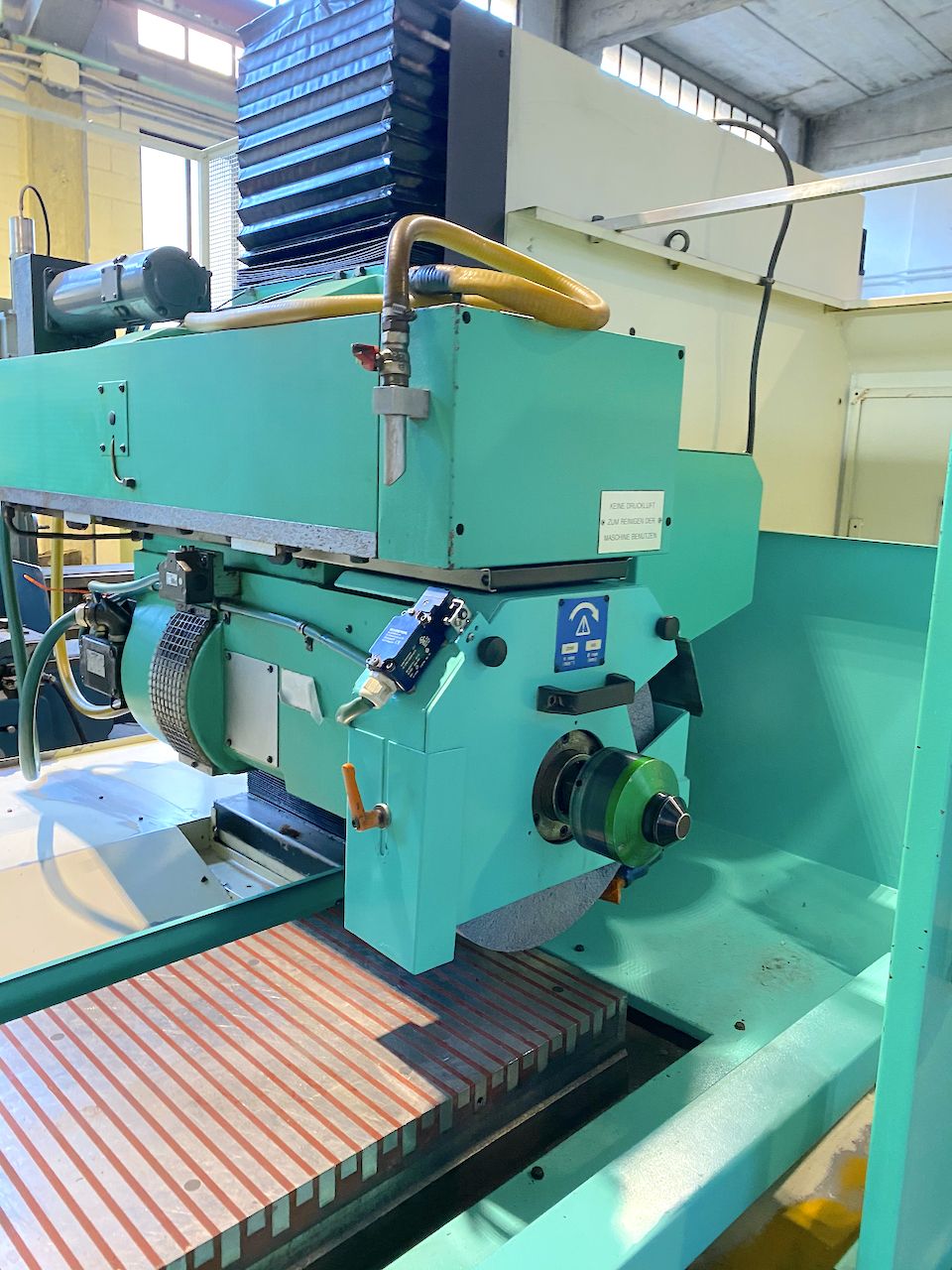

WHEEL SPINDLE
Spindle power
11 Kw
Rotating speed
1450 Rpm
Notes
BILANCIATORE AUTOMATICO

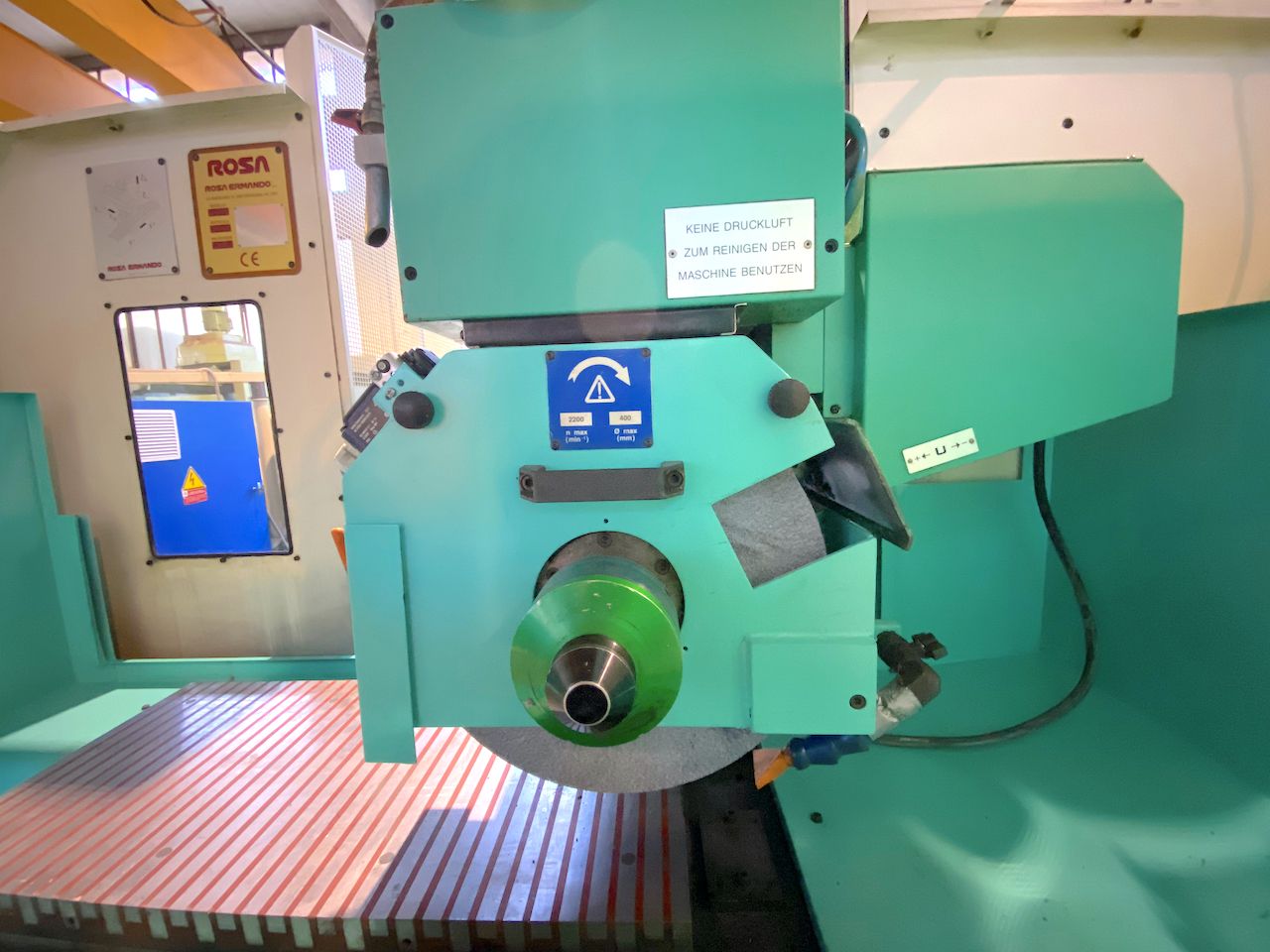

WHEEL
Wheel band thickness
80 mm3,15 in
Max wheel diameter
400 mm15,75 in
Hole diameter
127 mm5,00 in
EXTRA
Total power supply
15 Kw
Machine total weight
6000 Kg
Floor space
3250x2150x2380 mm127,95x84,65x93,70 in
Automatic dresser
Yes

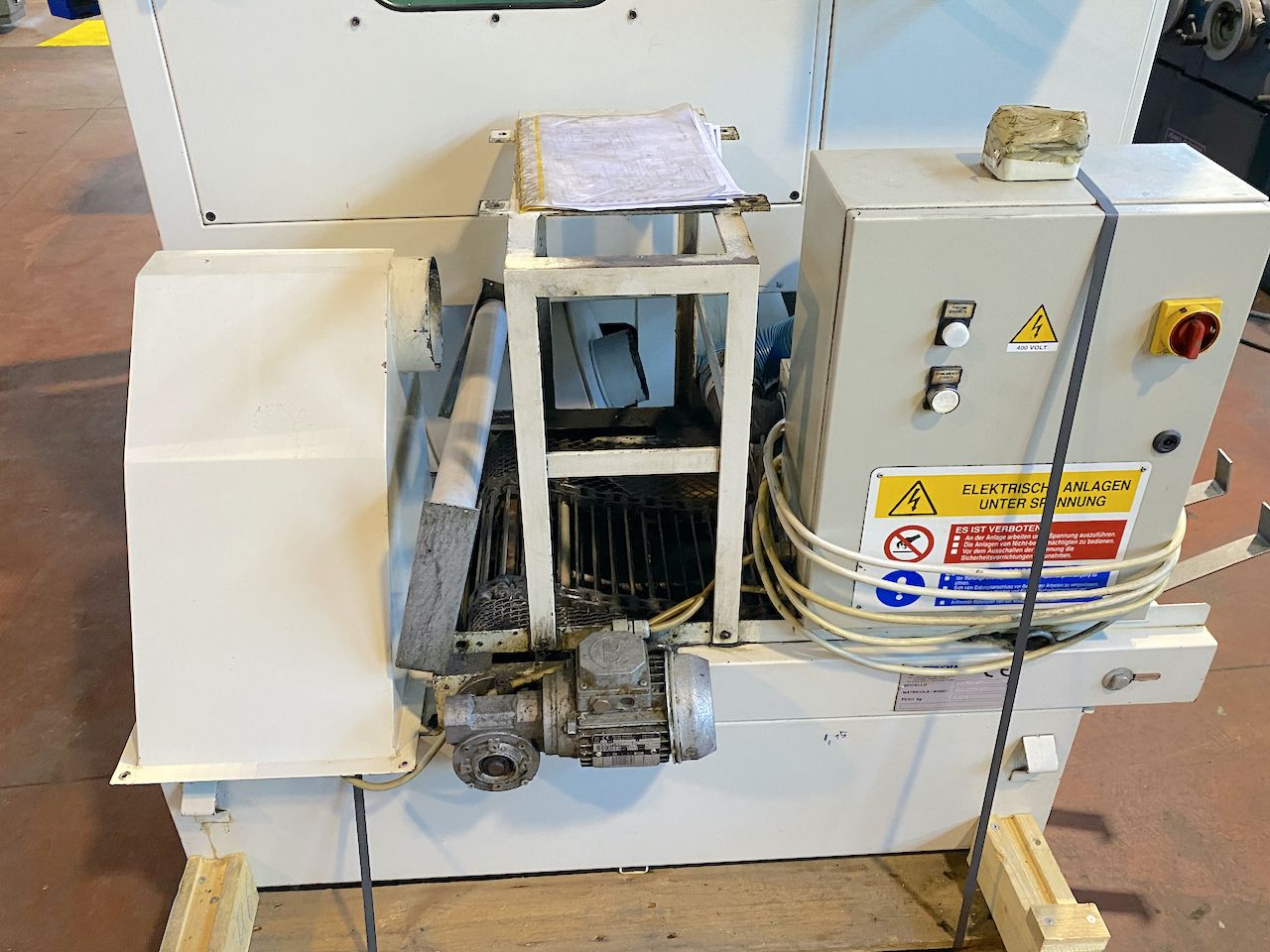

Filtration unit
SI
Manual dresser
No
Maintenance & Use books
Yes
Electrical drawings
Yes
CE Certification
Yes
Housing
COMPLETA
Mist extractor
SI
Availability
PRONTA
Available in stock
SI
