Category

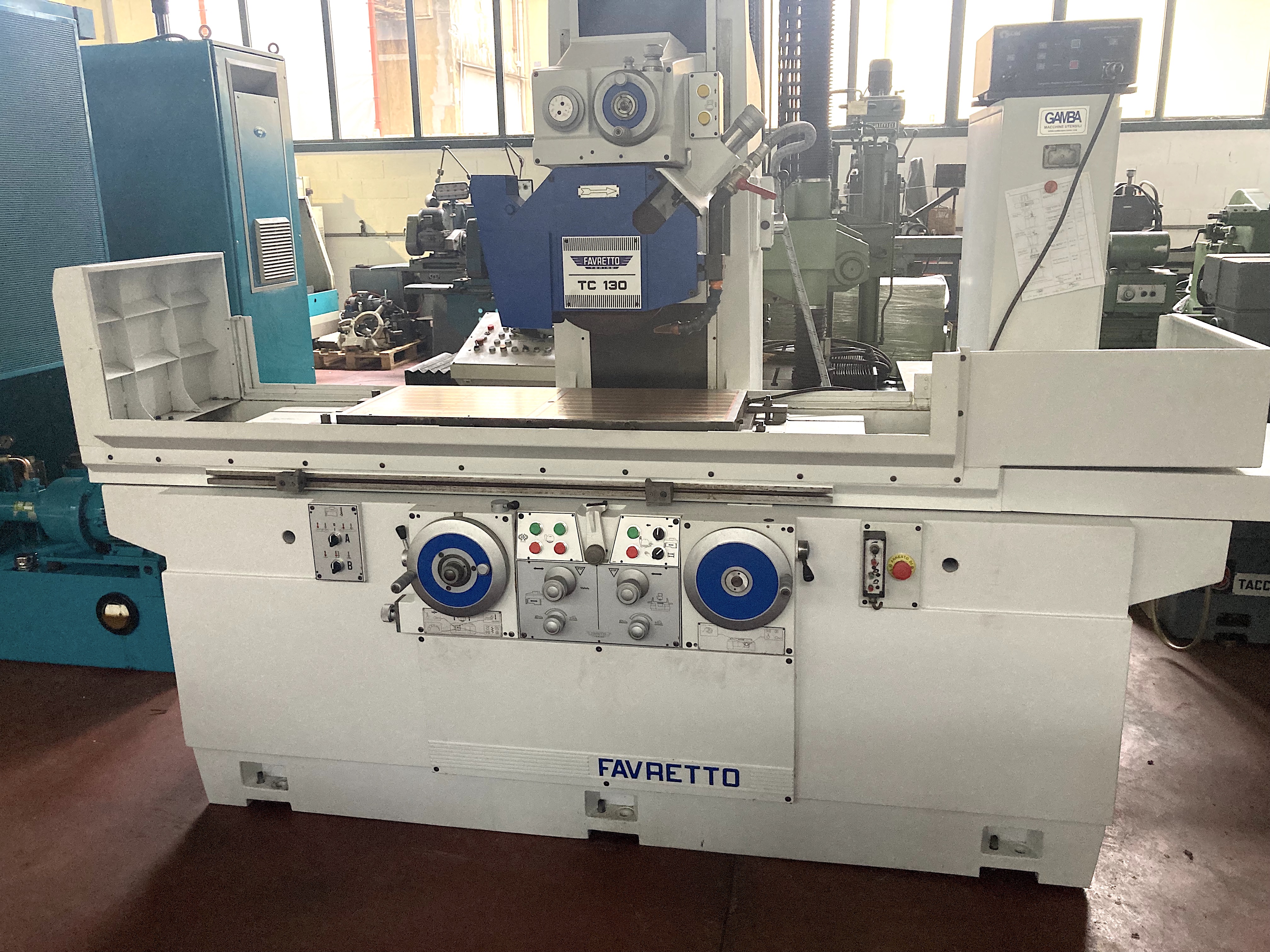

Grinding Machine
Type
Surface
Made
Model
TC130
Capacity
1300X575 mm51,18X22,64 in

Technical specifications

Metric Imperial
WORKING CAPACITY
Longitudinal (X)
1300 mm51,18 in
Cross Table (Y)
575 mm22,64 in
Cross RAM (Y)
575 mm22,64 in
Max grinding thickness
400 mm15,75 in
MAGNETIC TABLE
Available upon request
No
TABLE
Notes

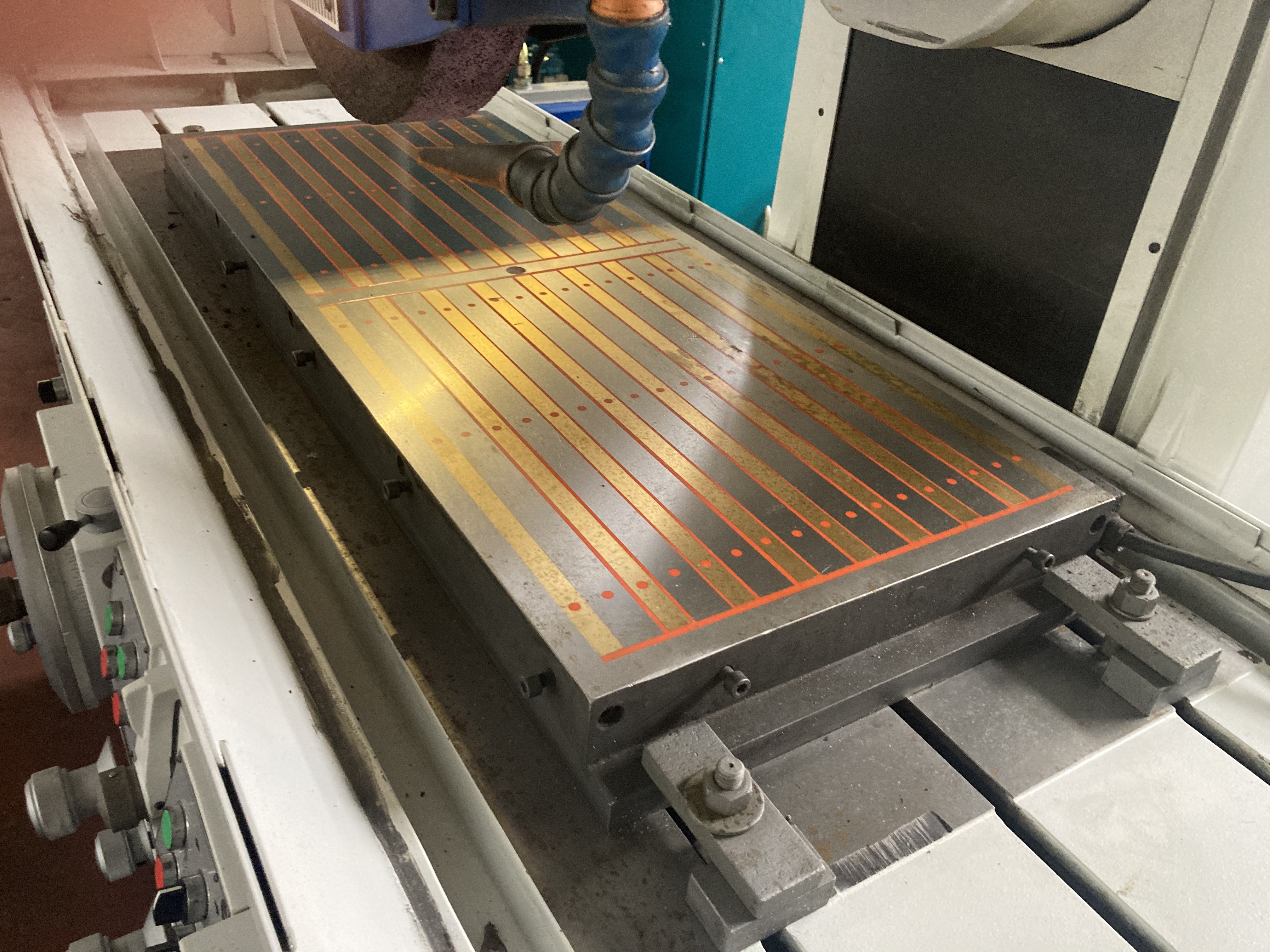

PIANO ELETTROMAGNETICO
Cross speed
2-35
FEEDS
Automatic Vertical
0,005-0,05 mm/min0,0002-0,0020 ipm
Cross
AUTOMATICI mm/minAUTOMATICI ipm

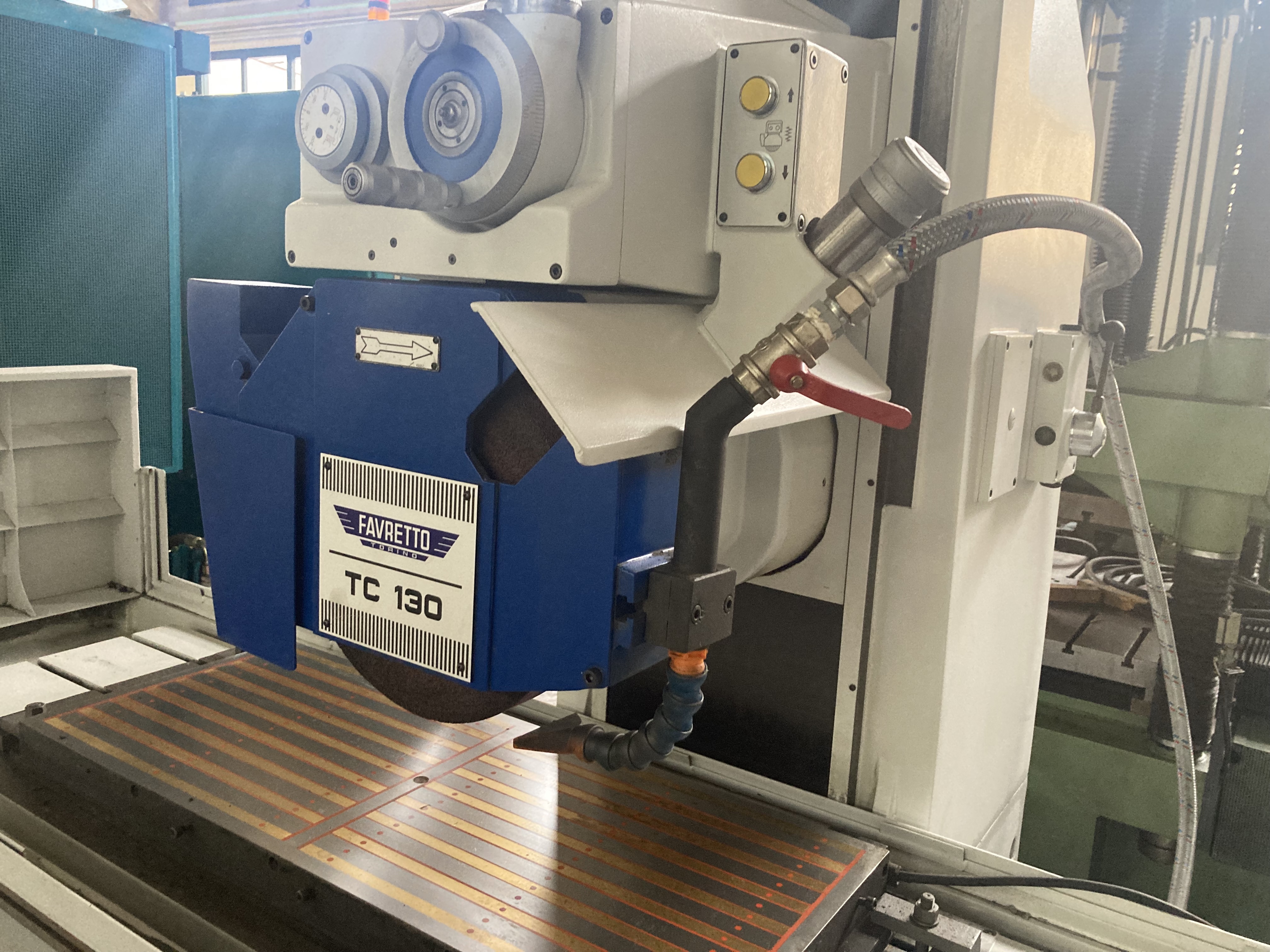

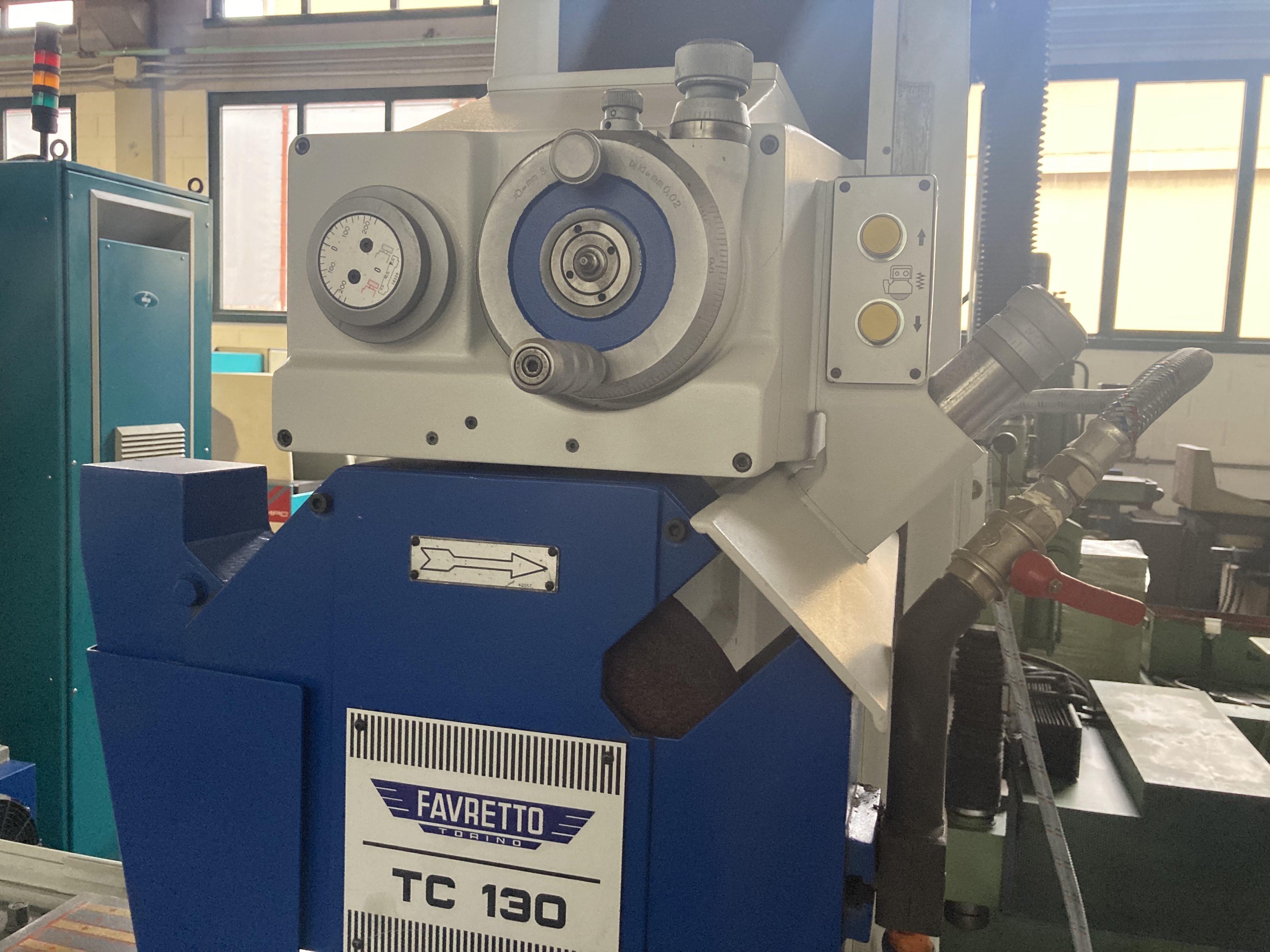

WHEEL SPINDLE
Spindle power
12 Kw
Rotating speed
1450 Rpm
Notes
FLAGE E MOLE A CORREDO
WHEEL
Wheel band thickness
75 mm2,95 in
Max wheel diameter
406 mm15,98 in
Hole diameter
127 mm5,00 in
EXTRA
Total power supply
18 Kw
Machine total weight
5500 Kg
Floor space
3000X1500 mm118,11X59,06 in
Tooling included
DIAFORM
Manual dresser
Yes
Available in stock
SI
Available under power
SI
