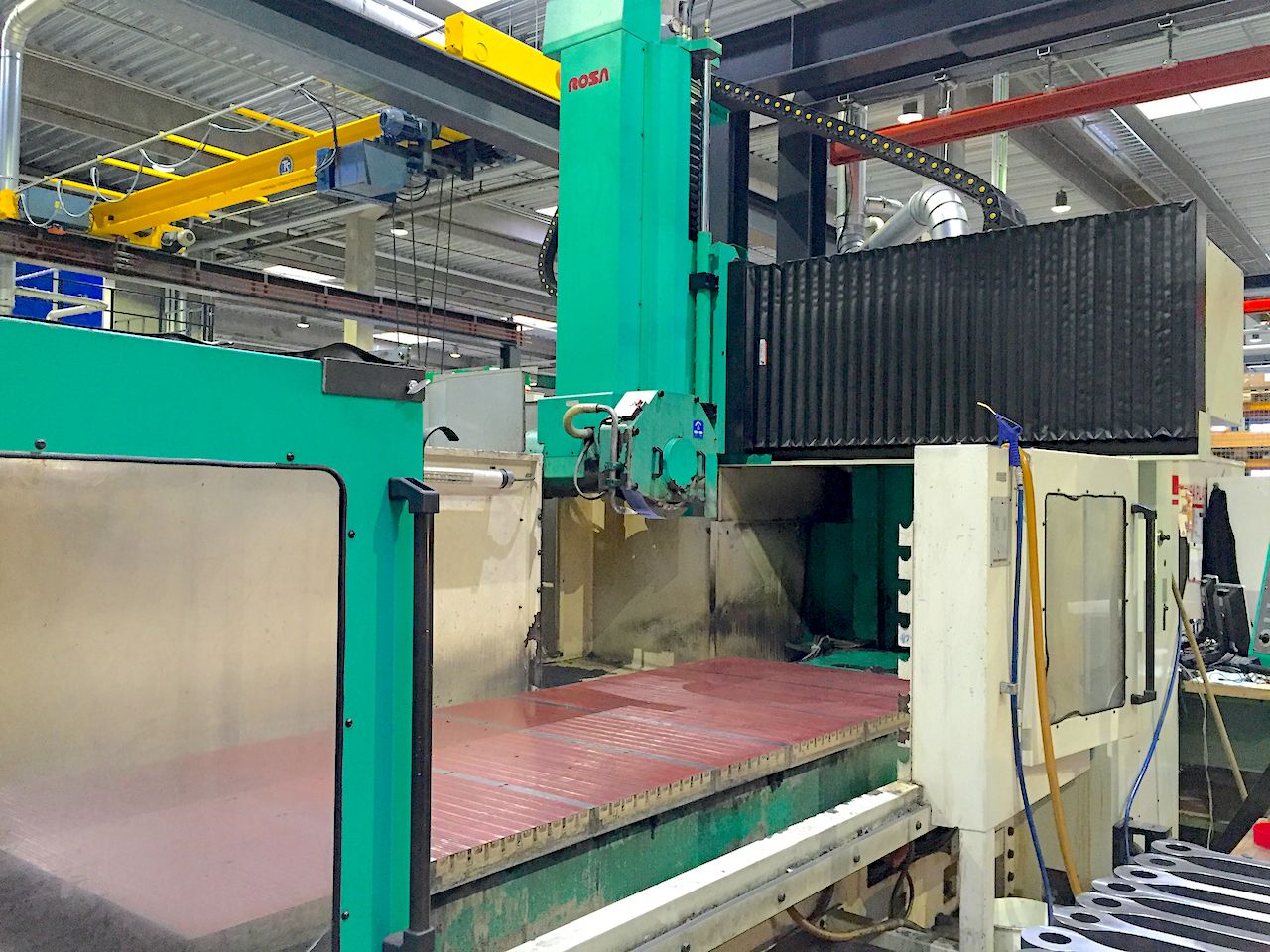

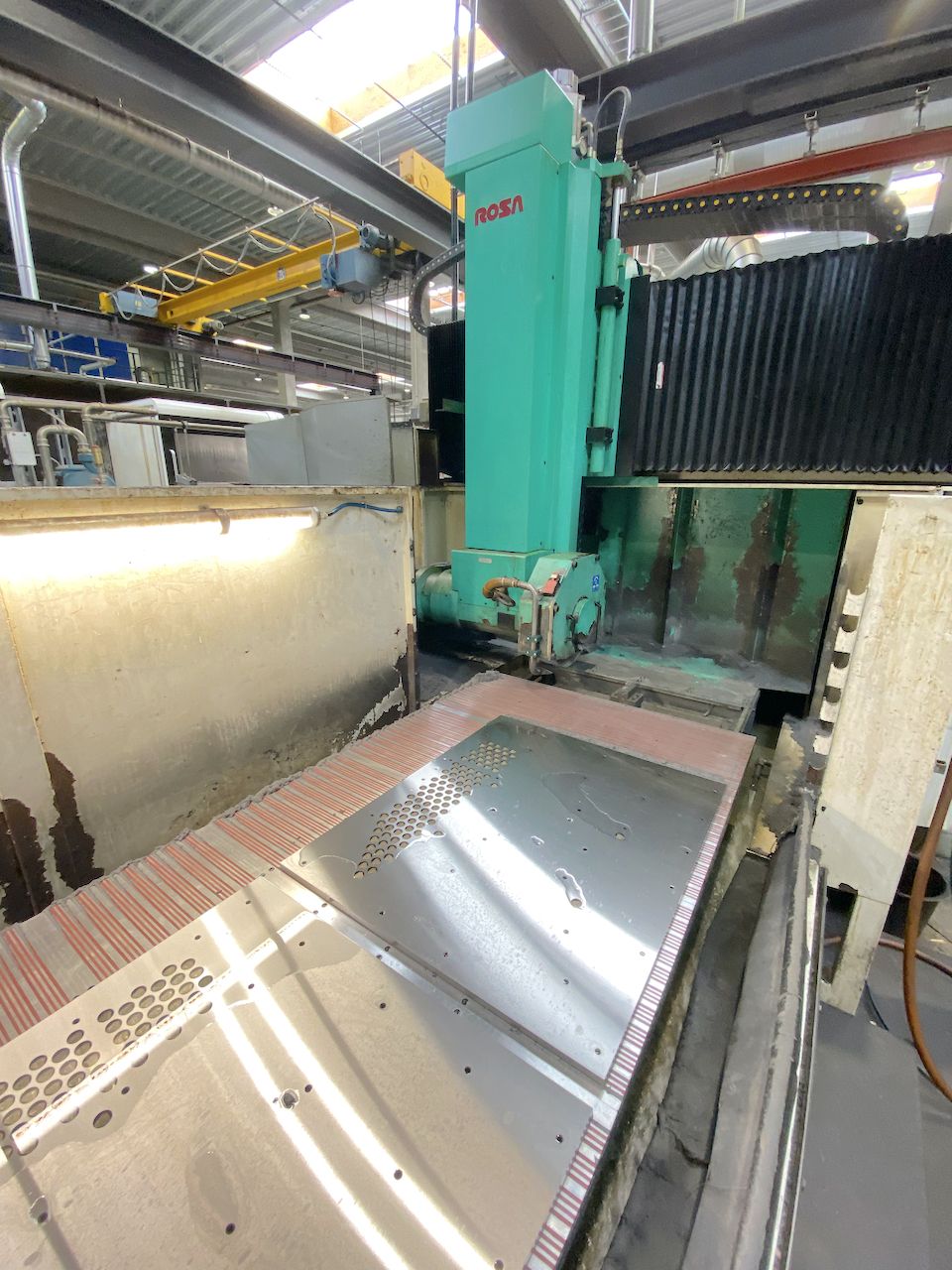

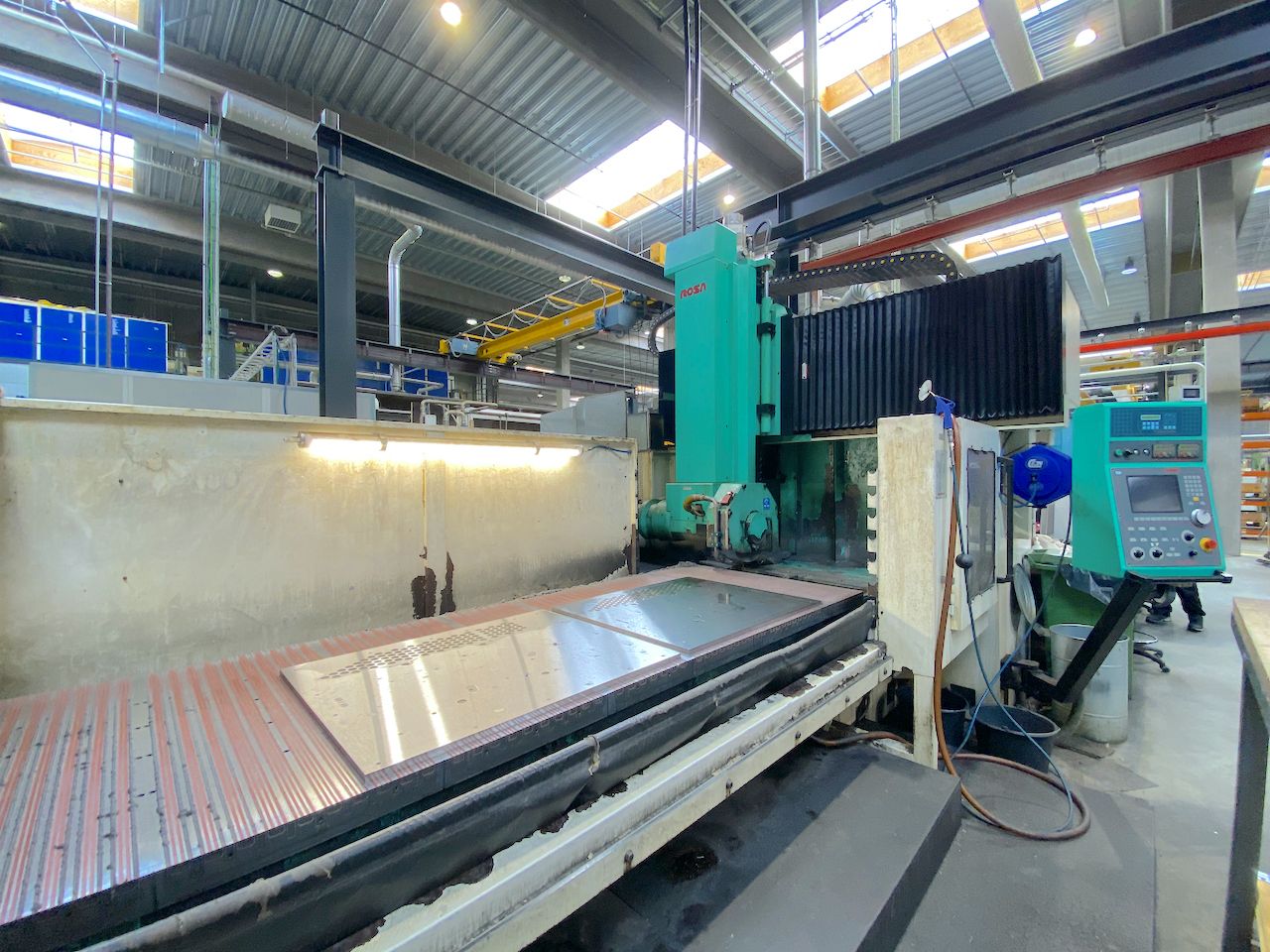

Category
Grinding Machine
Type
portal
Made
Model

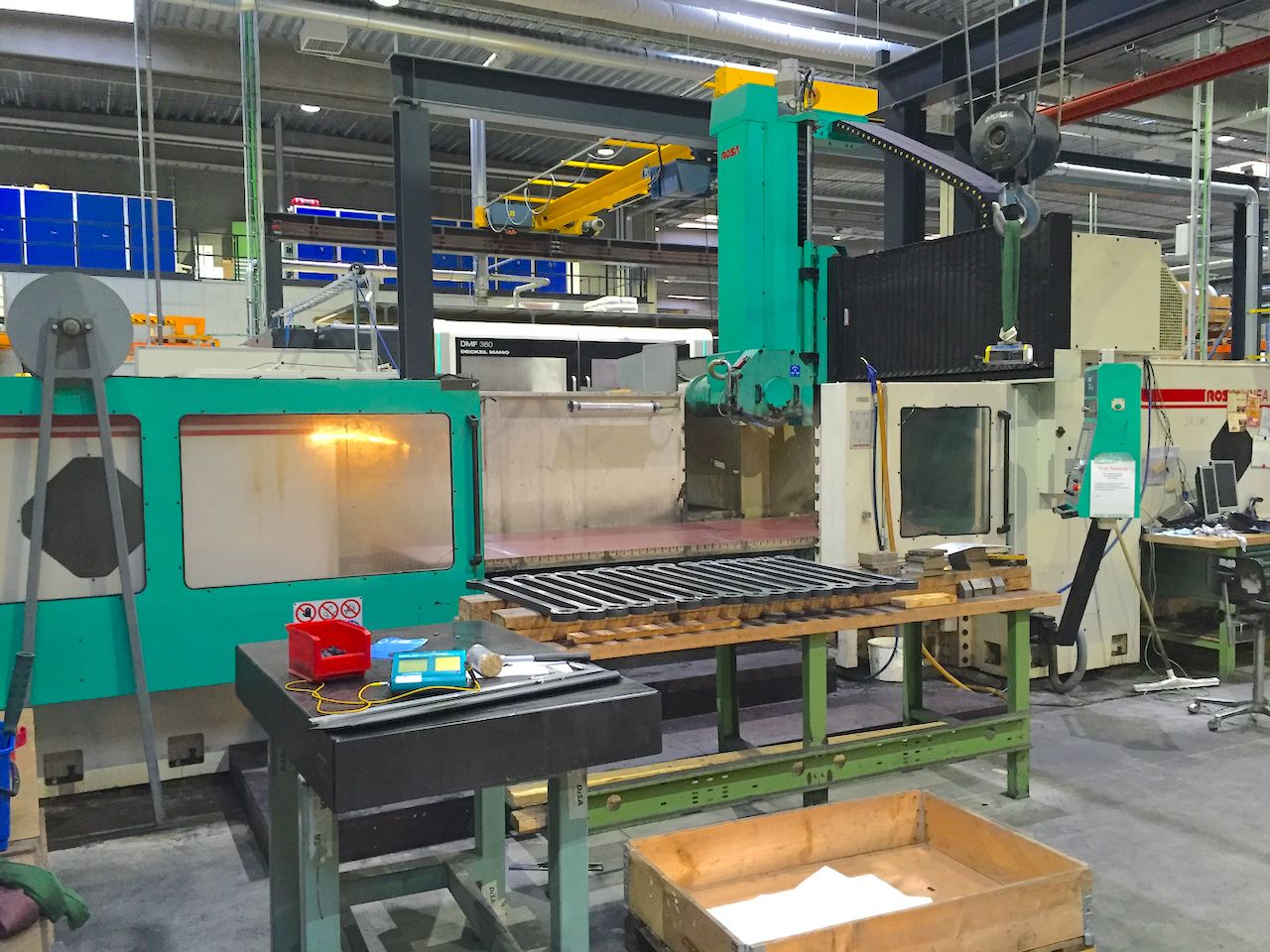

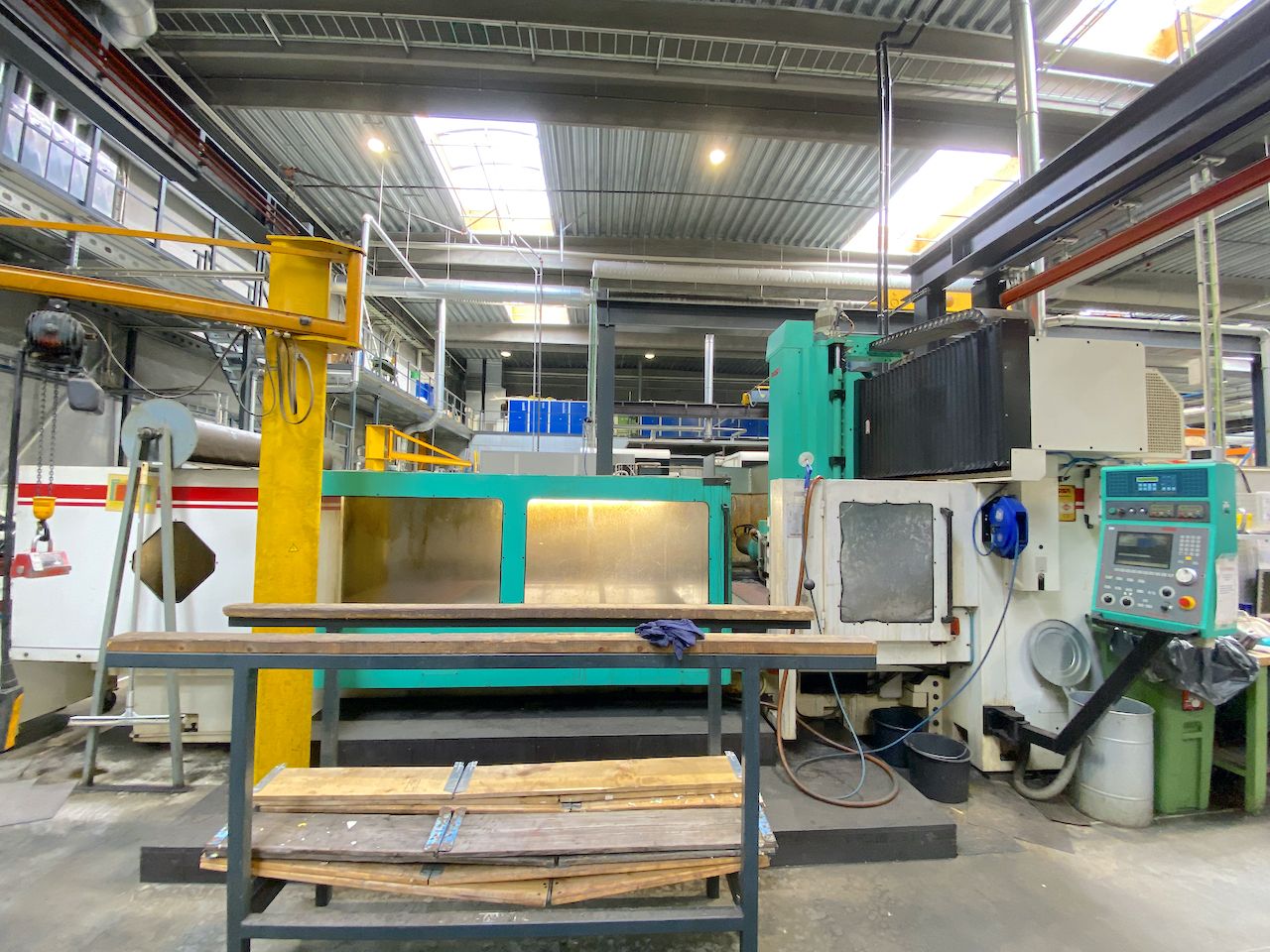

LINEA PLATINUM 30.15 CN
Capacity
3600x1550x700 mm141,73x61,02x27,56 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Longitudinal (X)
3800 mm149,61 in
Vertical (Z)
700 mm27,56 in
Cross RAM (Y)
1550 mm61,02 in
Max grinding lenght
3600 mm141,73 in
Max grinding width
1550 mm61,02 in
Max grinding thickness
700 mm27,56 in
TABLE
Surface
3200x1000 mm125,98x39,37 in
Stroke
3800 mm149,61 in
Cross speed
1-40 m/min
Capacity
3000 Kg

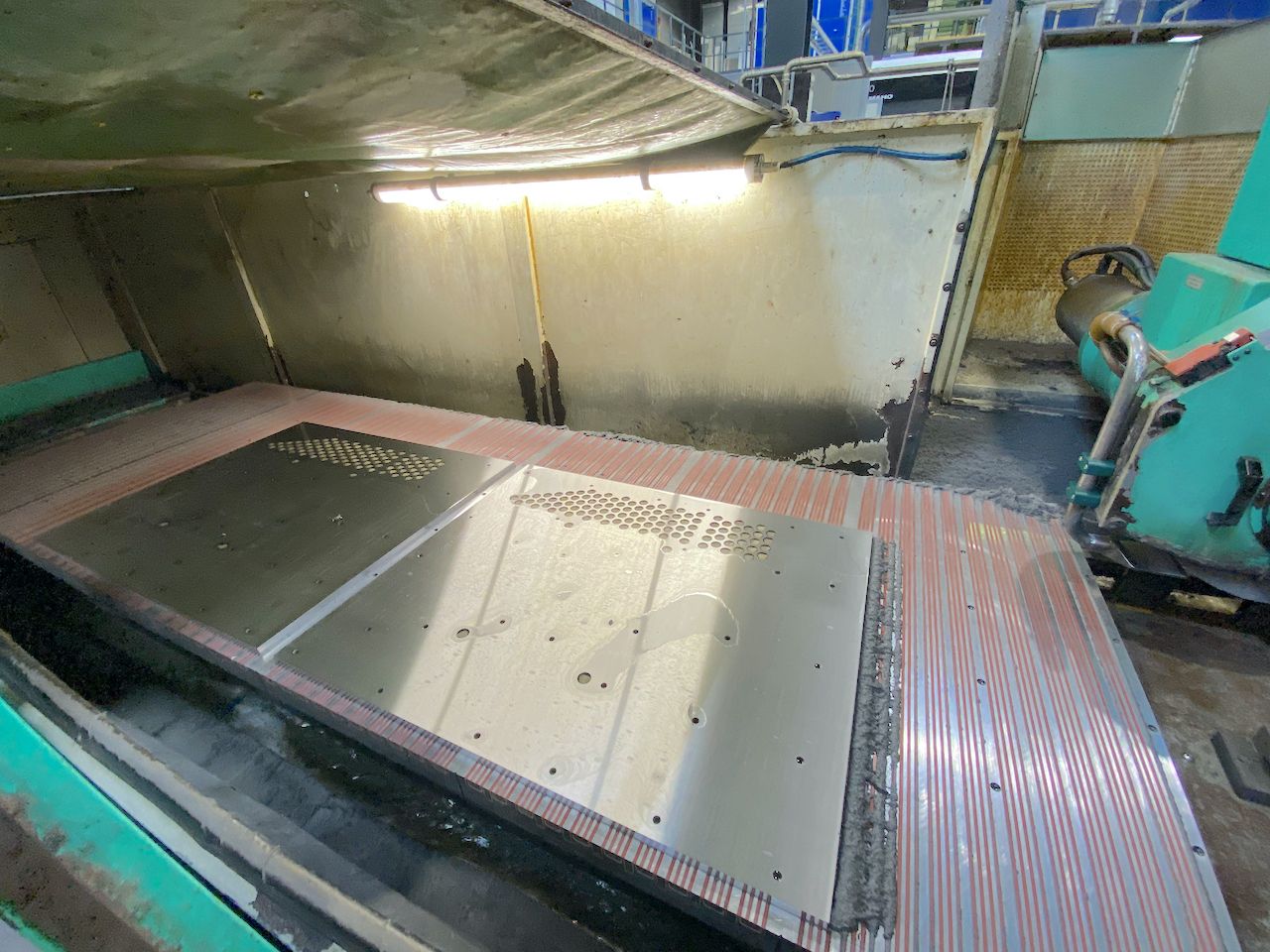

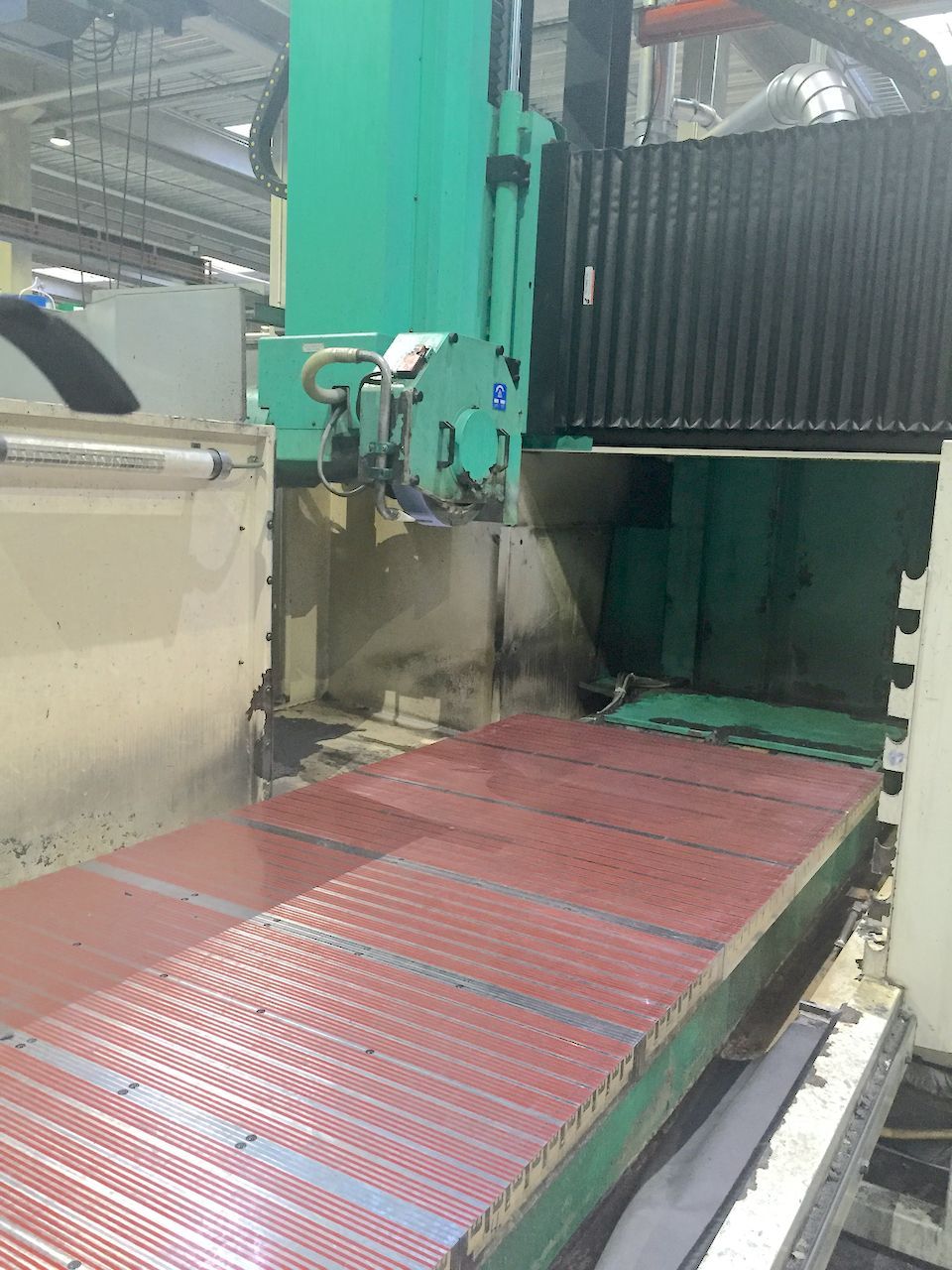

MAGNETIC TABLE
Surface
3000x1000 mm118,11x39,37 in

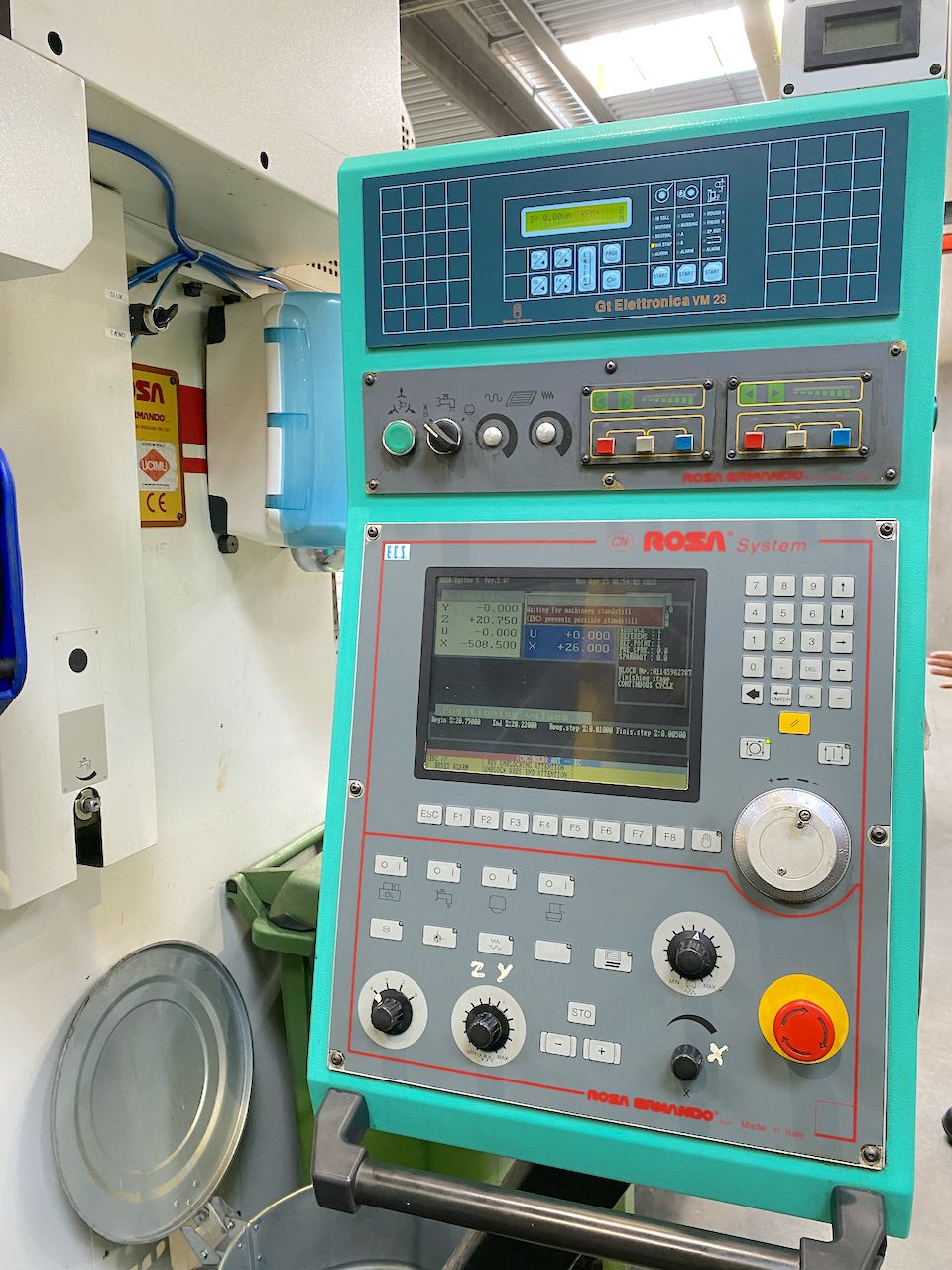

CNC
CNC
ECS Rosa System CN
Drives
SIEMENS

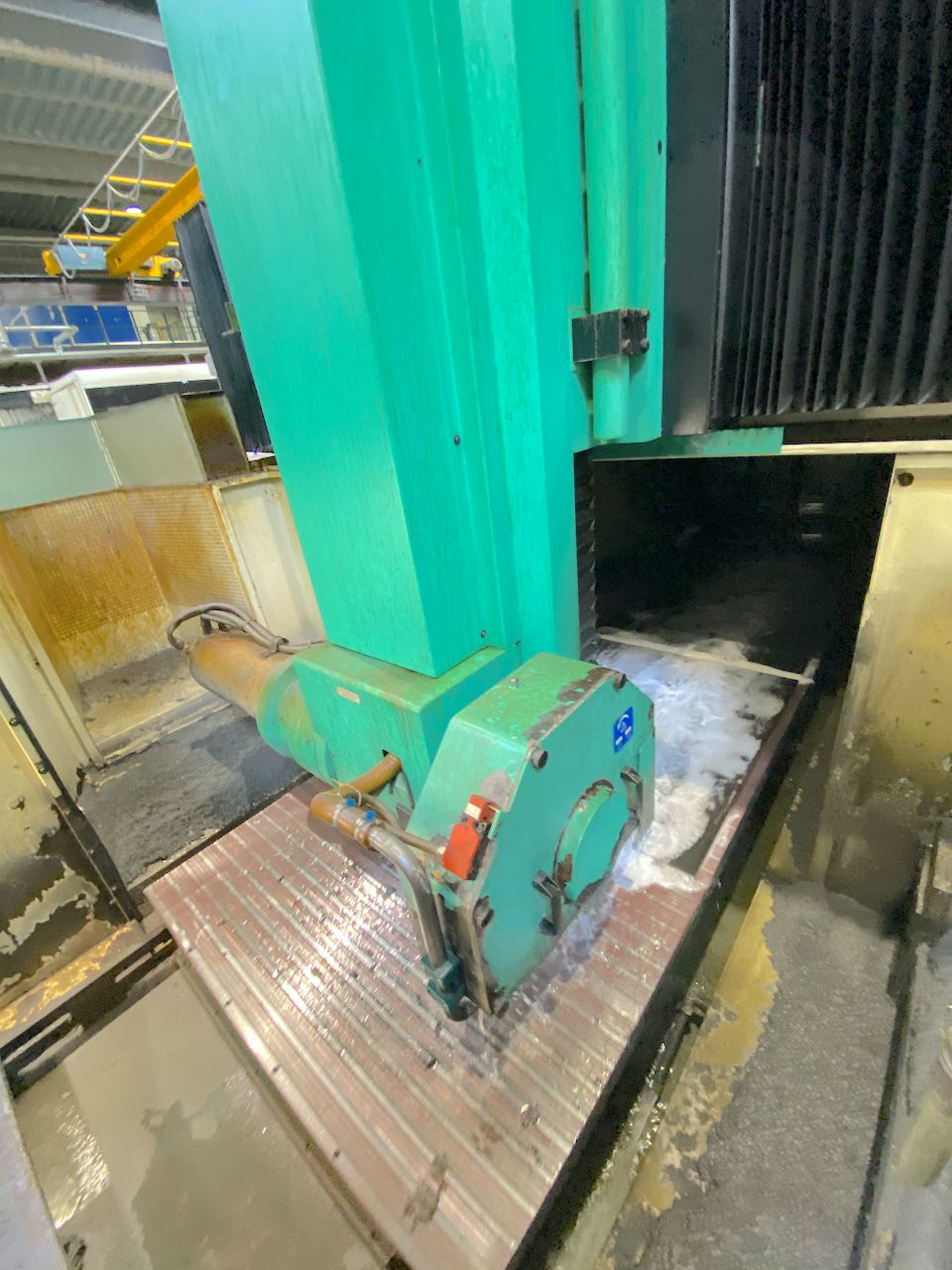

WHEEL SPINDLE
Spindle power
25 Kw
Rotating speed
960-1700 Rpm
WHEEL
Wheel band thickness
100 mm3,94 in
Max wheel diameter
610 mm24,02 in
Hole diameter
305 mm12,01 in
EXTRA
Machine total weight
32000 Kg
Floor space
10500x4500x3735 mm413,39x177,17x147,05 in
Automatic dresser
Yes
Filtration unit
vasca filtro a carta
Maintenance & Use books
Yes
Electrical drawings
Yes
CE Certification
Yes
Housing
completa
