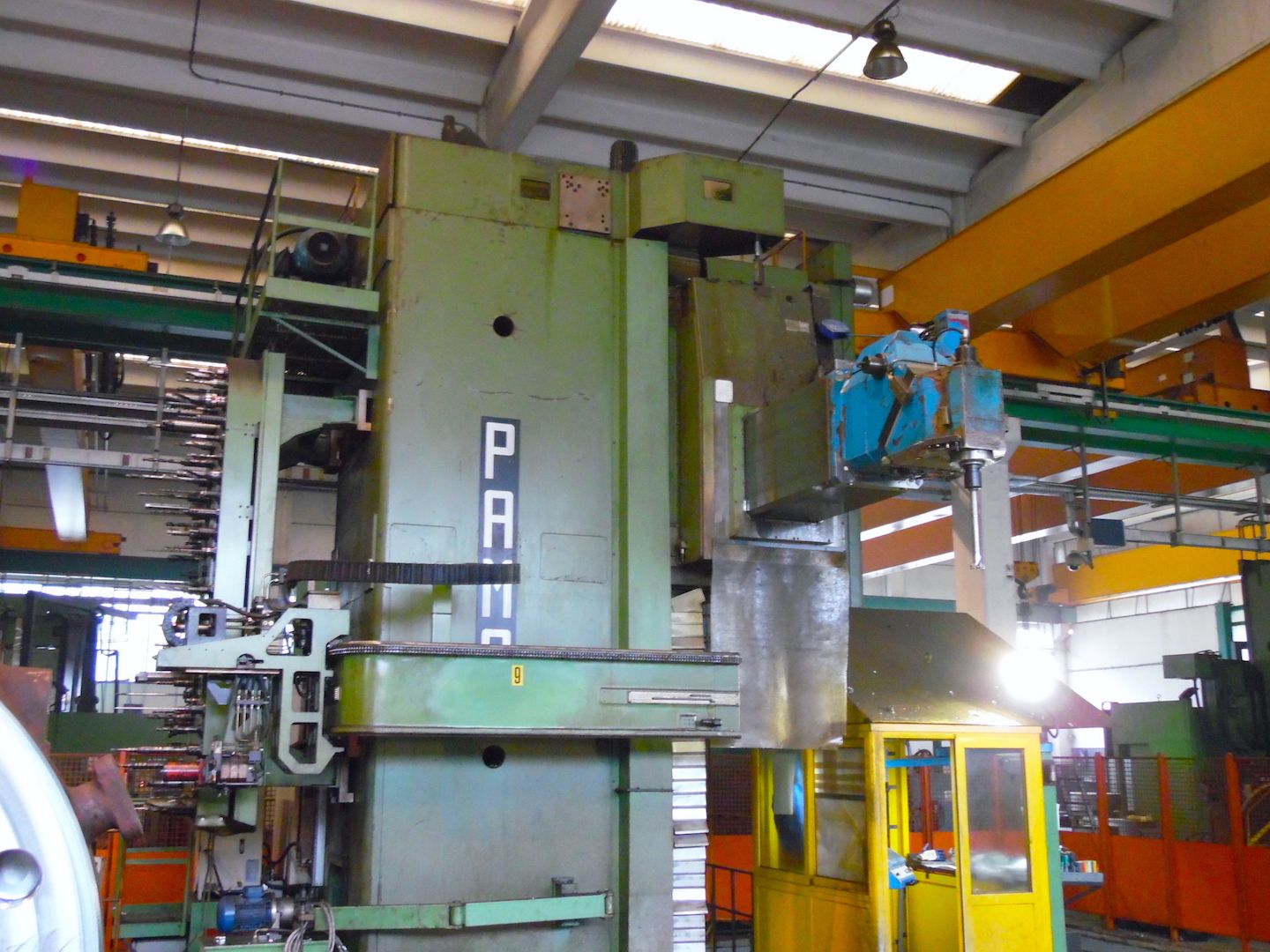

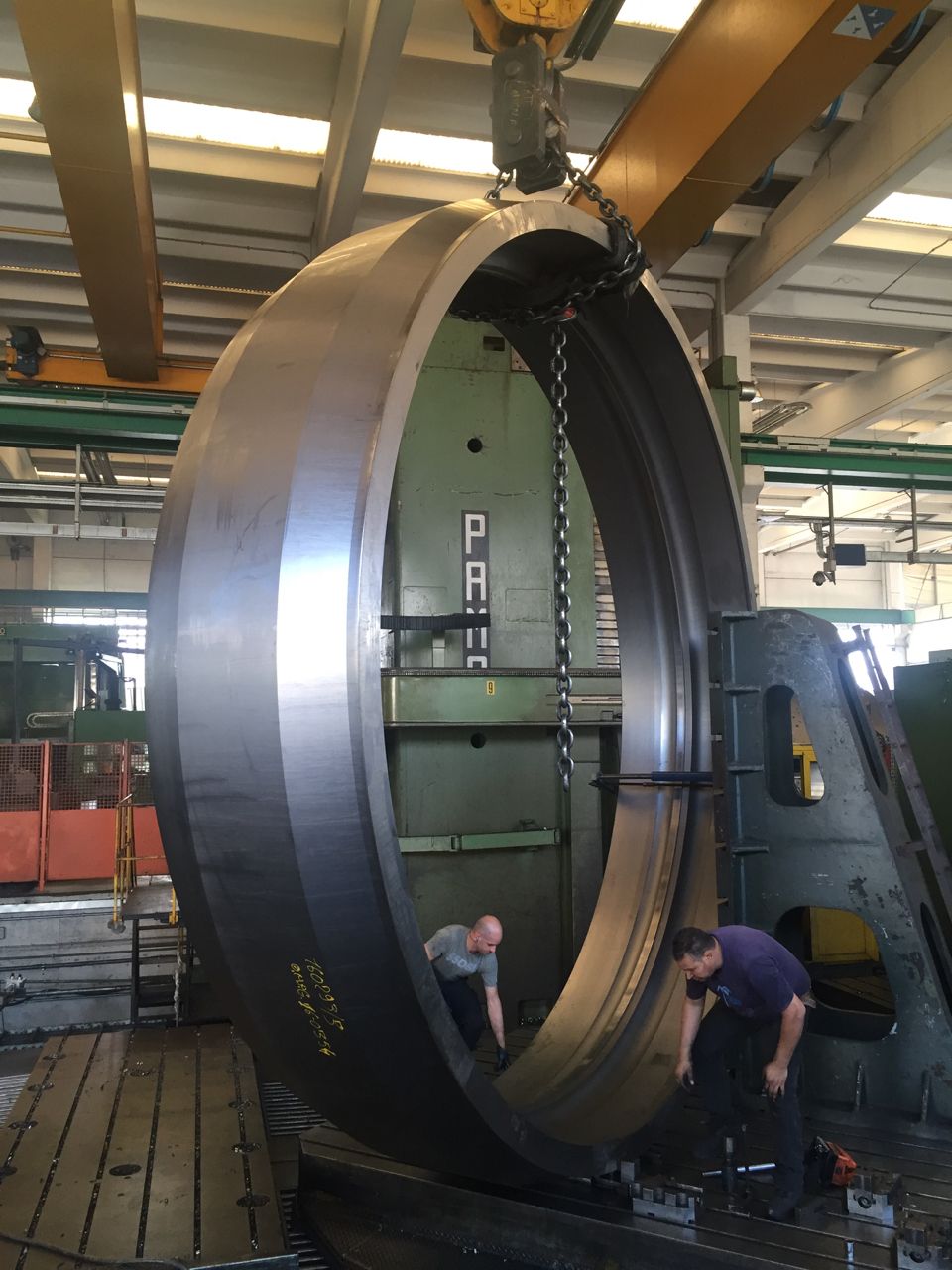

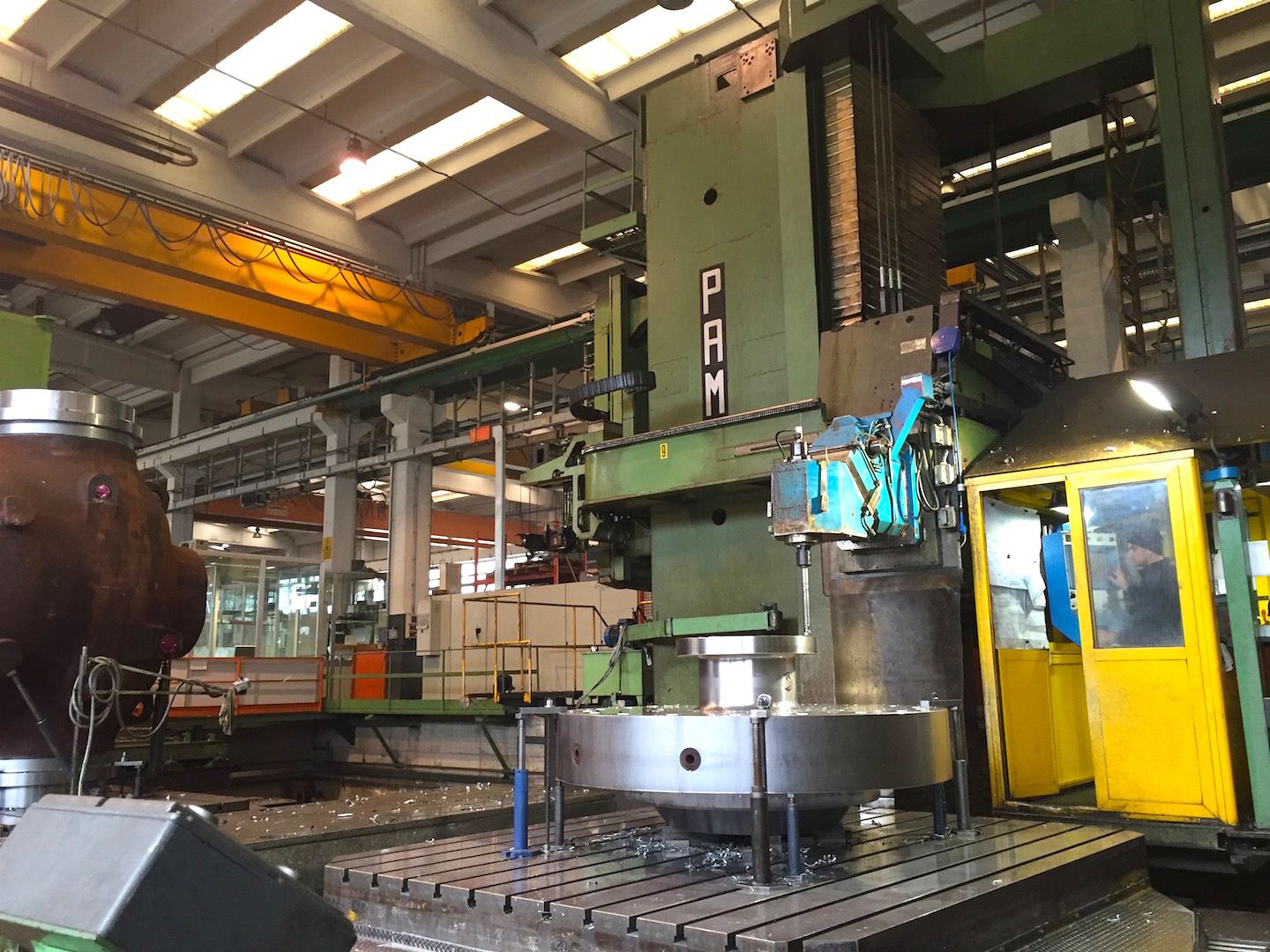

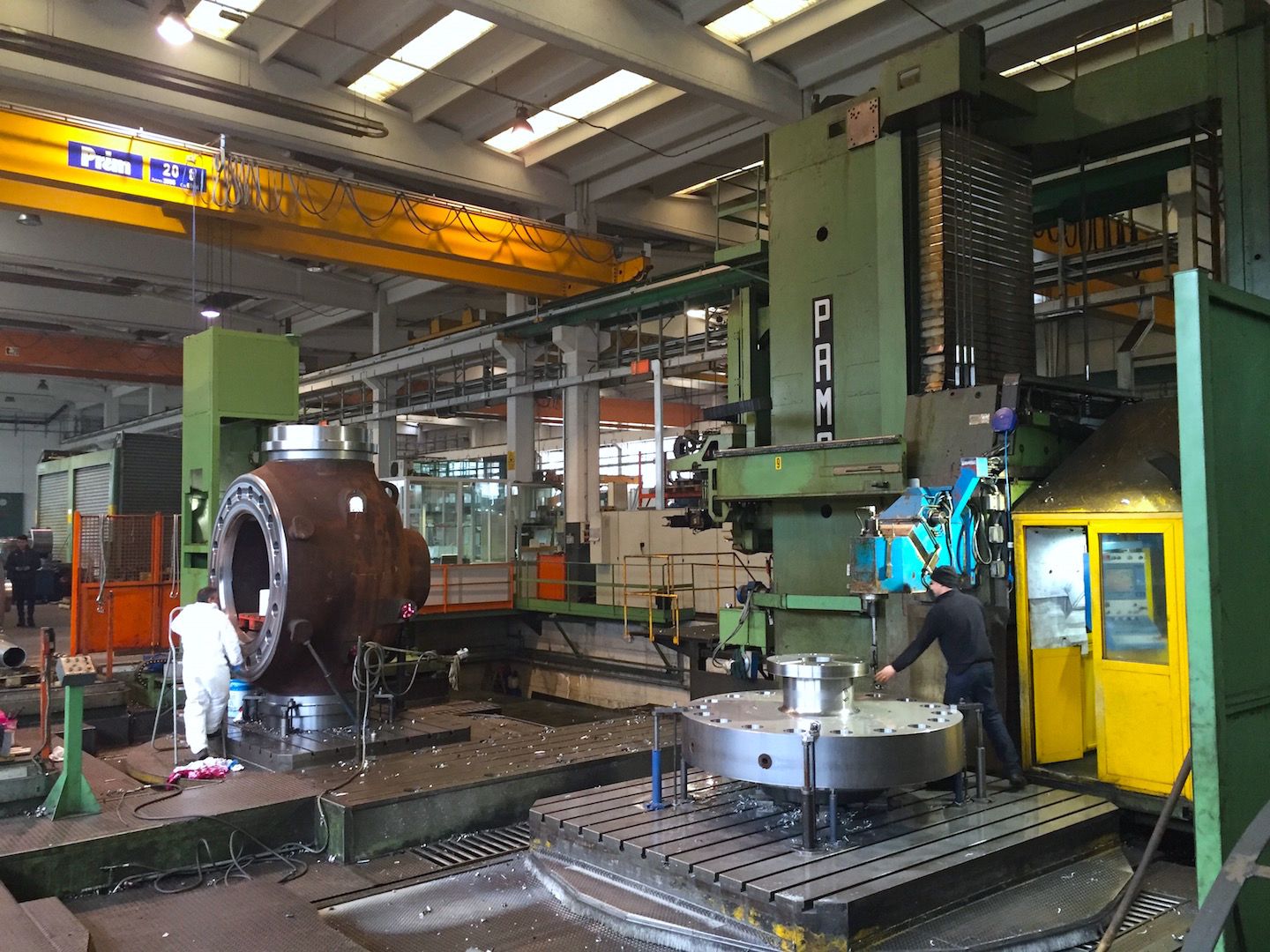

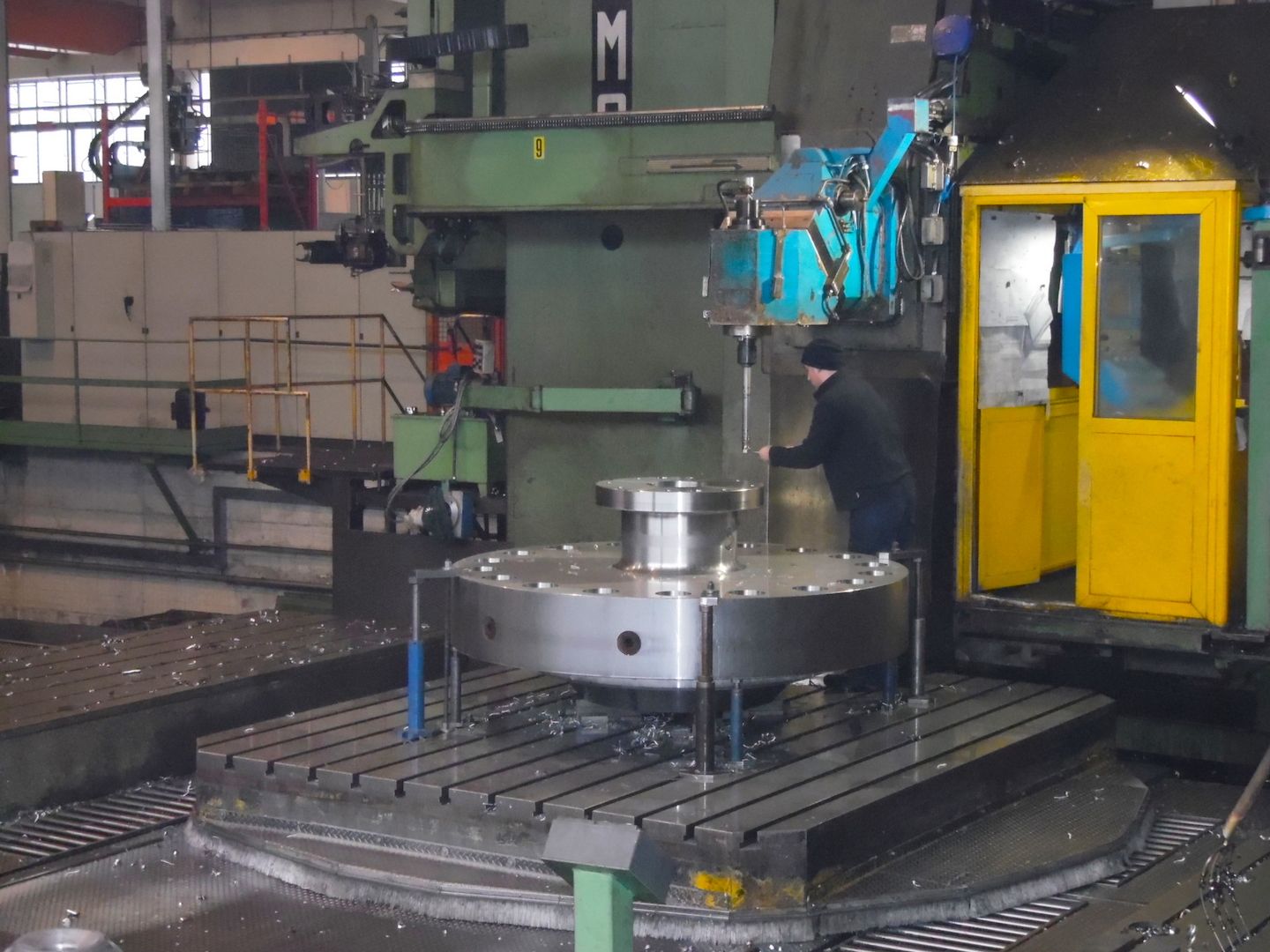

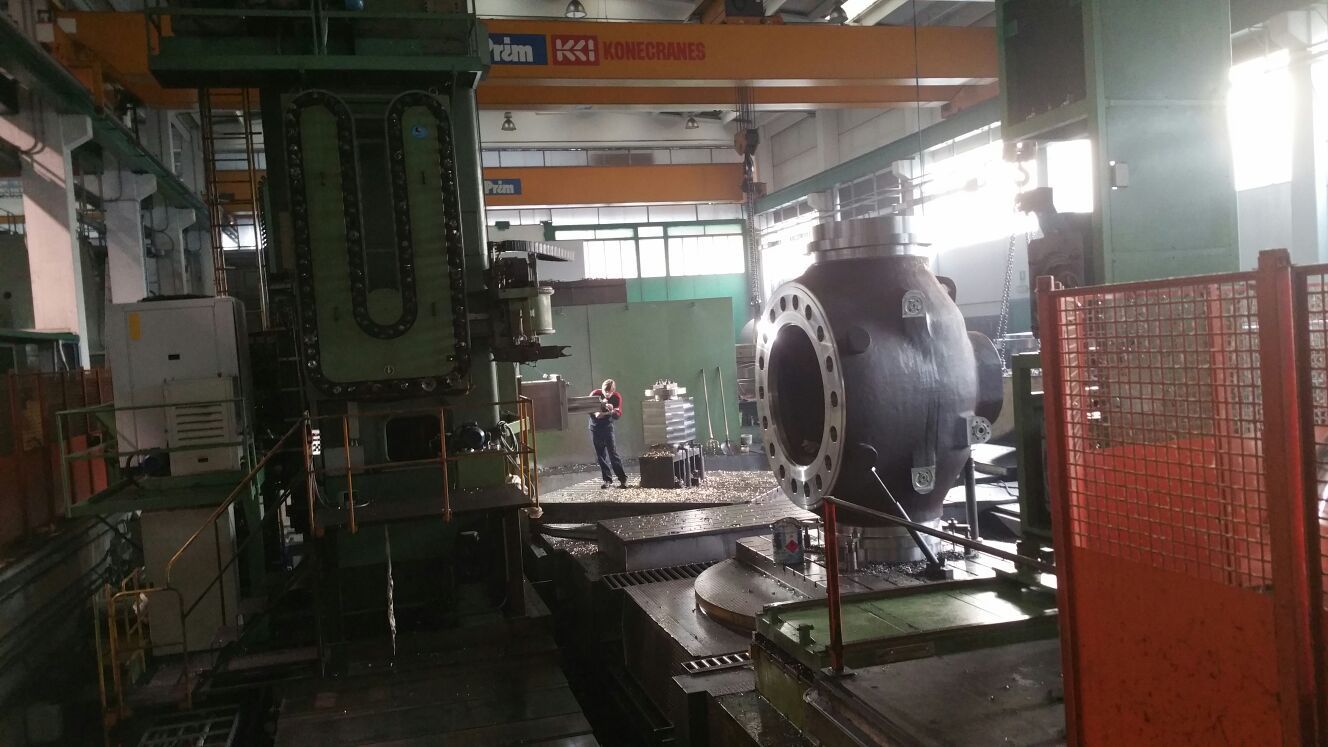

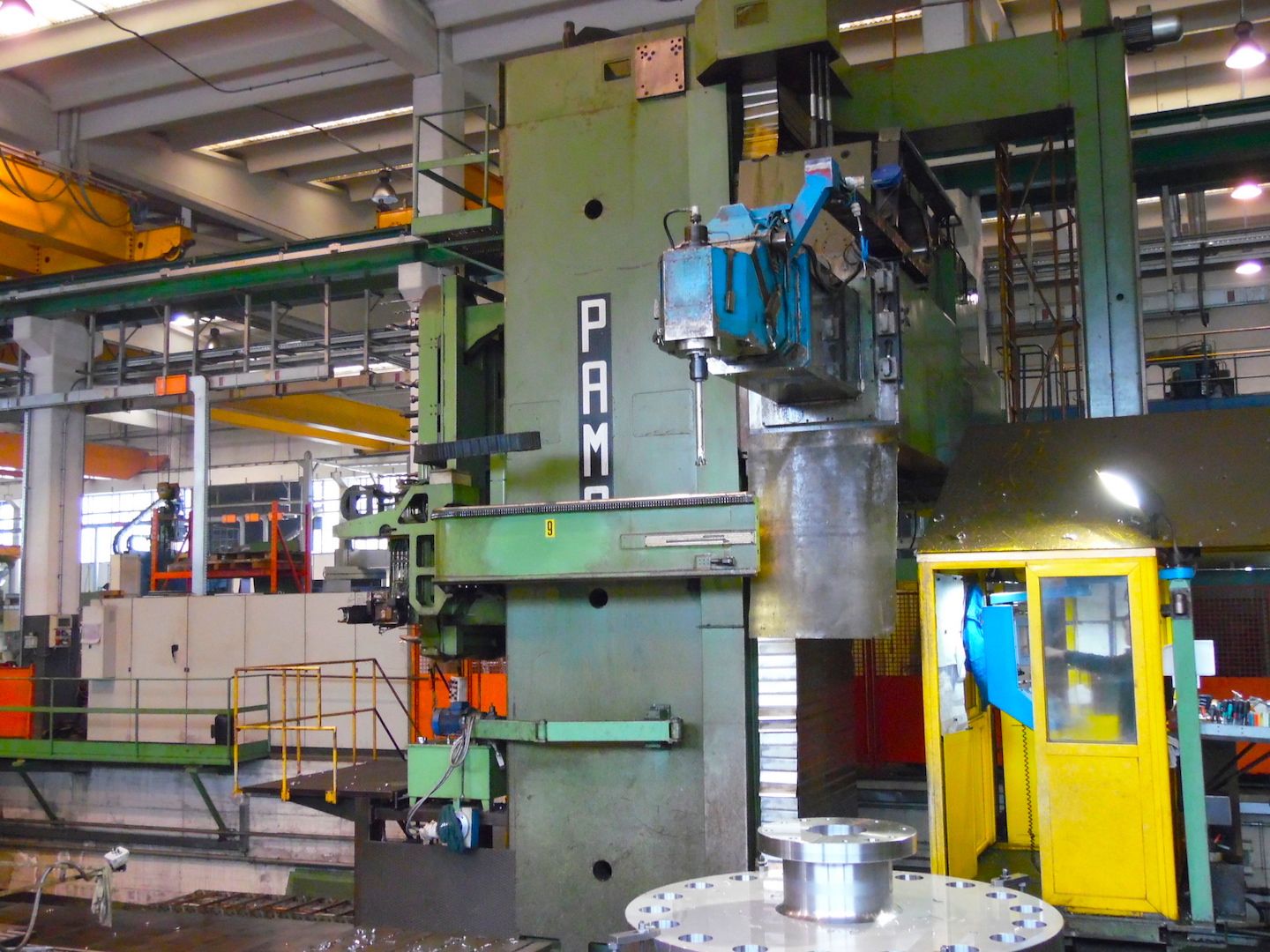

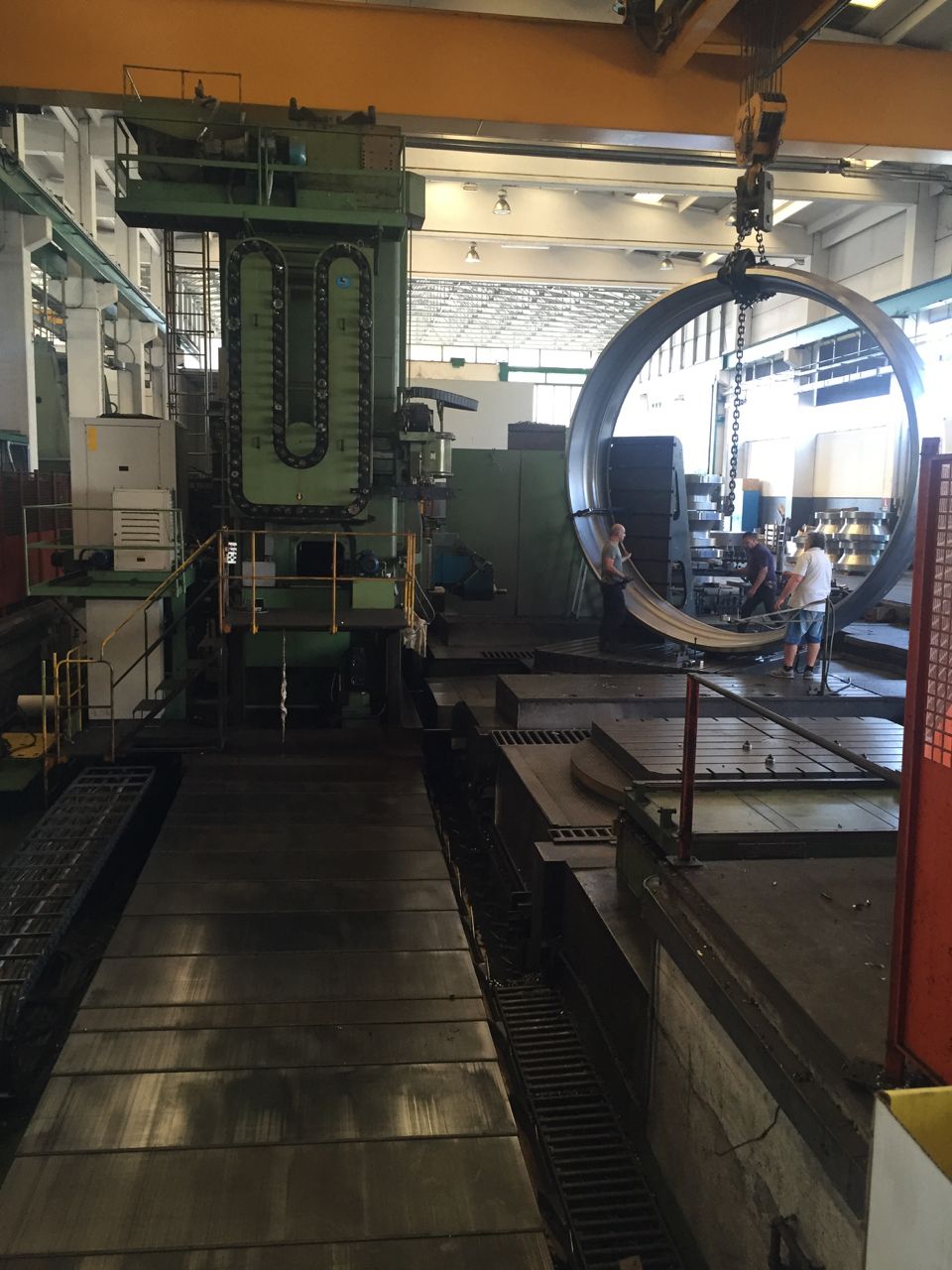

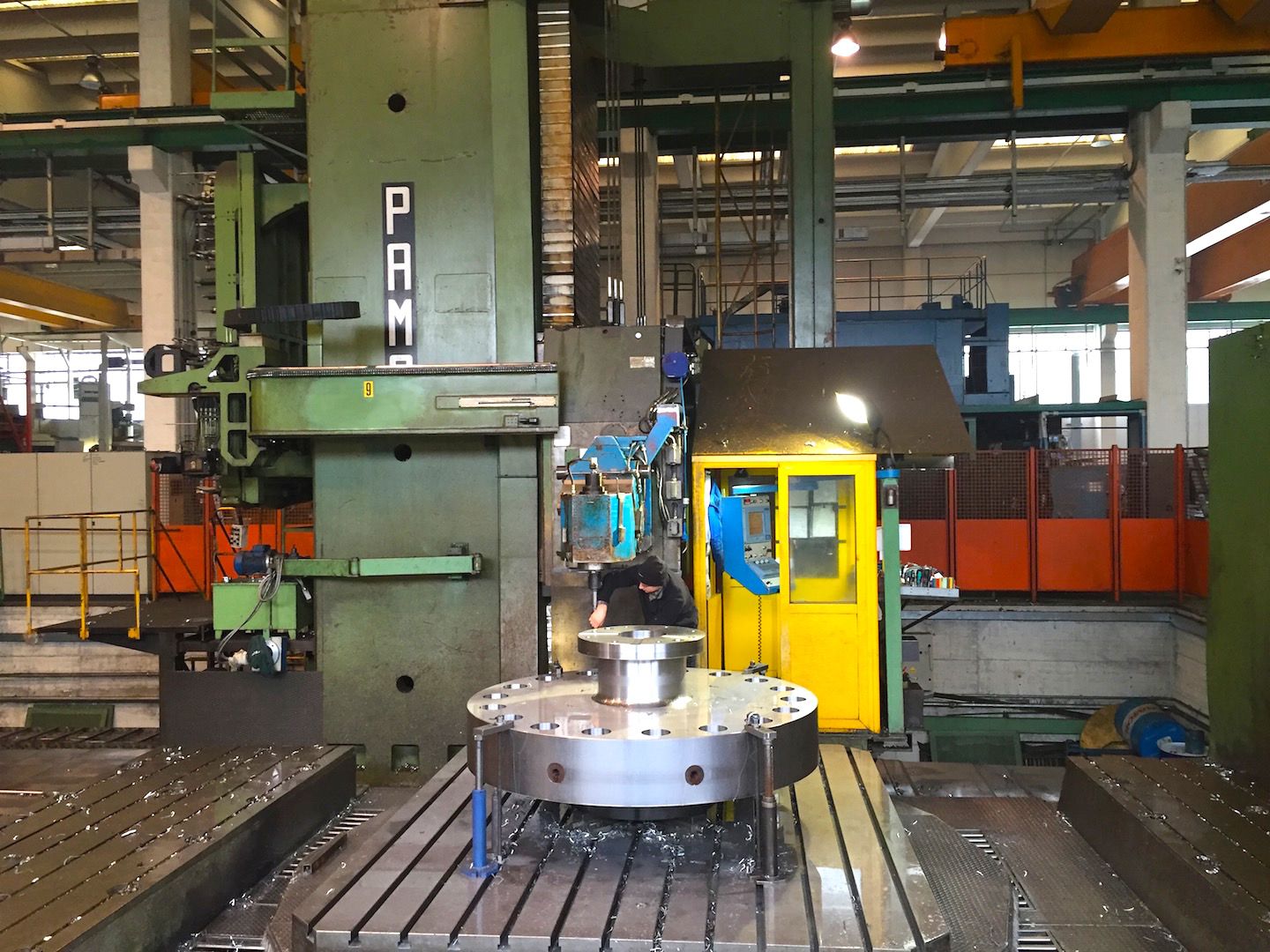

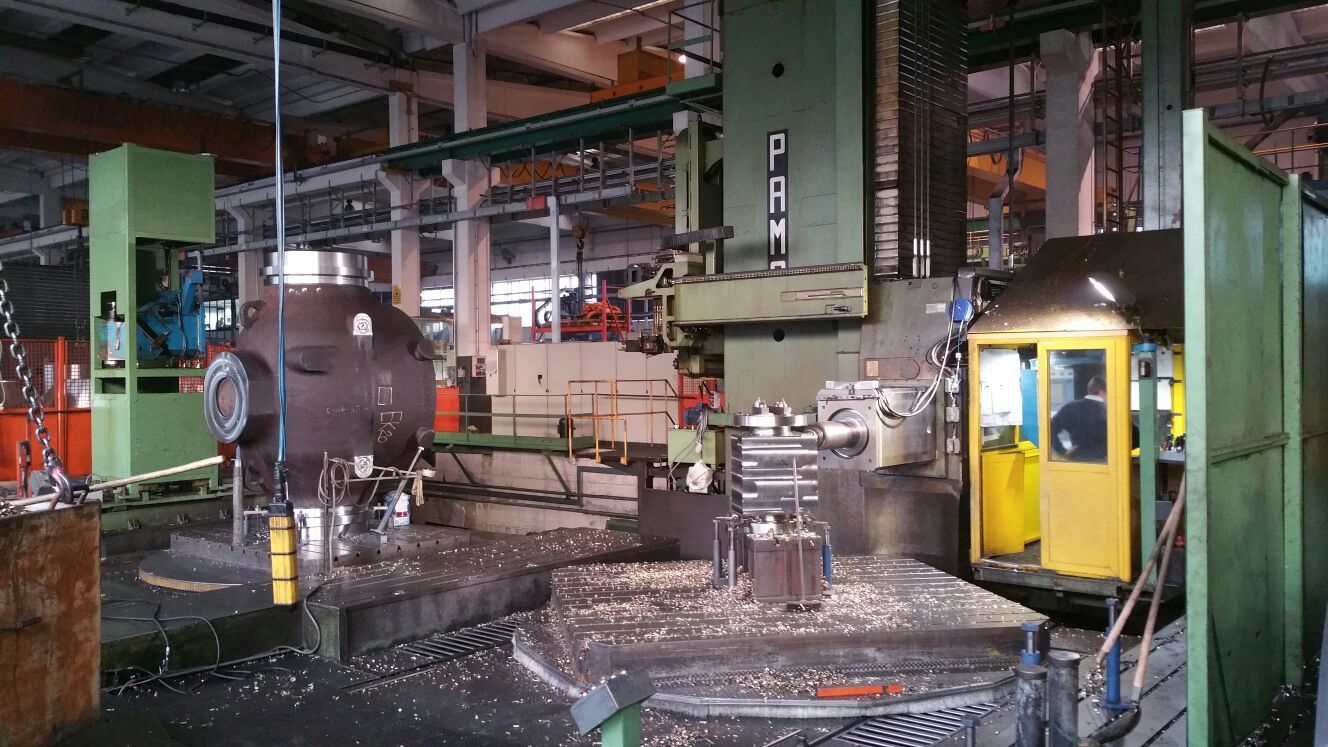

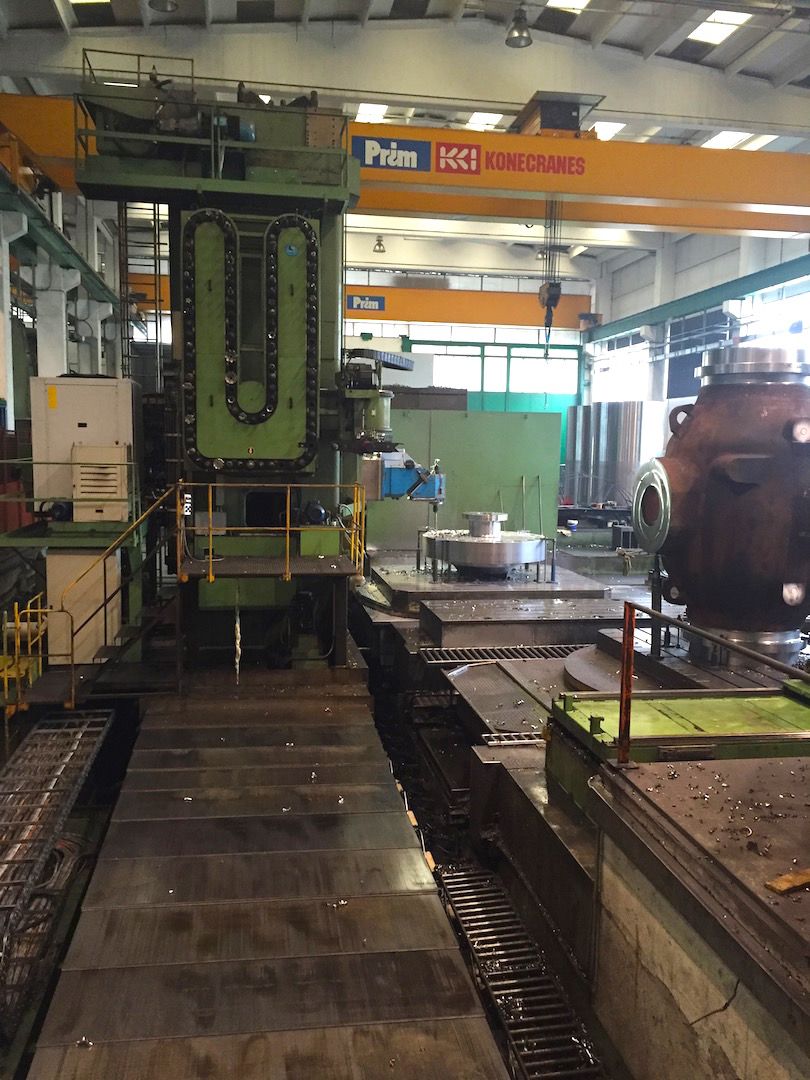

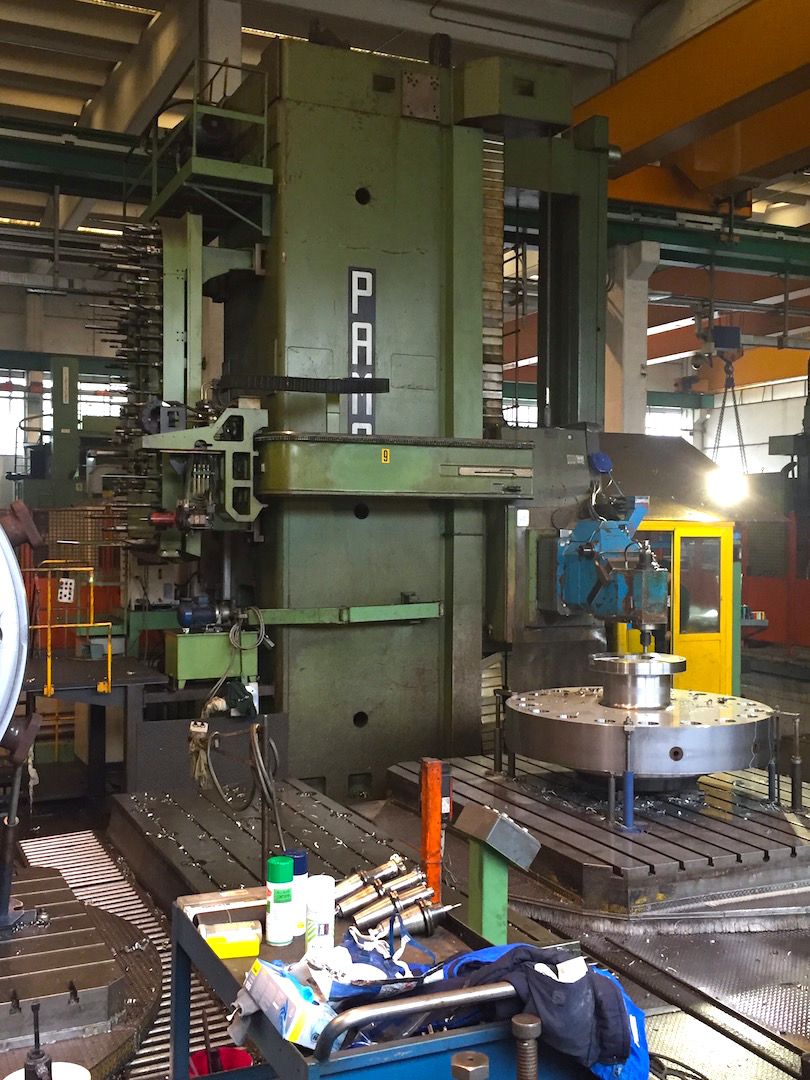

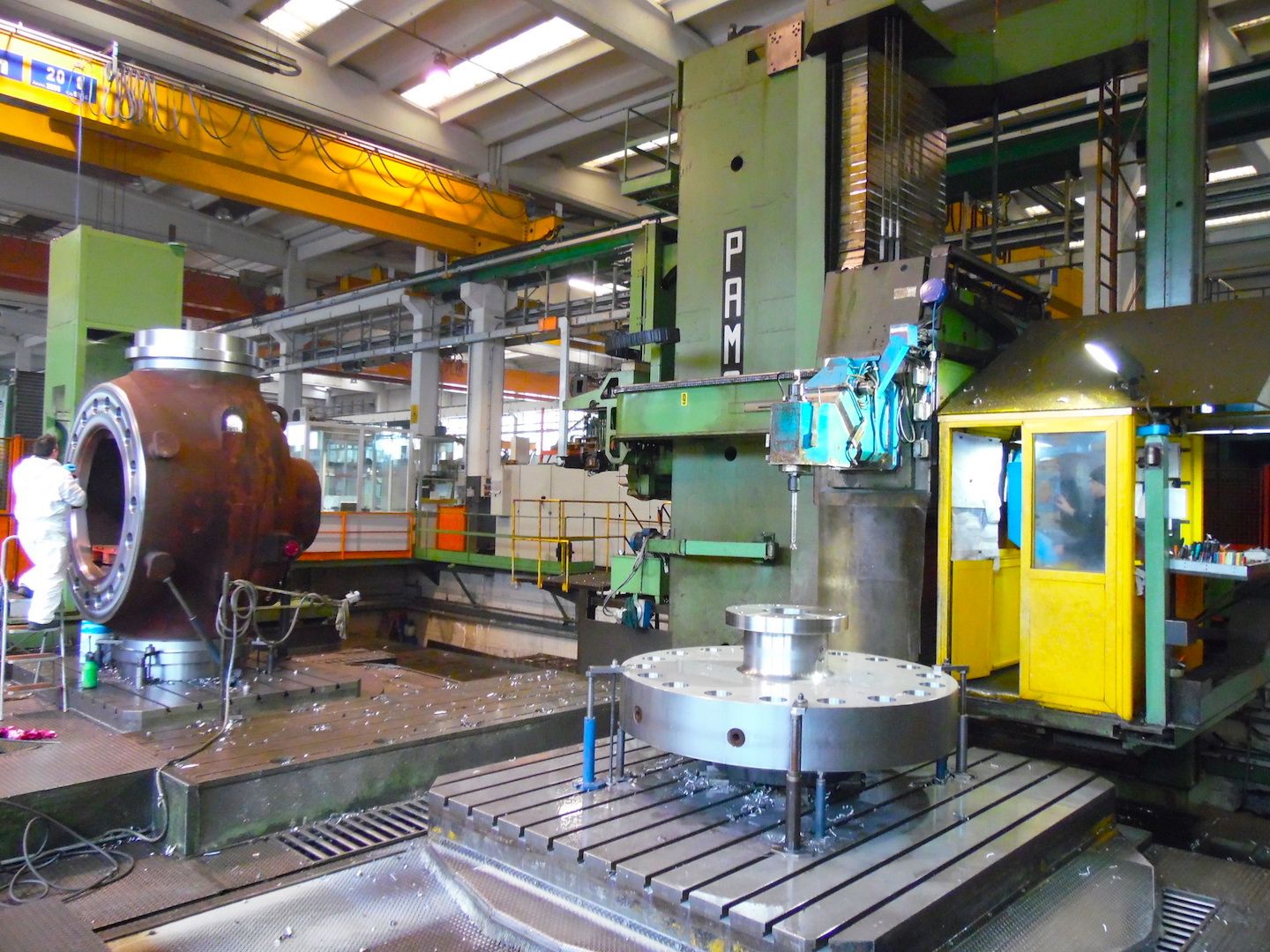

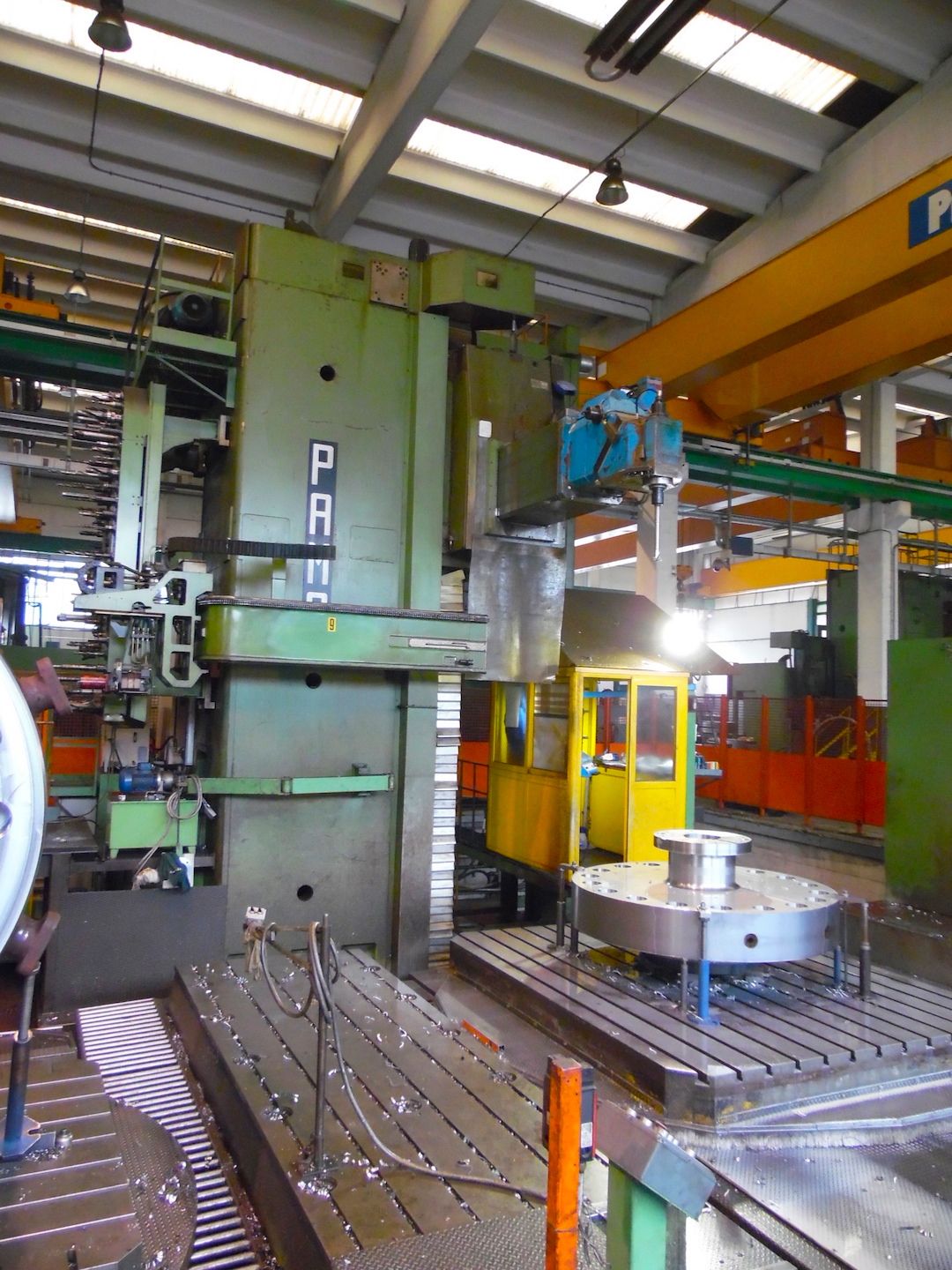

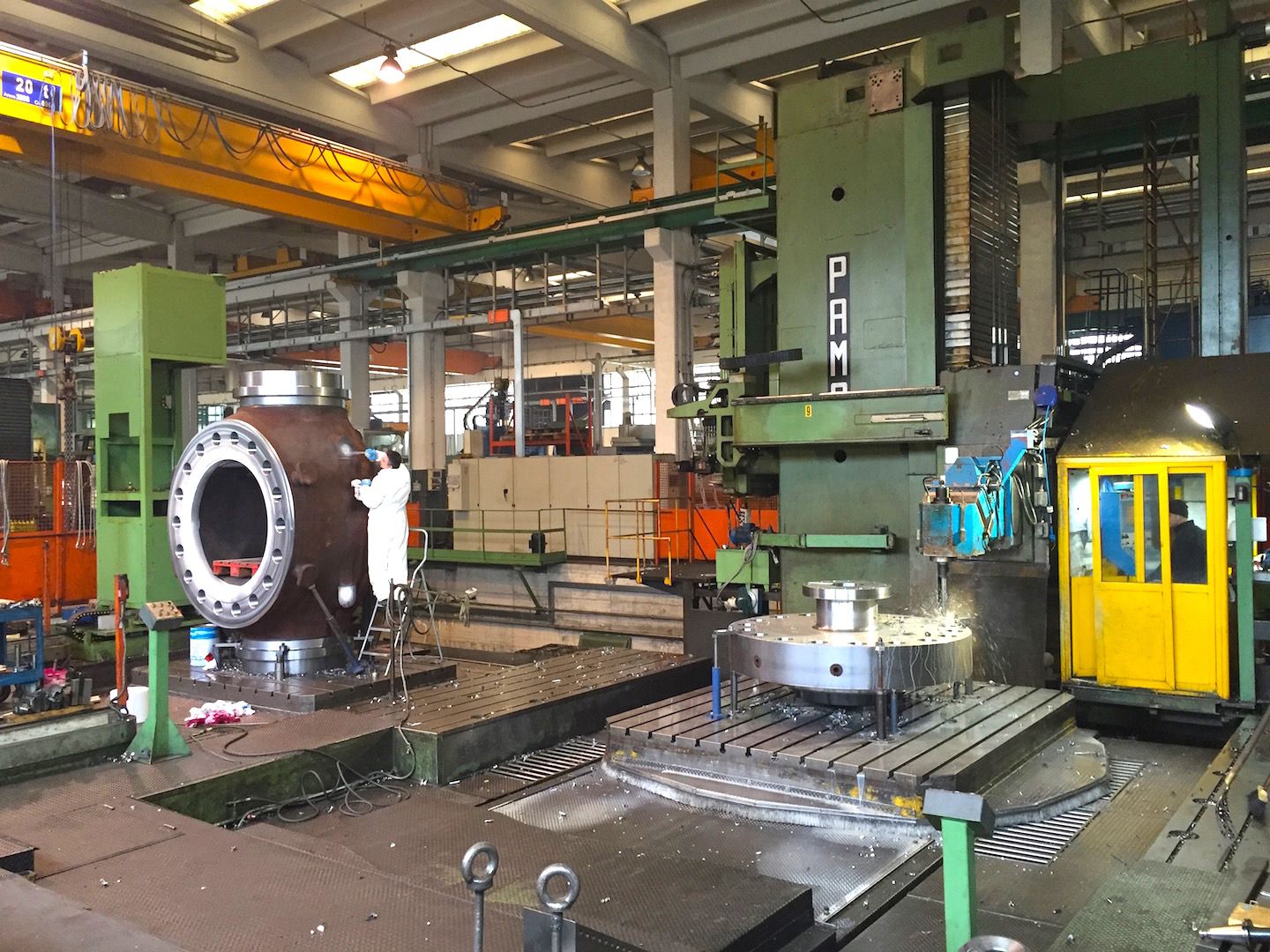

Category
Boring Machine
Type
Mobile Column
Made
Model
AC 250
Capacity
12000x4000x1100+1500 mm472,44x157,48x43,31+59,06 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Longitudinal (X)
12000 mm472,44 in
Vertical (Y)
4000 mm157,48 in
Cross RAM (Z)
1100 mm43,31 in
Quill (W)
con RAM fuori tutto: 900mm, con RAM dentro tutto: 1500 mmcon RAM fuori tutto: 35,43mm, con RAM dentro tutto: 59,06 in
Table (V)
2800 mm110,24 in
Table2 (V)
2000 mm78,74 in

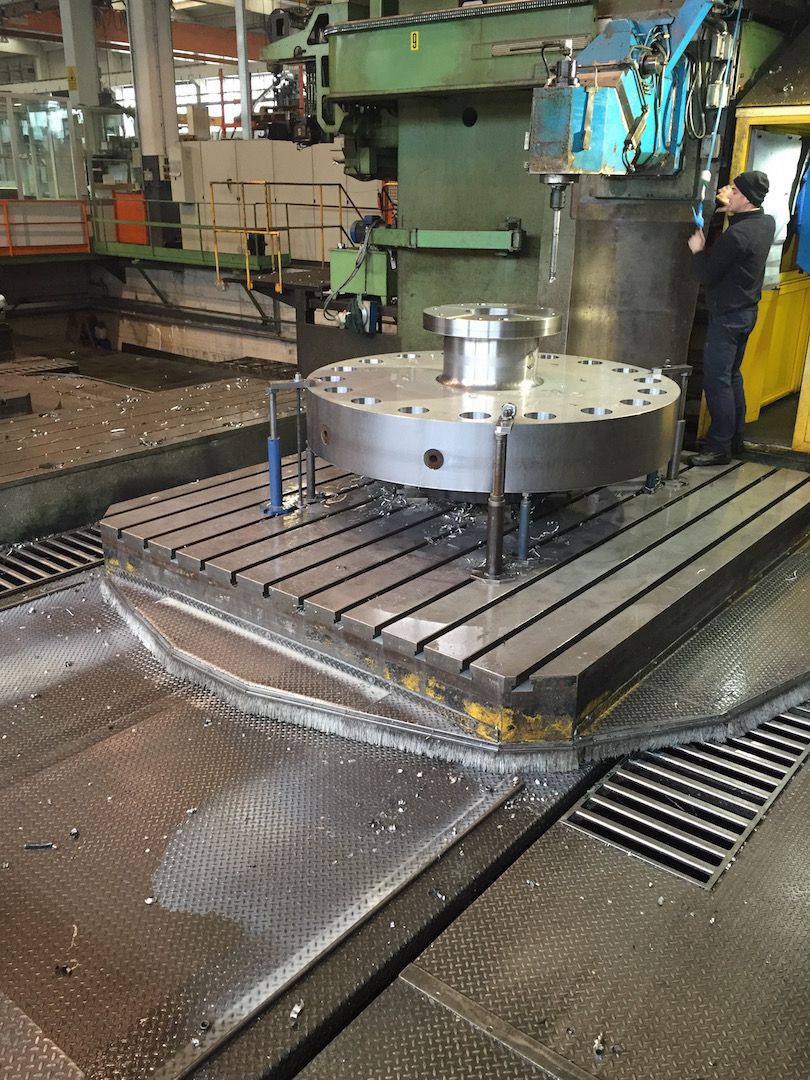

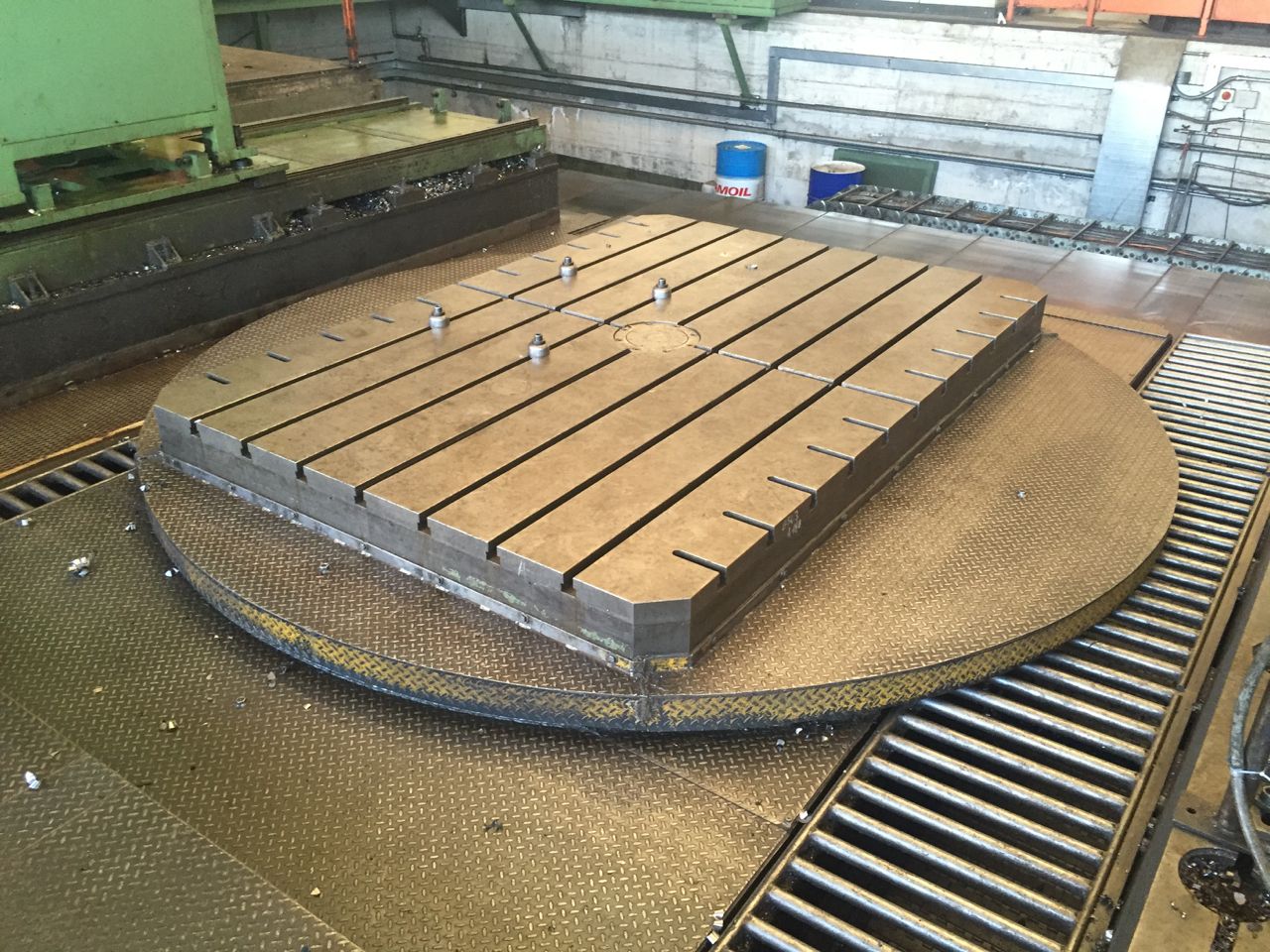

TABLE 1
Brand
PAMA
Available upon request
Yes
Surface
3500x3000 mm137,80x118,11 in
Translation
2800 mm110,24 in
Accuracy (B axis)
0,001 °
Capacity
nominal 80.000Kg, effective 100.000 Kg
Support
idrostatico
Rotating speed
3 Rpm o °/min
Notes
bloccaggi asse B con pistoni AT con centralina idrostatica
TABLE 2
Brand
Mitsubishi
Available upon request
Yes
Surface
3000x2100 mm118,11x82,68 in
Translation
2000 mm78,74 in
Accuracy (B axis)
0,001 °
Capacity
nominal 25.000Kg, effective 40.000 Kg
Support
Hydrostatic
Rotating speed
3 Rpm o °/min

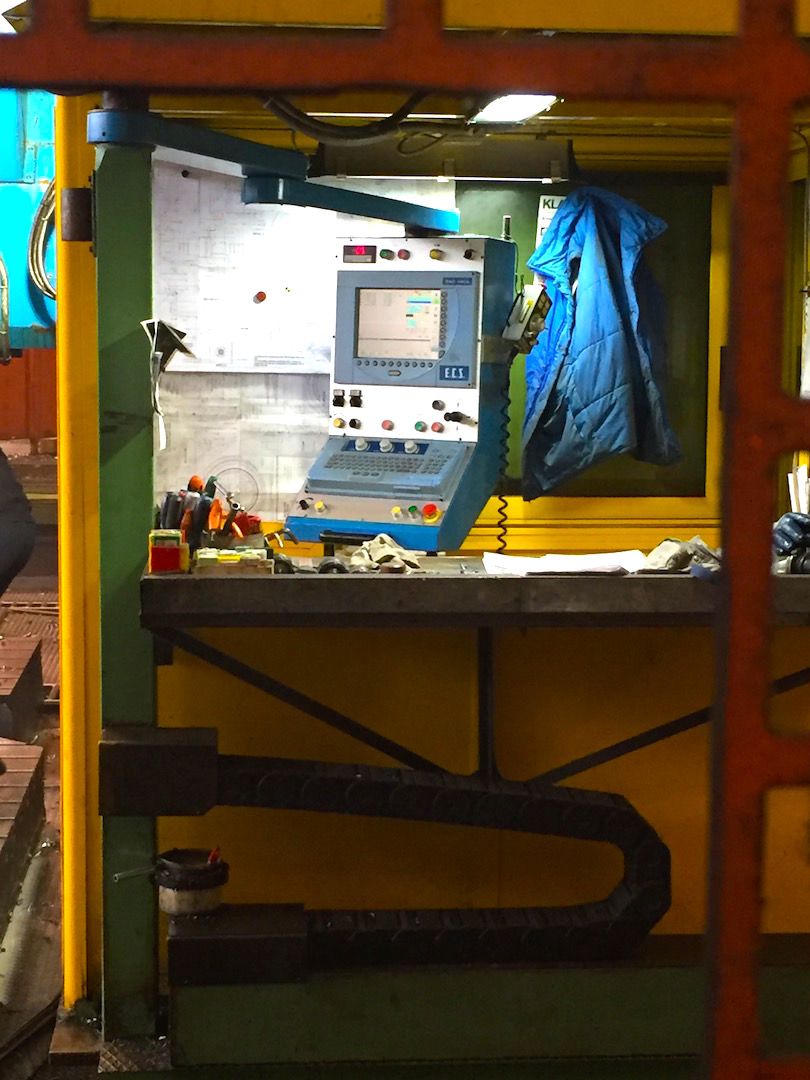

CNC
CNC
ECS4801
Measuring system
Encoder + righe ottiche Heidenhain
SPINDLE
Quill diameter
250 mm9,84 in
RAM section
760x600 mm29,92x23,62 in
Spindle power
70 Kw
Gearbox
4 gears
Rotating speed
0-850 Rpm
Torque
>7000 Nm
Taper
ISO50 DIN69871
Support
idrostatico
Notes
passaggio per acqua + acqua refrigerante interna
FEEDS
Rapid X
6 m/min236,22 ipm
Rapid Y
6 m/min236,22 ipm
Rapid Z
6 m/min236,22 ipm
Rapid W
6 m/min236,22 ipm
Rapid V
4 m/min157,48 ipm

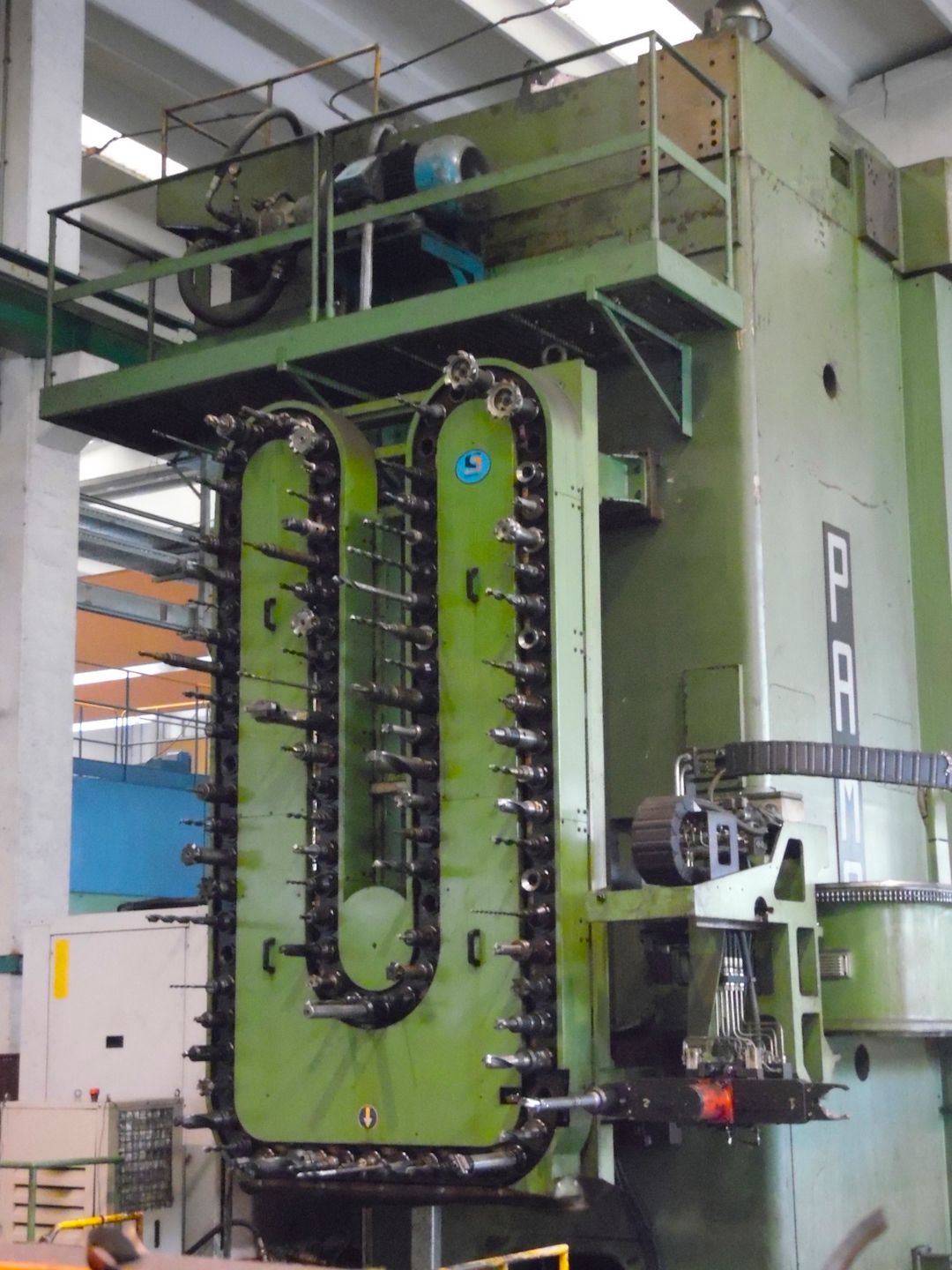

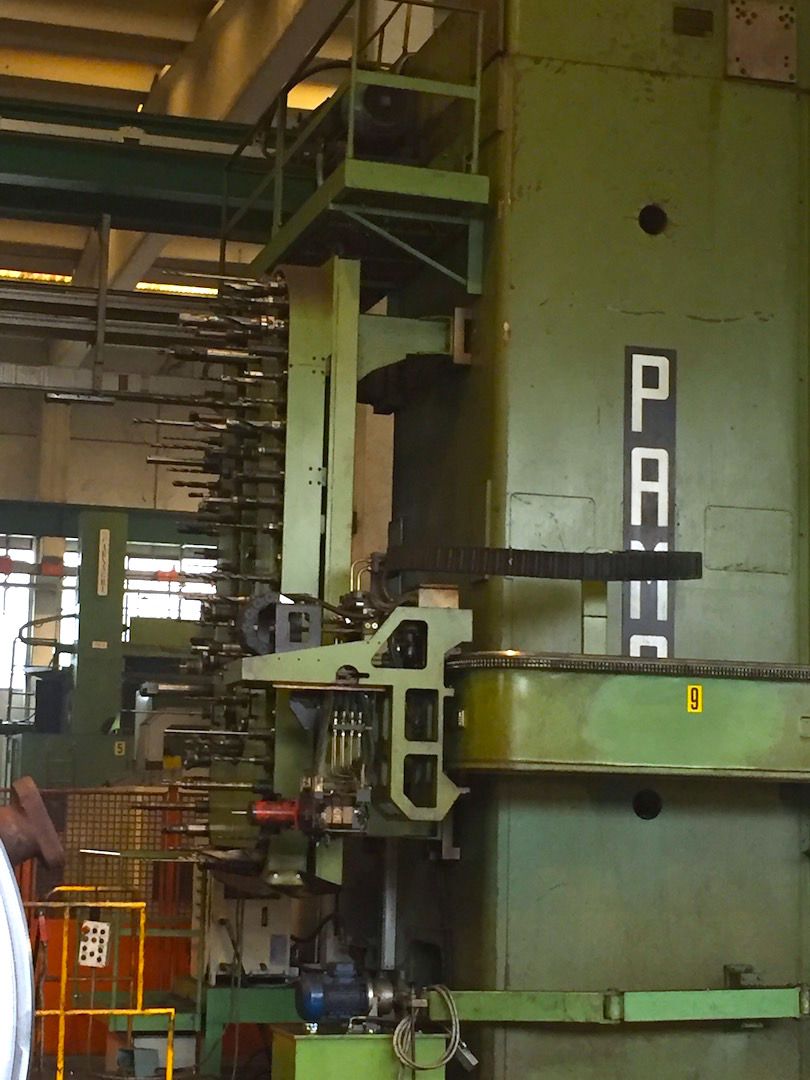

ATC
Positions
110
Tool taper
ISO50 DIN 69871
FIXING TABLE
Quantity
3
Floorspace (LxWxH)
4200x1500 mm165,35x59,06 in
PICK UP STATION FOR HEADS
Positions
3 posti, cambio accessori automatico

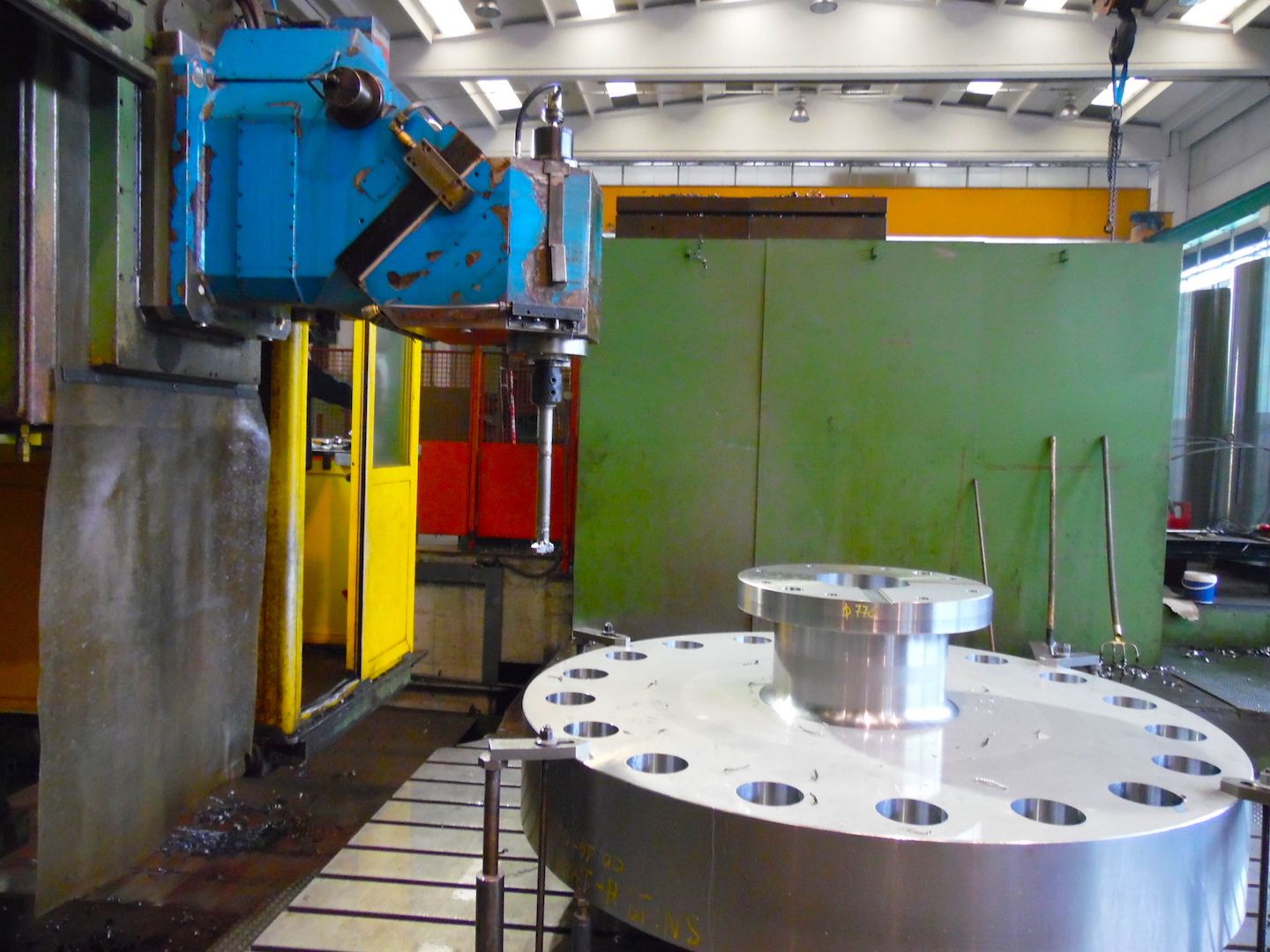

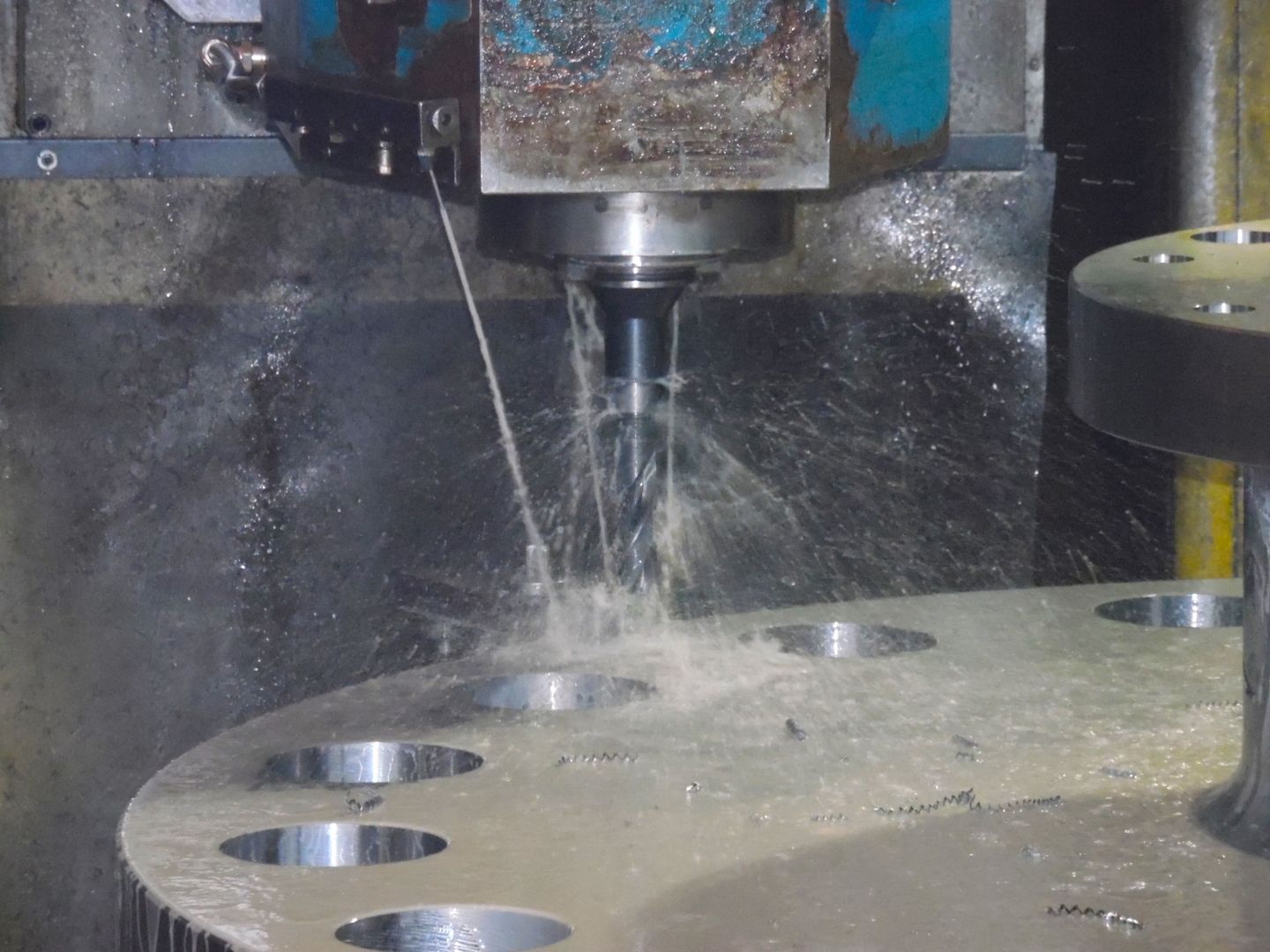

HEAD 1
Type
OVER
Available upon request
Yes
Spindle taper
ISO50 DIN69871
A axis
180 °
Max speed
2500 Rpm
Max power
50 Kw
Coolant
adduzione interna
EXTRA
Mobile operator platform
si
Chiller
si
Total power supply
180 Kw
Machine total weight
130.000 Kg
Maintenance & Use books
Yes
Electrical drawings
Yes
Chip conveyor
si
Availability
Agosto 2016
Available under power
si
Relevant updates made on the machine
Revisione meccanica macchina, centrale idrostatica separata, lubrificazione testa separata con frigorifero, bilanciamento testa con centralina separata e frigorifero, motori assi brushless, ATC110 posti con cambio sia in verticale che orizzontale, retrofitting completo con ECS4801
