Category
Boring Machine
Type
Mobile Column
Made
Model
M-ARX M90
Capacity
9000x3000x1200+600 mm354,33x118,11x47,24+23,62 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Longitudinal (X)
9000 mm354,33 in
Vertical (Y)
3000 mm118,11 in
Cross RAM (Z)
1200 mm47,24 in
Quill (W)
600 mm23,62 in
HEAD 2
Available upon request
No
Max torque
400 Nm
Max speed
7500 Rpm
HEAD 3
Available upon request
No
Max torque
1800 Nm
Max speed
2500 Rpm
CNC
Drives
SIEMENS SINUMERIK
CNC

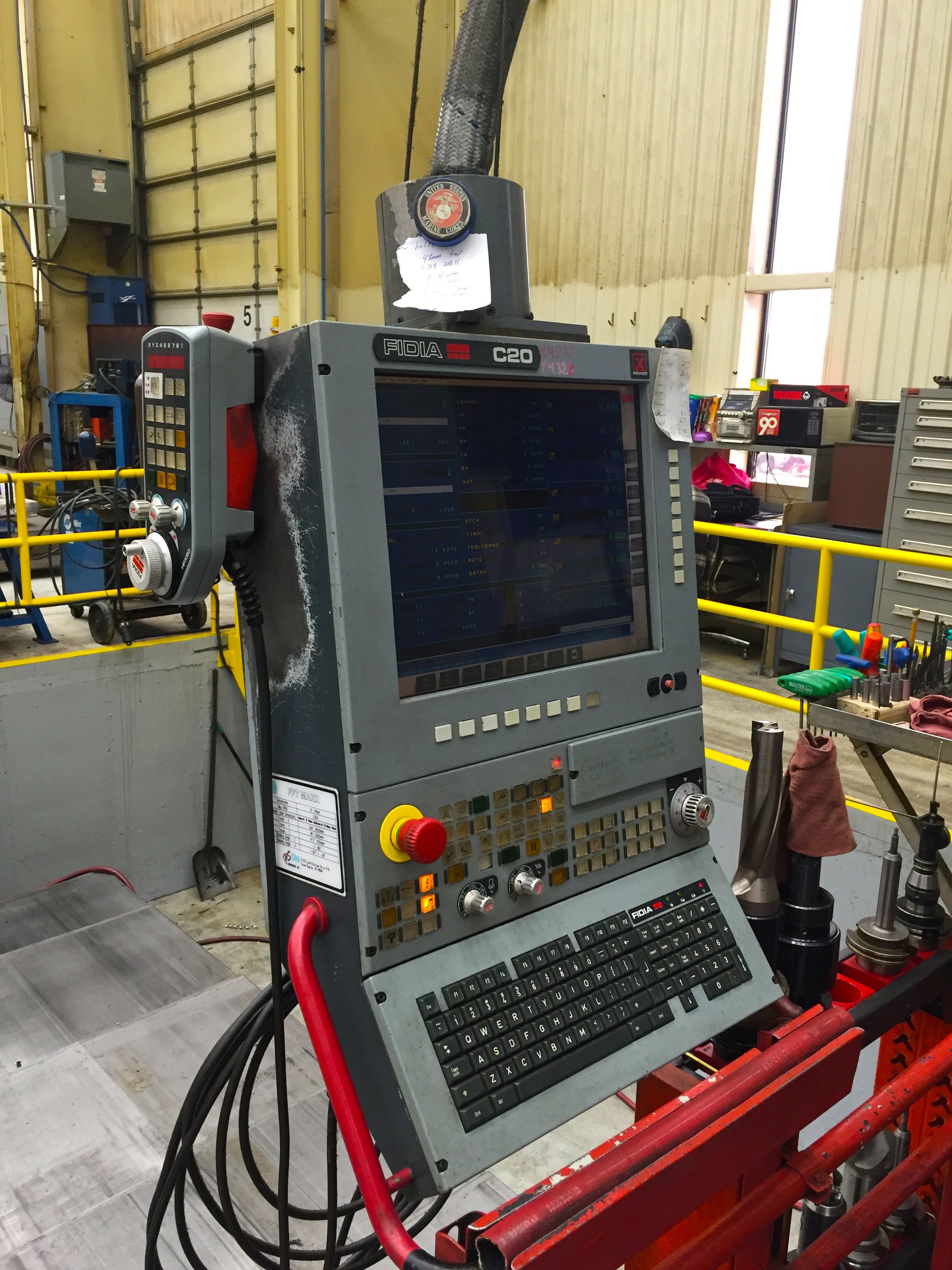

FIDIA C20
Notes
volantino remotato
SPINDLE
Quill diameter
130 mm5,12 in
Spindle power
47 Kw
Rotating speed
2500 Rpm
Taper
ISO50
Support
Hydrostatic
Gearbox
I:4-190
ATC
Positions
40
TABLE 1
Available upon request
No
PICK UP STATION FOR HEADS
Positions
4

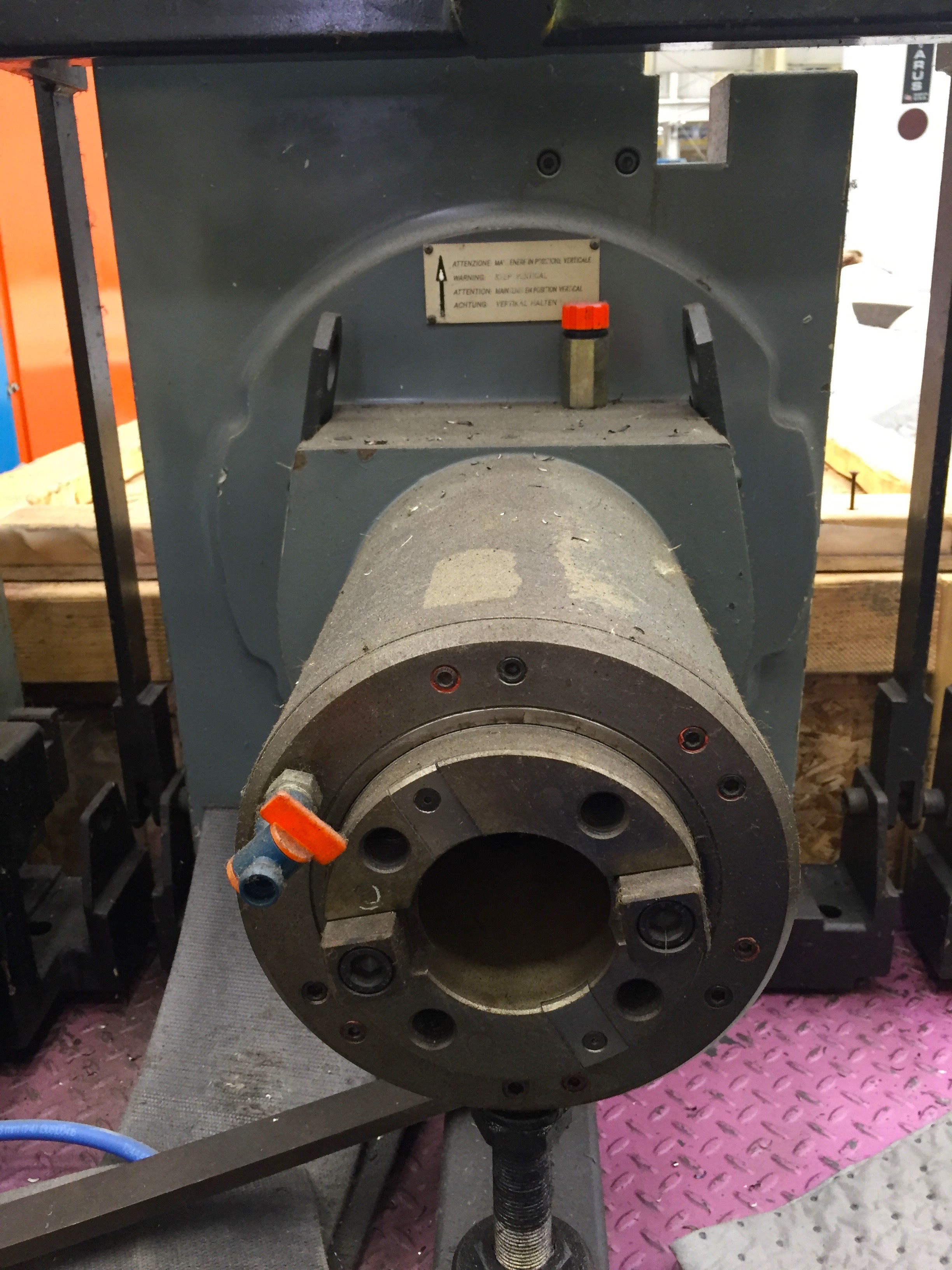

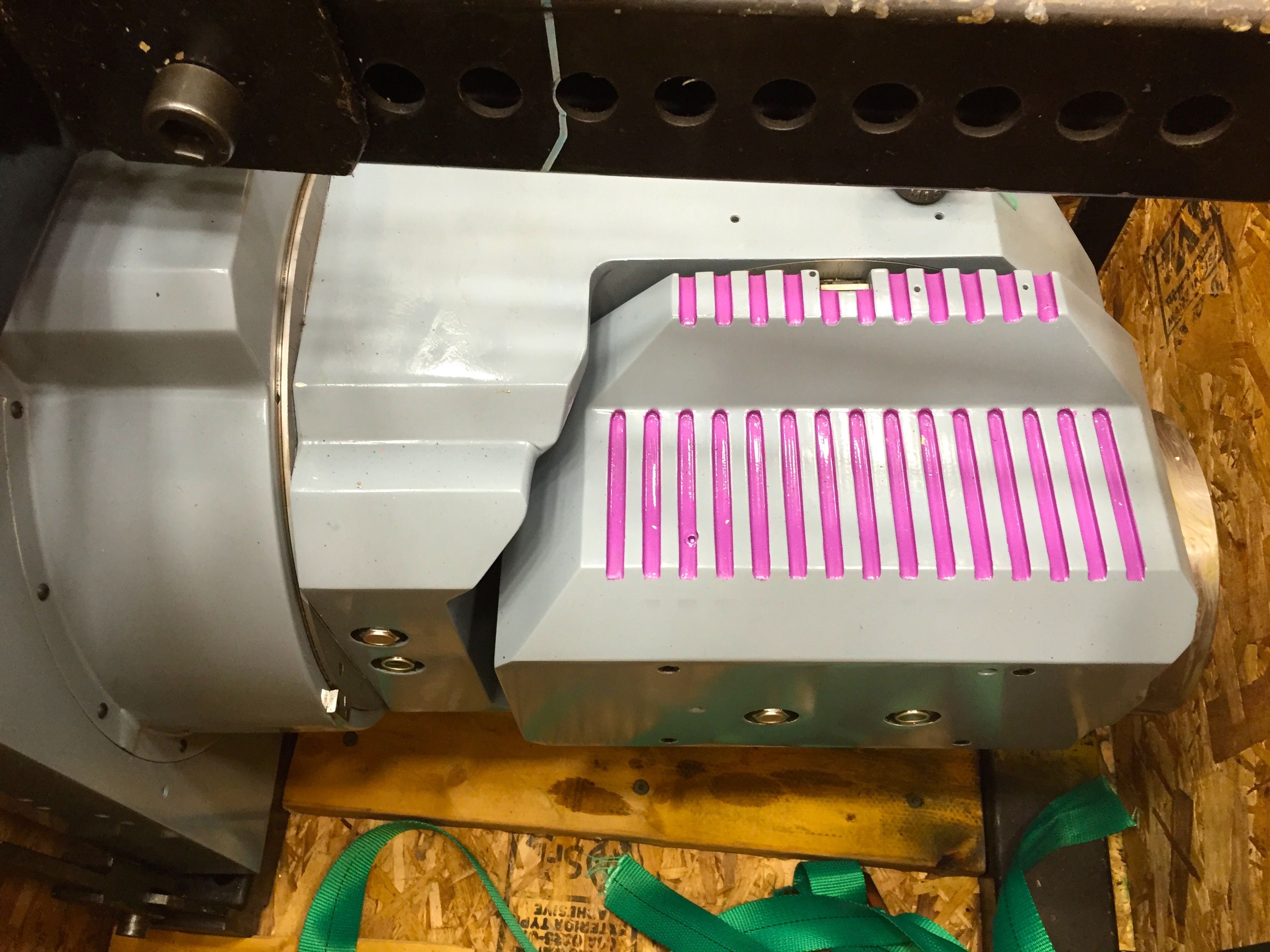

HEAD 1
Type
TAM
Spindle taper
ISO50
A axis
360x1 °
C axis
360x1 °
Max torque
1800 Nm
Max speed
2500 Rpm
FEEDS
Rapid X
15 m/min590,55 ipm
Rapid Y
15 m/min590,55 ipm
Rapid Z
15 m/min590,55 ipm
Rapid V
15 m/min590,55 ipm
X
10 m/min393,70 ipm
Y
10 m/min393,70 ipm
Z
10 m/min393,70 ipm
V
15 m/min590,55 ipm
W
15 m/min590,55 ipm
Rapid W
15 m/min590,55 ipm
EXTRA
Machine total weight
81000 Kg
Total power supply
95 Kw
Maintenance & Use books
Yes
Electrical drawings
Yes
Availability
pronta
Floor space
17100x9910x6330 mm673,23x390,16x249,21 in
Relevant updates made on the machine
Revisione Testa FPT TAM nel 2015
Available in stock
si
