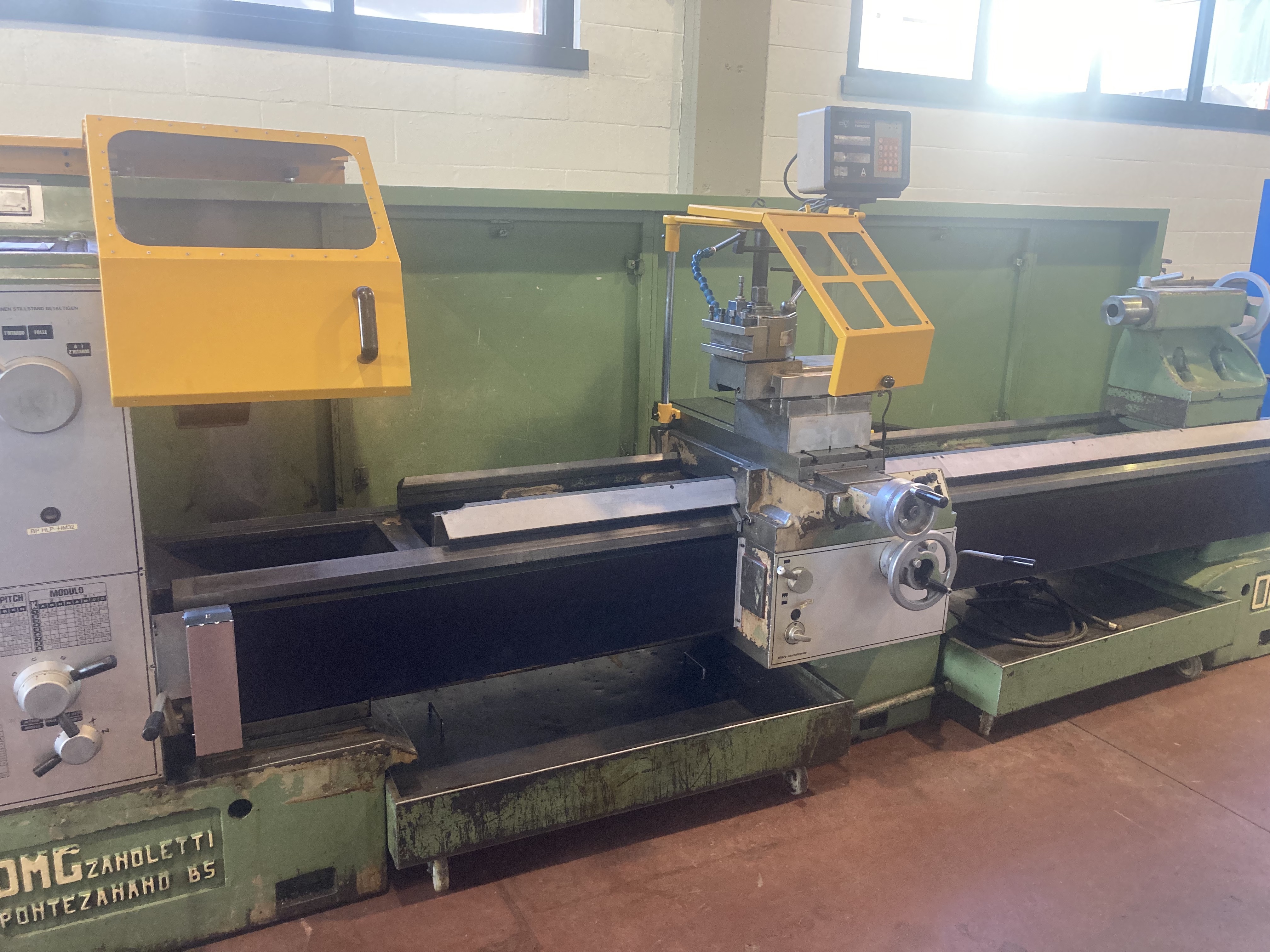

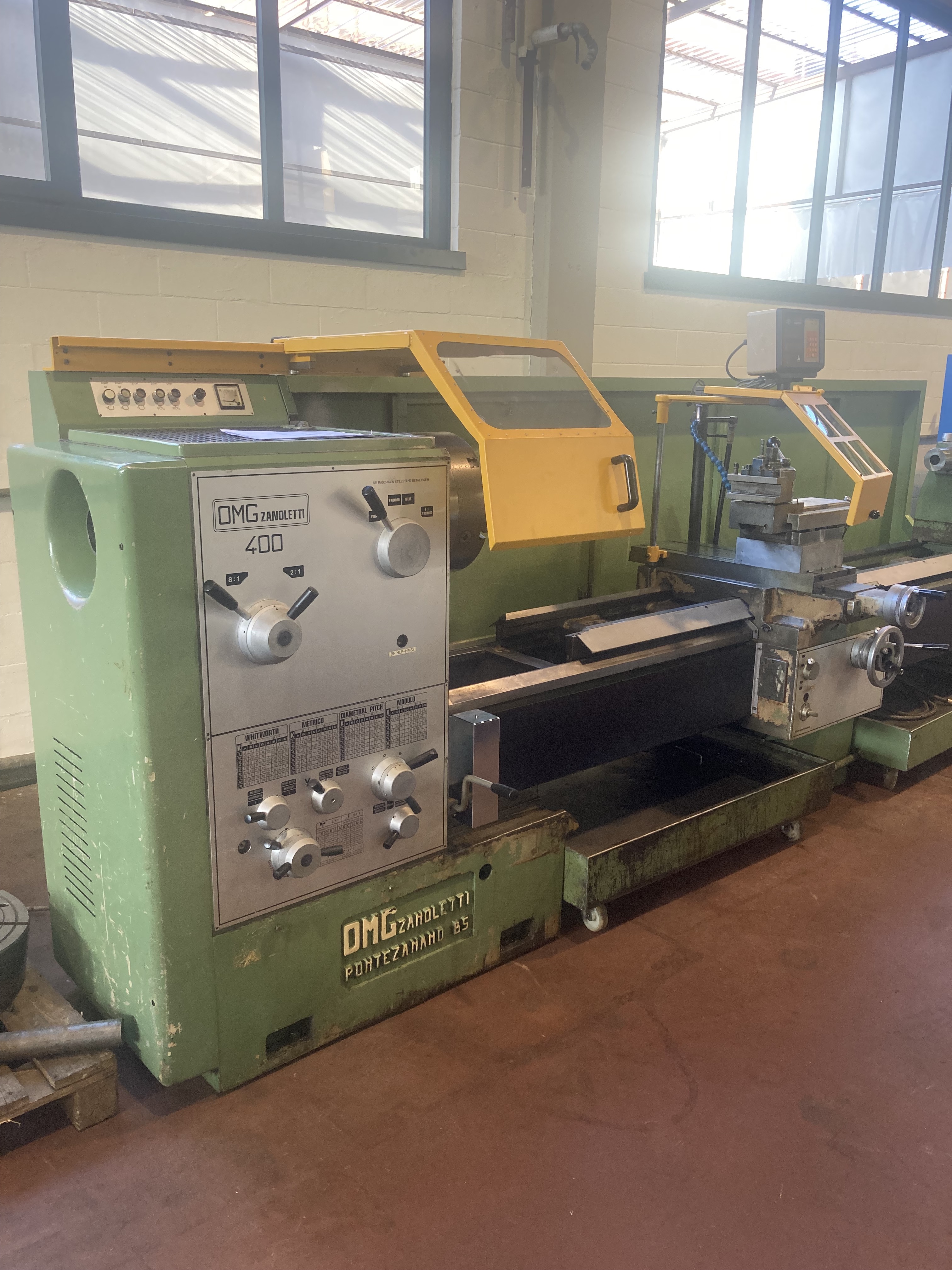

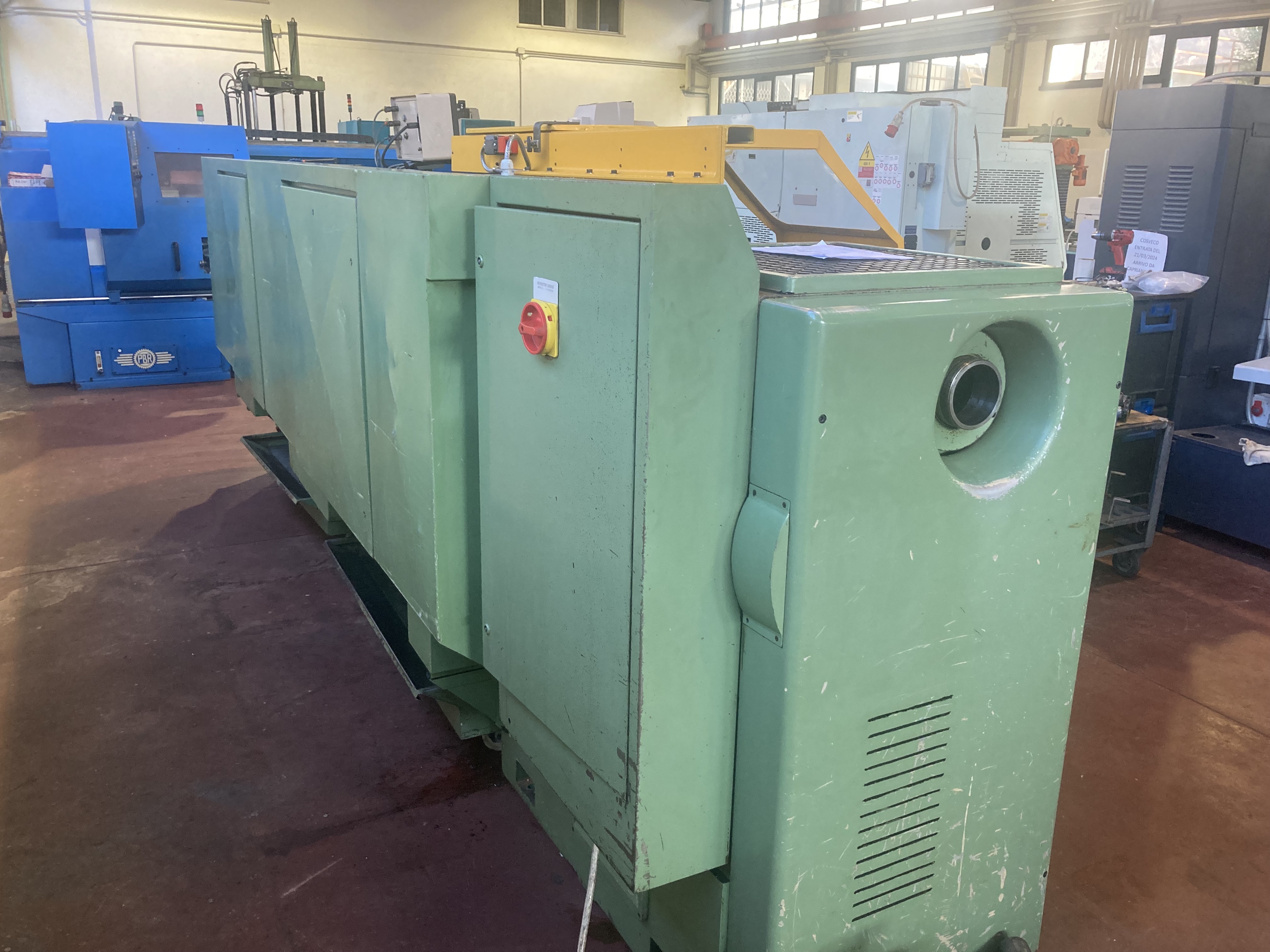

Category
Turning Machine
Type
Center
Made
Model
400X3000
Capacity
400 X 3000 X 105 mm15,75 X 118,11 X 4,13 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Centres distance
3000 mm118,11 in
Centres height
400 mm15,75 in
Longitudinal (Z)
3000 mm118,11 in
Cross (X)
400 mm15,75 in
Max diameter on the bed
800 mm31,50 in
Max swing on saddle
570 mm22,44 in
Max swing in the gap
1000 mm39,37 in
Bar passage
105 mm4,13 in
Notes
VARI ACCESSORI,BARENI,LUNETTE ETC.
No
BED
Bed width
490 mm19,29 in
Guide-ways number
2
Max weight between centres
2000 Kg

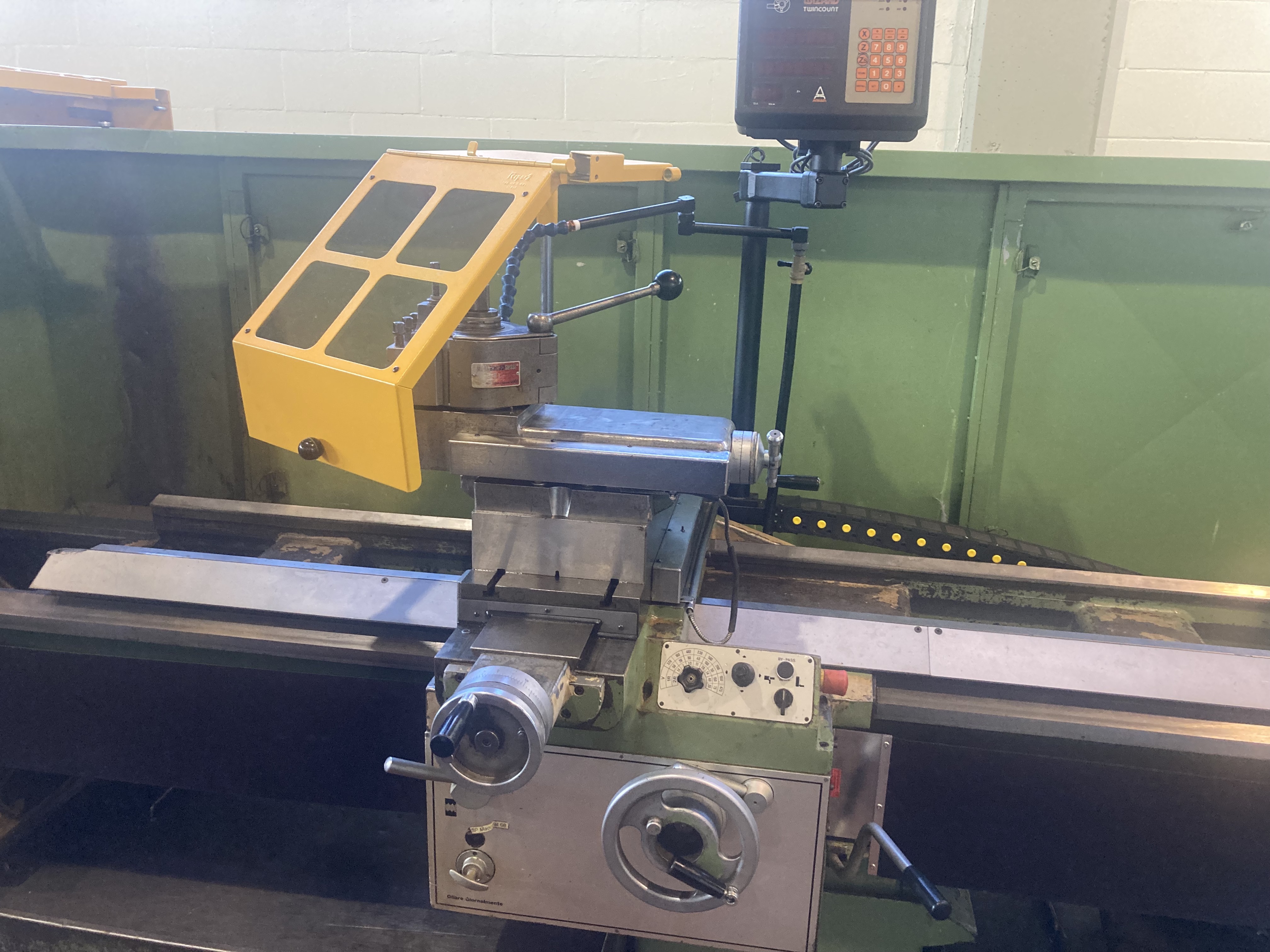

SADDLE
Z rapid feed
si mm/minsi ipm
X rapid feed
si mm/minsi ipm
No
HEAD
Spindle power
20 Kw
Spindle speed
20-1000 Rpm
Spindle taper
11"
TURRET
Positions
MULTIFIX

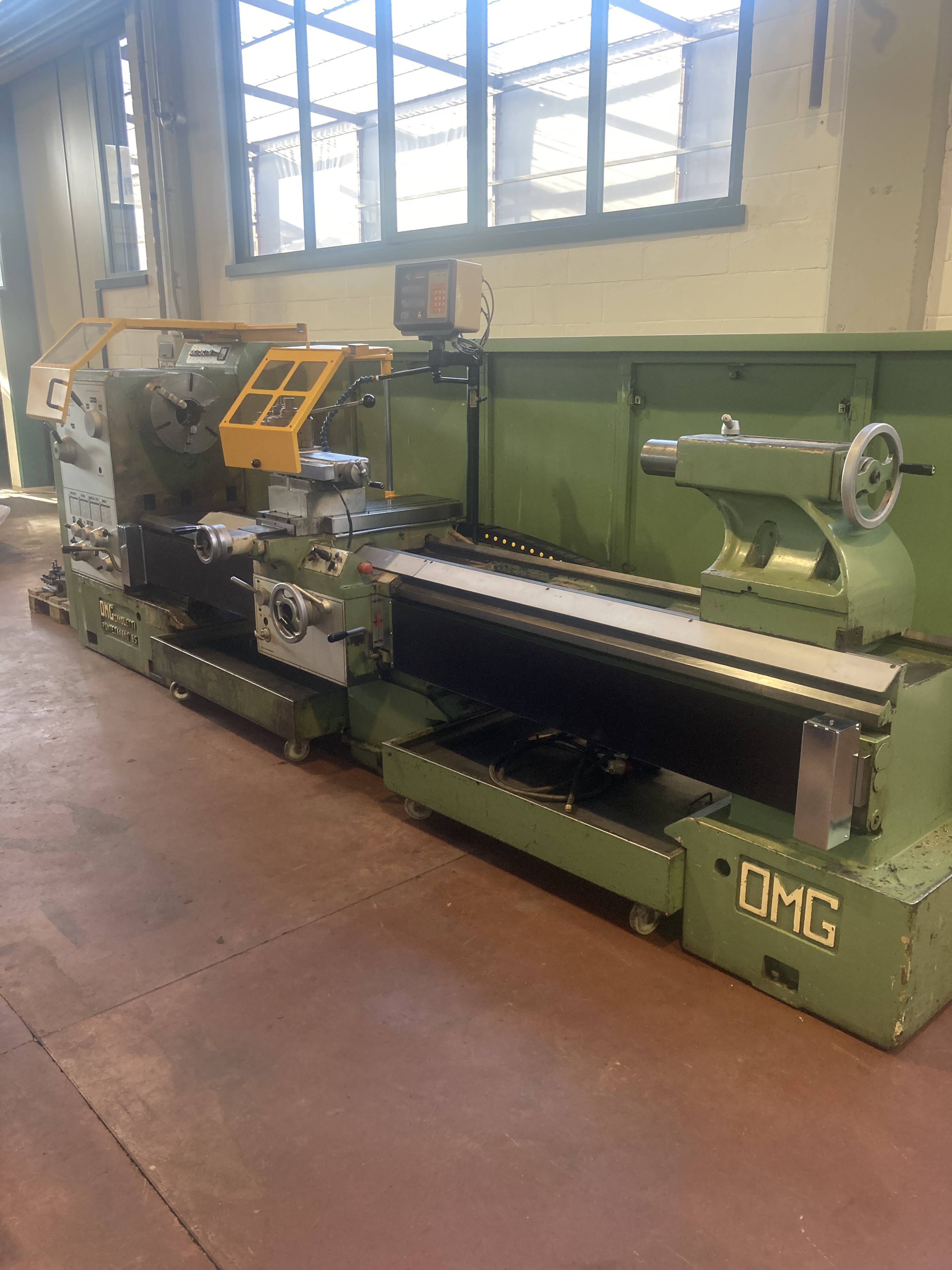

TAILSTOCK
Quill diameter
100 mm3,94 in
Quill stroke
270 mm10,63 in
Taper
5 CM
EXTRA

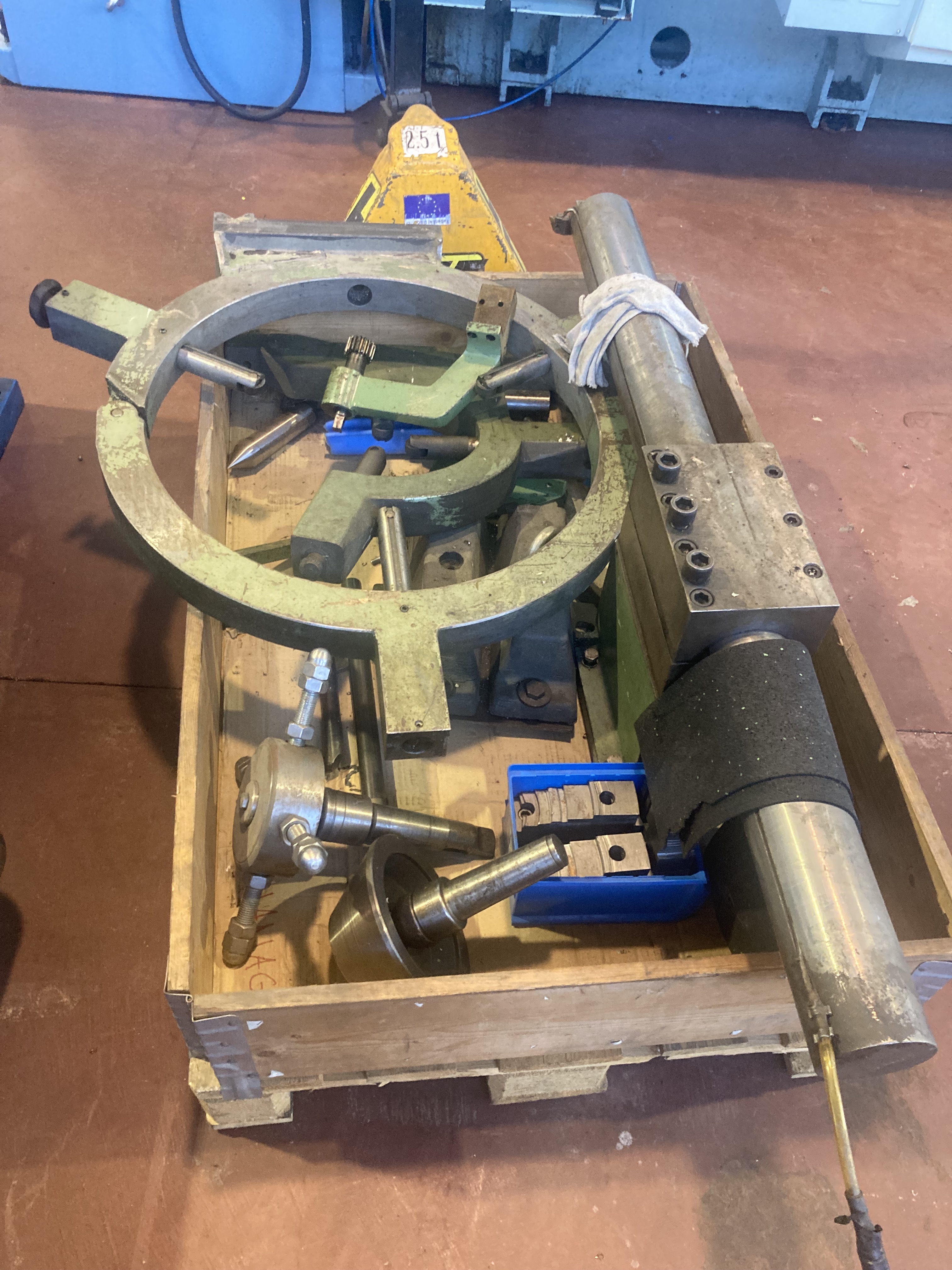

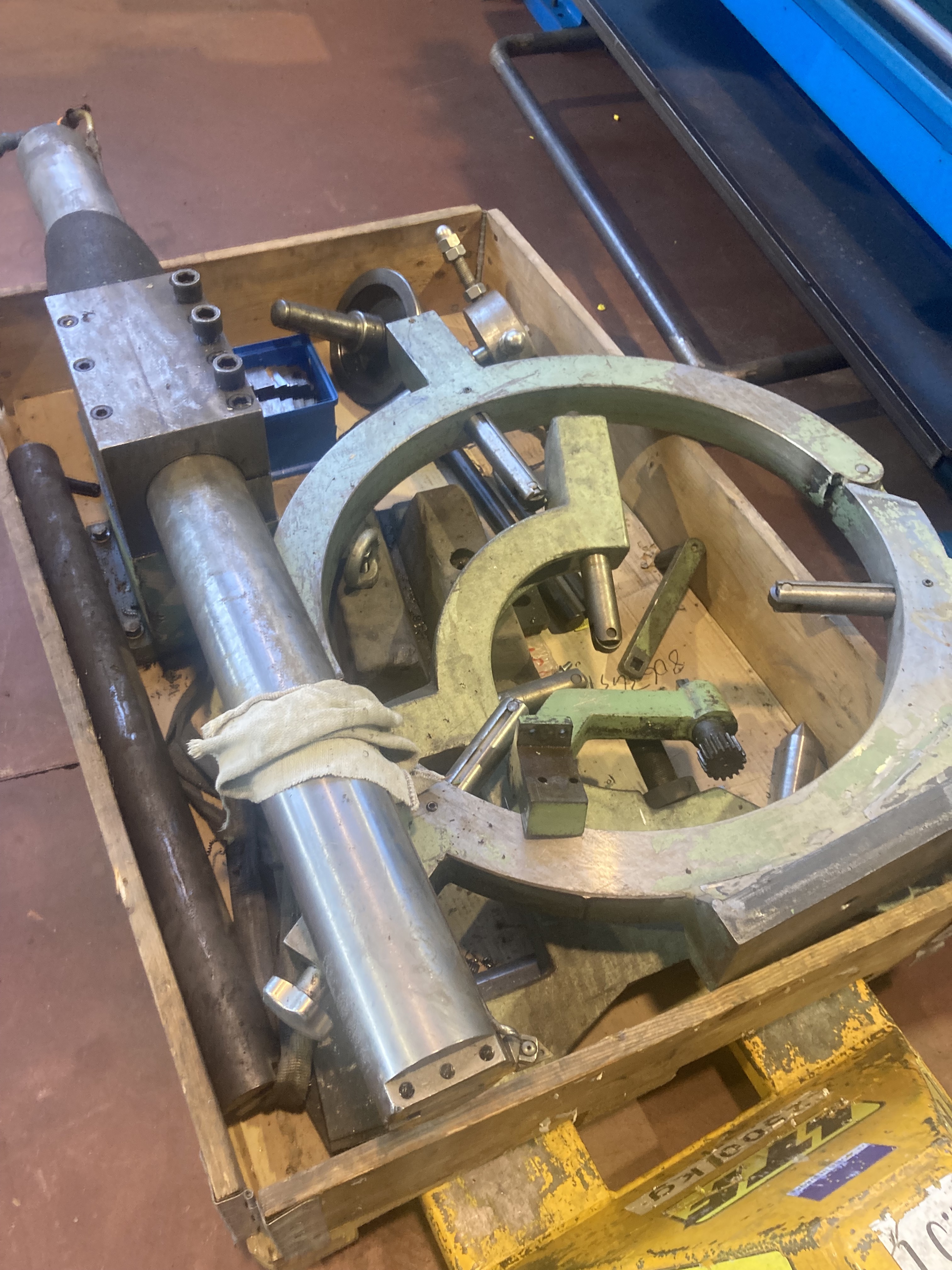

Closed steadies
2
Platform
800 MM
Electrical drawings
Yes
Protections
SI
Availability
PRONTA
Available under power
SI
Machine total weight
5200 Kg
Floor space
5000X1900 mm196,85X74,80 in
Digital read out (DRO)
3 ASSI
Open steadies
3 LUNETTE

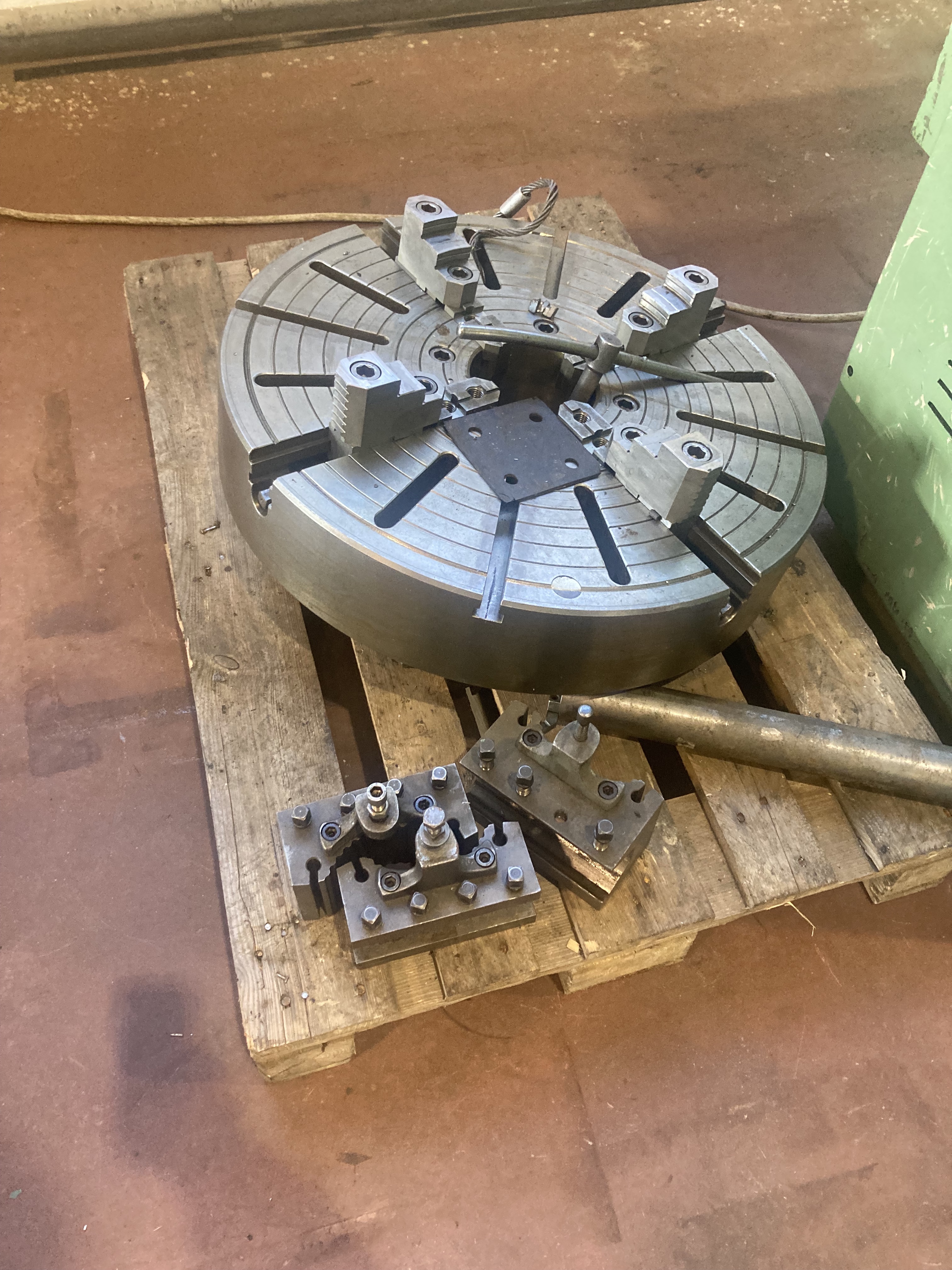

Autocentering chuck
400+PIATTAFORMA 600 MM
Maintenance & Use books
Yes
Available in stock
SI
