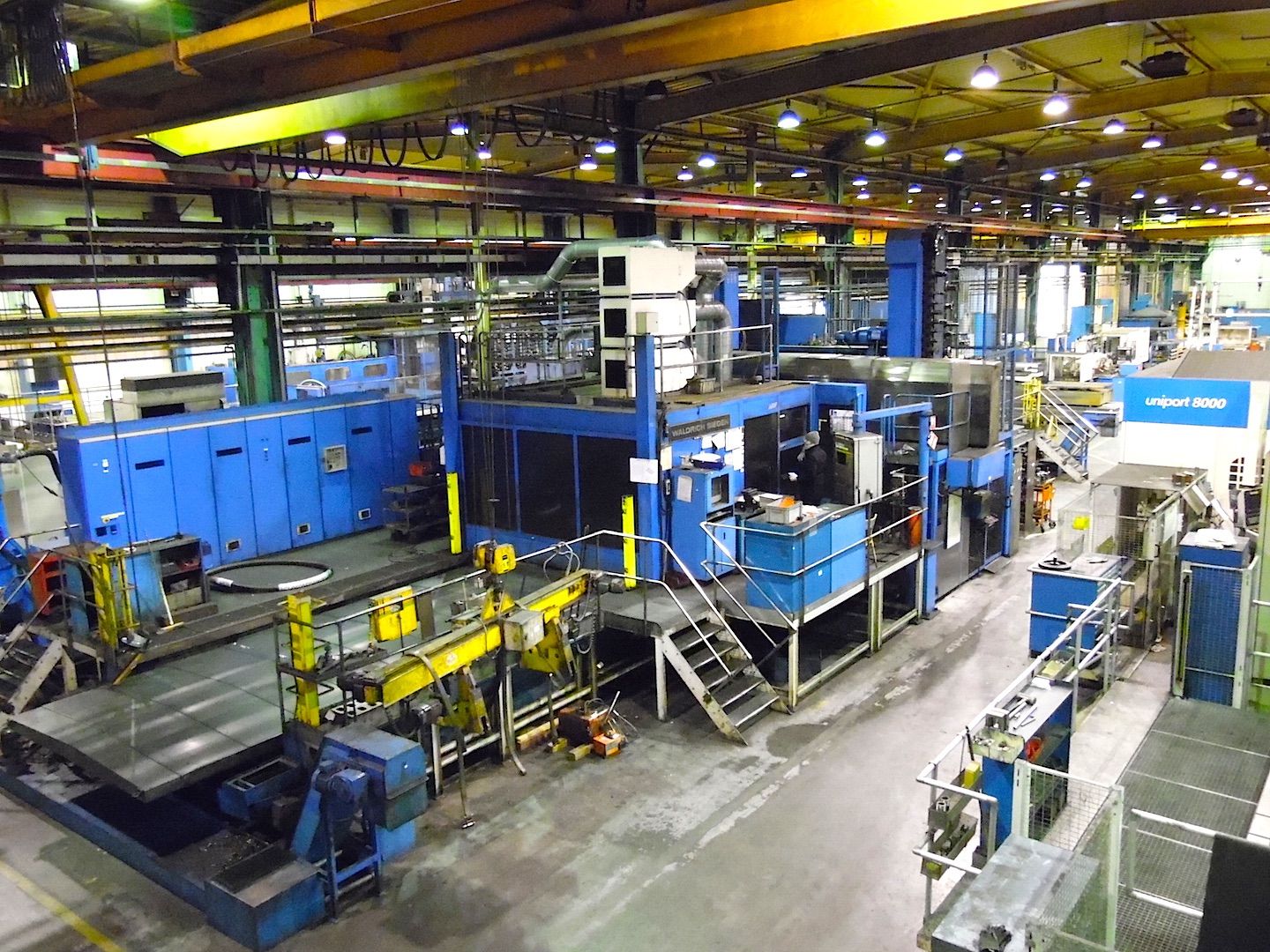

Category
Milling machine
Type
Portal
Made
Model
VH FR 100KW
Capacity
10.753(4750)x3500x1200 mm0,42(187,01)x137,80x47,24 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Longitudinal (X)
4750 mm187,01 in
Longitudinal with coupled tables (X)
10753 mm423,35 in
Vertical RAM (Y)
1500 mm59,06 in
Cross (Z)
4400 mm173,23 in
Spindle nose - table distance
1200 mm47,24 in
Quill (W)
positioned 0-200-350-500 mmpositioned 0,00-7,87-13,78-19,69 in
Column distance
3500 mm137,80 in
CNC
CNC
SIEMENS SINUMERIK
Drives
SIEMENS SIMODRIVE
SPINDLE
Quill diameter
260 mm10,24 in
RAM section
600x600 mm23,62x23,62 in
Spindle power
100 Kw
Gearbox
I: 9,5-248 II: 27,6 - 720 III: 76,6 - 2.000
Rotating speed
9,5-2000 Rpm
Torque
7500 Nm
Taper
ISO50 / DIN 69871
FEEDS
Rapid X
15 m/min590,55 ipm
Rapid Y
15 m/min590,55 ipm
Rapid Z
10 m/min393,70 ipm
Rapid W
2,7 m/min106,30 ipm
ATC
Positions
72
TABLE 1
Surface
4500x3000 mm177,17x118,11 in
Capacity
90.000 Kg
AVAILABILITY OF CLAMPED TABLES WORK
Total surface
11453 mm450,90 in
Total weight capacity
180.000 Kg
PICK UP STATION FOR HEADS
Positions
6
HEAD 1
Type
Automatica 90°
C axis
4x90 °
Max torque
7500 Nm
Max speed
2000 Rpm
Max power
100 Kw
TABLE 2
Surface
4500x3000 mm177,17x118,11 in
Capacity
90.000 Kg
HEAD 2
C axis
4x90 °
Max torque
7500 Nm
Max speed
2000 Rpm
Max power
100 Kw
HEAD 3
Max torque
7500 Nm
Max speed
2000 Rpm
Max power
100 Kw
HEAD 4
Max torque
7500 Nm
Max speed
2000 Rpm
Max power
100 Kw
HEAD 5
Max torque
7500 Nm
Max speed
2000 Rpm
Max power
100 Kw
EXTRA
Aggiungi Testa n
Yes
Machine total weight
200000 Kg
Floor space
25200x8730x5720 mm992,12x343,70x225,20 in
Tooling included
vasta filtraggio Knoll, 4 aspiratori, 3 chip conveyor, carenatura completa, oltre 200 coni ISO50 con utensili in dotazione, barriere laser di sicurezza
Filtration unit
Knoll
Workpiece touch probe
Renishaw
Housing
Integrale con apertura porte automatica
Chip conveyor
si
Mist extractor
4 Fibaron
Availability
pronta
Available in stock
si
