Category
Milling machine
Type
mobile column
Made
Model
ML130 / 10000
Capacity
10000x3000x1300 mm393,70x118,11x51,18 in

Technical specifications

Metric Imperial
WORKING CAPACITY
Table (V)
1500 mm59,06 in
Longitudinal (X)
10000 mm393,70 in
Vertical (Y)
3000 mm118,11 in

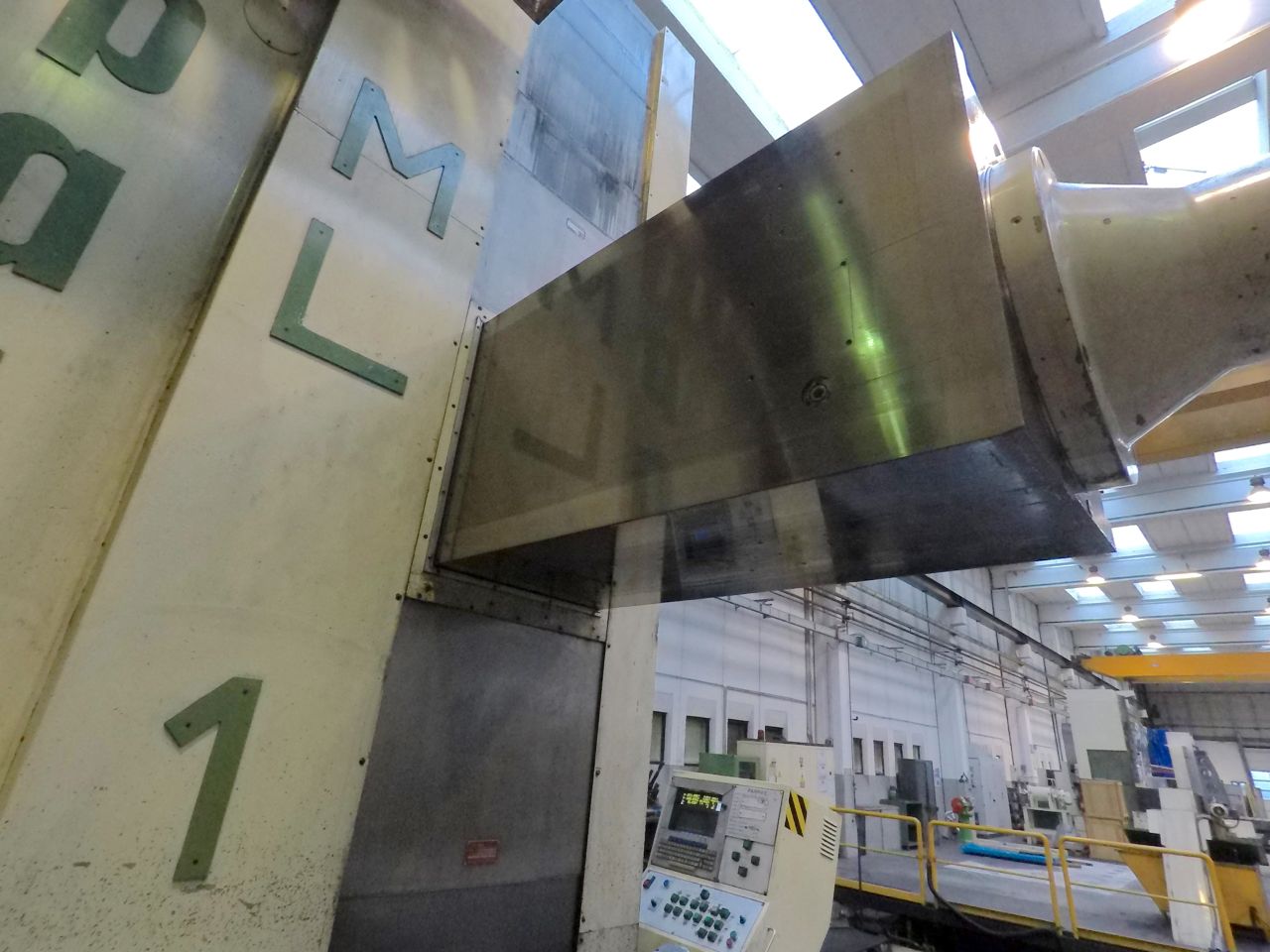

Cross RAM (Z)
1300 mm51,18 in
ATC
Positions
40
Tool taper
ISO50

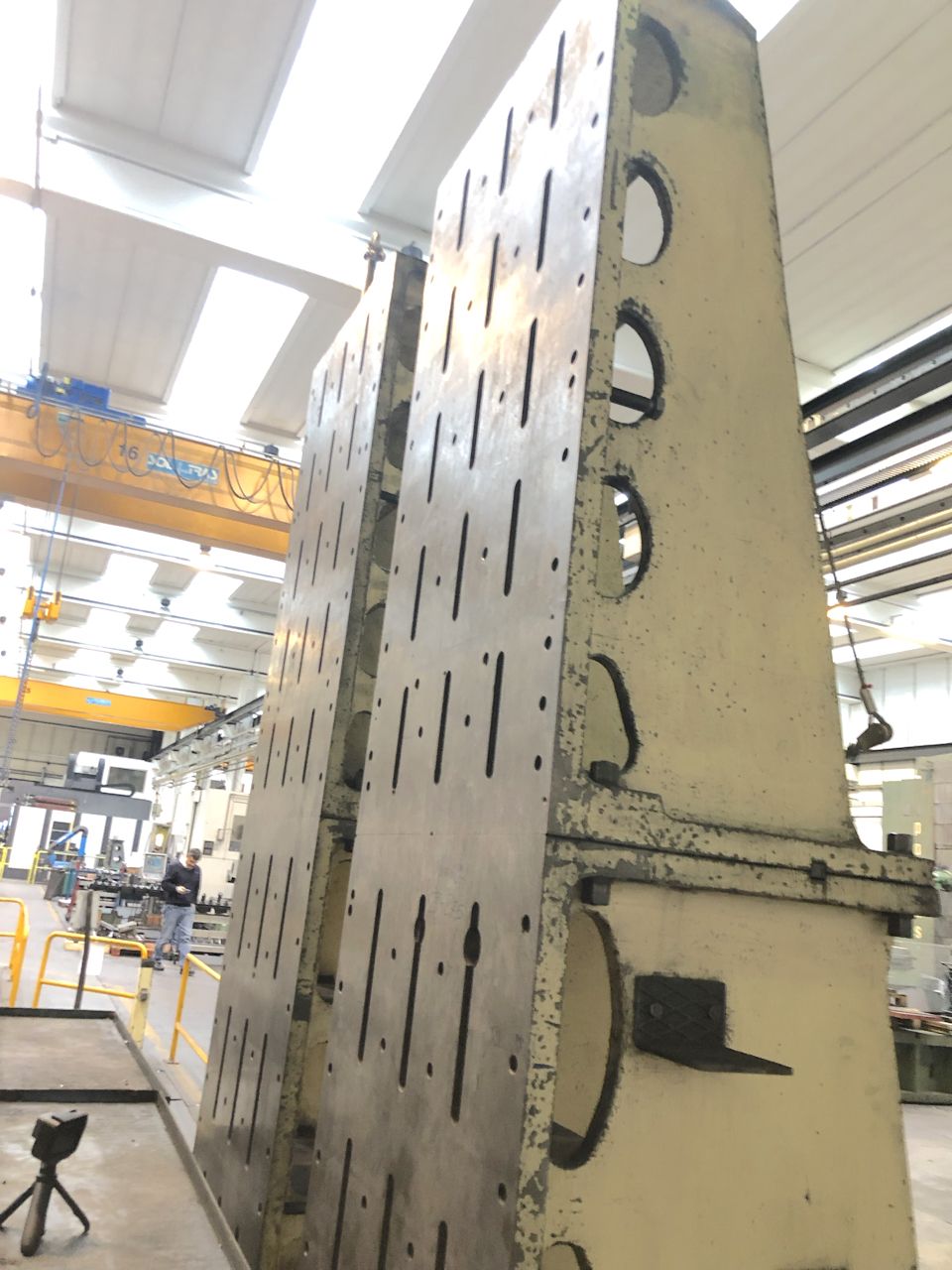

FIXING TABLE
Quantity
n.4 piani 4500x1500
Floorspace (LxWxH)
4500x1500 mm177,17x59,06 in

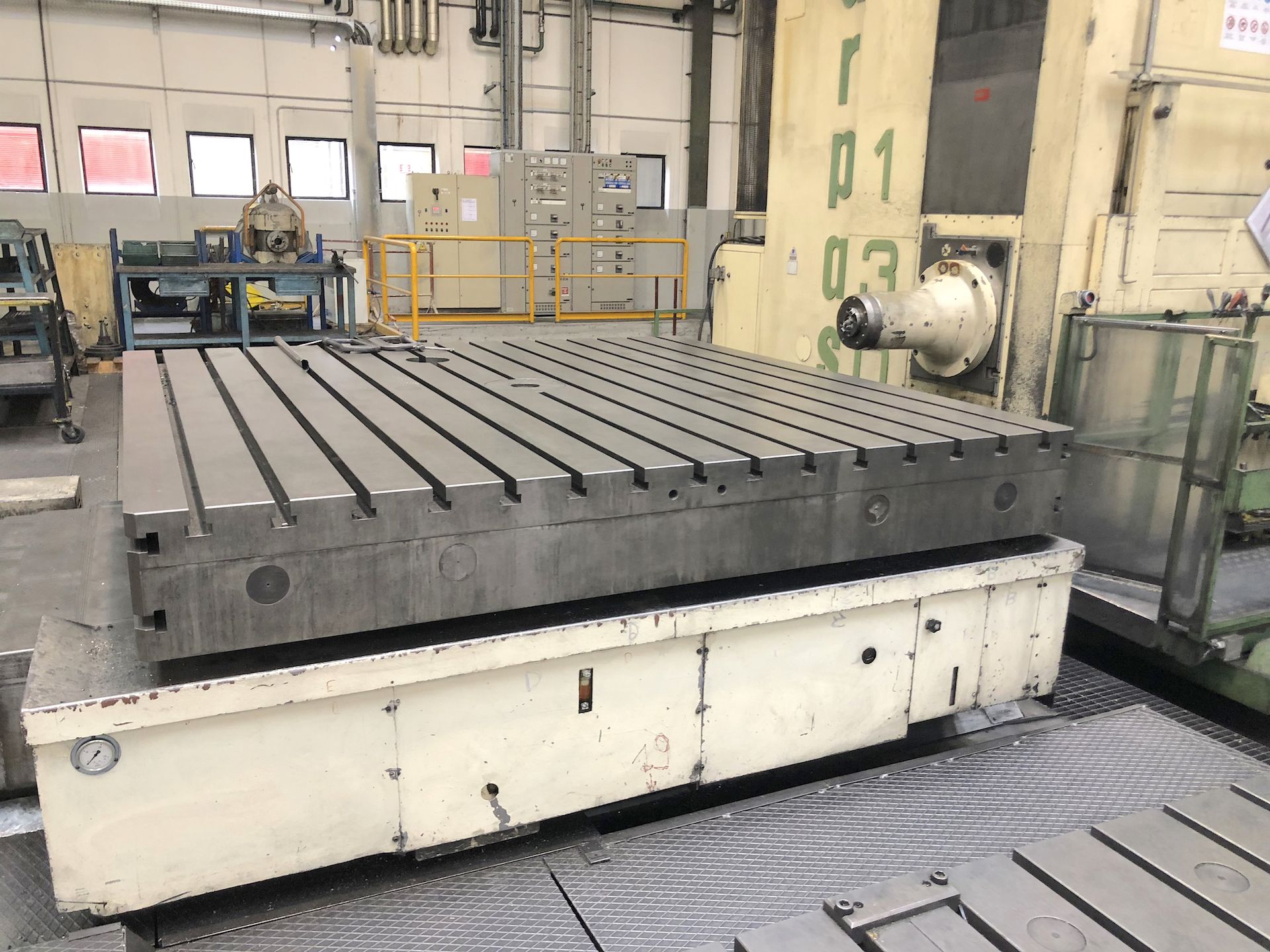

TABLE 1
Surface
2500x2500 mm98,43x98,43 in
Translation
1500 mm59,06 in
Capacity
25.000 Kg
Support
idrostatico
Rotating speed
2 Rpm o °/min

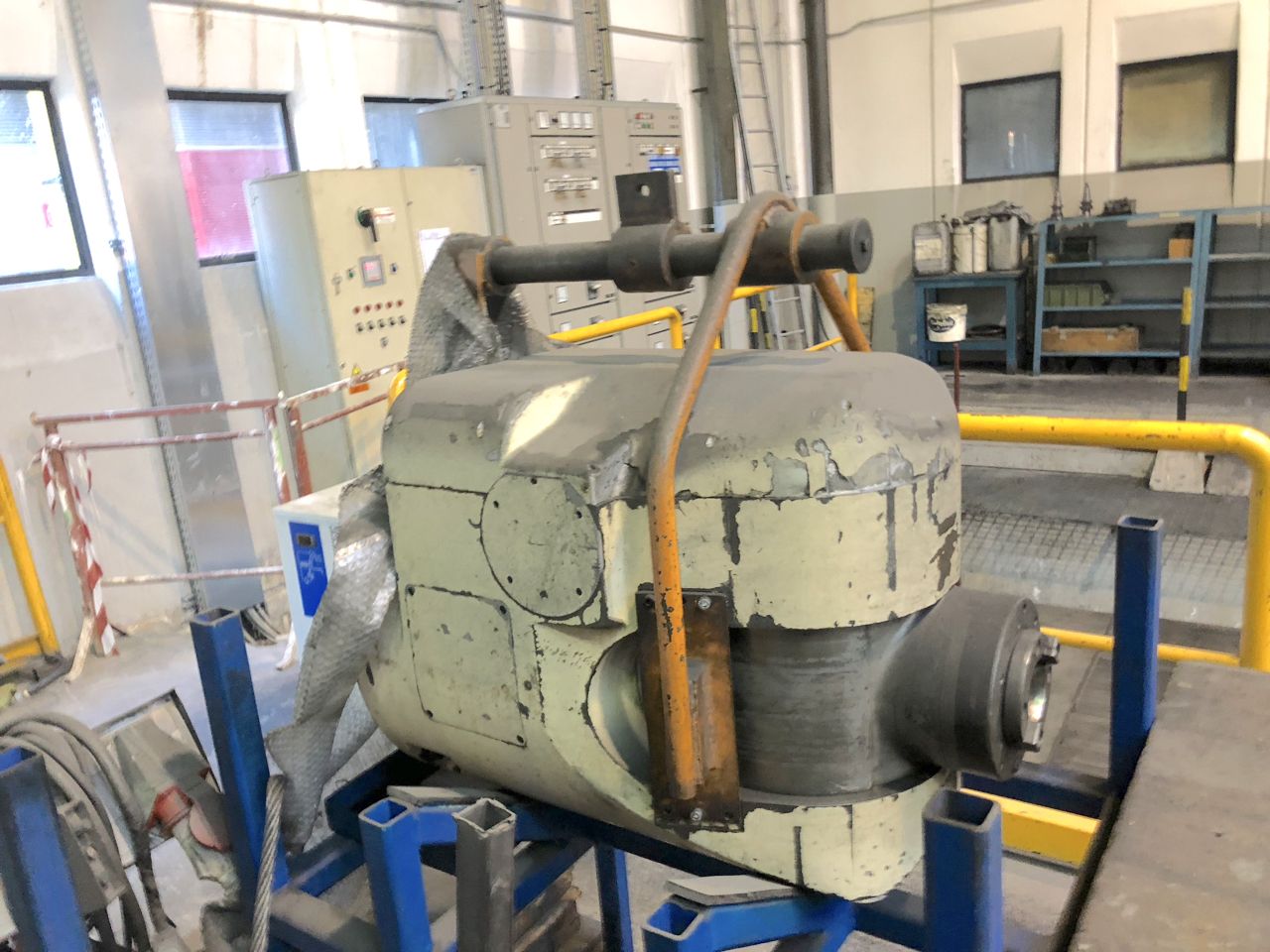

HEAD 1
Type
Testa TWIST TW130
Spindle taper
ISO50
A axis
+/-95 °
C axis
continuo 360 °
Max speed
2500 Rpm
Max power
37/53 Kw
HEAD 2
Available upon request
No
Max speed
2500 Rpm
Max power
37/53 Kw
SPINDLE
Spindle power
37/53 Kw
Gearbox
300-1200Rpm / 1200-3000Rpm
Rotating speed
2500 Rpm
Taper
ISO50

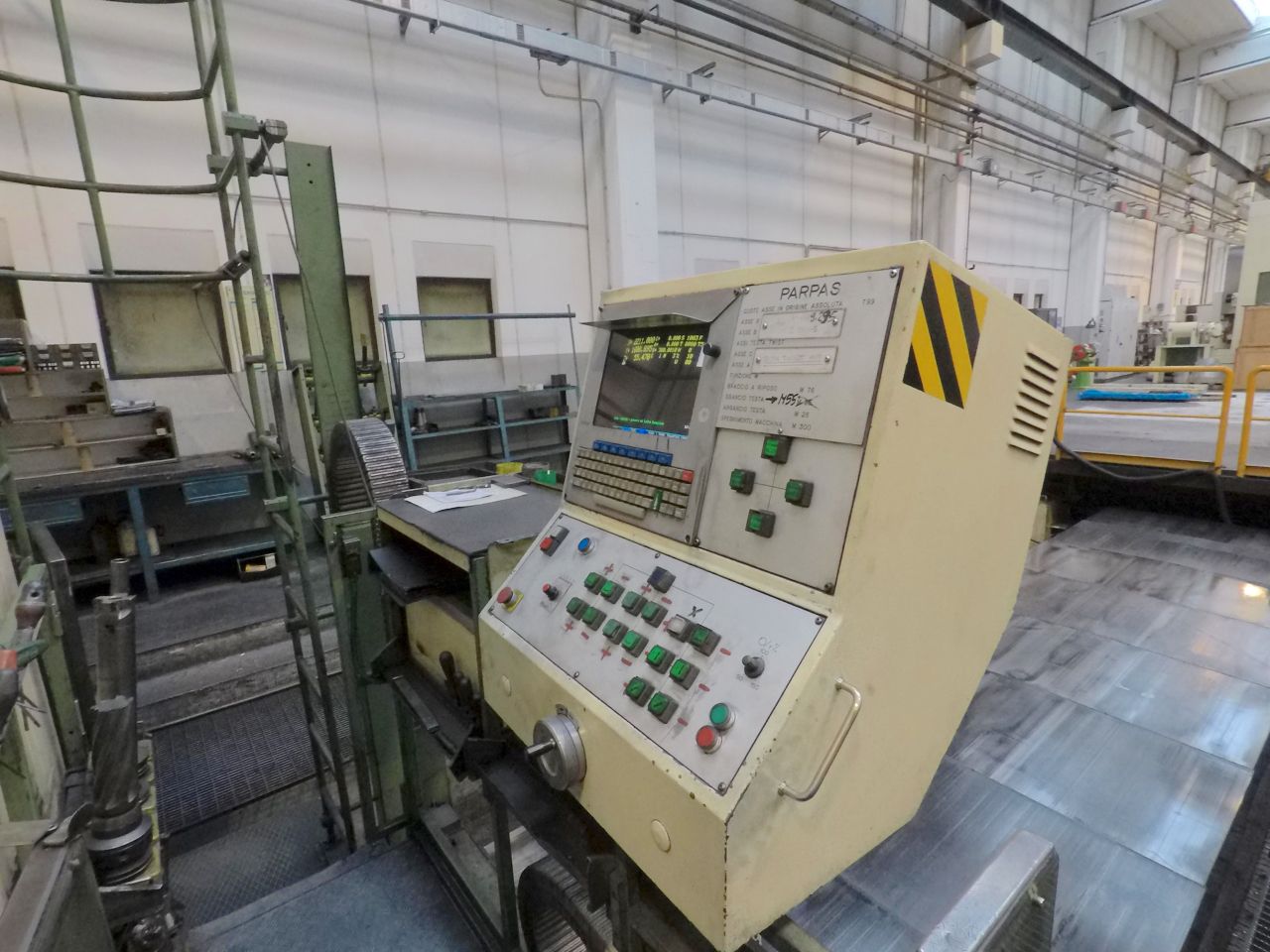

CNC
CNC
SELCA S1200
EXTRA
Floor space
19900x9650x7290 mm783,46x379,92x287,01 in
Machine total weight
76900 Kg
Electrical drawings
Yes
Maintenance & Use books
Yes

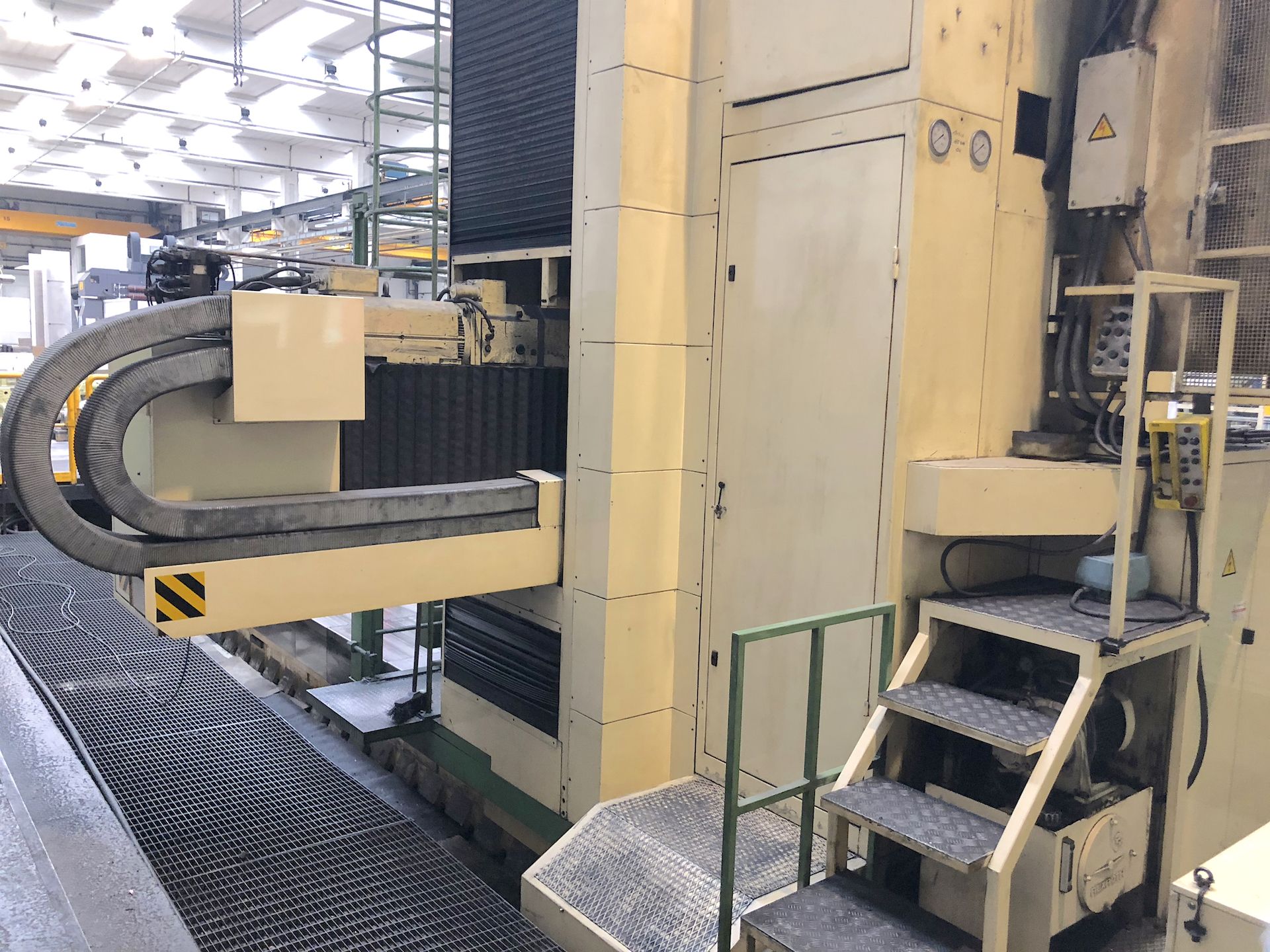

Mobile operator platform
Verticale / Trasversale

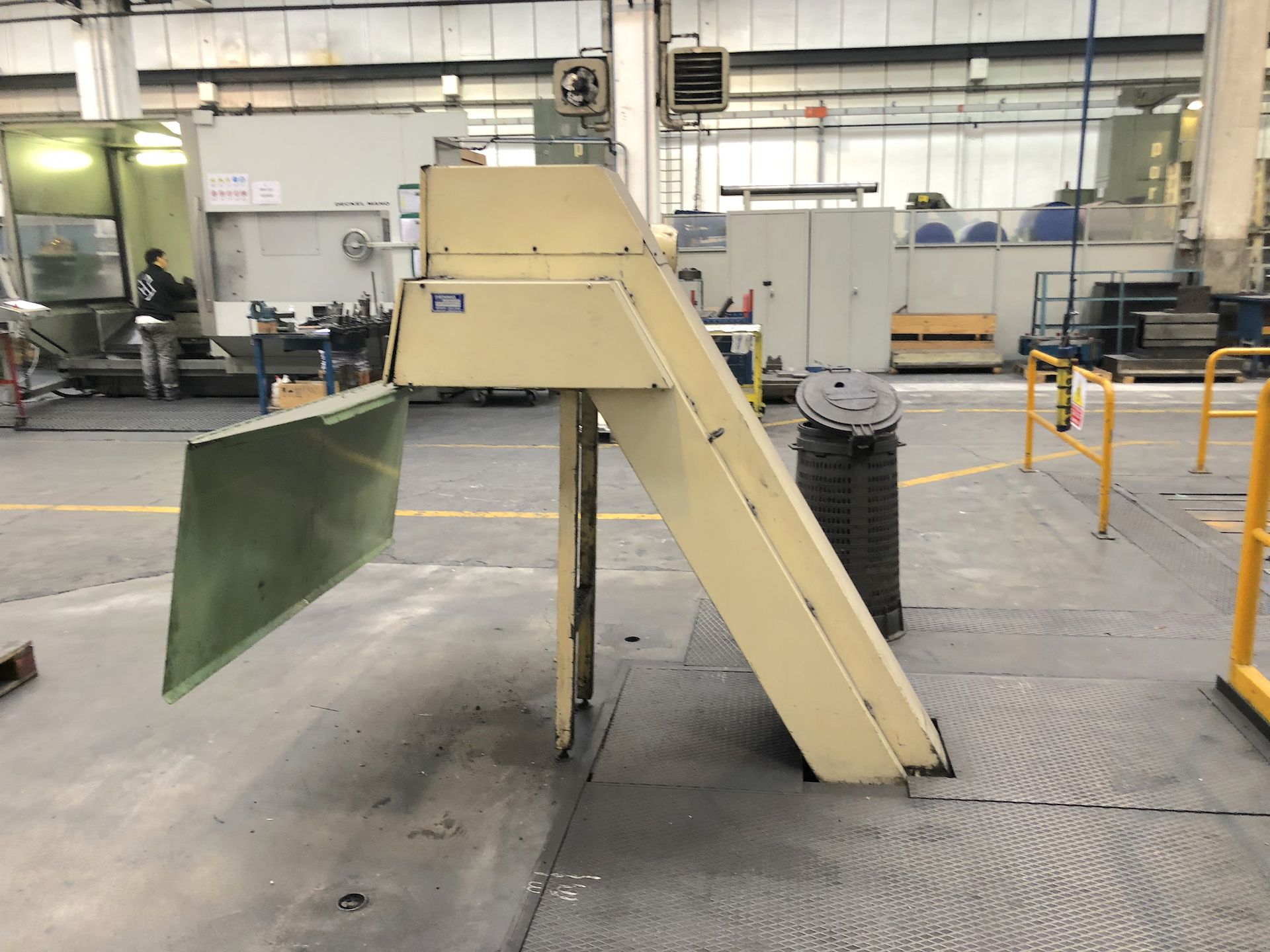

Chip conveyor
si
Availability
pronta
Available under power
si
